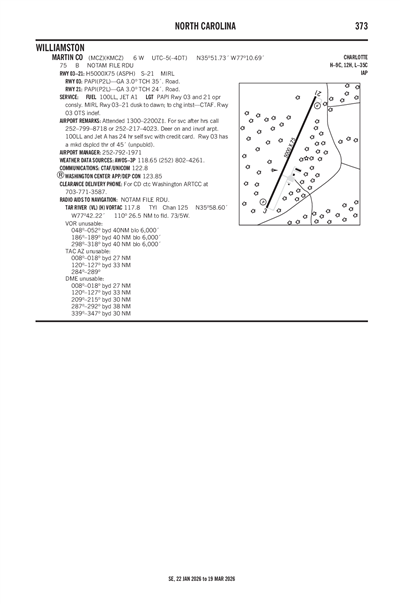

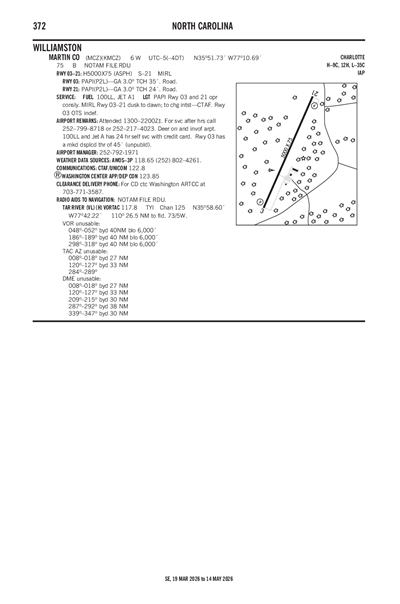

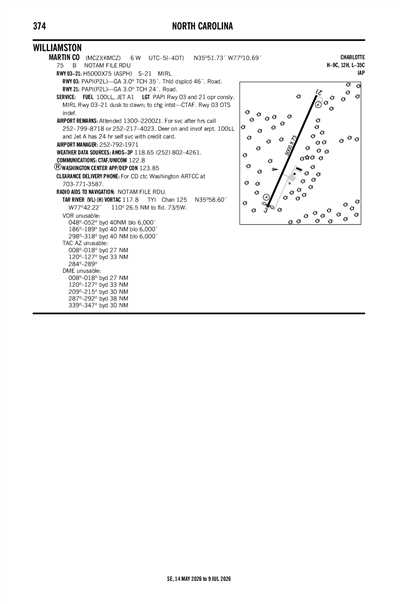

MARTIN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCZ
MARTIN COUNTY
PublicPUB

6 miles W of WILLIAMSTON, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 51' 44"N 77° 10' 42"W
75' MSL
1075' MSL
09W
JET A-1, 100LL
RALEIGH (RDU)
CHARLOTTE
WASHINGTON (ZDC)
2/20/25-3/20/25
KMCZ VFR
10:05 AM EDT
Clear
10sm
44°F
33°F
30.17"Hg
Calm
AO2 T00660004
KMCZ 091405Z AUTO 00000KT 10SM CLR 07/00 A3017 RMK AO2 T00660004
Add Your Business

KMCZ FBOs

Promote Listing
Juliet Charlie Aviation
UNICOM: 122.8
Phone: (252) 792-1971
Other: (252) 799-8718
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 3/7
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.05
Full Serve 4.50
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
252-802-4261
 118.65

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPGV (17nm)
Sun, 3/9 7:20 AM EDT
Sun, 3/9 8:00 AM EDT - Mon, 3/10 8:00 AM EDT
VFR
8:00 AM EDT - 1:00 PM EDT
Scattered 20,000'
6sm
VRB° 3kts
VFR
1:00 PM EDT - 8:00 PM EDT
Scattered 17,000'
6sm
210° 5kts
VFR
8:00 PM EDT - 8:00 AM EDT
Few 21,000'
6sm
Calm
KPGV 091120Z 0912/1012 VRB03KT P6SM SCT200
   FM091700 21005KT P6SM SCT170
   FM100000 00000KT P6SM FEW210 AMD LTD TO CLD VIS AND WIND
KMCZ
Domestic
3/5/252351Z !RDU 03/078 MCZ OBST TOWER LGT (ASR 1325109) 355630.48N0771217.36W (4.9NM NNW MCZ) 361FT (290FT AGL) U/S 2503052351-2504192351
2/21/252218Z !RDU 02/374 MCZ OBST TOWER LGT (ASR 1011732) 355355.00N0765909.00W (9.6NM ENE MCZ) 1037.4FT (1017.4FT AGL) U/S 2502212218-2504072217
2/12/252011Z !RDU 02/112 MCZ OBST TOWER LGT (ASN 2019-ASO-15751-OE) 355817N0771757W (8.7NM NW MCZ) 378FT (310FT AGL) U/S 2502122011-2503292011
2/2/251342Z !RDU 02/003 MCZ OBST TOWER LGT (ASR 1257521) 355911.10N0765729.10W (13.2NM NE MCZ) 290.7FT (259.8FT AGL) U/S 2502021342-2505022359
1/17/251317Z !RDU 01/256 MCZ RWY 21 PAPI U/S 2501171317-2507172111EST
1/17/251316Z !RDU 01/255 MCZ RWY 03 PAPI U/S 2501171316-2507172111EST
1/13/250453Z !RDU 01/197 MCZ OBST TOWER LGT (ASR 1056872) 354953.00N0770610.00W (4.1NM ESE MCZ) 391.1FT (312.0FT AGL) U/S 2501130453-2504152359
11/29/242112Z !RDU 11/356 MCZ OBST TOWER LGT (ASR 1215602) 355133.00N0770700.00W (3.0NM E MCZ) 482.0FT (430.1FT AGL) U/S 2411292112-2505312359
No
0800-1700
FOR SVC AFT HRS CALL 252-799-8718 OR 252-217-4023.
COUNTY OF MARTIN
305 E. MAIN STREET, PO BOX 668
WILLIAMSTON, NC 27892
Phone: 252-789-4300
JESSE COUNCIL, JULIET CHARLIE AVIAT
2135 AIRPORT RD
WILLIAMSTON, NC 27892
Phone: 252-792-1971
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
PAPI RWY 03 & 21 OPR CONSLY. MIRL RWY 03/21 DUSK TO DAWN; TO CHG INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
0
0
0
0
0
0
None
None
None
None
Pilot Instruction

Runway 03/21

5000 ft. x 75 ft.
ASPH
Good
NONE
MED

21,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 24°204°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 51' 21"N 35° 52' 07"N
Longitude 77° 10' 54"W 77° 10' 29"W
Elevation 65' 74'
Threshold Crossing Height 35 ft. AGL 24 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER ON AND INVOF ARPT.
A110-2FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A110-3RWY 03 HAS 10-15 FT DROP-OFF 70 FT FM CNTRLN BOTH SIDES.
A110-4RWY 03 HAS A MKD DSPLCD THR OF 45 FT (UNPUBLD).
MARTIN COUNTY (ICAO: KMCZ, IATA: MCZ) is a public airport located in WILLIAMSTON, NC.
