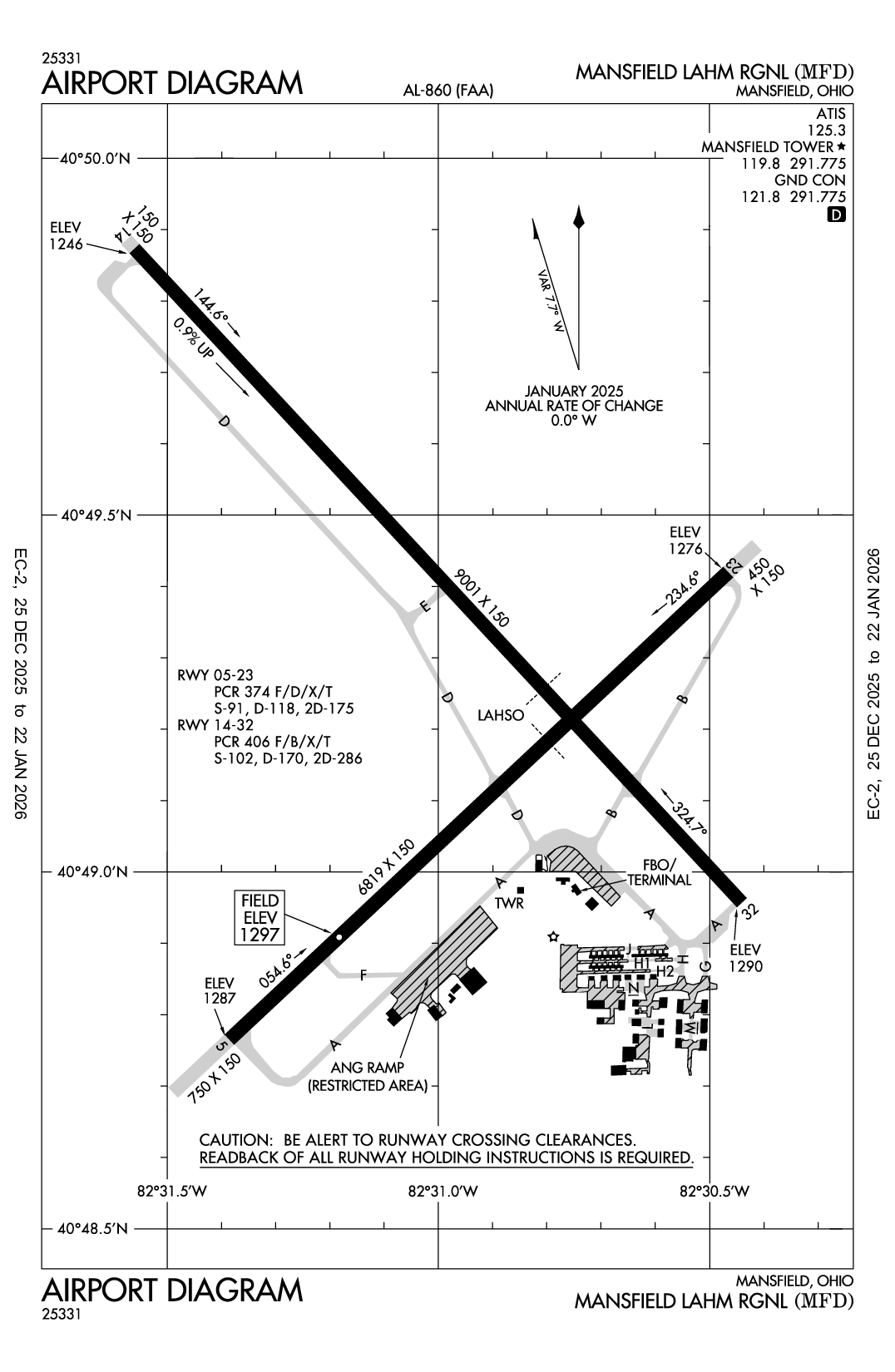

MANSFIELD LAHM RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMFD
MANSFIELD LAHM RGNL
PublicPUB

3 miles N of MANSFIELD, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 49' 17"N 82° 30' 60"W
1297' MSL
2297' MSL
06W
JET A, 100LL
CLEVELAND (CLE)
DETROIT
CLEVELAND (ZOB)
11/28/24-12/26/24
KMFD VFR
6:52 AM EST
Overcast 11,000'
10sm
24°F
14°F
30.32"Hg
160° 11kts
AO2 SLP287 T10441100 11044 21067 55012
KMFD 231152Z 16011KT 10SM OVC110 M04/M10 A3032 RMK AO2 SLP287 T10441100 11044 21067 55012
Add Your Business

KMFD FBOs

Promote Listing
Niss Aviation
UNICOM: 122.95
Phone: (419) 524-4261
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.89
Full Serve 6.89 5.79
Fuel Notes
Prices include tax
JET A is premixed with Prist (FSII) by supplier.
Fuel Hours
Full-service fuel is available 24/7 upon request with a fee. Self-service 100LL is available 24/7.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.8

ATIS

ATIS
 125.3

ASOS

ASOS
419-520-4785
 125.3

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 119.8

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMFD
Mon, 12/23 6:39 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 12:00 PM EST
Broken 12,000'
6sm
170° 12kts
VFR
12:00 PM EST - 6:00 PM EST
Broken 12,000'
6sm
160° 12kts
Gusts 20kts
VFR
6:00 PM EST - 9:00 PM EST
Light Rain
Overcast 5,000'
6sm
180° 15kts
Gusts 25kts
MVFR
9:00 PM EST - 11:00 PM EST
Light Rain and Mist
Overcast 1,500'
3sm
220° 12kts
Gusts 22kts
IFR
11:00 PM EST - 7:00 AM EST
Light Rain and Snow and Mist
Overcast 1,000'
2sm
220° 12kts
Gusts 20kts
KMFD 231139Z 2312/2412 17012KT P6SM BKN120
   FM231700 16012G20KT P6SM BKN120
   FM232300 18015G25KT P6SM -RA OVC050
   FM240200 22012G22KT 3SM -RA BR OVC015
   FM240400 22012G20KT 2SM -RASN BR OVC010
KMFD
Domestic
12/23/241227Z !MFD 12/074 MFD AD AP ALL SFC WIP SN REMOVAL 2412231227-2412232000
12/23/240008Z !MFD 12/073 MFD APRON ALL FICON PATCHY 1/2IN DRY SN BA MEDIUM OBS AT 2412230008. 2412230008-2412240008
12/23/240007Z !MFD 12/072 MFD TWY ALL FICON PATCHY 1/2IN DRY SN BA MEDIUM OBS AT 2412230007. 2412230007-2412240007
12/23/240007Z !MFD 12/071 MFD RWY 32 FICON 3/3/3 75 PCT 1/2IN DRY SN OBS AT 2412230007. 2412230007-2412240007
12/23/240007Z !MFD 12/070 MFD RWY 23 FICON 3/3/3 100 PCT 1/2IN DRY SN, 50 PCT 1/2IN DRY SN, 50 PCT 1/2IN DRY SN OBS AT 2412230007. 2412230007-2412240007
12/18/242241Z !MFD 12/041 MFD OBST TOWER LGT (ASR 1015431) 404916.00N0822528.00W (4.2NM E MFD) 1369.8FT (299.9FT AGL) U/S 2412182241-2502012241
12/13/241441Z !MFD 12/035 MFD OBST TOWER LGT (ASR 1212593) 404259.20N0823245.60W (6.5NM SSW MFD) 1773.0FT (353.0FT AGL) U/S 2412131441-2501271441
12/10/242054Z !MFD 12/017 MFD OBST TOWER LGT (ASR 1266886) 404710.00N0823330.80W (2.9NM SW MFD) 1564.0FT (267.1FT AGL) U/S 2412102054-2504092054
11/25/241041Z !MFD 11/039 MFD OBST TOWER LGT (ASR 1261169) 405448.90N0822953.00W (5.6NM NE MFD) 1473.4FT (307.7FT AGL) U/S 2411251041-2501091041
11/19/241128Z !MFD 11/034 MFD OBST TOWER LGT (ASN 2019-AGL-20277-OE) 404506N0822912W (4.4NM SSE MFD) 1403FT (265FT AGL) U/S 2411191128-2501031127
FDC
12/13/242127Z !FDC 4/6663 MFD IAP MANSFIELD LAHM RGNL, MANSFIELD, OH.
ILS OR LOC RWY 32, AMDT 17C...
ADF REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MFD TACAN OUT OF SERVICE. 2412132127-2502052127EST
12/13/242127Z !FDC 4/6662 MFD IAP MANSFIELD LAHM RGNL, MANSFIELD, OH.
VOR RWY 32, AMDT 7B...
VDP NA.
ADF REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MFD TACAN OUT OF SERVICE. 2412132127-2502052127EST
12/13/242127Z !FDC 4/6661 MFD IAP MANSFIELD LAHM RGNL, MANSFIELD, OH.
NDB RWY 32, AMDT 11E...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MFD TACAN OUT OF SERVICE. 2412132127-2502052127EST
12/13/242127Z !FDC 4/6657 MFD IAP MANSFIELD LAHM RGNL, MANSFIELD, OH.
VOR RWY 14, AMDT 16A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MFD TACAN OUT OF SERVICE. 2412132127-2502052127EST
Yes
MON-FRI 0700-1900
SAT-SUN 0800-1800
CITY OF MANSFIELD
2000 HARRINGTON MEMORIAL RD
MANSFIELD, OH 44903-8051
Phone: 419-522-2191
MARK T DAUGHERTY
2000 HARRINGTON MEMORIAL RD
MANSFIELD, OH 44903-8051
Phone: 419-522-2191
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
MFD
--
WHEN ATCT CLSD ACTVT MALSR RWY 32; REIL RWY 05 & 23; PAPI RWY 14, 05, & 23; HIRL RWY 05/23 & 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

6819 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
55 /F/B/W/U
90,000lbs
96,000lbs
150,000lbs
--
  Runway 05 Runway 23
True Heading 47°227°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 48' 41"N 40° 49' 27"N
Longitude 82° 31' 29"W 82° 30' 25"W
Elevation 1,287' 1,276'
Threshold Crossing Height 50 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

9001 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
62 /F/B/W/U
150,000lbs
185,000lbs
300,000lbs
--
  Runway 14 Runway 32
True Heading 137°317°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 49' 59"N 40° 48' 54"N
Longitude 82° 31' 42"W 82° 30' 22"W
Elevation 1,246' 1,290'
Threshold Crossing Height 42 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No
A110-10FOR FBO AFT HRS CALL 419-524-4261 OR 419-989-2911.
A110-1111 FT FENCE, 95 FT FM TWY A CNTRLN BTN AER 05 & TWY F, DOES NOT HAVE RQRD CLNC FM TWY CNTRLN.
A110-13179TH OHIO ANG APRON RSTRD TO MIL OPS ONLY.
A110-15ACFT WITH WINGSPAN EXCEEDING 132 FT ARE RSTD TO 15 MPH ALG MIL RAMP ON TWY A.
A110-16FOR CD CTC CLEVELAND ARTCC AT 440-774-0223.
A110-3DEER, BIRDS, & WATERFOWL ON & INVOF ARPT.
A110-4ACFT ON EITHER END OF RY 5/23 AND 14/32 CANNOT BE SEEN ON THE OTHER END DUE TO RY GRADE.
A110-6ACFT LARGER THAN A 'G1' OR WITH A WING SPAN GREATER THAN 80 FT (TIP TO TIP) ARE RESTRICTED ON TWYS G/H/J/L/M/N & SHOULD USE THE MAIN RAMP AREA.
MANSFIELD LAHM RGNL (ICAO: KMFD, IATA: MFD) is a public airport located in MANSFIELD, OH.
