iFlightPlanner



...

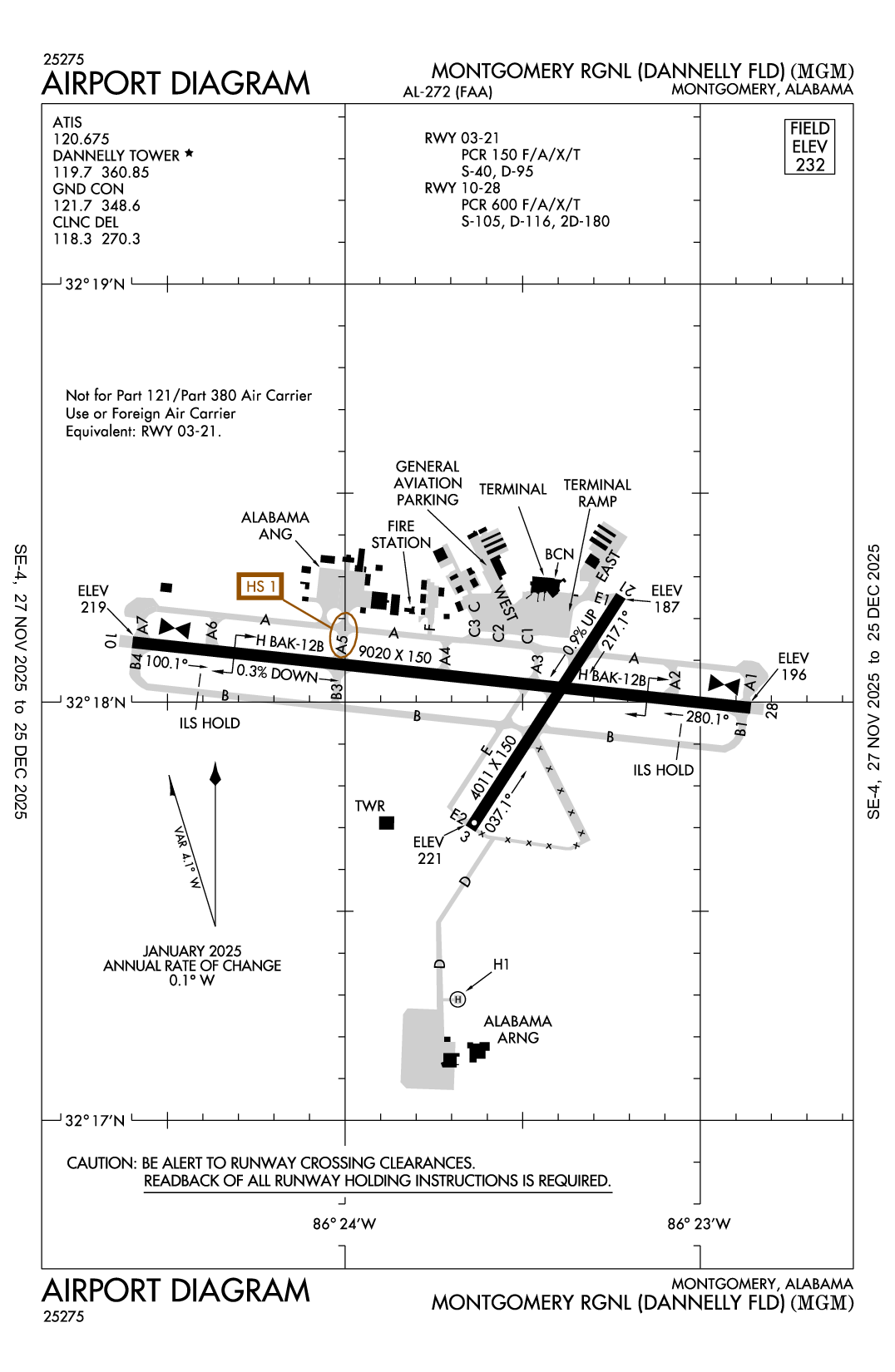

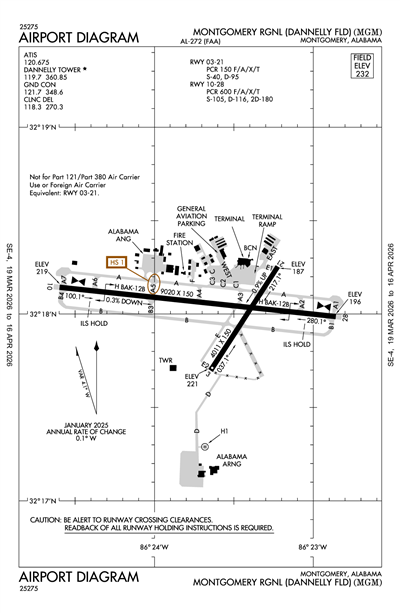

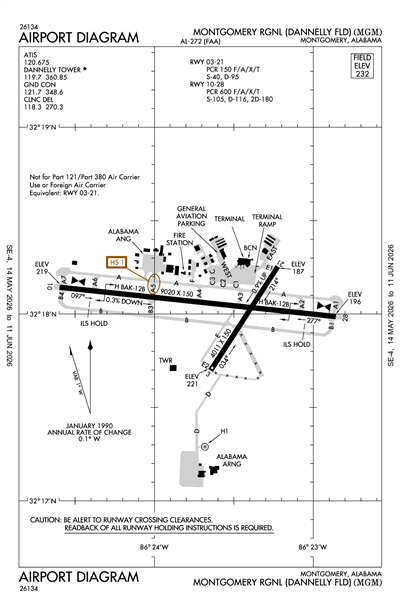

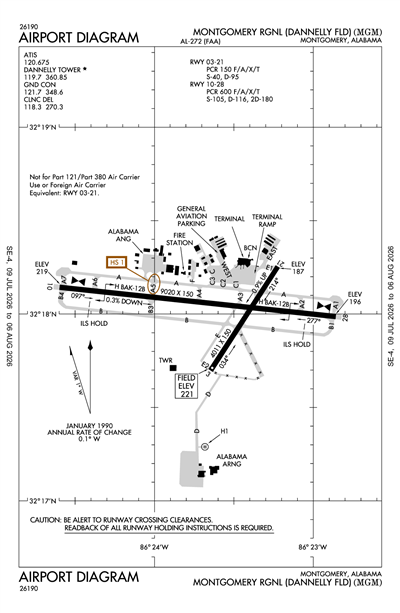

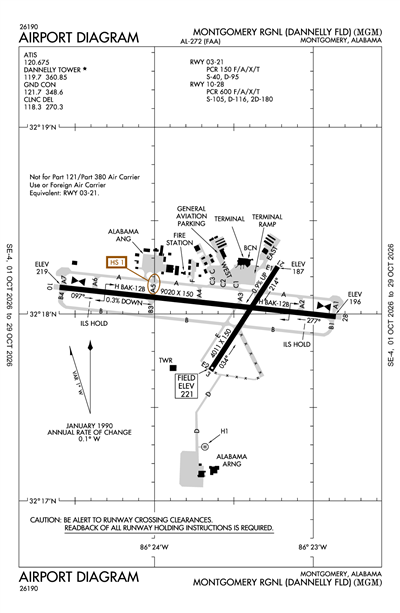

MONTGOMERY RGNL (DANNELLY FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMGM
MONTGOMERY RGNL (DANNELLY FLD)
PublicPUB

6 miles SW of MONTGOMERY, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 18' 02"N 86° 23' 38"W
232' MSL
1432' MSL
01W
JET A, JET A+, CILI, 100LL
ANNISTON (ANB)
ATLANTA
ATLANTA (ZTL)
1/23/25-2/20/25
KMGM VFR
1:53 AM CST
Clear
10sm
44°F
41°F
30.19"Hg
Calm
AO2 SLP224 T00670050
KMGM 020753Z AUTO 00000KT 10SM CLR 07/05 A3019 RMK AO2 SLP224 T00670050
Add Your Business

KMGM FBOs

Promote Listing
Montgomery Aviation
UNICOM: 131.6
Phone: (334) 288-7334
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 1/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.65
Full Serve 7.15 7.15 7.23
Fuel Notes
Prices include tax

KMGM Aircraft Service & Maintenance

Promote Listing
Box Aviation Inc.
Phone: (334) 281-9005
Fax: (334) 286-0769
No Rating Available
0 Reviews (Read | Sign In To Write)

KMGM Other Aviation Services

Promote Listing
MTW Aerospace Inc.
Phone: (334) 613-2025
Fax: (334) 613-2150
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.7

ATIS

ATIS
 120.675

Approach

APCH/S
T
 112.1
APCH/S
NORTH
 118.85
APCH/S
SOUTH
 132.45

Approach/Departure

APCH/P DEP/P IC
 124.0

Clearance Delivery

CD/P
 118.3

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
 119.7

Other

ANG OPS
FM
 40.3
SFA
 122.85
TRSA
 124.0

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMGM
Sat, 2/1 11:20 PM CST
Sun, 2/2 12:00 AM CST - Mon, 2/3 12:00 AM CST
VFR
12:00 AM CST - 12:00 PM CST
Sky Clear
6sm
VRB° 3kts
VFR
12:00 PM CST - 6:00 PM CST
Sky Clear
6sm
170° 4kts
VFR
6:00 PM CST - 12:00 AM CST
Sky Clear
6sm
Calm
KMGM 020520Z 0206/0306 VRB03KT P6SM SKC
   FM021800 17004KT P6SM SKC
   FM030000 00000KT P6SM SKC
KMGM
Domestic
2/1/251339Z !MGM 02/001 MGM OBST TOWER LGT (ASR 1034667) 322227.00N0861223.00W (10.6NM ENE MGM) 599.7FT (299.9FT AGL) U/S 2502011339-2506011339
1/29/251628Z !MGM 01/125 MGM OBST TOWER LGT (ASR 1000469) 321408.40N0860827.30W (13.4NM ESE MGM) 530.8FT (265.1FT AGL) U/S 2501291628-2504290500
1/27/252041Z !MGM 01/107 MGM OBST TOWER LGT (ASR 1026603) 321104.60N0861716.90W (8.7NM SE MGM) 503.0FT (256.9FT AGL) U/S 2501272041-2505272041
1/22/252002Z !MGM 01/080 MGM OBST TOWER LGT (ASR 1294793) 322117.40N0862614.40W (3.9NM NW MGM) 436.7FT (259.8FT AGL) U/S 2501222002-2502242359
1/13/251442Z !MGM 01/043 MGM TWY B HLDG PSN MARKINGS FOR ILS BTN TWY B3 AND TWY B4 NOT STD 2501131442-2502281441
1/13/251440Z !MGM 01/042 MGM TWY B CL MARKINGS BTN TWY B3 AND TWY B4 NOT STD 2501131440-2502281439
1/10/251745Z !MGM 01/034 MGM TWY B3 SFC PAINTED HLDG PSN SIGNS FOR RWY 10/28 NOT STD 2501101745-2504302300
12/29/240710Z !MGM 12/047 MGM OBST TOWER LGT (ASR 1239654) 321423.70N0861730.90W (6.3NM SE MGM) 555.1FT (260.2FT AGL) U/S 2412290710-2503290500
12/27/242120Z !MGM 12/043 MGM OBST TOWER LGT (ASR 1002853) 322254.30N0861801.70W (6.9NM NE MGM) 384.8FT (165.0FT AGL) U/S 2412272120-2503270500
12/26/241500Z !MGM 12/039 MGM RWY 28 ALS U/S 2412261500-2503282000
12/21/241613Z !MGM 12/029 MGM RWY 10/28 CL MARKINGS OBSC 2412211613-2504302200
FDC
12/26/241752Z !FDC 4/1363 MGM IAP MONTGOMERY RGNL (DANNELLY FLD),
MONTGOMERY, AL.
RNAV (GPS) RWY 28, AMDT 1B...
AIRPORT ELEVATION 232.
DELETE PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK FROM MINIMUM
ALTITUDE AT WITBI/1.50 NM TO RW10 720.
DELETE ASTERISK FROM VDP AT 0.97 NM TO RW28.
CHANGE UNCOMPENSATED BARO-VNAV NOTE TO READ: FOR UNCOMPENSATED
BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -8C OR ABOVE 54C.
CIRCLING HAA CATS A/B 468, CAT C 568, CATS D/E 628.
DELETE NOTE: DME/DME RNP-0.3 NA.
PBN REQUIREMENTS NOTE: RNP APCH-GPS..
THIS IS RNAV (GPS) RWY 28, AMDT 1C. 2412261752-PERM
12/26/241751Z !FDC 4/1361 MGM IAP MONTGOMERY RGNL (DANNELLY FLD),
MONTGOMERY, AL.
RNAV (GPS) RWY 3, AMDT 2A...
DELETE PROFILE NOTE: *LNAV ONLY.
DELETE NOTE: DME/DME RNP-0.3 NA.
AIRPORT ELEVATION 232.
CIRCLING HAA CATS A/B 468, CAT C 568, CAT D 628.
DELETE ASTERISK FROM MINIMUM ALTITUDE AT ZUNRO/1.50 NM TO RW03 740.
PBN REQUIREMENTS NOTE: RNP APCH-GPS.
CHANGE UNCOMPENSATED BARO-VNAV NOTE TO READ: FOR UNCOMPENSATED
BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -8C OR ABOVE 54C.
THIS IS RNAV (GPS) RWY 3, AMDT 2B. 2412261751-PERM
12/26/241749Z !FDC 4/1359 MGM IAP MONTGOMERY RGNL (DANNELLY FLD),
MONTGOMERY, AL.
NDB RWY 10, AMDT 19A...
CIRCLING HAA CATS A/B 468, CAT C 568, CAT D 628.
AIRPORT ELEVATION 232.
THIS IS NDB RWY 10, AMDT 19B. 2412261749-PERM
12/26/241647Z !FDC 4/1318 MGM IAP MONTGOMERY RGNL (DANNELLY FLD),
MONTGOMERY, AL.
ILS Y OR LOC RWY 28, AMDT 11C...
AIRPORT ELEVATION 232.
CIRCLING HAA CATS A/B 468, CAT C 568, CATS D/E 628.
WITBI FIX MINIMUMS: CIRCLING HAA CATS A/B 468, CAT C 568, CATS D/E
628.
THIS IS ILS Y OR LOC RWY 28, AMDT 11D. 2412261647-PERM
12/26/241646Z !FDC 4/1317 MGM IAP MONTGOMERY RGNL (DANNELLY FLD),
MONTGOMERY, AL.
ILS Z OR LOC Z RWY 10, AMDT 24A...
CIRCLING HAA CATS A/B 468, CAT C 568, CATS D/E 628.
AIRPORT ELEVATION 232.
THIS IS ILS Z OR LOC Z RWY 10, AMDT 24B. 2412261646-PERM
12/26/241645Z !FDC 4/1309 MGM IAP MONTGOMERY RGNL (DANNELLY FLD),
MONTGOMERY, AL.
RNAV (GPS) RWY 10, AMDT 1C...
AIRPORT ELEVATION 232.
DELETE PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK FROM MINIMUM
ALTITUDE AT COVUS/1.50 NM TO RW10 740.
DELETE ASTERISK FROM VDP AT 0.99 NM TO RW10..
CHANGE UNCOMPENSATED BARO-VNAV NOTE TO READ: FOR UNCOMPENSATED
BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -8C OR ABOVE 54C.
CIRCLING HAA CATS A/B 468, CAT C 568, CATS D/E 628.
CHANGE PBN REQUIREMENTS NOTE TO READ: RNP APCH - GPS.
THIS IS RNAV (GPS) RWY 10, AMDT 1D. 2412261645-PERM
12/26/241643Z !FDC 4/1305 MGM IAP MONTGOMERY RGNL (DANNELLY FLD),
MONTGOMERY, AL.
VOR-A, AMDT 4C...
AIRPORT ELEVATION 232. CIRCLING HAA CATS A/B 468, CAT C 568, CAT D
628.
THIS IS VOR-A, AMDT 4D. 2412261643-PERM
Military
1/12/251625Z !KMGM M0002/25 MGM APRON ALABAMA AIR NTL GUARD RAMP CONST AREA ADJ N EDGE REDUCED WINGTIP CLEARANCE 2501121625-2503102100
12/6/242017Z ALABAMA AIR NTL GUARD RAMP OBSTN LGT U/S FOR MULT STRUCTURES ADJ TO TWY A ON ANG PROPERTY
Yes
ALL
MONTGOMERY AIRPORT AUTHORITY
4445 SELMA HWY
MONTGOMERY, AL 36108
Phone: 334-281-5040
WADE DAVIS C.M.
4445 SELMA HWY
MONTGOMERY, AL 36108
Phone: 334-281-5040
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
MGM
--
WHEN ATCT CLSD HIRL RWY 10/28 PRESET MED INTST, MIRL RWY 03/21 PRESET LOW INTST. PAPI RWYS 03, 21, 10, & 28 OPR CONSLY. ACTVT MALSR RWYS 10 & 28; REIL RWY 03 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

4011 ft. x 150 ft.
ASPH
Fair
NONE
MED
28 /F/C/X/T
40,000lbs
95,000lbs
--
--
  Runway 03 Runway 21
True Heading 33°213°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 17' 42"N 32° 18' 15"N
Longitude 86° 23' 39"W 86° 23' 13"W
Elevation 221' 186'
Threshold Crossing Height 43 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 10/28

9020 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
35 /F/C/X/T
105,000lbs
116,000lbs
180,000lbs
--
  Runway 10 Runway 28
True Heading 96°276°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 18' 09"N 32° 17' 59"N
Longitude 86° 24' 36"W 86° 22' 51"W
Elevation 219' 196'
Threshold Crossing Height 64 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights

Runway H1

90 ft. x 90 ft.
CONC
Fair
NONE


--
--
--
--
  Runway H1 Runway
True Heading 92°272°
Traffic Pattern
Markings
Markings Condition
Latitude 32° 17' 17"N N/A
Longitude 86° 23' 40"W N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO 180 DEG TURNS ON RWY 10/28 BY DC-9 OR LARGER ACFT.
A110-10ACR & LRG MIL ACFT SHOULD NOT TAXI ON RWY 03/21.
A110-14MILITARY: BIRD HAZARD. CTC BASE OPS ON 360.975 FOR CURRENT BIRD WATCH COND. BASH PHASE II BIRD ACT IS DURG APR AND FM 1 SEP TO 31 DEC.
A110-15ARNG - F/W ACFT INBD TO ARNG RAMP CTC ARNG 10MIN PRIOR TO ETA AND UPON ENTY TWY D. L-3 (C-12)MAINT AVBL ON CALL, C334-280-4890 COMMUNICATIONS.
A110-16MILITARY: ANG: ONGOING CONSTR ON RAMP. CTC BASE OPS FOR TAX/PRKG INSTRNS DSN 358-9255 OR C334-394-7255.
A110-18ANG: RWY CC NOT RPT.
A110-19FOR CD IF UNA TO CTC ON FSS FREQ, CTC DANNELLY APCH AT 334-284-4575, WHEN ATCT CLSD CTC ATLANTA ARTCC AT 770-210-7692.
A110-20MILITARY: FLUID: LHNIT.
A110-21MILITARY: OIL: JOAP.
A110-6CAUTION: DO NOT MISTAKE MAXWELL AFB - 6 NM NORTH FOR MONGOMERY RGNL. NUMEROUS HEL AND LOW SPEED ACFT INVOF ARPT DURG DALGT HRS.
A110-8ARNG: ANG RAMP CONST WIP. CTC AFLD MGMT FOR TAXI INSTR. TRANSPORT ACFT LTD TO MIN THRUST WHILE ON ANG RAMP. CONES BLOCKING THROAT OF ANG RAMP. CTC BASE OPS PRIOR TO ENTERING ANG RAMP FOR REMOVAL. INBD FOR ANG CTC BAMA OPS 15 MIN PRIOR LDG. ACFT PARKING EXTREMELY LMTD CTC BASE OPNS FOR PARKING INSTR. TSNT PARKING EXTREMELY LIMITED. PPR FOR USE OF ANG RAMP CTC ANG OPNS DSN358-9255/9256/C334-394-7255/7256. ANG BASE OPS FACILITY AVBL 1200-2230Z++.
MONTGOMERY RGNL (DANNELLY FLD) (ICAO: KMGM, IATA: MGM) is a public airport located in MONTGOMERY, AL.
