HARBOR SPRINGS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMGN
HARBOR SPRINGS
PublicPUB

3 miles E of HARBOR SPRINGS, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 25' 32"N 84° 54' 49"W
686' MSL
1686' MSL
05W
JET A (FSII), 100LL
LANSING (LAN)
LAKE HURON
MINNEAPOLIS (ZMP)
11/28/24-12/26/24
KPLN (10nm) IFR
7:09 AM EST
Light Snow and Mist
Obscured
1sm
26°F
23°F
30.11"Hg
150° 6kts
AO2 P0000 T10331050
KPLN 231209Z AUTO 15006KT 1SM -SN BR VV013 M03/M05 A3011 RMK AO2 P0000 T10331050
Add Your Business

KMGN FBOs

Promote Listing
Harbor Springs Airport
UNICOM: 122.8
Phone: (231) 347-2812
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.55 6.45
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
231-347-5231
 119.925

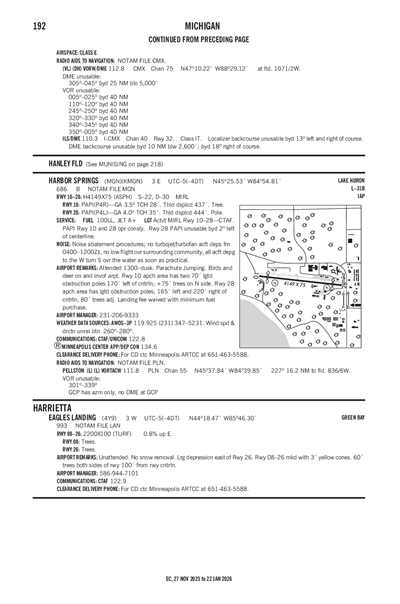

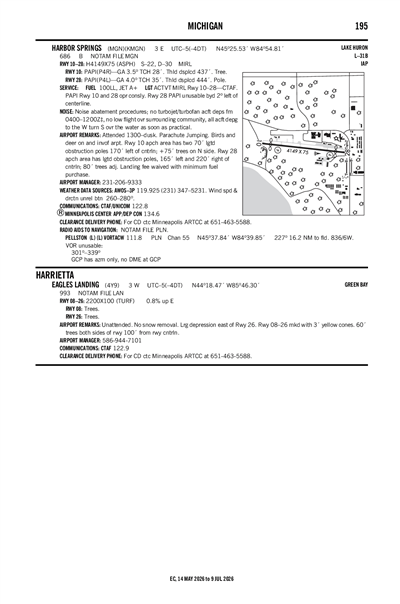

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPLN (10nm)
Mon, 12/23 6:33 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
MVFR
7:00 AM EST - 1:00 PM EST
Showers in vicinity
Overcast 3,500'
Broken 2,500'
6sm
160° 9kts
IFR
Temporary 7:00 AM EST - 9:00 AM EST
Light Snow and Mist
Broken 1,500'
Scattered 800'
1sm
Calm
MVFR
1:00 PM EST - 7:00 PM EST
Light Snow and Mist
Overcast 1,500'
Scattered 800'
3sm
160° 8kts
MVFR
7:00 PM EST - 7:00 AM EST
Showers in vicinity
Overcast 2,500'
6sm
300° 4kts
KPLN 231133Z 2312/2412 16009KT P6SM VCSH BKN025 OVC035
   TEMPO 2312/2314 1SM -SN BR SCT008 BKN015
   FM231800 16008KT 3SM -SN BR SCT008 OVC015
   FM240000 30004KT P6SM VCSH OVC025
KMGN
Domestic
12/22/242024Z !MGN 12/019 MGN SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2412222024-2501032359EST
FDC
3/15/231327Z !FDC 3/8005 MGN IAP HARBOR SPRINGS, HARBOR SPRINGS, MI.
RNAV (GPS) RWY 10, AMDT 1A...
DISREGARD VDA 3.05/TCH 35.
PROFILE NOTE: VISUAL SEGMENT - OBSTACLES.
2303151327-2503151326EST
No
0800-DUSK
HARBOR/PETOSKEY AREA AIRPORT AUTH
C/O WILLIAM P DOHM, PO BOX 274
CONWAY, MI 49722-0274
Phone: 231-242-4906
MARK ZABAWA
8350 M-119
HARBOR SPRINGS, MI 49740-9077
Phone: 231-206-9333
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
MGN
--
ACTVT MIRL RWY 10/28 - CTAF. PAPI RWY 10 & 28 OPR CONSLY.
N/A
Yes - Lighted
No
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 10/28

4149 ft. x 75 ft.
ASPH
Fair
NONE
MED

22,000lbs
30,000lbs
--
--
  Runway 10 Runway 28
True Heading 96°276°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 45° 25' 34"N 45° 25' 30"N
Longitude 84° 55' 17"W 84° 54' 20"W
Elevation 677' 686'
Threshold Crossing Height 28 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3.5° 4°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RWY 10 APCH AREA HAS TWO 70 FT LGTD OBSTN POLES, 170 FT LEFT OF CNTRLN; +75 FT TREES ON NORTH SIDE.
A110-12FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-3RWY 28 APCH AREA HAS LGTD OBSTN POLES, 165 FT LEFT & 220 FT RIGHT OF CNTRLN; +80 FT TREES ADJ.
A110-4BIRDS & DEER ON & INVOF ARPT.
A110-9NOISE ABATEMENT PROCS: NO TURBOJET/TURBOFAN ACFT DEPS 2300-0700; NO LOW FLT OVR SRNDG COMMUNITY; ALL ACFT DEPG TO THE WEST TURN SOUTH OVR THE WATER AS SOON AS PRACTICAL.
HARBOR SPRINGS (ICAO: KMGN, IATA: MGN) is a public airport located in HARBOR SPRINGS, MI.
