KMHL

MARSHALL MEML MUNI

PublicPUB

2 miles S of MARSHALL, MO

View on Map

Status

Operational

Coordinates

39° 05' 44"N 93° 12' 11"W

Elevation

779' MSL

Pattern Alt

1779' MSL

Mag Variation

03E

Fuel

JET A-1+, 100LL

FSS

COLUMBIA (COU)

Sectional

KANSAS CITY

ARTCC

KANSAS CITY (ZKC)

Data Effective

5/16/24-6/13/24

KMHL VFR

12:15 AM CDT RAW

Clear

Viz

10sm

Temp

72°F

Dew

64°F

Pres

29.89"Hg

Wind

190° 6kts

RMK

AO2

KMHL 130515Z AUTO 19006KT 10SM CLR 22/18 A2989 RMK AO2

Add Your Business

KMHL FBOs

Promote Listing

Marshall Municipal Airport

UNICOM: 122.8

Phone: (660) 886-3320

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 5/24	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.50		5.15
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3PT

660-886-9130

118.675

FAA A/FD Pages

FAA A/FD Page

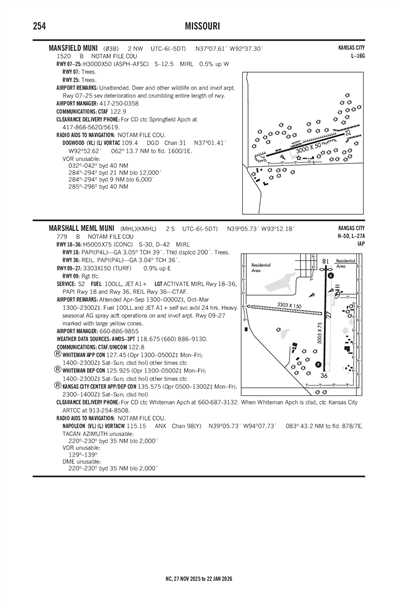

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KSZL (27nm)

RAW

Reported

Wed, 6/12 10:00 PM CDT

Valid

Wed, 6/12 10:00 PM CDT - Fri, 6/14 4:00 AM CDT

VFR

10:00 PM CDT - 8:00 AM CDT

Sky Clear

Viz

6sm

Pres

29.85"Hg

Wind

190° 9kts

VFR

Becoming 8:00 AM CDT - 8:00 PM CDT

Scattered 15,000'
Few 9,000'

Viz

6sm

Pres

29.79"Hg

Wind

220° 12kts

Gusts 18kts

MVFR

Becoming 8:00 PM CDT - 12:00 AM CDT

Light Rain

Broken 16,000'
Few 5,000'

Viz

4.97sm

Pres

29.85"Hg

Wind

210° 9kts

IFR

Temporary 9:00 PM CDT - 11:00 PM CDT

Light Thunderstorm and Rain

Broken 10,000'

Viz

1.99sm

Wind

190° 15kts

Gusts 25kts

VFR

Becoming 12:00 AM CDT - 4:00 AM CDT

Broken 5,000'

Viz

6sm

Pres

29.88"Hg

Wind

230° 9kts

TAF KSZL 130300Z 1303/1409 19009KT 9999 SKC QNH2985INS
   BECMG 1313/1314 22012G18KT 9999 FEW090 SCT150 QNH2978INS
   BECMG 1401/1402 21009KT 8000 -RA FEW050 BKN160 QNH2986INS
   TEMPO 1402/1404 19015G25KT 3200 -TSRA BKN100CB
   BECMG 1405/1406 23009KT 9999 NSW BKN050 QNH2987INS TX33/1322Z TN20/1311Z

KMHL

Domestic
6/8/240514Z	!COU 06/137 MHL OBST TOWER LGT (ASR 1045817) 385705.00N0930554.00W (9.9NM SSE MHL) 1130.9FT (319.9FT AGL) U/S 2406080514-2406230414
6/5/241805Z	!COU 06/091 MHL OBST TOWER LGT (ASR 1007015) 390016.60N0931514.20W (6.0NM SSW MHL) 933.1FT (208.0FT AGL) U/S 2406051805-2410031805
5/29/241238Z	!COU 05/586 MHL RWY 36 PAPI U/S 2405291238-2407082359
3/5/241512Z	!COU 03/046 MHL OBST TOWER LGT (ASR 1232537) 390310.10N0931601.80W (3.9NM SW MHL) 1743.4FT (983.3FT AGL) U/S 2403051512-2407052359

ATC Tower

Attendance

APR-SEP 0700-1800
OCT-MAR 0700-1700

Owner

CITY OF MARSHALL
214 N LAFAYETTE
MARSHALL, MO 65340
Phone: 660-886-2226

Manager

MUNI SERVICE DEPT
1277 S. ODELL
MARSHALL, MO 65340
Phone: 660-886-9855

FSS

COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF

NOTAM

COU

Light Schedule

Lights

ACTVT MIRL RY 18/36; PAPI RYS 18 & 36 AND REIL RY 36- CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 09/27

Dimensions

3303 ft. x 150 ft.

Surface Type

TURF

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 09	Runway 27
True Heading	96°	276°
Traffic Pattern	Right
Markings	NONE	NONE
Markings Condition	FAIR	FAIR
Latitude	39° 05' 48"N	39° 05' 44"N
Longitude	93° 12' 45"W	93° 12' 04"W
Elevation	750'	778'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

Dimensions

5005 ft. x 75 ft.

Surface Type

CONC

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

42,000lbs

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	181°	1°
Traffic Pattern
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	39° 06' 07"N	39° 05' 17"N
Longitude	93° 12' 01"W	93° 12' 02"W
Elevation	770'	779'
Threshold Crossing Height	39 ft. AGL	36 ft. AGL
Visual Glide Path Angle	3.05°	3.04°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	No	Yes

A110-1	HVY SEASONAL AG SPRAY ACFT OPNS ON & INVOF ARPT.
A110-2	FOR CD CTC WHITEMAN APCH AT 660-687-3132. WHEN WHITEMAN APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.

MARSHALL MEML MUNI (ICAO: KMHL, IATA: MHL) is a public airport located in MARSHALL, MO.
