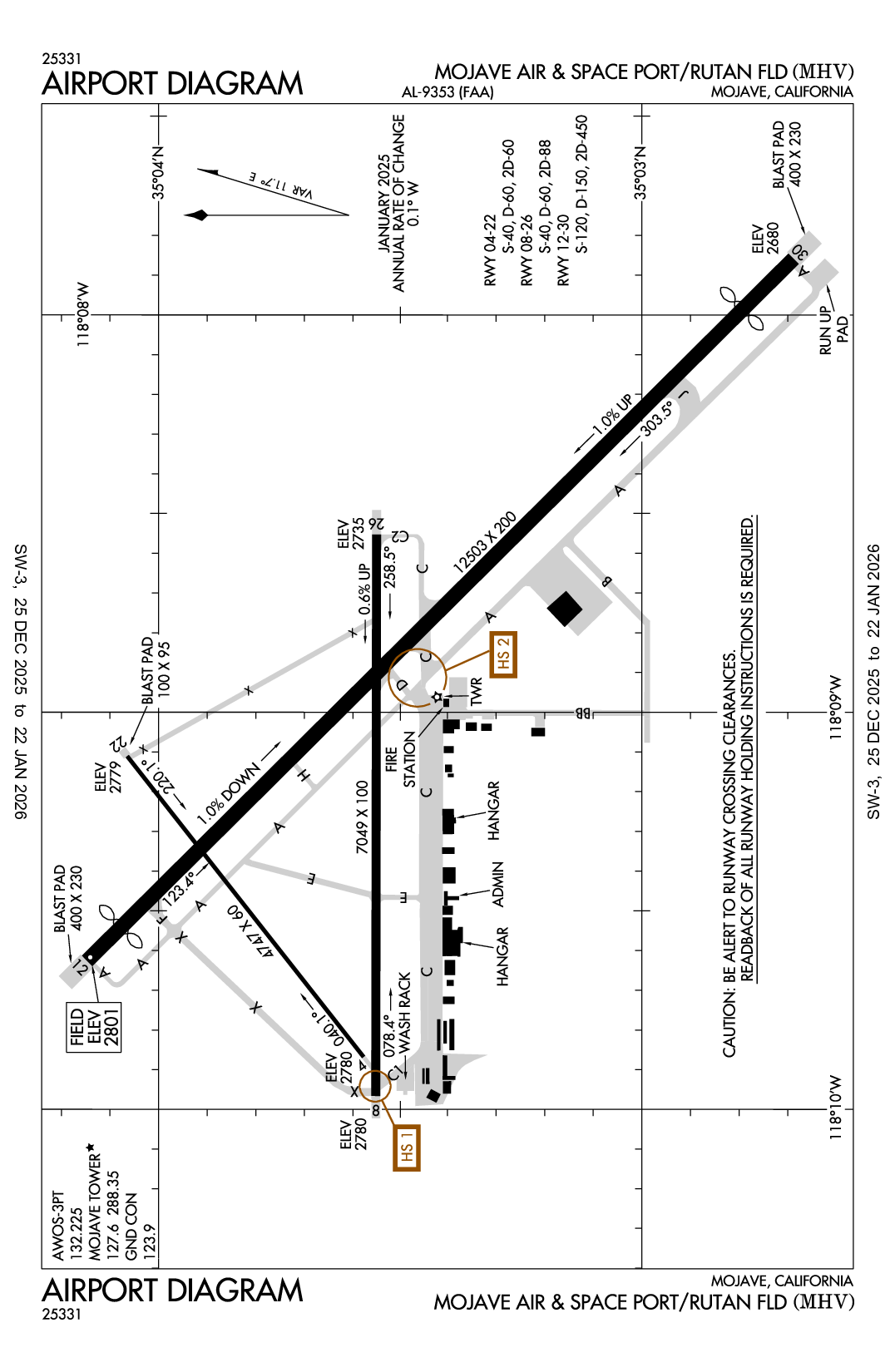

MOJAVE AIR & SPACE PORT/RUTAN FLD - Airport Diagram

KMHV

MOJAVE AIR & SPACE PORT/RUTAN FLD

PublicPUB

1 miles E of MOJAVE, CA

View on Map

Status

Operational

Coordinates

35° 03' 32"N 118° 09' 02"W

Elevation

2801' MSL

Pattern Alt

3801' MSL

Mag Variation

14E

Fuel

JET A, JET A (FSII), 100LL

FSS

RIVERSIDE (RAL)

Sectional

LOS ANGELES

ARTCC

LOS ANGELES (ZLA)

Data Effective

11/28/24-12/26/24

KMHV VFR

4:00 AM PST RAW

Clear

Viz

10sm

Temp

59°F

Dew

43°F

Pres

30.13"Hg

Wind

310° 16kts

RMK

AO2

KMHV 231200Z AUTO 31016KT 10SM CLR 15/06 A3013 RMK AO2

Add Your Business

KMHV FBOs

Promote Listing

Mojave Air & Space Port at Rutan Field

UNICOM: 127.6

Phone: (661) 824-2433

Other: (661) 824-4207

0 Reviews (Read | Sign In To Write)

Avfuel

As of 12/16	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.41
Full Serve	5.61	4.99	5.04

Fuel Notes

Prices include tax

Fuel Hours

Full Service Fuels are available Monday-Saturday 7:00-4:00p.m.
After hours call out fee of $200.60

KMHV Aircraft Service & Maintenance

Promote Listing

ASB Avionics LLC

Phone: (661) 824-1005

Fax: (661) 824-1006

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM -- CTAF 127.6

AWOS-3

661-824-5218

132.225

Ground

GND/P

123.9

Tower

LCL/P

127.6

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Hotspot

HOT SPOT

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KWJF (19nm)

RAW

Reported

Mon, 12/23 3:59 AM PST

Valid

Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST

VFR

4:00 AM PST - 1:00 PM PST

Broken 20,000'

Viz

6sm

Wind

VRB° 5kts

VFR

1:00 PM PST - 4:00 AM PST

Broken 25,000'

Viz

6sm

Wind

280° 10kts

KWJF 231159Z 2312/2412 VRB05KT P6SM BKN200
FM232100 28010KT P6SM BKN250

KMHV

Domestic
12/9/241753Z	!MHV 12/014 MHV TWY C SOUTH 50FT WIP SFC PAVING ADJ SOUTH SIDE BARRICADED 2412091753-2412312359
9/2/241918Z	!MHV 09/002 MHV OBST WIND TURBINE LGT (ASN 2011-WTW-11057-OE) 345939N1181446W (6.0NM SW MHV) 3454FT (411FT AGL) U/S 2409021918-2509022359
7/31/231923Z	!MHV 07/009 MHV TWY F CLSD EXC 2HR PPR 661-221-2192 2307311923-PERM

ATC Tower

Yes

Attendance

ALL

Owner

MOJAVE AIR AND SPACE PORT
1434 FLIGHTLINE
MOJAVE, CA 93501
Phone: 661-824-2433

Manager

DAVID SMITH
1434 FLIGHTLINE
MOJAVE, CA 93501
Phone: 661-824-2433

FSS

RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF

NOTAM

MHV

Light Schedule

Lights

ACTVT REIL RWYS 12 & 30; MIRL RWYS 08/26 & 04/22; HIRL RWY 12/30 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Avionics
Pilot Instruction

Runway 04/22

Dimensions

4747 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

40,000lbs

Double Wheel

60,000lbs

Double Tandem

60,000lbs

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	52°	232°
Traffic Pattern	Left	Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	35° 03' 35"N	35° 04' 04"N
Longitude	118° 09' 51"W	118° 09' 07"W
Elevation	2,780'	2,779'
Threshold Crossing Height	39 ft. AGL	40 ft. AGL
Visual Glide Path Angle	4°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 08/26

Dimensions

7049 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

40,000lbs

Double Wheel

60,000lbs

Double Tandem

88,000lbs

Dual Dbl Tand

	Runway 08	Runway 26
True Heading	90°	270°
Traffic Pattern	Left	Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	35° 03' 33"N	35° 03' 33"N
Longitude	118° 09' 58"W	118° 08' 33"W
Elevation	2,780'	2,735'
Threshold Crossing Height	55 ft. AGL	52 ft. AGL
Visual Glide Path Angle	4°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 12/30

Dimensions

12503 ft. x 200 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

120,000lbs

Double Wheel

150,000lbs

Double Tandem

450,000lbs

Dual Dbl Tand

	Runway 12	Runway 30
True Heading	135°	315°
Traffic Pattern	Left	Right
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	35° 04' 09"N	35° 02' 41"N
Longitude	118° 09' 38"W	118° 07' 51"W
Elevation	2,801'	2,680'
Threshold Crossing Height	82 ft. AGL	62 ft. AGL
Visual Glide Path Angle	3.5°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

A110-5	BE ALERT TO HIGH SPEED ACTIVITY INVOF ARPT.
A110-6	DUE TO RAPIDLY RISING TERRAIN AND WIND TURBINES W - NW OF ARPT, CAT C/D & ALL TURBOJET ACFT LDG RWY 8 MUST REMAIN AT OR ABOVE 4301 FT MSL UNTIL COMMENCING BASE LEG TURN AND AT OR ABOVE 3800 FT MSL UNTIL ESTABLISHED ON A 2.25 NM FINAL.
A110-7	TWY F IS CLSD WEST OF TWY A.

MOJAVE AIR & SPACE PORT/RUTAN FLD (ICAO: KMHV, IATA: MHV) is a public airport located in MOJAVE, CA.
