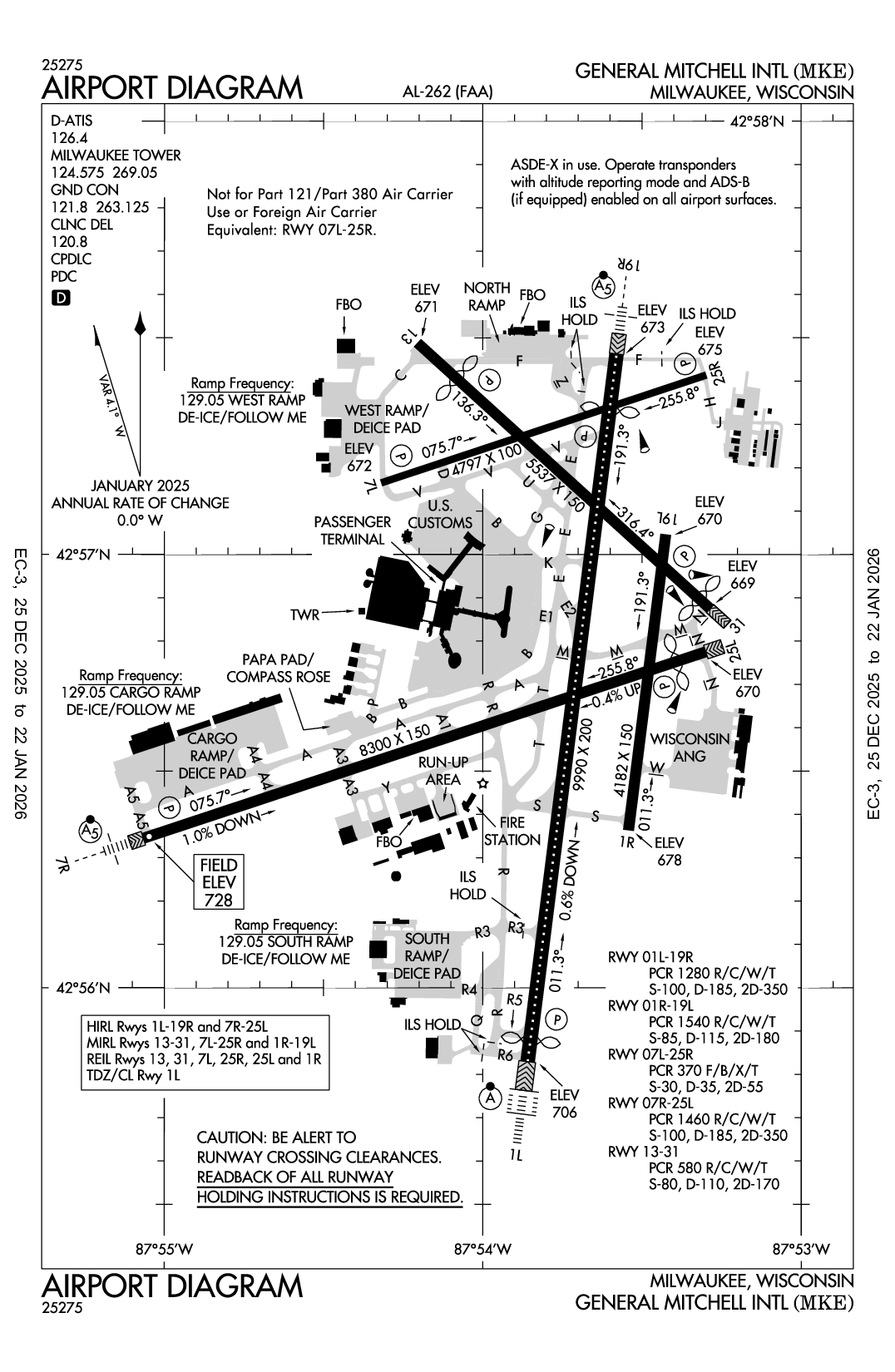

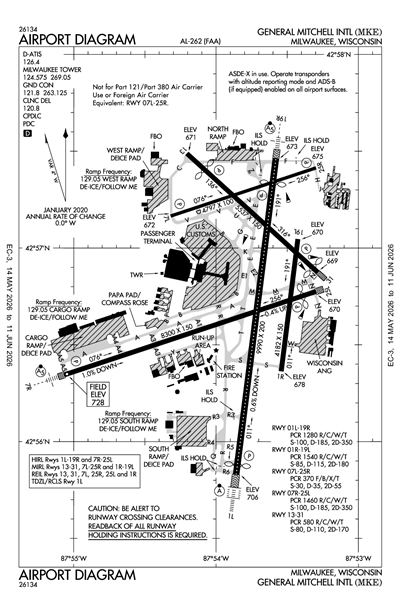

GENERAL MITCHELL INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMKE
GENERAL MITCHELL INTL
PublicPUB

5 miles S of MILWAUKEE, WI
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 56' 49"N 87° 53' 49"W
728' MSL
1728' MSL
04W
JET A, 100LL
GREEN BAY (GRB)
CHICAGO
CHICAGO (ZAU)
11/28/24-12/26/24
KMKE VFR
5:52 AM CST
Overcast 4,500'
10sm
36°F
24°F
30.03"Hg
180° 9kts
AO2 SLP176 4/002 T00221044 10022 20000 56020 $
KMKE 231152Z 18009KT 10SM OVC045 02/M04 A3003 RMK AO2 SLP176 4/002 T00221044 10022 20000 56020 $

KMKE FBOs

Jet Aviation Milwaukee
UNICOM: 131.2
Phone: (414) 348-5900
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 12/17
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.88 4.57 4.65
Fuel Notes
Prices include tax
Avflight Milwaukee
UNICOM: 136.525
Phone: (844) 383-5653
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/16
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.90 5.18 5.25
Fuel Notes
Prices include tax
Signature Aviation
UNICOM: 131.1
Phone: (414) 747-5100
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 12/19
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.30 5.28 6.26
Fuel Notes
Prices include tax

KMKE Aircraft Service & Maintenance

Aeroplicity
Phone: (414) 708-9599
No Rating Available
0 Reviews (Read | Sign In To Write)

KMKE Other Aviation Services

Astronautics Corporation of America
Phone: (414) 449-4000
Fax: (414) 447-8231
No Rating Available
0 Reviews (Read | Sign In To Write)
PIC Wire & Cable
Phone: (262) 246-0500
Fax: (262) 246-0450
No Rating Available
0 Reviews (Read | Sign In To Write)
Rugged Video LLC
Phone: (262) 208-8782
No Rating Available
0 Reviews (Read | Sign In To Write)
Condor World Aviation Services Inc.
Phone: (414) 855-0804
Fax: (414) 855-0814
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
126.4

ASOS

ASOS
414-489-2168
126.4

Approach

APCH/P
B SE
118.0
APCH/P IC
A NW
126.5

Departure

DEP/P
A NW
125.35
DEP/P
B SE
135.875

Clearance Delivery

CD/P
120.8

Emergency

EMERG
121.5

Ground

GND/P
121.8

Tower

LCL/P
124.575

Other

CLASS C
B SE
118.0
CLASS C
A NW
126.5
GOPAC STAR
126.5
OPS
139.5
RAMP CTL
CARGO RAMP DEICE/FOLLOW ME
129.05
RAMP CTL
WEST RAMP DEICE/FOLLOW ME
129.05
RAMP CTL
SOUTH RAMP DEICE/FOLLOW ME
129.05

Terminal Area Forecast

KMKE
Mon, 12/23 5:34 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 12:00 PM CST
VFR
6:00 AM CST - 4:00 PM CST
Overcast 4,000'
Scattered 2,800'
6sm
200° 10kts
MVFR
11:00 AM CST - 4:00 PM CST
Light Snow and Drizzle
Overcast 1,800'
4sm
Calm
MVFR
4:00 PM CST - 10:00 PM CST
Overcast 1,700'
6sm
230° 8kts
IFR
10:00 PM CST - 5:00 AM CST
Overcast 1,100'
Broken 800'
6sm
280° 5kts
MVFR
5:00 AM CST - 12:00 PM CST
Overcast 3,000'
Broken 1,600'
6sm
010° 5kts
KMKE 231134Z 2312/2418 20010KT P6SM SCT028 OVC040
   PROB30 2317/2322 4SM -SNDZ OVC018
   FM232200 23008KT P6SM OVC017
   FM240400 28005KT P6SM BKN008 OVC011
   FM241100 01005KT P6SM BKN016 OVC030
KMKE
Domestic
12/23/240957Z !MKE 12/357 MKE RWY 19R RTHL U/S 2412230957-2412272000EST
12/23/240951Z !MKE 12/356 MKE RWY 25R FICON 10 PCT COMPACTED SN OBS AT 2412230951. 2412230951-2412240951
12/23/240949Z !MKE 12/355 MKE RWY 31 FICON 10 PCT COMPACTED SN OBS AT 2412230949. 2412230949-2412240949
12/23/240906Z !MKE 12/354 MKE TWY R5 CLSD 2412230906-2412272359
12/23/240903Z !MKE 12/353 MKE TWY ALL FICON PATCHY ICE AND PATCHY COMPACTED SN OBS AT 2412230903. 2412230903-2412240903
12/23/240901Z !MKE 12/352 MKE APRON ALL FICON PATCHY ICE AND PATCHY COMPACTED SN OBS AT 2412230901. 2412230901-2412240901
12/23/240857Z !MKE 12/351 MKE RWY 25L FICON 5/5/5 10 PCT COMPACTED SN AND 90 PCT WET DEICED LIQUID OBS AT 2412230856. 2412230857-2412240857
12/23/240749Z !MKE 12/347 MKE RWY 19R FICON 5/5/5 75 PCT WET DEICED LIQUID 150FT WID OBS AT 2412230749. 2412230749-2412240749
12/21/240109Z !MKE 12/312 MKE RWY 01R/19L CLSD EXC TAX BTN RWY 13/31 AND TWY S 2412210109-2503212359
12/21/240108Z !MKE 12/309 MKE TWY A5 SFC PAINTED HLDG PSN SIGNS FOR APCH END RWY 07R FADED 2412210108-2503212359
12/21/240101Z !MKE 12/307 MKE TWY B EDGE LGT BTN TWY E1 AND TWY K NOT STD 2412210101-2501102359
11/5/240242Z !MKE 11/053 MKE APRON NORTHEAST 1 RAMP CLSD 2411050242-2412312359
10/31/242048Z !MKE 10/379 MKE AD AP CLSD TO UNSCHEDULED ACFT AND CHARTERS EXC ACFT WINGSPAN LESS THAN 118FT 2410312048-2412312359
10/18/241611Z !MKE 10/250 MKE COM REMOTE COM OUTLET 122.6 U/S 2410181611-2412302000EST
8/29/240910Z !MKE 08/289 MKE TWY B SFC MARKINGS BTN TWY G AND TWY V FADED 2408290910-2412312359
8/29/240907Z !MKE 08/287 MKE TWY Z SFC MARKINGS FADED 2408290907-2412312359
8/20/241556Z !MKE 08/218 MKE RWY 01R RWY END ID LGT U/S 2408201556-2508202359
FDC
12/19/241526Z !FDC 4/8884 MKE ODP GENERAL MITCHELL INTL, MILWAUKEE, WI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 9...
TAKEOFF MINIMUMS: RWY 25R, 300-1 1/8 OR STANDARD WITH MINIMUM CLIMB OF 366FT PER NM TO 1000. TEMPORARY CRANE 780 MSL 5920FT SW OF RWY 25R (2024-AGL-15887-OE). ADD TAKEOFF OBSTACLE NOTE: RWY 1L, TEMPORARY CRANE 3894FT FROM DER, 40FT RIGHT OF CENTERLINE, 96FT AGL/799FT MSL (2024-AGL-14343-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2412191526-2507311526EST
12/16/241852Z !FDC 4/7467 MKE SID GENERAL MITCHELL INTL, MILWAUKEE, WI.
ACCRA FIVE DEPARTURE (RNAV)...
MITCHELL NINE DEPARTURE...
UECKR SIX DEPARTURE (RNAV)...
TAKEOFF MINIMUMS: RWY 25R, 300-1 1/8 OR STANDARD WITH MINIMUM CLIMB OF 366FT PER NM TO 1000. TEMPORARY CRANE 780 MSL 5920FT SW OF RWY 7L (2024-AGL-15887-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2412161852-2506291852EST
11/14/241902Z !FDC 4/4496 MKE IAP GENERAL MITCHELL INTL,
MILWAUKEE, WI.
ILS OR LOC RWY 19R, AMDT 13A...
APT ELEV 728. TDZE 19L 674. SIDESTEP 19L HAT 486 ALL CATS. CIRCLING
HAA 512 CATS A/B/C, HAA 632 CAT D. CHANGE INOPERATIVE NOTE TO READ:
FOR INOPERATIVE ALS, INCREASE S-LOC 19R CATS C AND D VISIBILITY TO
1 3/8 SM. DELETE PROFILE NOTE: *LOC ONLY. DELETE ASTERISK FROM
MINIMUM ALTITUDE BAYZE/I-BLY 2.08 DME/RADAR 1260. DELETE ASTERISK
FROM VDP AT 0.77 DME.
THIS IS ILS OR LOC RWY 19R, AMDT 13B. 2411141902-PERM
4/4/242031Z !FDC 4/7061 MKE IAP GENERAL MITCHELL INTL, MILWAUKEE, WI.
RNAV (GPS) RWY 19R, AMDT 2C...
LNAV/VNAV DA 1209/HAT 537 ALL CATS, VIS RVR 5500 ALL CATS. LNAV MDA 1220/HAT 548 ALL CATS, VIS CAT C/D RVR 5500. VDP: 1.45 NM TO RW19R.
2404042031-2604042031EST
Yes
ALL
MILWAUKEE COUNTY
907 N 10TH ST
MILWAUKEE, WI 53233
Phone: 414-747-5300
BRIAN DRANZIK
5300 S HOWELL AVE
MILWAUKEE, WI 53207
Phone: 414-747-5775
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
MKE
--
--
N/A
Yes - Lighted
No
No
Hangar
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High Pressure
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 01L/19R

9990 ft. x 200 ft.
ASPH CONC
Fair
GRVD
HIGH

100,000lbs
185,000lbs
350,000lbs
--
  Runway 01L Runway 19R
True Heading 187°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 55' 50"N 42° 57' 28"N
Longitude 87° 53' 52"W 87° 53' 35"W
Elevation 706' 673'
Threshold Crossing Height 72 ft. AGL 75 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4R P4R
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 01R/19L

4182 ft. x 150 ft.
ASPH CONC
Fair
NONE
MED

85,000lbs
115,000lbs
180,000lbs
--
  Runway 01R Runway 19L
True Heading 187°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 56' 22"N 42° 57' 03"N
Longitude 87° 53' 33"W 87° 53' 25"W
Elevation 678' 670'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 07L/25R

4797 ft. x 100 ft.
ASPH CONC
Good
GRVD
MED

30,000lbs
35,000lbs
55,000lbs
--
  Runway 07L Runway 25R
True Heading 72°252°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 57' 10"N 42° 57' 25"N
Longitude 87° 54' 19"W 87° 53' 18"W
Elevation 672' 675'
Threshold Crossing Height 39 ft. AGL 42 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 07R/25L

8300 ft. x 150 ft.
ASPH CONC
Fair
GRVD
HIGH

100,000lbs
185,000lbs
350,000lbs
--
  Runway 07R Runway 25L
True Heading 72°252°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 56' 21"N 42° 56' 46"N
Longitude 87° 55' 04"W 87° 53' 18"W
Elevation 728' 670'
Threshold Crossing Height 63 ft. AGL 47 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 13/31

5537 ft. x 150 ft.
ASPH CONC
Good
GRVD
MED

80,000lbs
110,000lbs
170,000lbs
--
  Runway 13 Runway 31
True Heading 132°312°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 57' 29"N 42° 56' 53"N
Longitude 87° 54' 12"W 87° 53' 17"W
Elevation 671' 669'
Threshold Crossing Height 54 ft. AGL 55 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1RY 07L/25R CLSD TO ALL JET ACFT.
A110-10ALL APCHS ARE OVER NOISE SENSITIVE AREAS; ALL TURBOJET ACFT SHOULD REFRAIN FM CONDUCTING MULTI VFR TFC PATTERN APCHS & DEPS WO PRIOR APVL FM AMGR CALL C414-747-5325.
A110-3RY 13/31 CLSD JET ACFT, UNLESS PMSN FROM TWR OR AMGR 414-747-5325.
A110-5TRNG FLGTS INVOLVING SUCCESSIVE USE OF ANY RY PROHIBITED 2200-0600.
A110-52ACFT WITH WINGSPAN GREATER THAN 175 FT CANNOT PASS SIMULTANEOUSLY ON TWY 'E' & TWY 'Z'.
A110-55TWY F (WEST OF TWY Z) CLSD TO ACFT WITH WINGSPAN GREATER THAN OR EQUAL TO 118 FT UNLESS PERMISSION FROM ARPT DIR AT 414-747-5325.
A110-56RY 19R TODA 8,750 FT FROM INT TWY V.
A110-57TWY V BTN TWY D AND RY 7L/25R CLSD TO ACFT WITH WINGSPAN GREATER THAN 170 FT WHEN RY 7L/25R IN USE.
A110-58TWY B BTN TWY V AND TWY P CLSD TO AFCT WITH WINGSPAN GREATER THAN 170 FT.
A110-6RYS 13/31 & 01R/19L & 07L/25R CLSD EXCP LGT WT SINGLE ENG ACFT 0400-1200Z DLY.
A110-60HOLDING BAY AT RY 19R WHEN IN USE, TWY Z ADJACENT TO BAY IS LIMITED TO ACFT WITH WINGSPAN UP TO 170 FT.
A110-61RY 07L/25R NO ACFT 65,000 LBS OR GREATER ALLOWED TO TAXI BTN TWY D & RY 13/31 AND EAST OF RY 19R.
A110-62RY 01R-19L AVAILABLE TO AIR CARRIERS FOR TAXI ONLY.
A110-64TWY S & TWY T BTN TWY R & RY 07R/25L AND RY 07R/25L BTN RY 1R/19L & TWY R CLSD DURG CAT II & III OPNS.
A110-68HOLDING BAY AT RY 01L CLSD EXCP ACFT WITH WINGSPAN LESS THAN 118 FT.
A110-72TWY A CLSD BTN TWY A4 AND TWY A5 TO ACFT WITH WINGSPAN GREATER THAN OR EQUAL TO 214' UNLESS PERMISSION FROM ARPT MGR 414-747-5325
A110-73ALL AIRCRAFT PUSHBACKS FROM GATES C20, C21, C22, C23, D39 D41 D43, D45, D48, D51, D53, D54, D55, E65, E66, & E67 REQUIRE CLEARANCE FROM GROUND CONTROL. PUSHBACKS FROM ALL OTHER GATES ARE AT RAMP/ PILOT DISCRETION; CONTACT GROUND CONTROL WHEN READY TO TAXI.
A110-74TWY C CLSD BTWN APCH END OF RWY 7L AND WEST RAMP NORTH TXL TO ACFT WITH WINGSPAN GTR THAN OR EQUAL TO 118 FT UNLESS PMSN FM ARPT MGR 414-747-5325.
A110-75DEICE PAD FOR RWY 07R NOT AUTH FOR THRU TAXI.
A110-76TWY B BTN TWY R AND TWY A1 CLSD TO ACFT WINGSPAN MORE THAN 118 FT EXC PPR 414-747-5325.
A110-77TWY A BTN TWY R AND TWY A1 CLSD TO ACFT WINGSPAN MORE THAN 171 FT EXC PPR 414-747-5325.
A110-78TWY A CLSD FM TWY R TO TWY E AND TWY E CLSD FM TWY T TO TWY E1 AND TWY T CLSD N OF RWY 07R/25L, AND TWY M CLSD FM TWY E TO RWY 01R/19L TO ACFT WITH TAIL HGT GTR THAN 54.5 FT DURG CAT II AND CAT III OPS.
A110-8BIRDS ON & INVOF ARPT.
A110-80ACFT ARE NOT PERMITTED TO MAKE LEFT TURN ONTO TWY E WHEN EXITING TWY E2.
A110-81TWY F (E OF RWY 19R), TWY H, TWY J, AND TWY P CLSD TO ACFT WITH WINGSPAN GTR THAN 78 FT UNLESS PMSN FM AMGR AT 414-747-5325.
A110-82ANG: PPR ALL ACFT 48HR PN, CTC AFLD MGMT DSN 580-8241, C414-944-8241. AFLD MGMT HR 1200Z-2230Z++ TUE-FRI, CLSD HOL, SAT-SUN EXC UNIT TMG. MAINT OPS (MOCC) FREQ - 379.85. ANY MDS (OTHER THAN KC-135) IS LTD TO STD TRAN MARSHALLING AND PRK. NO TECH DATA AVBL FOR TRAN MAINT. FUEL AND AGE SUPPORT EQUIP AVBL FOR SELF-SVC. NO ADNL CONFIGN ITEMS SUPPORTED SUCH AS LANTIRN PODS, EDM PODS, ETC. ANG: EOR, ACFT SHELTERS/REVETMENTS, AND ALERT FAC UNAVBL. APRON HAS LTD STATIC GND POINTS AND TIE DOWN POINTS. FLEET SVC/HOT CARGO PRKG UNAVBL. CTC UPSET CTL ON 321.0 30 MIN PRIOR TO LDG AND DEP. NSTD MRK ON APRON FOR WINGTIP CLNC USED BY BASE ASGND ACFT.
A110-9PREFERRED USAGE BY ACFT BTN 2200-0600 IS TKOF RY 19R & LNDG RY 01L.
GENERAL MITCHELL INTL (ICAO: KMKE, IATA: MKE) is a public airport located in MILWAUKEE, WI.
