iFlightPlanner



...

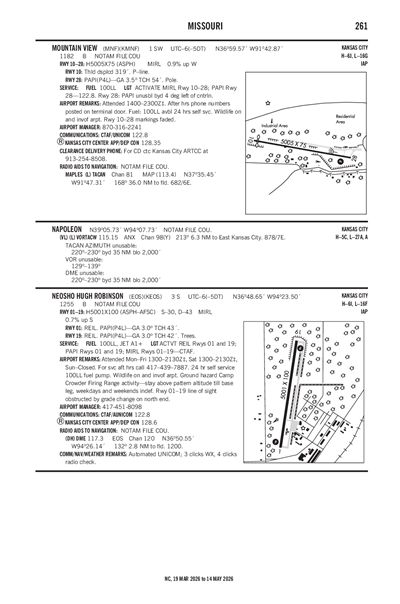

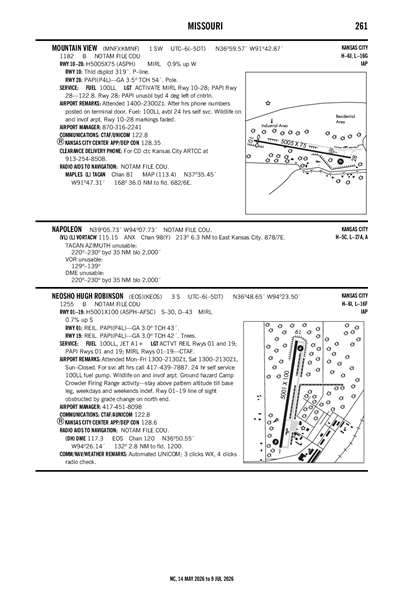

MOUNTAIN VIEW - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMNF
MOUNTAIN VIEW
PublicPUB

1 miles SW of MOUNTAIN VIEW, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 59' 34"N 91° 42' 52"W
1182' MSL
2182' MSL
00E
100LL
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
5/16/24-6/13/24
KUNO (11nm) IFR
11:53 PM CDT
Overcast 600'
10sm
67°F
63°F
30.01"Hg
160° 7kts
AO2 SLP151 T01940172
KUNO 010453Z AUTO 16007KT 10SM OVC006 19/17 A3001 RMK AO2 SLP151 T01940172
Add Your Business

KMNF FBOs

Promote Listing
Mountain View Airport
UNICOM: 122.8
Phone: (417) 934-2601
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.29
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTBN (50nm)
Fri, 5/31 7:10 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 10:00 PM CDT
IFR
7:00 PM CDT - 11:00 PM CDT
Light Showers and Rain
Overcast 3,000'
Broken 1,500'
Scattered 500'
1.99sm
29.97"Hg
VRB° 10kts
Gusts 15kts
IFR
Temporary 7:00 PM CDT - 11:00 PM CDT
Showers and Rain and Mist
Overcast 1,200'
Broken 500'
1.99sm
Calm
LIFR
Becoming 11:00 PM CDT - 11:00 AM CDT
Showers and Rain and Mist
Overcast 400'
0.99sm
29.91"Hg
VRB° 6kts
MVFR
Becoming 11:00 AM CDT - 1:00 PM CDT
Light Rain
Overcast 2,200'
Broken 1,400'
4.97sm
29.94"Hg
290° 6kts
MVFR
Becoming 1:00 PM CDT - 8:00 PM CDT
Light Rain
Overcast 2,900'
Scattered 2,200'
5.59sm
29.94"Hg
300° 6kts
MVFR
Becoming 8:00 PM CDT - 10:00 PM CDT
Broken 3,000'
Few 2,200'
6sm
29.94"Hg
290° 3kts
TAF AMD KTBN 010010Z 0100/0203 VRB10G15KT 3200 -SHRA SCT005 BKN015 OVC030 QNH2996INS
   TEMPO 0100/0104 3200 SHRA BR BKN005 OVC012
   BECMG 0104/0106 VRB06KT 1600 SHRA BR OVC004 QNH2992INS
   BECMG 0116/0118 29006KT 8000 -RA BKN014 OVC022 QNH2994INS
   BECMG 0118/0120 30006KT 9000 -RA SCT022 OVC029 QNH2995INS
   BECMG 0201/0203 29003KT 9999 NSW FEW022 BKN030 QNH2995INS TX24/0121Z TN17/0101Z LAST NO AMDS AFT 0103 NEXT 0313
KMNF
Domestic
5/27/240422Z !COU 05/527 MNF OBST TOWER LGT (ASR 1045908) 370050.10N0914242.30W (1.3NM NE MNF) 1528.9FT (278.9FT AGL) U/S 2405270422-2409240422
5/27/240214Z !COU 05/524 MNF OBST TOWER LGT (ASR 1006383) 370051.10N0914233.50W (1.3NM NE MNF) 1638.8FT (399.9FT AGL) U/S 2405270214-2406250001
5/26/241528Z !COU 05/516 MNF OBST TOWER LGT (ASR 1296564) 370503.00N0913923.40W (6.2NM NNE MNF) 1479.7FT (364.8FT AGL) U/S 2405261528-2406262359EST
5/10/241955Z !COU 05/242 MNF OBST TOWER LGT (ASR 1251993) 371124.00N0914036.00W (12.0NM NE MNF) 1675.9FT (404.9FT AGL) U/S 2405101955-2408312359
4/24/240625Z !COU 04/319 MNF OBST TOWER LGT (ASR 1269495) 370623.70N0914849.90W (8.3NM NW MNF) 1565.0FT (334.0FT AGL) U/S 2404240625-2407262359
3/14/242316Z !COU 03/217 MNF OBST TOWER LGT (ASR 1049393) 370057.00N0913933.00W (3.0NM ENE MNF) 1499.0FT (345.1FT AGL) U/S 2403142316-2406141159
No
0800-1700
AFT HRS PHONE NBRS POSTED ON TERMINAL DOOR.
CITY OF MOUNTAIN VIEW
126 N. OAK, P.O. BOX 1090
MOUNTAIN VIEW, MO 65548
Phone: 417- 934-2601
EDDIE OWENS
BOX 1090
MOUNTAIN VIEW, MO 65548
Phone: (417) 934-2601
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
ACTVT MIRL RY 10/28 AND PAPI RY 28 - 122.8
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
12
1
0
0
0
0
None
None
None
None
None

Runway 10/28

5005 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 10 Runway 28
True Heading 99°279°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 36° 59' 38"N 36° 59' 30"N
Longitude 91° 43' 23"W 91° 42' 22"W
Elevation 1,182' 1,137'
Threshold Crossing Height -- 54 ft. AGL
Visual Glide Path Angle -- 3.5°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE ON & INVOF ARPT.
A110-2FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
MOUNTAIN VIEW (ICAO: KMNF, IATA: MNF) is a public airport located in MOUNTAIN VIEW, MO.
