KMNN

MARION MUNI

PublicPUB

3 miles NE of MARION, OH

View on Map

Status

Operational

Coordinates

40° 36' 59"N 83° 03' 48"W

Elevation

993' MSL

Pattern Alt

1793' MSL

Mag Variation

05W

Fuel

JET A-1, JET A-1+, 100LL

FSS

CLEVELAND (CLE)

Sectional

DETROIT

ARTCC

CLEVELAND (ZOB)

Data Effective

11/28/24-12/26/24

KMNN VFR

6:53 AM EST RAW

Scattered 12,000'

Viz

10sm

Temp

25°F

Dew

15°F

Pres

30.33"Hg

Wind

170° 10kts

RMK

AO2 SLP287 T10391094 11039 21056 56017

KMNN 231153Z AUTO 17010KT 10SM SCT120 M04/M09 A3033 RMK AO2 SLP287 T10391094 11039 21056 56017

Add Your Business

KMNN FBOs

Promote Listing

Wingman Air Support

UNICOM: 122.8

Phone: (402) 995-9288

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 122.8 CTAF 122.8

ASOS

740-223-7502

119.975

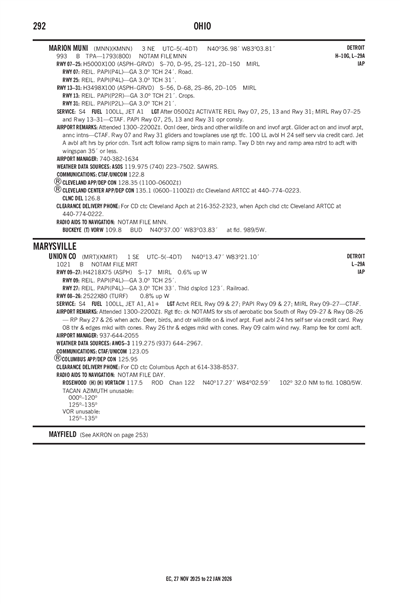

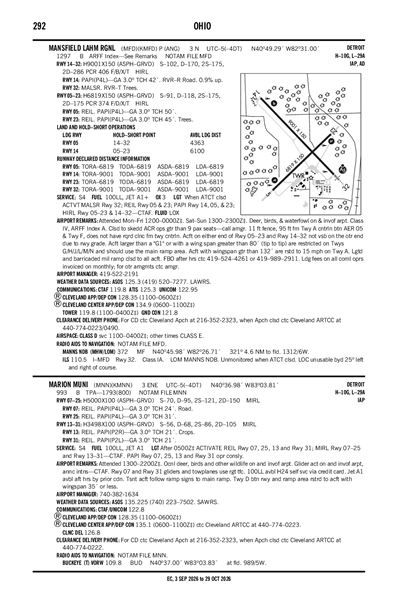

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KMFD (28nm)

RAW

Reported

Mon, 12/23 6:39 AM EST

Valid

Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST

VFR

7:00 AM EST - 12:00 PM EST

Broken 12,000'

Viz

6sm

Wind

170° 12kts

VFR

12:00 PM EST - 6:00 PM EST

Broken 12,000'

Viz

6sm

Wind

160° 12kts

Gusts 20kts

VFR

6:00 PM EST - 9:00 PM EST

Light Rain

Overcast 5,000'

Viz

6sm

Wind

180° 15kts

Gusts 25kts

MVFR

9:00 PM EST - 11:00 PM EST

Light Rain and Mist

Overcast 1,500'

Viz

3sm

Wind

220° 12kts

Gusts 22kts

IFR

11:00 PM EST - 7:00 AM EST

Light Rain and Snow and Mist

Overcast 1,000'

Viz

2sm

Wind

220° 12kts

Gusts 20kts

KMFD 231139Z 2312/2412 17012KT P6SM BKN120
   FM231700 16012G20KT P6SM BKN120
   FM232300 18015G25KT P6SM -RA OVC050
   FM240200 22012G22KT 3SM -RA BR OVC015
   FM240400 22012G20KT 2SM -RASN BR OVC010

KMNN

Domestic
12/13/241702Z	!MNN 12/028 MNN AD AP JET A FUEL NOT AVBL 2412131702-2412231300
12/3/242324Z	!MNN 12/006 MNN OBST TOWER LGT (ASR 1012271) 403627.00N0831414.00W (7.9NM W MNN) 1243.8FT (304.8FT AGL) U/S 2412032324-2501172323
12/2/241432Z	!MNN 12/001 MNN OBST TOWER LGT (ASR 1326768) 403809.17N0825734.45W (4.9NM ENE MNN) 1223FT (230FT AGL) U/S 2412021432-2501161431
10/4/241242Z	!MNN 10/004 MNN RWY 13 PAPI U/S 2410041242-2504042111EST
8/21/241520Z	!MNN 08/008 MNN RWY 25 PAPI U/S 2408211520-2412301200

ATC Tower

Attendance

0800-1700

Owner

CITY OF MARION
CITY HALL, 233 W CENTER ST
MARION, OH 43302-3692
Phone: 740-387-2020

Manager

MATTHEW "MATT" ARNOLD
1530 POLE LANE RD
MARION, OH 43302-8514
Phone: 740-382-1634

FSS

CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF

NOTAM

MNN

Light Schedule

Lights

ACTVT REIL RWY 07, 25, 13, & 31; MIRL RWY 07/25 & 13/31 - CTAF. PAPI RWY 07, 25, 13, & 31 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Freight
Crop Dusting
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Glider Towing

Runway 07/25

Dimensions

5000 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

70,000lbs

Double Wheel

95,000lbs

Double Tandem

150,000lbs

Dual Dbl Tand

	Runway 07	Runway 25
True Heading	60°	240°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	40° 36' 41"N	40° 37' 06"N
Longitude	83° 04' 17"W	83° 03' 21"W
Elevation	989'	993'
Threshold Crossing Height	24 ft. AGL	31 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

Runway 13/31

Dimensions

3498 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

56,000lbs

Double Wheel

68,000lbs

Double Tandem

105,000lbs

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	120°	300°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	40° 37' 14"N	40° 36' 57"N
Longitude	83° 04' 08"W	83° 03' 29"W
Elevation	986'	989'
Threshold Crossing Height	21 ft. AGL	21 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2R	P2L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

A110-1	GLIDER ACT ON & INVOF ARPT, ANNC INTNS - CTAF.
A110-3	TSNT ACFT FOLLOW RAMP SIGNS TO MAIN RAMP. TWY D BTN RWY & RAMP AREA RSTRD TO ACFT WITH WINGSPAN 35 FT OR LESS.
A110-5	FOR CD CTC CLEVELAND APCH AT 216-352-2323, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0222.
A110-6	OCNL DEER, BIRDS, & OTR WILDLIFE ON & INVOF ARPT.

MARION MUNI (ICAO: KMNN, IATA: MNN) is a public airport located in MARION, OH.
