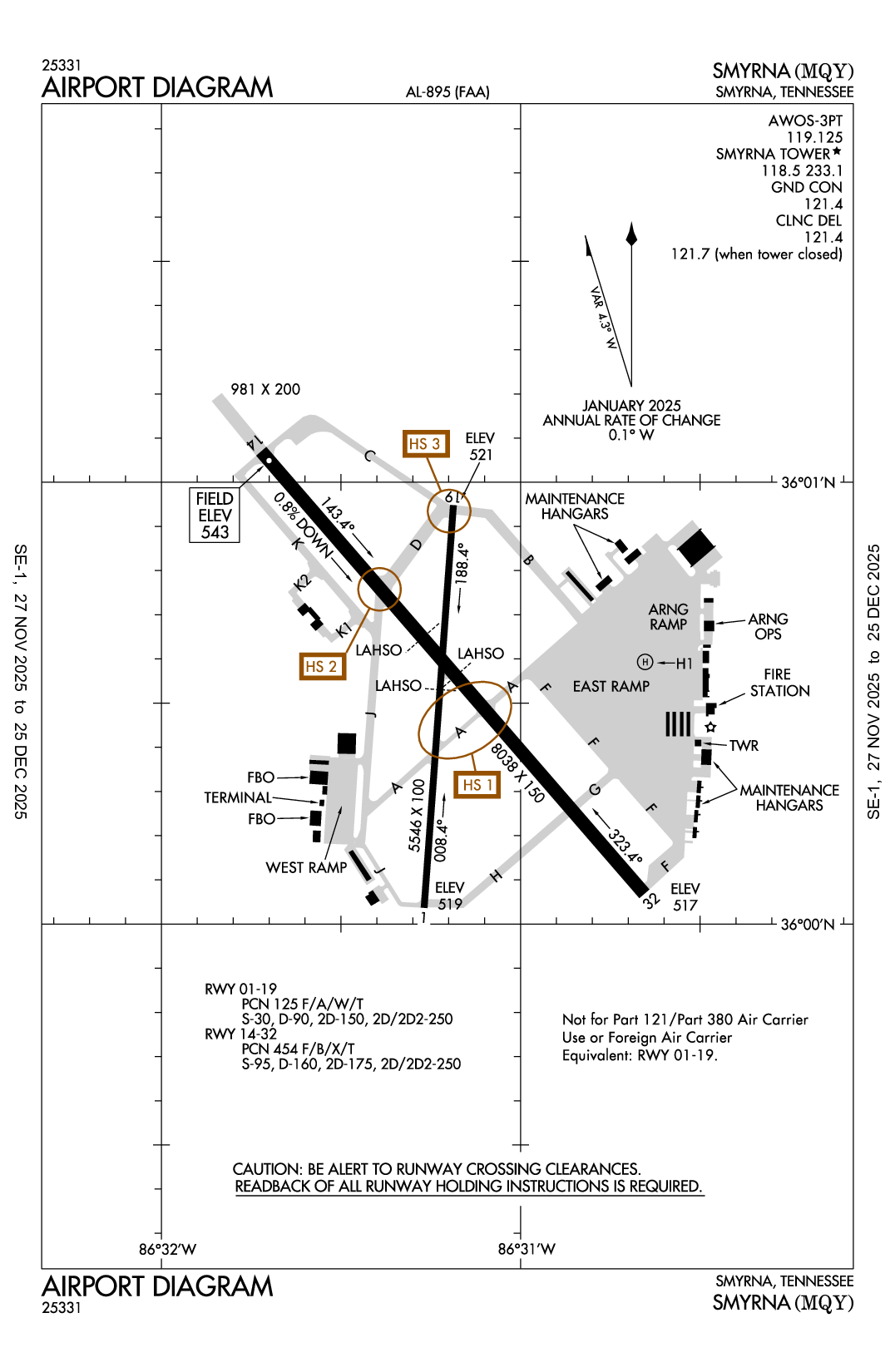

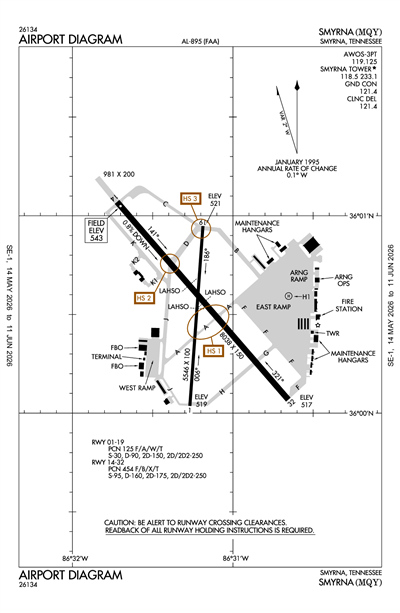

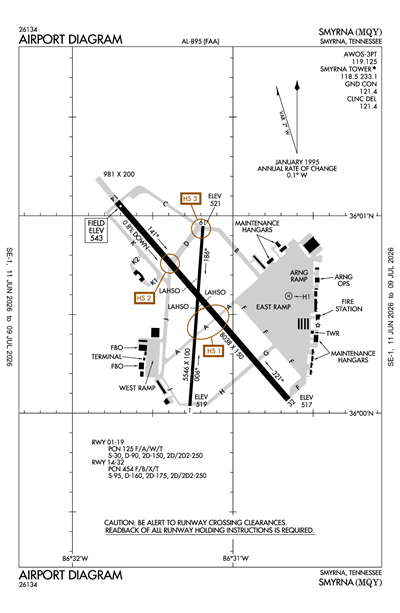

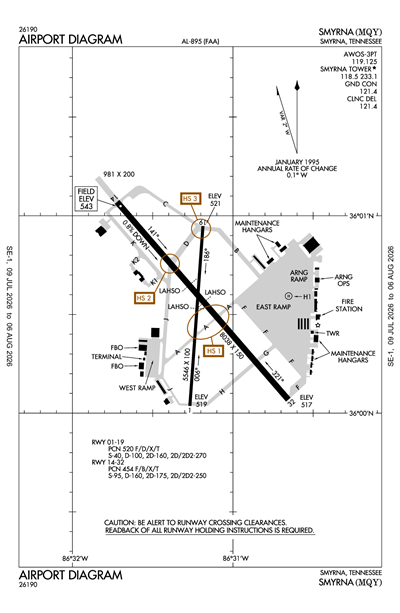

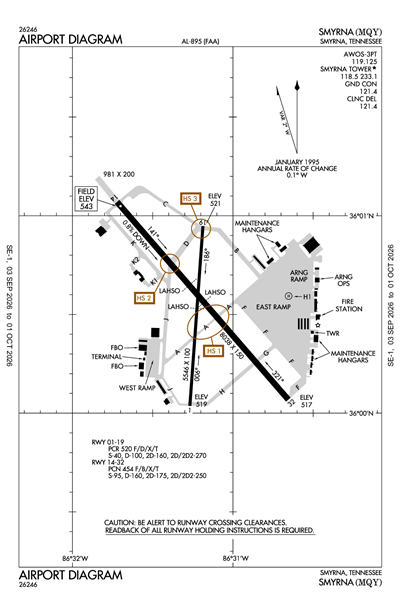

SMYRNA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMQY
SMYRNA
PublicPUB

2 miles N of SMYRNA, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 00' 32"N 86° 31' 12"W
543' MSL
1500' MSL
02W
JET A, 100LL
NASHVILLE (BNA)
ATLANTA
MEMPHIS (ZME)
5/16/24-6/13/24
KMQY VFR
8:56 PM CDT
Clear
10sm
72°F
61°F
30.12"Hg
120° 5kts
AO2 RAB31E42 SLP202 P0000 T02220161
KMQY 010156Z 12005KT 10SM CLR 22/16 A3012 RMK AO2 RAB31E42 SLP202 P0000 T02220161
Add Your Business

KMQY FBOs

Azure Flight Support
UNICOM: 122.95
Phone: (615) 220-2957
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.45 6.35
Fuel Notes
Prices include tax
Promote Listing
Hollingshead Aviation
UNICOM: 122.95
Phone: (615) 459-3337
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/29
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.26 6.12 6.17
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.5

AWOS-3PT

AWOS-3PT
615-223-7716
 119.125

Clearance Delivery

CD/P
 121.4

Ground

GND/P
 121.4

Tower

LCL/P
 118.5

Other

NG OPS
 41.5
NG OPS
 149.8

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMQY
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 1:00 AM CDT
Broken 25,000'
6sm
120° 7kts
VFR
1:00 AM CDT - 5:00 AM CDT
Overcast 10,000'
Scattered 7,000'
6sm
160° 8kts
VFR
5:00 AM CDT - 9:00 AM CDT
Light Showers and Rain
Overcast 5,000'
6sm
150° 10kts
MVFR
9:00 AM CDT - 12:00 PM CDT
Light Rain
Overcast 2,000'
5sm
150° 12kts
Gusts 20kts
IFR
12:00 PM CDT - 7:00 PM CDT
Light Showers and Rain
Overcast 800'
4sm
150° 14kts
Gusts 24kts
IFR
Temporary 4:00 PM CDT - 7:00 PM CDT
Light Thunderstorm and Rain
Overcast 700'
3sm
Calm
KMQY 312320Z 0100/0124 12007KT P6SM BKN250
   FM010600 16008KT P6SM SCT070 OVC100
   FM011000 15010KT P6SM -SHRA OVC050
   FM011400 15012G20KT 5SM -RA OVC020
   FM011700 15014G24KT 4SM -SHRA OVC008
   TEMPO 0121/0124 3SM -TSRA OVC007CB
KMQY
Domestic
6/1/240247Z !MQY 06/002 MQY TWY J, K, K1, K2, TWY A BTN RWY 01/19 AND RWY 14/32, TWY A BTN RWY 01/19 AND TWY J SIGNS LGT U/S 2406010247-2406042100
6/1/240224Z !MQY 06/001 MQY TWY J, K, K1, K2, TWY A BTN RWY 01/19 AND RWY 14/32, TWY A BTN RWY 01/19 AND TWY J EDGE LGT U/S 2406010224-2406042100
5/31/241615Z !MQY 05/025 MQY NAV ILS RWY 32 NOT MNT 2405311615-2406212000EST
5/23/241926Z !MQY 05/018 MQY NAV ILS RWY 32 NOT MNT 2405231926-PERM
5/22/240442Z !MQY 05/014 MQY OBST TOWER LGT (ASR 1256357) 355940.60N0862924.70W (1.7NM ESE MQY) 642.1FT (129.9FT AGL) U/S 2405220442-2406060342
4/29/241200Z !MQY 04/018 MQY TWY J BTN APCH END RWY 01 AND WEST RAMP SOUTH ACCESS CLSD 2404291200-2406282200
4/29/241200Z !MQY 04/017 MQY TWY H CLSD 2404291200-2406282200
4/16/241439Z !MQY 04/010 MQY AIRSPACE SEE BNA 04/306 UAS 2404161439-2410162359
4/8/241156Z !MQY 04/004 MQY NAV ILS RWY 32 NOT MNT 2404081156-PERM
3/21/241300Z !MQY 03/007 MQY RWY 01/19 CLSD 2403211300-2411292100
12/14/230731Z !MQY 12/015 MQY OBST TOWER LGT (ASR UNKNOWN) 360453.89N0863405.83W (4.2NM N MQY) UNKNOWN (250FT AGL) U/S 2312140731-2406142359
12/12/231612Z !MQY 12/014 MQY OBST TOWER LGT (ASR UNKNOWN) 360457.64N0863350.15W (3.8NM N MQY) UNKNOWN (250FT AGL) U/S 2312121612-2411302359
FDC
3/15/241614Z !FDC 4/7812 MQY IAP SMYRNA, SMYRNA, TN.
ILS OR LOC/DME RWY 32, AMDT 6A...
S-LOC MDA 900/HAT 382.
2403151614-2603151614EST
1/11/241755Z !FDC 4/2941 MQY IAP SMYRNA, SMYRNA, TN.
ILS OR LOC/DME RWY 32, AMDT 6A...
MISSED APPROACH: CLIMB TO 1500 THEN CLIMBING RIGHT TURN TO 3000 ON HEADING 160 DIRECT FQW NDB AND HOLD. ADF REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BNA VOR OUT OF SERVICE. 2401111755-2408221755EST
Yes
ALL
SMYRNA/RUTHERFORD ARPT AUTH
278 DOUG WARPOOLE RD.
SMYRNA, TN 37167
Phone: 615-459-2651
JOHN BLACK
278 DOUG WARPOOLE RD.
SMYRNA, TN 37167
Phone: 615-459-2651
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
MQY
--
ACTVT MALSR RWY 32; REIL RWY 14; MIRL RWY 01/19; HIRL RWY 14/32 - CTAF. PAPI RWY 01, 14, 19 & 32 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
107
35
53
3
0
0
Major
Major
Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 01/19

5546 ft. x 100 ft.
ASPH
Fair
NONE
MED
125/F/A/W/T
30,000lbs
90,000lbs
150,000lbs
250,000lbs
  Runway 01 Runway 19
True Heading 4°184°
Traffic Pattern Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 00' 02"N 36° 00' 57"N
Longitude 86° 31' 16"W 86° 31' 11"W
Elevation 519' 521'
Threshold Crossing Height 27 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

8038 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
71 /F/A/W/T
95,000lbs
160,000lbs
175,000lbs
250,000lbs
  Runway 14 Runway 32
True Heading 139°319°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 01' 04"N 36° 00' 04"N
Longitude 86° 31' 43"W 86° 30' 39"W
Elevation 543' 517'
Threshold Crossing Height 50 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway H1

40 ft. x 40 ft.
CONC
Fair
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NASHVILLE INTL ARPT TFC TRANSITS SMYRNA ARPT TFC AREA AT 2500 FT MSL & ABV.
A110-10MILITARY SERVICE: LGT FOR PERIMETER LGT HELIPAD H1 CALL 615-459-2651. H1 PERIMETER LGT O/S UFN. FUEL A+, C615-220-2957, OTR C615-459-3337.
A110-11FOR CD WHEN ATCT IS CLSD CTC BNA APCH ON 121.7, IF UNA CALL 615-695-4522.
A110-3ANG BASE OPS 0630-1600 MON-FRI. PPR DSN 683-3611.
A110-524 HR PPR FOR ACFT OVER 30 PAX - AMGR.
A110-6TWY J SOUTH OF TWY A LIMITED TO 65000 LBS.
A110-7TWY K LIMITED TO 65000 LBS.
A110-9CLASS D SVC 1300-0400Z MON-FRI
SMYRNA (ICAO: KMQY, IATA: MQY) is a public airport located in SMYRNA, TN.
