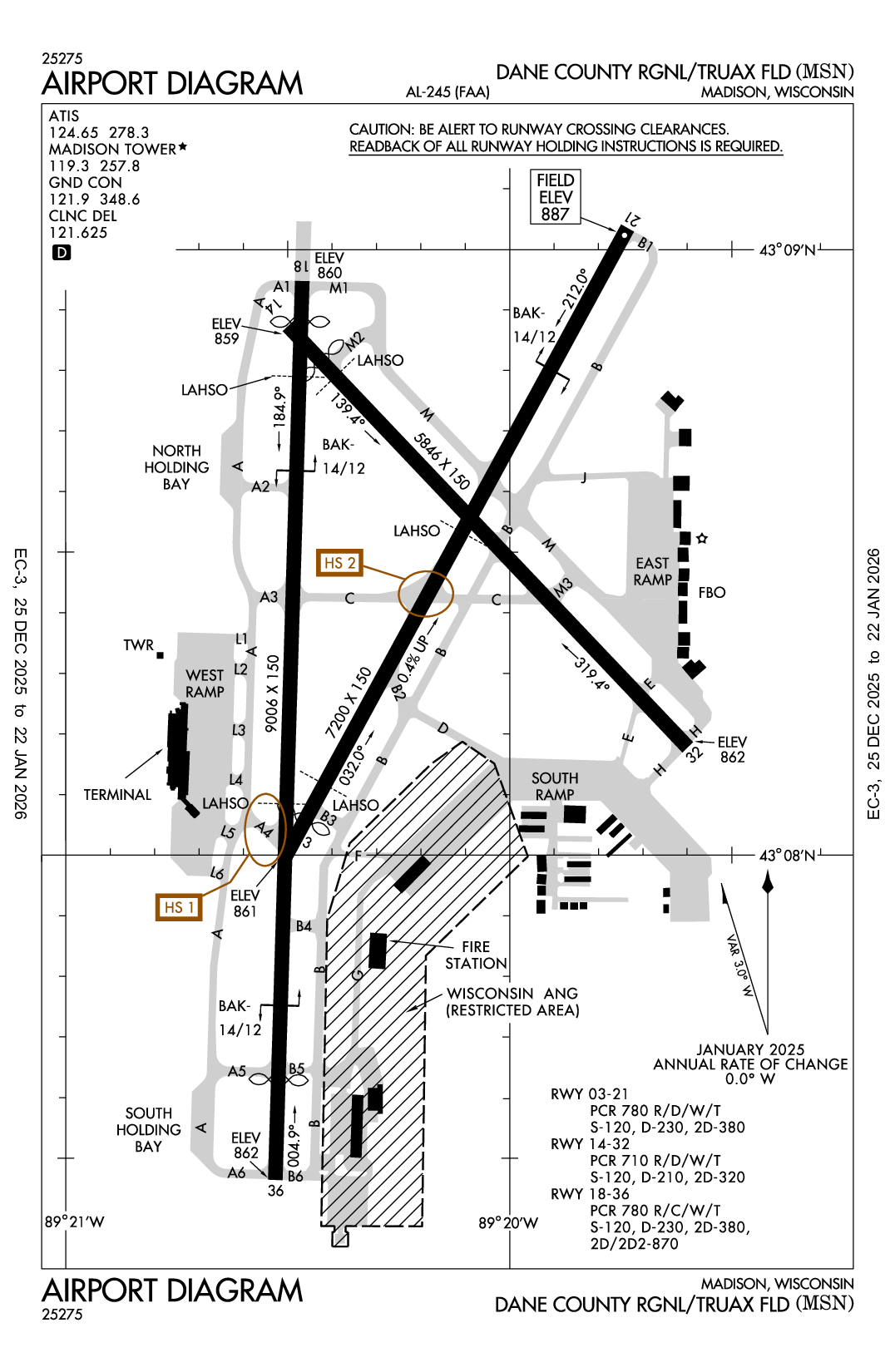

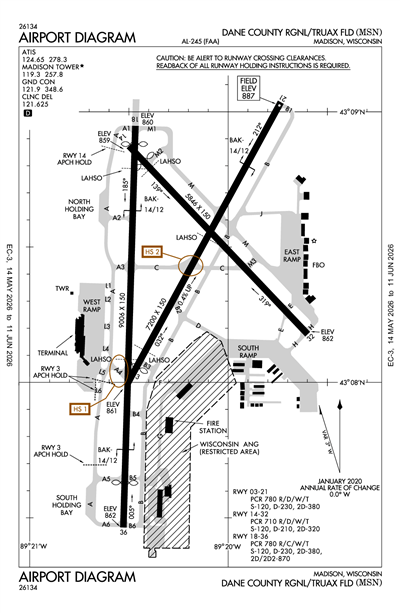

DANE COUNTY RGNL/TRUAX FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMSN
DANE COUNTY RGNL/TRUAX FLD
PublicPUB

5 miles NE of MADISON, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 08' 24"N 89° 20' 15"W
887' MSL
1887' MSL
03W
JET A, 100LL
GREEN BAY (GRB)
CHICAGO
CHICAGO (ZAU)
12/26/24-1/23/25
KMSN MVFR
10:31 AM CST
Light Snow
Overcast 4,000'
Broken 3,200'
3sm
14°F
8°F
30.02"Hg
200° 9kts
AO2 SFC VIS 5 P0001 T11001133
KMSN 221631Z 20009KT 3SM -SN BKN032 OVC040 M10/M13 A3002 RMK AO2 SFC VIS 5 P0001 T11001133
Add Your Business

KMSN FBOs

Promote Listing
Wisconsin Aviation
UNICOM: 122.95
Phone: (608) 268-5006
Fax: (608) 268-5038
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 1/12
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.59 4.99 5.02
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.3

ATIS

ATIS
 124.65

Approach/Departure

APCH/P DEP/P
EAST
 120.1
APCH/P DEP/P
WEST
 135.45

Clearance Delivery

CD/P
 121.625

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 119.3

Other

ANG OPS
 40.8
ANG OPS
 123.4
ANG OPS
 138.175
CLASS C
EAST
 120.1
CLASS C
WEST
 135.45

Terminal Area Forecast

KMSN
Wed, 1/22 9:01 AM CST
Wed, 1/22 9:00 AM CST - Thu, 1/23 6:00 AM CST
MVFR
9:00 AM CST - 6:00 PM CST
Light Snow
Overcast 3,500'
3sm
200° 12kts
Gusts 21kts
IFR
Temporary 9:00 AM CST - 12:00 PM CST
Light Snow
Broken 2,000'
2sm
Calm
MVFR
6:00 PM CST - 8:00 PM CST
Overcast 2,100'
6sm
220° 6kts
MVFR
6:00 PM CST - 8:00 PM CST
Light Snow
Overcast 1,500'
4sm
Calm
IFR
8:00 PM CST - 10:00 PM CST
Light Snow
Overcast 1,400'
2sm
250° 6kts
MVFR
10:00 PM CST - 3:00 AM CST
Light Snow
Overcast 1,200'
4sm
280° 6kts
VFR
3:00 AM CST - 6:00 AM CST
Scattered 5,000'
6sm
330° 9kts
KMSN 221501Z 2215/2312 20012G21KT 3SM -SN OVC035
   TEMPO 2215/2218 2SM -SN BKN020
   FM230000 22006KT P6SM OVC021
   PROB30 2300/2302 4SM -SN OVC015
   FM230200 25006KT 2SM -SN OVC014
   FM230400 28006KT 4SM -SN OVC012
   FM230900 33009KT P6SM SCT050
KMSN
Domestic
1/27/251200Z !MSN 01/115 MSN OBST CRANE (ASN 2024-AGL-14319-OE) 430729N0891927W (1.1NM SSE MSN) 1055FT (190FT AGL) FLAGGED AND LGTD 2501271200-2509262300
1/22/251621Z !MSN 01/130 MSN RWY 18 FICON 20 PCT 1/8IN DRY SN OBS AT 2501221512. 2501221621-2501231621
1/22/251424Z !MSN 01/128 MSN RWY 14/32 CLSD 2501221424-2501232300
1/22/251424Z !MSN 01/127 MSN RWY 03/21 CLSD 2501221424-2501232300
1/22/251423Z !MSN 01/126 MSN TWY B1, B2, B3, B5, E, H, J, M2, TWY B BTN TWY B1 AND TWY M CLSD 2501221423-2501232300
1/22/251413Z !MSN 01/125 MSN AD AP ALL SFC WIP SN REMOVAL 2501221413-2501222300
1/22/251359Z !MSN 01/124 MSN APRON WEST RAMP FICON PATCHY 1/4IN DRY SN OBS AT 2501221359. 2501221359-2501231359
1/22/251359Z !MSN 01/123 MSN APRON SOUTH RAMP, EAST RAMP FICON PATCHY 1/4IN DRY SN OBS AT 2501221359. 2501221359-2501231359
1/22/251355Z !MSN 01/122 MSN TWY ALL FICON PATCHY 1/4IN DRY SN OBS AT 2501221353. 2501221355-2501231355
12/8/241733Z !MSN 12/048 MSN OBST TOWER LGT (ASN 2017-AGL-7779-OE) 430630N0891718W (2.9NM SE MSN) 1075FT (60FT AGL) U/S 2412081733-2502082359
12/6/241616Z !MSN 12/044 MSN OBST CRANE (ASN 2023-AGL-16107-OE) 430647N0891949W (1.6NM S MSN) 992FT (110FT AGL) FLAGGED AND LGTD 2412061616-2505192300
11/4/241421Z !MSN 11/023 MSN APRON SOUTH RAMP MILLER STREET TXL CL MARKINGS NOT STD 2411041421-2504302359
11/4/241300Z !MSN 10/099 MSN OBST CRANE (ASN 2024-AGL-13283-OE) 430935N0891910W (1.4NM NE MSN) 1040FT (140FT AGL) FLAGGED AND LGTD 2411041300-2504302359
11/1/241859Z !MSN 11/001 MSN OBST NUMEROUS STRUCTURE LGT WI AN AREA DEFINED 1NM RADIUS OF 430802.40N0891735.52W (2.5NM ESE MSN) SFC-130FT AGL U/S DUE TO POWER OUTAGE CAUSED BY CONST 2411011859-2503312359
4/20/240700Z !MSN 04/137 MSN OBST CRANE (ASN 2024-AGL-4329-OE) 430428N0892348W (4.7NM SSW MSN) 1112FT (251FT AGL) FLAGGED AND LGTD 2404200700-2510312300
3/14/241056Z !MSN 03/036 MSN OBST CRANE (ASN 2023-AGL-9405-OE) 430945N0891916W (1.5NM NNE MSN) 1022FT (112FT AGL) FLAGGED AND LGTD 2403141056-2503122300
FDC
1/22/251430Z !FDC 5/5303 MSN IAP DANE COUNTY RGNL/TRUAX FLD, MADISON, WI.
ILS OR LOC RWY 18 , AMDT 2B...
ILS RWY 18 (SA CAT I AND II), AMDT 2B....
MISSED APPROACH: CLIMB TO 1400 THEN CLIMBING LEFT TURN TO 3500 ON HEADING 070 AND ON BAE VORTAC R-270 TO DREAR/BAE 33.66 DME AND HOLD,
MSN VORTAC OUT OF SERVICE. 2501221430-2502221815EST
1/22/251430Z !FDC 5/5302 MSN IAP DANE COUNTY RGNL/TRUAX FLD, MADISON, WI.
ILS OR LOC/DME RWY 36, AMDT 2B...
ILS RWY 36 (SA CAT I), AMDT 2B...
ILS RWY 36 (CAT II AND III), AMDT 2B...
ILS RWY 36 (CAT III), AMDT 2B...
MISSED APPROACH: CLIMB TO 1400 THEN CLIMBING RIGHT TURN TO 3500 ON HEADING 110 TO AND ON BAE VORTAC R-270 TO DREAR/BAE 33.66 DME AND HOLD,
MSN VORTAC OUT OF SERVICE. 2501221430-2502221815EST
1/22/251430Z !FDC 5/5299 MSN IAP DANE COUNTY RGNL/TRUAX FLD, MADISON, WI.
ILS OR LOC RWY 21, ORIG-E...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MSN VORTAC OUT OF SERVICE. 2501221430-2502221815EST
12/30/241300Z !FDC 4/1852 MSN IAP DANE COUNTY RGNL/TRUAX FLD, MADISON, WI.
RNAV (GPS) RWY 3, ORIG-E...
LPV DA 1141/HAT 281 ALL CATS. VIS 7/8 ALL CATS.
TEMPORARY CRANE, 1007 MSL, 1108FT EAST OF RWY 3 (2024-AGL-15586-NRA).
2412301300-2505100817EST
12/6/241507Z !FDC 4/2799 MSN ODP DANE COUNTY RGNL/TRUAX FLD, MADISON, WI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8A...
TAKE-OFF MINIMUMS: RWY 36, 300-1 OR STANDARD WITH MINIMUM CLIMB OF 289 FT PER NM TO 1100.
ALL OTHER DATA REMAINS AS PUBLISHED. 2412061507-2612061507EST
11/18/241946Z !FDC 4/5558 MSN IAP DANE COUNTY RGNL/TRUAX FLD, MADISON, WI.
RNAV (GPS) RWY 21, AMDT 2C...
LPV DA 1312/HAT 425 ALL CATS, VIS 3/4 ALL CATS. RWY 21 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. FOR INOP MALSR, INCREASE LPV ALL CATS VISIBILITY TO 1 1/4 SM, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 1 3/4 SM AND LNAV CAT C/D VISIBILITY TO 1 3/8 SM. TEMPORARY CRANE 1040 MSL 4140FT NE OF RWY 21 (2024-AGL-13283-OE).
2411181946-2503291946EST
11/18/241924Z !FDC 4/5526 MSN IAP DANE COUNTY RGNL/TRUAX FLD, MADISON, WI.
ILS OR LOC RWY 21, ORIG-E...
S-ILS 21 DA 1312/HAT 425 ALL CATS, VIS 3/4 ALL CATS. RWY 21 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. FOR INOP ALS, INCREASE S-ILS 21 ALL CATS VISIBILITY TO 1 1/4 SM AND INCREASE S-LOC 21 CAT C/D VISIBILITY TO 1 3/8 SM. TEMPORARY CRANE 1040 MSL 4140FT NE OF RWY 21 (2024-AGL-13283-OE).
2411181924-2503291924EST
11/18/241921Z !FDC 4/5524 MSN ODP DANE COUNTY RGNL/TRUAX FLD, MADISON, WI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8A...
TAKEOFF MINIMUMS: RWY 3, 300-1 OR STANDARD WITH MINIMUM CLIMB OF 422FT PER NM TO 1200. TEMPORARY CRANE 1040 MSL 4140FT NE OF RWY 21 (2024-AGL-13283-OE). 2411181921-2503291921EST
10/31/241312Z !FDC 4/6966 MSN IAP DANE COUNTY RGNL/TRUAX FLD, MADISON, WI.
ILS OR LOC RWY 21, ORIG-E...
RADAR OR DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
DLL R-129 RADIAL UNUSABLE..
2410311312-2610311312EST
Military
12/2/241519Z AERODROME MILITARY ACFT INCLUDING ALL FIGHTERS, DEPART RWY 36 IF ABLE. IF RWY 18 T/O IS REQUIRED, TURN HEADING 140 OR FUTHER EAST BOUND. DO NOT FLY SOUTH THROUGH WEST OF KMSN OVER DOWNTOWN MADISON UNLESS SAFETY DICTATES OTHERWISE. IF -1 OR NATOPS ALLOWS, LAND RWY 18. NO MULTIPLE APPROACHED OR CARRIER BREAKS DUE TO NOISE. OVHD TRC PAT ALT RSTD TO 3,500' MSL. UNLESS AUTHORIZED BY TWR RWY 18/36 WEST BREAK. FBO PPR CONTACT FBO, MIL RAMP PPR EMAIL 115FW.PPR.ORG@US.AF.MIL
12/2/241519Z USE CAUTION FOR 25' TALL DIRT PILE LOCATED 128' E OF TWY G.
12/2/241518Z WISCONSIN AIR NTL GUARD RAMP TWY G 50' WIDE. RESTRICTED TO FIGHTERS ONLY.
12/2/241513Z !KMSN M0048/24 MSN APRON WISCONSIN AIR NTL GUARD RAMP WORK IN PROGRESS CONST N END LGTD AND BARRICADED NO ACCESS TO THE 115FW APRON VIA TWY D. 2412021513-2502282359
Yes
ALL
DANE COUNTY
4000 INTERNATIONAL LANE
MADISON, WI 53704
Phone: 608-246-3390
KIMBERLY S. JONES
4000 INTERNATIONAL LANE
MADISON, WI 53704
Phone: 608-246-3380
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
MSN
--
ACTVT MALSR RWY 18 & 21; REIL RWY 03, 14 & 32; HIRL RWY 03/21, 14/32 & 18/36 - CTAF. WHEN ATCT CLSD HIRL RWY 18/36 PRESET ON LOW INTST, TO INCR INTST & ACTVT - CTAF.
N/A
Yes - Lighted
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
None
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

7200 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
230,000lbs
380,000lbs
--
  Runway 03 Runway 21
True Heading 29°209°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 43° 07' 60"N 43° 09' 02"N
Longitude 89° 20' 30"W 89° 19' 43"W
Elevation 861' 887'
Threshold Crossing Height 49 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 14/32

5846 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
210,000lbs
320,000lbs
--
  Runway 14 Runway 32
True Heading 136°316°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 08' 52"N 43° 08' 11"N
Longitude 89° 20' 30"W 89° 19' 35"W
Elevation 859' 862'
Threshold Crossing Height 45 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 18/36

9006 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
230,000lbs
380,000lbs
870,000lbs
  Runway 18 Runway 36
True Heading 182°2°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 43° 08' 57"N 43° 07' 28"N
Longitude 89° 20' 28"W 89° 20' 32"W
Elevation 860' 862'
Threshold Crossing Height 57 ft. AGL 59 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-18TWY F & G RSTRD TO MIL ACFT ONLY.
A110-2WEST RAMP RSTD TO AIR CARRIER ACFT ONLY.
A110-24MILITARY: ANG: PPR ALL ACT, CONTACT EMAIL: 115FW.PPR.ORG@US.AF.MIL. OPR HR 1200-2230Z++MON-THURS, DSN 724-8642/8436, C608 245-4642/4436. DSN 724-8580 H24, C608 245-4580 H24.
A110-25AVOID OVERFLIGHT OF YAHARA RIVER INVOF ARPT BLO 2000 FT AGL.
A110-28RW 14 & 18 APCH ENDS CLOSELY ALIGNED; VERIFY CORRECT RWY AND COMPASS HDG PRIOR TO DEP.
A110-29E RAMP BTN TWYS H AND M CLSD TO ACFT WITH WINGSPAN MORE THAN 118 FT. TWYS L1, L6, B5, & E & TWY H N OF RWY 14/32 CLSD TO ACFT WITH WINGSPAN MORE THAN 118 FT. E RAMP & TWYS B1, J & B N OF TWY M CLSD TO ACFT WITH WINGSPAN MORE THAN 150 FT.
A110-3NOISE ABATEMENT PROC IN EFCT: DEP ACFT UTILIZE RWY 03 & 36; ARR ACFT UTILIZE RWY 18 & 21.
A110-31ARNG: PPR, ARNG COPTER RQR SVC, CTC ARMY OPS, LTD TRAN SVC, OPR 1300-2200Z++ MON, TUE; 1300-0400Z++ WED-FRI, CLSD SAT, SUN DSN 745-8310, C608-301-8310.
A110-32PPR FOR HIGH RISK FLT TEST 608-246-3397.
A110-34ENGINE RUNUP RSTD TO NORTH HOLD BAY ONLY.
A110-35BARRICADES ALONG WEST EDGE OF SOUTH RAMP ADJ MIL RAMP.
A110-36WEST RAMP UNCONTROLLED; PUSHBACK IS AT PILOT'S DISCRETION.
A110-38SERVICE-FUEL: A++ (MIL)
A110-41RWY 18, 21, 36 BAK-14 ARRESTING CABLE FOR MIL USE ONLY AND RETRACTED WHEN NOT IN USE.
A110-42FOR CD CTC MADISON APP/DEP CON AT 608-249-8240. WHEN MADISON APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-43TWY F AND G RSTRD TO FIGHTER ACFT ONLY.
A110-5ACR & TURBO JET TRNG FLGTS PROHIBITED.
A110-7BIRDS ON & INVOF ARPT.
DANE COUNTY RGNL/TRUAX FLD (ICAO: KMSN, IATA: MSN) is a public airport located in MADISON, WI.
