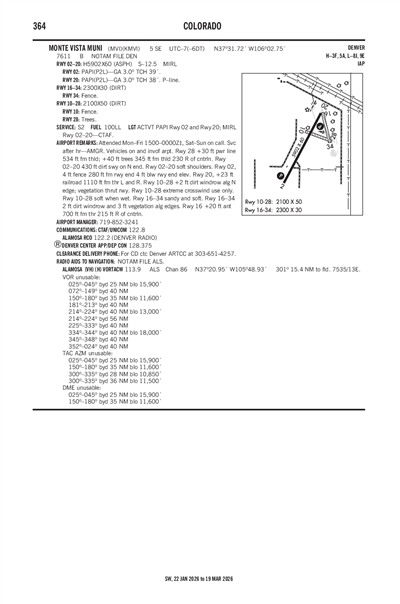

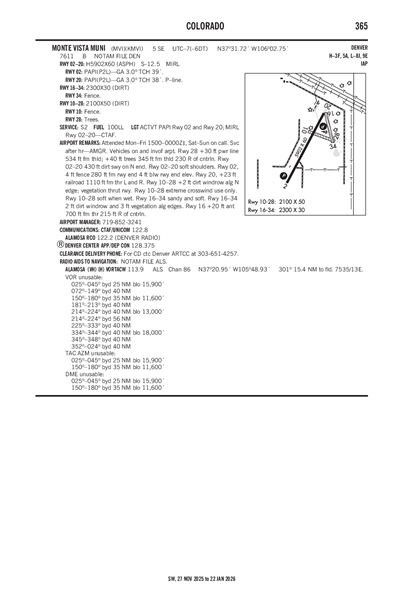

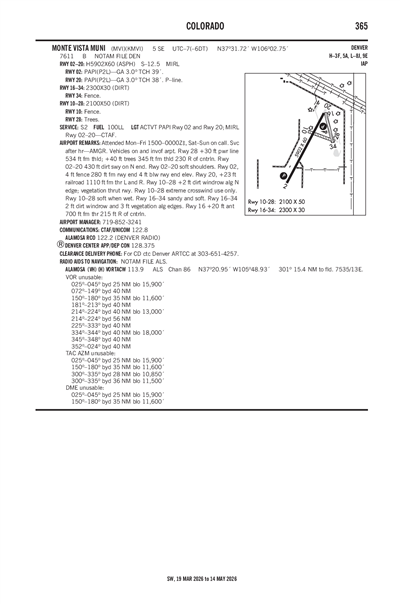

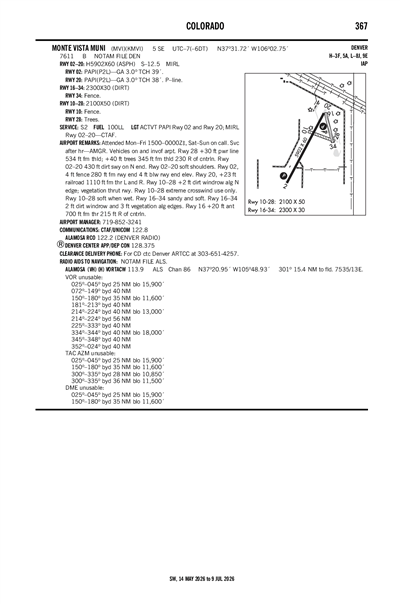

MONTE VISTA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMVI
MONTE VISTA MUNI
PublicPUB

5 miles SE of MONTE VISTA, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 31' 43"N 106° 02' 45"W
7611' MSL
8611' MSL
08E
100LL
DENVER (DEN)
DENVER
DENVER (ZDV)
12/26/24-1/23/25
KALS (10nm) VFR
8:52 AM MST
Clear
10sm
9°F
-9°F
30.18"Hg
Calm
AO2 SLP313 T11281228
KALS 221552Z AUTO 00000KT 10SM CLR M13/M23 A3018 RMK AO2 SLP313 T11281228
Add Your Business

KMVI FBOs

Promote Listing
Alpine Aviation
UNICOM: 122.8
Phone: (719) 852-3241
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 1/20
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.65
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KALS (10nm)
Wed, 1/22 4:34 AM MST
Wed, 1/22 5:00 AM MST - Thu, 1/23 5:00 AM MST
VFR
5:00 AM MST - 12:00 PM MST
Few 20,000'
6sm
VRB° 5kts
VFR
12:00 PM MST - 6:00 PM MST
Broken 14,000'
Scattered 8,000'
6sm
340° 12kts
Gusts 22kts
VFR
6:00 PM MST - 11:00 PM MST
Scattered 20,000'
Few 14,000'
6sm
360° 9kts
VFR
11:00 PM MST - 5:00 AM MST
Few 20,000'
6sm
VRB° 6kts
KALS 221134Z 2212/2312 VRB05KT P6SM FEW200
   FM221900 34012G22KT P6SM SCT080 BKN140
   FM230100 36009KT P6SM FEW140 SCT200
   FM230600 VRB06KT P6SM FEW200
KMVI
Domestic
1/17/251455Z !DEN 01/549 MVI RWY 20 PAPI U/S 2501171455-2507172111EST
10/30/240011Z !DEN 10/674 MVI OBST TOWER LGT (ASR 1024641) 373610.00N1060900.00W (6.7NM NW MVI) 7831.4FT (200.1FT AGL) U/S 2410300011-2504292359
No
MON-FRI 0800-1700
SAT-SUN ON-CALL
SVC AFT HR - AMGR.
CITY OF MONTE VISTA
720 FIRST AVE
MONTE VISTA, CO 81144
Phone: 719-852-5926
JED ELLITHORP
5670 E. HWY 160
MONTE VISTA, CO 81144
Phone: 719-852-3241
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT PAPI RWY 02 & 20; MIRL RWY 02/20 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Crop Dusting

Runway 02/20

5902 ft. x 60 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 29°209°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 37° 31' 13"N 37° 32' 04"N
Longitude 106° 03' 11"W 106° 02' 36"W
Elevation 7,611' 7,610'
Threshold Crossing Height 39 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

2100 ft. x 50 ft.
DIRT
Fair
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 111°291°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition POOR POOR
Latitude 37° 31' 51"N 37° 31' 43"N
Longitude 106° 02' 50"W 106° 02' 26"W
Elevation 7,608' 7,606'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

2300 ft. x 30 ft.
DIRT
Fair
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 167°347°
Traffic Pattern
Markings NONE NONE
Markings Condition POOR POOR
Latitude 37° 32' 04"N 37° 31' 42"N
Longitude 106° 02' 34"W 106° 02' 28"W
Elevation 7,608' 7,606'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11FOR CD CTC DENVER ARTCC AT 303-651-4257.
A110-4VEHICLES ON & INVOF ARPT.
MONTE VISTA MUNI (ICAO: KMVI, IATA: MVI) is a public airport located in MONTE VISTA, CO.
