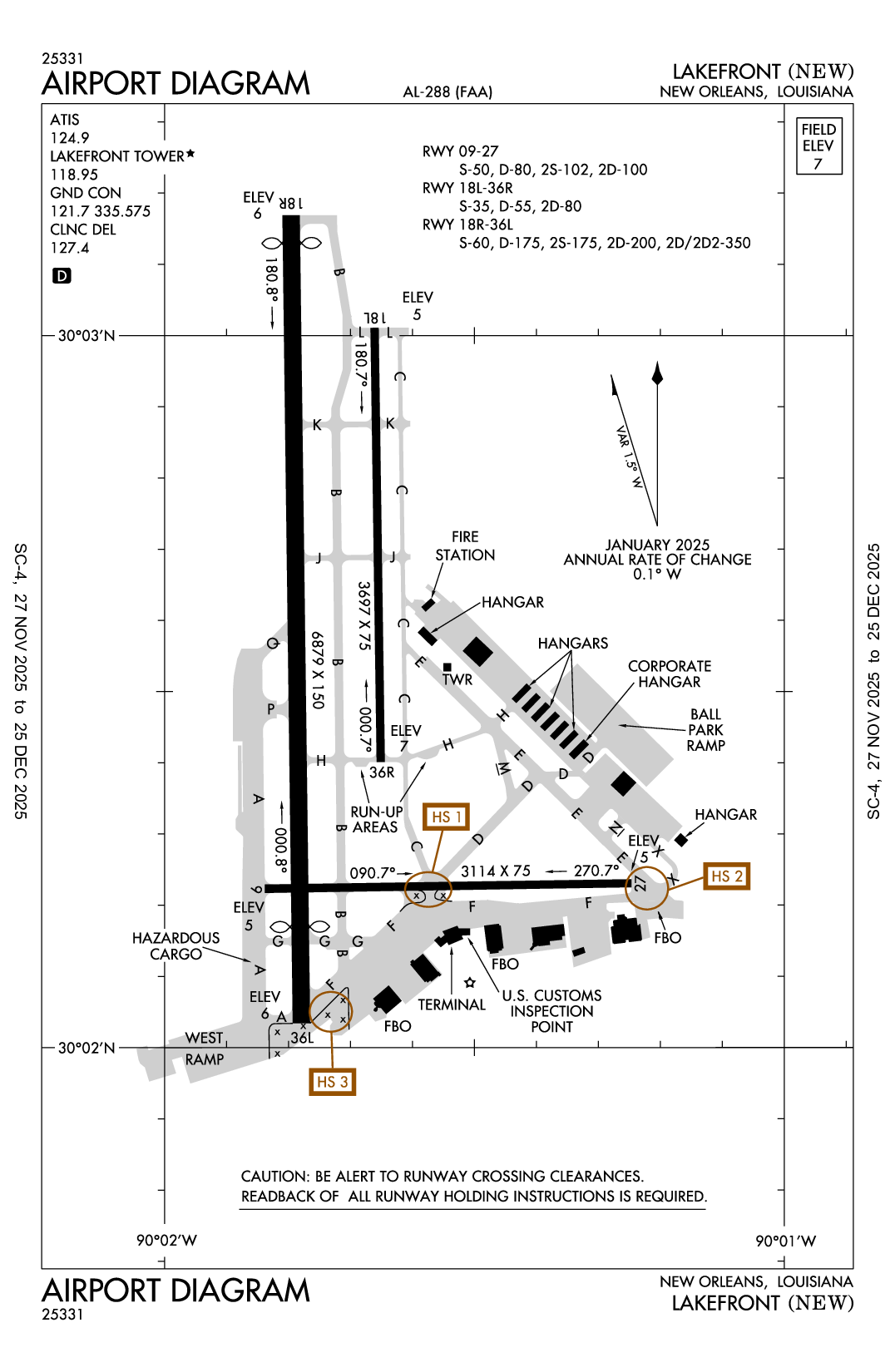

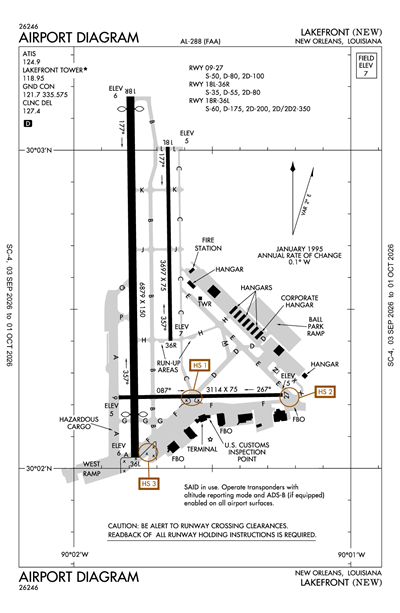

LAKEFRONT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNEW
LAKEFRONT
PublicPUB

4 miles NE of NEW ORLEANS, LA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 02' 33"N 90° 01' 42"W
7' MSL
1007' MSL
02E
JET A, 100LL
DE RIDDER (DRI)
NEW ORLEANS
HOUSTON (ZHU)
9/5/24-10/3/24
KNEW VFR
6:53 PM CDT
Clear
10sm
83°F
64°F
29.64"Hg
360° 22kts
AO2 PK WND 36027/2353 SLP030 T02830178 10311 20283 53005
KNEW 262353Z 36022KT 10SM CLR 28/18 A2964 RMK AO2 PK WND 36027/2353 SLP030 T02830178 10311 20283 53005
Add Your Business

KNEW FBOs

Flightline First
ASRI: 130.8
Phone: (504) 244-4448 x0
No Rating Available
1 Review (Read | Sign In To Write)
1 out of 1 Recommend
Titan
As of 9/20
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.99 5.88 6.01
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
UNICOM: 129.07
Phone: (504) 241-2800
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 9/26
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.50 6.56
Fuel Notes
Prices include tax

KNEW Aircraft Service & Maintenance

Promote Listing
Auric Avionics and Instruments
Phone: (504) 245-0072
Fax: (504) 245-2495
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 118.95

ATIS

ATIS
 124.9

Clearance Delivery

CD/P
 127.4

Ground

GND/P
 121.7

Tower

LCL/P
 118.95

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KNEW
Thu, 9/26 6:20 PM CDT
Thu, 9/26 7:00 PM CDT - Fri, 9/27 7:00 PM CDT
VFR
7:00 PM CDT - 12:00 AM CDT
Sky Clear
6sm
350° 17kts
Gusts 27kts
VFR
12:00 AM CDT - 7:00 AM CDT
Sky Clear
6sm
330° 16kts
Gusts 24kts
VFR
7:00 AM CDT - 5:00 PM CDT
Sky Clear
6sm
300° 12kts
VFR
5:00 PM CDT - 7:00 PM CDT
Sky Clear
6sm
260° 11kts
KNEW 262320Z 2700/2724 35017G27KT P6SM SKC
   FM270500 33016G24KT P6SM SKC
   FM271200 30012KT P6SM SKC
   FM272200 26011KT P6SM SKC
KNEW
Domestic
9/26/240632Z !NEW 09/042 NEW OBST TOWER LGT (ASR 1200111) 295710.80N0900502.80W (6.1NM SSW NEW) 146.0FT (147.0FT AGL) U/S 2409260632-2501240632
9/25/241333Z !NEW 09/041 NEW OBST TOWER LGT (ASR 1023943) 295714.80N0900553.70W (6.5NM SW NEW) 313.0FT (315.0FT AGL) U/S 2409251333-2410241200
9/24/241225Z !NEW 09/038 NEW OBST TOWER LGT (ASR 1216978) 295159.00N0895311.90W (12.7NM SE NEW) 326.8FT (319.9FT AGL) U/S 2409241225-2410091125
9/13/241328Z !NEW 09/031 NEW OBST TOWER LGT (ASR 1045167) 295353.00N0900023.00W (8.7NM S NEW) 270.0FT (269.0FT AGL) U/S 2409131328-2410132300
9/13/241256Z !NEW 09/030 NEW OBST TOWER LGT (ASR 1045170) 295343.00N0900019.00W (8.8NM S NEW) 231.3FT (230.3FT AGL) U/S 2409131256-2410132300
9/13/241252Z !NEW 09/029 NEW OBST TOWER LGT (ASR 1045163) 295400.00N0900016.00W (8.6NM S NEW) 269.7FT (268.7FT AGL) U/S 2409131252-2410132300
9/9/241234Z !NEW 09/007 NEW OBST TOWER LGT (ASN 1997-ASW-2374-OE) 295342N0900013W (8.9NM S NEW) 231FT (230FT AGL) U/S 2409091234-2410102300
9/9/240033Z !NEW 09/006 NEW OBST TOWER LGT (ASR 1045169) 295342.00N0900012.00W (8.9NM S NEW) 231.0FT (230.0FT AGL) U/S 2409090033-2410082300
9/5/241156Z !NEW 09/004 NEW OBST TOWER LGT (ASR 1027930) 294831.00N0894542.00W (19.6NM SE NEW) 1032.2FT (1032.2FT AGL) U/S 2409051156-2410201155
9/4/241650Z !NEW 09/003 NEW OBST TOWER LGT (ASR 1220144) 295422.90N0900222.10W (8.1NM S NEW) 1048.9FT (1047.9FT AGL) U/S 2409041650-2410042359
8/13/241855Z !NEW 08/022 NEW OBST TOWER LGT (ASR 1022923) 295200.70N0894942.20W (14.7NM SE NEW) 424.9FT (419.9FT AGL) U/S 2408131855-2411110400
7/31/241337Z !NEW 07/047 NEW TWY A CLSD 2407311337-2501010300
4/8/241230Z !NEW 04/010 NEW OBST CRANE (ASN UNKNOWN) 300237N0900123W (1NM E APCH END RWY 36R)
UNKNOWN (175FT AGL) FLAGGED AND LGTD DLY SR-SS 2404081230-2410042300
FDC
9/11/242130Z !FDC 4/4082 NEW IAP LAKEFRONT, NEW ORLEANS, LA.
ILS OR LOC RWY 18R, AMDT 1A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HRV VOR OUT OF SERVICE. 2409112130-2410112130EST
4/18/241700Z !FDC 4/2422 NEW IAP LAKEFRONT, NEW ORLEANS, LA.
ILS OR LOC RWY 18R, AMDT 1A...
VOR/DME RWY 36L, AMDT 9A...
CIRCLING CAT A/B MDA 540/HAA 532.
TEMPORARY CRANE, 182 MSL, 1649FT EAST OF KNEW AIRPORT (2024-ASW-12982-OE).
2404181700-2410191103EST
Yes
ALL
ORLEANS LEVEE DISTRICT
6001 STARS AND STRIPES BLVD, SUITE 204
NEW ORLEANS, LA 70126
Phone: 504-243-4010
BRUCE MARTIN
6001 STARS & STRIPES BLVD, SUITE 204
NEW ORLEANS, LA 70126
Phone: 504-243-4010
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
NEW
--
WHEN TWR CLSD ACTVT MALSR RWY 18R; MIRL RWY 18R/36L; TWY B, C, D, E, F, H, EAST HNGRLN - PRESET LOW INTST. ACTVT 5 CLICKS FOR MED AND 7 CLICKS FOR HIGH - CTAF.
FOR ARPT BCN CTC ATCT.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High Pressure
High Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

3114 ft. x 75 ft.
ASPH
Fair
NONE
MED

50,000lbs
80,000lbs
100,000lbs
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD FAIR
Latitude 30° 02' 13"N 30° 02' 14"N
Longitude 90° 01' 50"W 90° 01' 15"W
Elevation 5' 5'
Threshold Crossing Height 40 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3.2°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 18L/36R

3697 ft. x 75 ft.
ASPH
Good
NONE
MED

35,000lbs
55,000lbs
80,000lbs
--
  Runway 18L Runway 36R
True Heading 179°359°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 30° 03' 01"N 30° 02' 24"N
Longitude 90° 01' 40"W 90° 01' 39"W
Elevation 5' 7'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18R/36L

6879 ft. x 150 ft.
ASPH
Good
GRVD
MED

60,000lbs
175,000lbs
200,000lbs
350,000lbs
  Runway 18R Runway 36L
True Heading 179°359°
Traffic Pattern Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 30° 03' 10"N 30° 02' 02"N
Longitude 90° 01' 48"W 90° 01' 47"W
Elevation 6' 6'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1PPR REQUIRED FOR ACFT TRNSPG ANY ITEMS LISTED IN PART 175 TITLE 49. CONTACT 504-606-9264
A110-10TWY A UNEVEN PAVEMENT.
A110-11FOR ASSTNC AFTER 2100 LOCAL CTC AMGR 504-874-0459
A110-13FOR FICONS AFTER HRS CALL ARFF 504-606-9264.
A110-14BOAT MASTS UP TO 80 FT WI 0.5NM OF AER RWY 27.
A110-15ARPT WINDCONE FOR BALL PARK RAMP LGTS OTS PERMLY.
A110-16CAUTION TWY F BTN TRML RAMP AND FLT LN FST RAMP IREG SFC.
A110-17FOR CD WHEN ATCT IS CLSD CTC MSY APCH AT 504-471-4350 OR 127.4
A110-2BIRDS ON & INVOF ARPT.
A110-4BOATS AS HIGH AS 80 FT PASS WI 400 FT OF RWY 09 THLD.
A110-6ARFF CPBLTY EQUIVALENT TO INDEX B.
A110-7FUEL NOT AVAILABLE WITHIN 100' OF TERMINAL BUILDING
LAKEFRONT (ICAO: KNEW, IATA: NEW) is a public airport located in NEW ORLEANS, LA.
