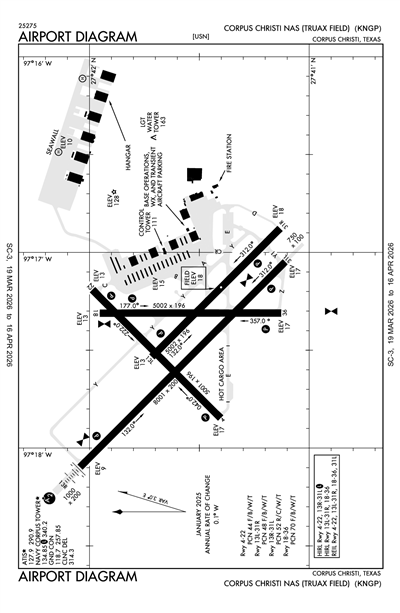

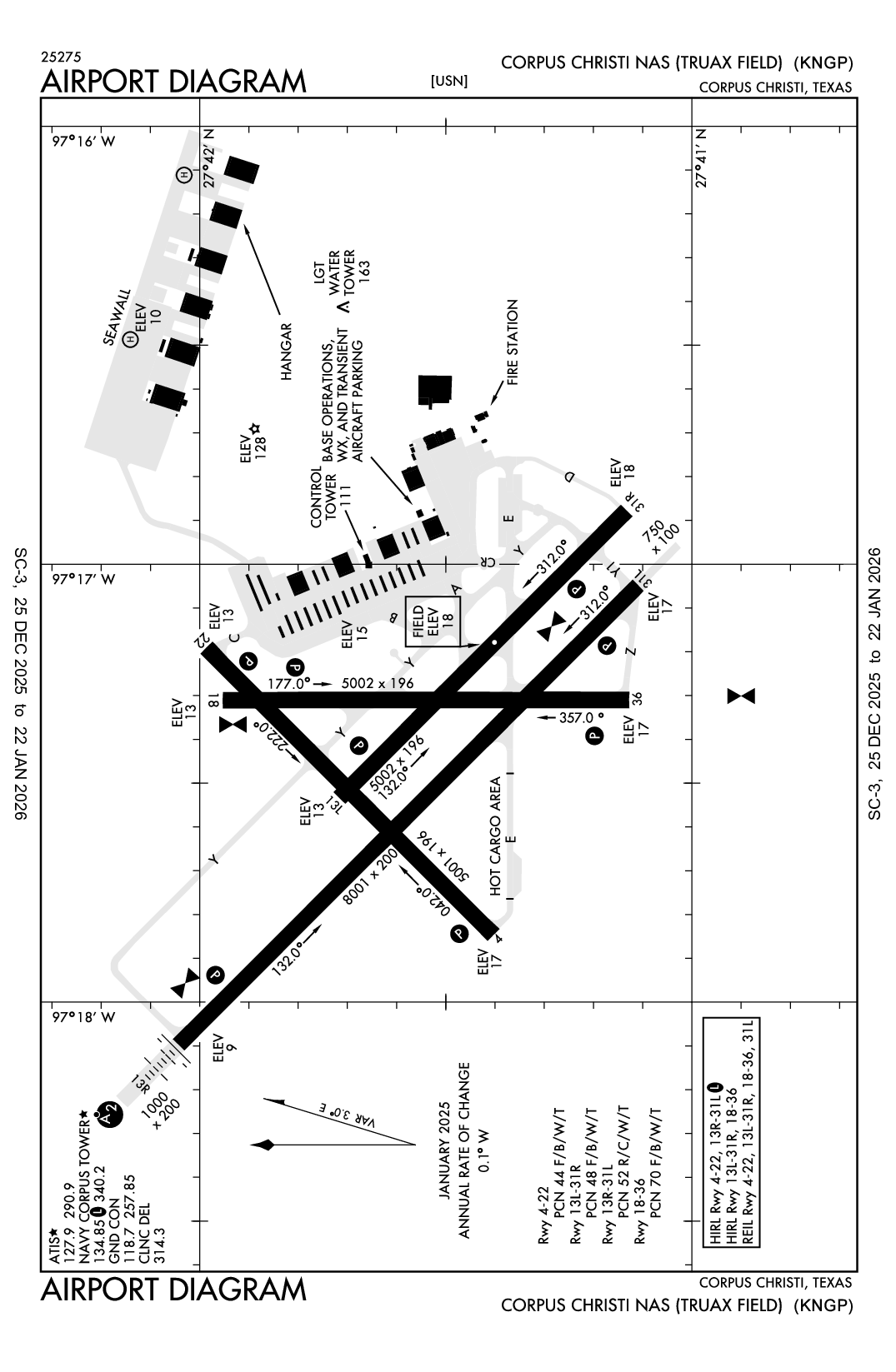

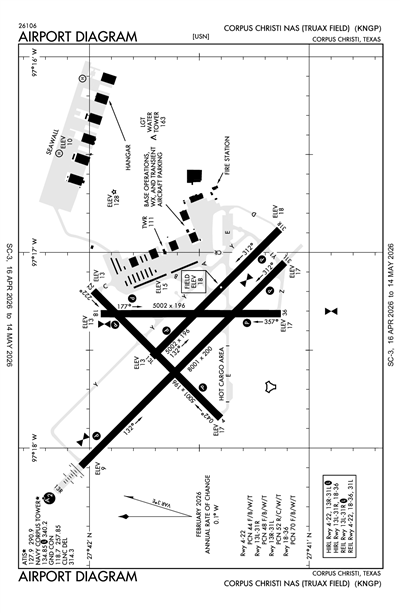

CORPUS CHRISTI NAS (TRUAX FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNGP
CORPUS CHRISTI NAS (TRUAX FLD)
PrivatePVT

6 miles SE of CORPUS CHRISTI, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
27° 41' 34"N 97° 17' 25"W
18' MSL
1018' MSL
03E
None Listed
SAN ANGELO (SJT)
BROWNSVILLE
HOUSTON (ZHU)
5/16/24-6/13/24
KNGP VFR
8:56 PM CDT
Clear
10sm
32°F
32°F
29.85"Hg
130° 14kts
AO2 SLP109 $
KNGP 010156Z AUTO 13014KT 10SM CLR A2985 RMK AO2 SLP109 $
Add Your Business

KNGP FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 134.85

ATIS

ATIS
Hours: SAME AS ARPT OPERG HRS
 127.9

Emergency

EMERG
 121.5

Ground

GND/P
 118.7

Tower

LCL/P
SOUTH
 125.525
LCL/P
NORTH
 134.85

Other

OPS
ARMY OPS X-RAY CHARLIE
 49.7
OPS
ARMY OPS X-RAY CHARLIE
 139.0

Terminal Area Forecast

KNGP
Fri, 5/31 5:58 PM CDT
Fri, 5/31 6:00 PM CDT - Sat, 6/1 6:00 PM CDT
VFR
6:00 PM CDT - 10:00 PM CDT
Broken 25,000'
Few 3,000'
6sm
29.82"Hg
110° 18kts
Gusts 25kts
VFR
Temporary 6:00 PM CDT - 10:00 PM CDT
No Clouds
N/A
120° 16kts
MVFR
10:00 PM CDT - 10:00 AM CDT
Broken 2,000'
6sm
29.85"Hg
130° 12kts
MVFR
Temporary 10:00 PM CDT - 1:00 AM CDT
Broken 3,000'
Scattered 2,000'
N/A
Calm
VFR
10:00 AM CDT - 2:00 PM CDT
Broken 4,000'
Scattered 2,000'
6sm
29.88"Hg
140° 14kts
Gusts 20kts
VFR
2:00 PM CDT - 6:00 PM CDT
Few 3,000'
6sm
29.85"Hg
130° 18kts
Gusts 25kts
TAF KNGP 3123/0123 11018G25KT 9999 FEW030 BKN250 QNH2982INS
   TEMPO 3123/0103 12016KT
   FM010300 13012KT 9999 BKN020 QNH2984INS
   TEMPO 0103/0106 SCT020 BKN030
   FM011500 14014G20KT 9999 SCT020 BKN040 QNH2988INS
   FM011900 13018G25KT 9999 FEW030 QNH2984INS AUTOMATED SENSOR METWATCH 0100 TIL 0311 TX33/0120Z TN28/0111Z FN20058
KNGP
Military
5/30/241137Z AERODROME NO JASU AVAILABLE.
5/30/240319Z M0419/24 NOTAMC M0352/24
5/30/240318Z RWY 13R SALS UNSERVICEABLE.
5/30/240316Z M0417/24 NOTAMC M0190/24
5/30/240316Z M0415/24 NOTAMC M0189/24
5/30/240316Z TWY E CENTERLINE MARKINGS AT RWY 31L LEAD IN LINE REMOVED. DISREGARD LEAD IN FROM RUNWAY 31L TO ECHO TAXIWAY, MAKE TURN DIRECTLY ON TO CENTERLINE OF ECHO TAXIWAY WHEN EXITING.
5/30/240316Z INSTRUMENT LANDING SYSTEM UNAVAILABLE ON THE THIRD THURSDAY OF EACH MONTH FROM 0700-1300L FOR MAINTENANCE
5/30/240315Z M0413/24 NOTAMC M0188/24
5/30/240314Z SEAWALL AND SEAWALL HELIPADS UNAVAILABLE FROM SUNSET TO SUNRISE.
5/30/240313Z M0411/24 NOTAMC M0187/24
5/30/240312Z !KNGP M0410/24 NGP APRON TRANSIENT LINE CLSD TO AIRLIFT/HEAVY FIXED WING 2405300312-2408272359
5/29/241753Z AERODROME [US DOD PROCEDURAL NOTAM] VOR/DME OR TACAN Y RWY 31L APPROACH UNSERVICEABLE.
5/29/241744Z V0019/24 NOTAMC V0014/24
5/29/241724Z V0018/24 NOTAMC V0017/24
5/22/241934Z [US DOD PROCEDURAL NOTAM] INSTRUMENT APPROACH PROCEDURE MINIMA CHANGE TO READ TACAN RWY18 STRAIGHT-IN MINIMA KNGP ALTIMITER CAT AB 480-1 462 (500-1), CAT CD 480-1 3/8 462 (500-1 3/8). USING CRP ALTIMITER CAT AB 520-1 502 (600-1), CAT CD 520-1 3/8 502 (600-1 3/8). INSTRUMENT APPROACH PROCEDURE MINIMA CHANGE TO READ CHANGE CIRCLING KNGP ALTIMITER CAT AB 520-1 501 (600-1), CAT C 520-1 1/2 501 (600-1 1/2), CAT D 620-2 601 (700-2). USING CRP ALTIMITER CAT A 560-1 541 (600-1), CAT B 560-1 541 (600-1), CAT C 560-1 1/2 541 (600-1 1/2), CAT D 660-2 641 (700-2).
5/22/241933Z AERODROME [US DOD PROCEDURAL NOTAM] INSTRUMENT APPROACH PROCEDURE MINIMA CHANGE TO READ RNAV (GPS) RWY31L STRAIGHT-IN MINIMA KNGP ALTIMITER CAT AB 440-1 422 (500-1), CAT CDE 440-1 1/4 422 (500-1 1/4). USING CRP ALTIMITER CAT AB 480-1 463 (500-1), CAT CDE 480-1 3/8 463 (500-1 3/8). RNAV (GPS) RWY31R STRAIGHT-IN MINIMA KNGP ALTIMITER CAT AB 440-1 422 (500-1), CAT CD 440-1 1/4 422 (500-1 1/4). USING CRP ALTIMITER CAT AB 480-1 462 (500-1), CAT CD 480-1 3/8 462 (500-1 3/8). RNAV (GPS) RWY22 STRAIGHT-IN KNGP ALTIMITER CAT AB 480-1 465 (500-1), CAT CD 480-1 3/8 465 (500-1 3/8). USING CRP ALTIMITER CAT AB 520-1 505 (600-1), CAT CD 520-1 3/8 505 (600-1 3/8). RNAV (GPS) RWY22 STRAIGHT-IN MINIMA KNGP ALTIMITER CAT ABC 480-1 385 (400-1 1/8), CAT CD 480-1 3/8 465 (500-1 3/8). RNAV (GPS) RWY18 STRAIGHT-IN MINIMA KNGP ALTIMITER CAT AB 480-1 465 (500-1), CAT CD 480-1 3/8 465 (500-1 3/8). USING CRP ALTIMITER CAT AB 400-1 382 (400-1), CAT CD 400-1 1/8 382 (400-1 1/8). RNAV (GPS) RWY18 STRAIGHT-IN KNGP ALTIMITER CAT ABCD 268-1 250 (300-1). RNAV (GPS) RWY13L STRAIGHT-IN MINIMA KNGP ALTIMITER CAT AB 480-1 465 (500-1), CAT CD 480-1 3/8 465 (500-1 3/8). USING CRP ALTIMITER CAT AB 520-1 505 (600-1), CAT CD 520-1 3/8 505 (600-1 3/8).
5/8/241833Z ALL OF THE FOLLOWING RAMP PARKING SPOTS ARE CLOSED: A-17, A-25, E-2, E-3, E-7, E-10, F-1, F-2, F-9, F-10, G-1, G-2, G-5, G-9, G-10, H-1, H-2, H-9, J-1.
5/6/241621Z !KNGP M0342/24 NGP TWY C SFC MARKINGS NOT STD FROM RWY 22 TO TWY A. 2405061621-2407312359
4/10/241856Z AERODROME SUNDAY SWEEPER OPERATIONS ON RWY 13L/31R CANCELED UFN.
3/5/241504Z [US DOD PROCEDURAL NOTAM] INSTRUMENT APPROACH PROCEDURE CHANGED ILS Z RWY 13R CHANGE TO READ DME CHANNEL 50, TYLLR DME 9.3, GEMJO DME 5, STUFN DME 0.6, MSA 2100 BETWEEN 170 DEGREES-360 DEGREES, RYNOL ALTITUDE RESTRICTION CANCELED, IAF AT OR ABOVE 2000FT, SPEED RESTRICTION AT RYNOL IS 230K.
Yes
MON-THU 1300-0500Z++
FRI 1300-0100Z++
CLSD SAT, SUN & HOL. (DT 1200-0400Z MON-THU; 1200-2400Z FRI; CLSD SAT, SUN & HOL); OT CK NOTAM.
US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER/AIRFIELD OPS
NAVAL AIR STATION
CORPUS CHRISTI, TX 78419
Phone: 361-961-3395
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
NGP
--
DUSK-DAWN. WHEN TWR CLSD ACTVT SALSF RWY 13R; PAPI RWY 04, 22, 13L, 31R, 13R, 31L, 18 & 36; HIRL RWYS 04/22, 13L/31R, 13R/31L, 18/36 - CTAF.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
High & Low Pressure
High & Low Pressure
None

Runway 04/22

5001 ft. x 200 ft.

ASPH
NONE
HIGH
33 /F/B/W/T
--
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 27° 41' 24"N 27° 41' 59"N
Longitude 97° 17' 51"W 97° 17' 11"W
Elevation 17' 13'
Threshold Crossing Height 50 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 13L/31R

5002 ft. x 220 ft.

ASPH
NONE
HIGH
47 /F/B/W/T
--
--
--
--
  Runway 13L Runway 31R
True Heading 134°314°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 27° 41' 43"N 27° 41' 08"N
Longitude 97° 17' 32"W 97° 16' 53"W
Elevation 13' 18'
Threshold Crossing Height 46 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13R/31L

8001 ft. x 200 ft.

PEM
NONE
HIGH
55 /R/C/W/T
--
--
--
--
  Runway 13R Runway 31L
True Heading 134°314°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 27° 42' 03"N 27° 41' 07"N
Longitude 97° 18' 06"W 97° 17' 03"W
Elevation 9' 17'
Threshold Crossing Height 47 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SALSF
Centerline Lights
Runway End Identifier Lights No Yes

Runway 18/36

5002 ft. x 196 ft.

ASPH
NONE
HIGH
41 /F/B/W/T
--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 27° 41' 57"N 27° 41' 08"N
Longitude 97° 17' 19"W 97° 17' 19"W
Elevation 12' 17'
Threshold Crossing Height 45 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-17A: ALL R/W AND F/W ACFT LDG/TAXIING TO SEAWALL PPR DSN 861-2506/2507 C361-961-2506/2507.
A110-18A: AVOID FLT OVER POPULATED AREAS BLW 1000' AGL PRIOR TO GULF SHORE LINE.
A110-19TFC PAT: TRAN ACFT EXP APCH TO FULL STOP LDG ONLY WHEN SINGLE RWY OPR ARE BEING CONDUCTED, PRACTICE APCH NOT AUTH.
A110-2CAUTION: HI MID-AIR POTENTIAL, EXTREME VIGILANCE RQR. EXER EXTREME CAUTION VCNTY WALDRON FLD NALF LCTD 3 NM S.
A110-20BEARING STRENGTH RWY 13L/31R: ST175 SBTT542 TRT585.
A110-22JASU: 3(MSU-200, A/UA47A-5), MEPP- 2(NC-8), 3(NC-10), 2(AM32A-108).
A110-23FUEL: F-24.
A110-24FLUID: SP PRESAIR LOX LHOXRB.
A110-25OIL: MIL-PRF-23699 (NATO: 0-156) AND MIL-PRF-7808 L GRADE 3 (NATO: 0-148).
A110-26CAUTION: EXTV R/W TEST FLTS CONDUCTED MON-SAT FM TOWN OF PORT O'CONNOR TO MUSTANG BEACH ARPT (KRAS), ALG THE COAST FM 300 - 5000 FT.
A110-27RSTD: REFUEL/TRAN ALERT ARNG STRONGLY RECOMMENDED FOR ALL ACFT TO AVOID EXTV SVCG/TURNAROUND DELAYS OR PRK IN HI FOD RISK AREAS.
A110-28CSTMS/AG/IMG CSTMS, IMG AVBL FOR ACFT ARRIVING FROM OVERSEAS, PLAN ARR FROM BTN 1400-2100Z-, C361-961-2506/2507.. PILOTS RQR TO PROVIDE IDENTA-PLATE NR TO INSPECTOR FOR BILLING.
A110-29A: R/W ACFT DESTINED FOR CORPUS CHRISTI ARMY DEPOT TURN IN WILL REMAIN AT LEAST 1/4 NM OFF SHORE AND 500' PRIOR TO CTC NAVY CORPUS TWR. PPR ALL CCAD TRAN ACFT. TURN IN WILL ONLY BE ACCEPTED DUR NML DUTY HR, 1300-2300Z++ MON-FRI. MON-FRI.
A110-30A: R/W ACFT MAKE APCH TO HELIPAD ADJ HNGR 44, CTC OPS/ X-RAY CHARLIE AND GND TAXI TO/FROM PARKING. POC AVN DIV, HNGR 44.
A110-31A: AVOID OVFT OF BLDG S OF RAMP AREA AND AMMO DUMP E OF CONTAINMENT AREA.
A110-32A: TRAN AND PARTS PICKUP ACFT PARK/FUEL AT NAVY TRAN RAMP (SEPARATE PPR), DSN 861-2506/2507, C361-961-2506/2507.
A110-33A: ALL ACFT WITH WEAPONS ARR CCAD AFTER NML DUTY HR NOTIFY CCAD SECURITY DSN 861-3313/3314, C361-961-3313/3314.
A110-34A: MAJ MAINT AVBL.
A110-35A: LOADING/UNLOADING OF AIR CARGO - MIL/CIV DESIGNATED FOR CCAD WILL BE SCHED FOR DAYLGT HR ONLY.
A110-37CAUTION: BIRD ACTIVITY/BASH - SEE AP-1.
A110-39CAUTION: IF EQUIPPED, ALL ACFT SHALL UTILIZE UHF ATC FREQS UNLESS ASSIGNED VHF.
A110-4CAUTION: NMRS BIRDS VCNTY AFLD, USE EXTREME CTN DURG HVY RAIN EVENTS.
A110-41MISC: CLSD TWR OPS: DEPARTING IFR ACFT SHALL OBTAIN AN IFR CLNC AND RELEASE FROM SAN ANGELO FSS PRIOR TO TKOF WHEN THE FIELD IS IFR VIA GROUND LINK OR CORPUS CHRISTI APCH BY CALLING 361-299-4230. IF THE FIELD IS VFR, A VFR DEPARTURE IS AUTHORIZED.
A110-42RSTD: ACFT ARR/DEP PROHIBITED ONE HR PRIOR TO AFLD OPENING DUE TO AFLD PREPARATIONS EXC FOR CUST/BORDER PROTECTION. MSN CRITICAL OR OTR EVENT RQR CTC BASE OPS DSN 861-2506/2507/3395, C36-961-2506/2507/3395.
A110-45MISC: ACFT OPERATING TO THE SEA WALL USE CAUTION. INBD HELI CTC CORPUS CHRISTI ARMY DEPOT (CCAD) FLT OPS X-RAY CHARLIE AT 49.70, 139.0, 339.7, OR DSN 861-0520/1020, C361-961-0520/1020.
A110-46RSTD: PPR 48 HR ALL TRAN ACFT, DSN 861-2506/2507, C361-961-2506/2507. FLT PLANNING DSN 861-2505/2513, C361-961-2505/2513. FOR CIV AIR LDG PMT INFO CTC AFM C361-961-2506/3395.
A110-47RMK: BASE OPS HR 1230-0500Z++ MON-THU; 1230-0100Z++ FRI; CLSD SAT, SUN AND HOL.
A110-55TWY Y OPEN FM INTXN OF RWY 04/22 TO APCH END RWY 13R.
A110-56TWY S, SOUTH OF OCEAN DRIVE, LTD TO ACFT WITH A WINGSPAN OF 60 FT OR LESS. BIRD BATH, LCTD BTWN TWY Y AND TWY E, CLSD. SERVICE - FLUID - LO) AVBL ONLY WITH 7 DAYS PN OF RQMNT.
A110-57SIERRA TWY CLSD FM N OF HNGR 55 TO THE SEAWALL, CALL AMGR AT 361-961-2506 FOR ACES.
A110-58TWY C, FM TWY B TO RWY 22 IS LTD TO TW4 ACFT ONLY.
A110-59SERVICE: NO LAVATORY SVCS AVBL HERE.
A110-6TFC PAT: ALL ACFT USE LDG OR TAXI LGT WHILE IN ARPT TFC AREA.
A110-8SERVICE-TRAN ALERT: TRAN ACFT EXP DELAYS FROM 0900-1400L DUE TO LTD REFUL/SVC. MAINT EXTREMELY LTD BEFORE 0900L, AFTER 1400L AND DURING NON-WORK HRS.
CORPUS CHRISTI NAS (TRUAX FLD) (ICAO: KNGP, IATA: NGP) is a private airport located in CORPUS CHRISTI, TX.
