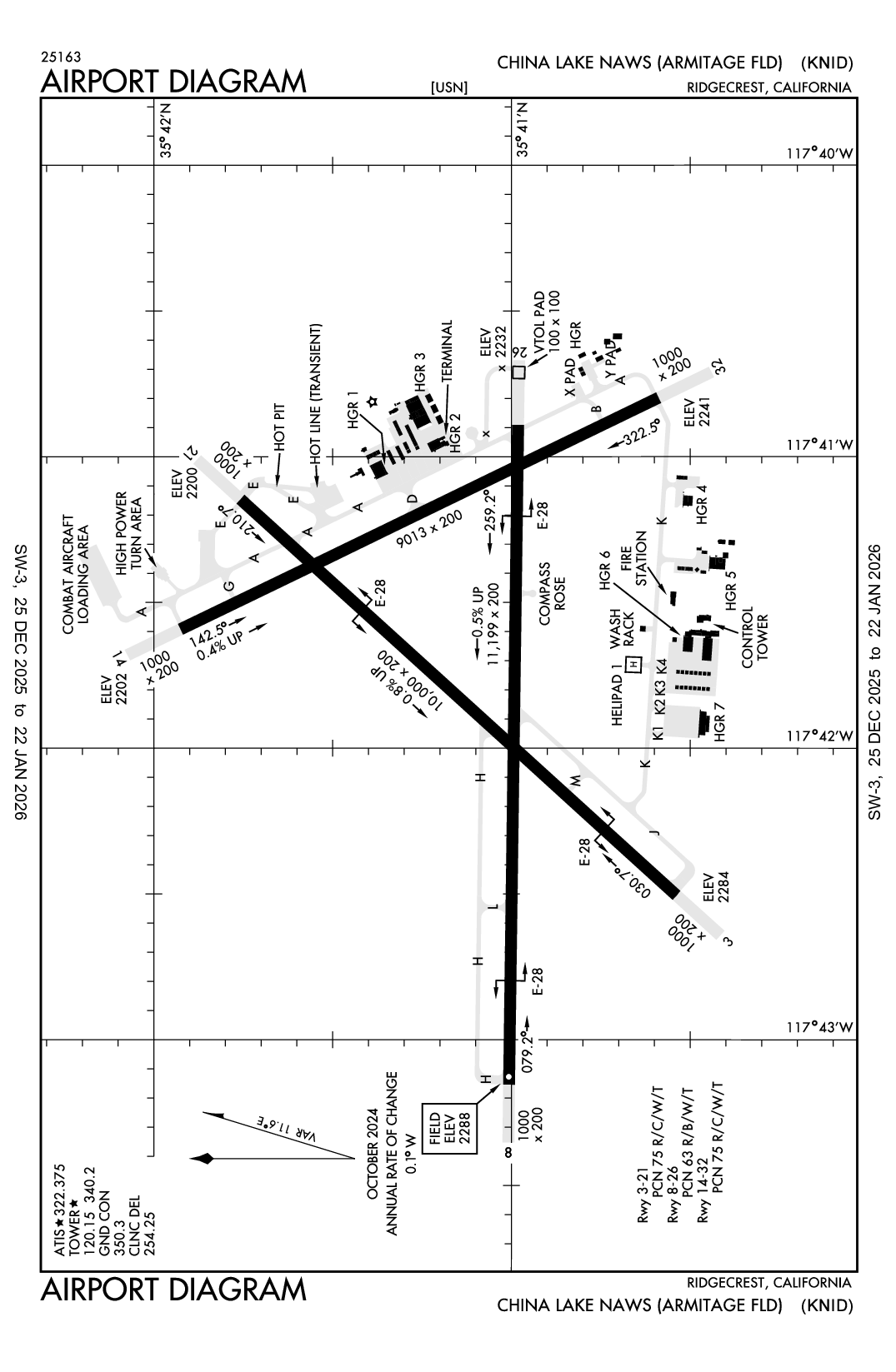

CHINA LAKE NAWS (ARMITAGE FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNID
CHINA LAKE NAWS (ARMITAGE FLD)
PrivatePVT

3 miles NW of CHINA LAKE, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 41' 07"N 117° 41' 43"W
2288' MSL
3288' MSL
14E
None Listed
RIVERSIDE (RAL)
LOS ANGELES
LOS ANGELES (ZLA)
2/20/25-3/20/25
KNID VFR
3:56 AM PDT
Clear
10sm
38°F
13°F
30.29"Hg
210° 4kts
AO2 SLP258 T00331106 $
KNID 091056Z AUTO 21004KT 10SM CLR 03/M11 A3029 RMK AO2 SLP258 T00331106 $
Add Your Business

KNID FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Emergency

EMERG
 121.5

Tower

LCL/P
 120.15

Other

VFR ADZY
 126.55
VFR ADZY
 127.5
VFR ADZY
 133.65

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEDW (48nm)
Sat, 3/8 10:00 PM PST
Sat, 3/8 10:00 PM PST - Mon, 3/10 5:00 AM PDT
VFR
10:00 PM PST - 5:00 AM PDT
Sky Clear
6sm
30.09"Hg
VRB° 6kts
TAF KEDW 090600Z 0906/1012 VRB06KT 9999 SKC QNH3010INS TX21/0922Z TN00/0914Z LAST NO AMDS AFT 0906 NEXT 1003
KNID
Military
3/7/252300Z M0035/25 NOTAMC M0027/25
3/7/252040Z M0034/25 NOTAMC M0033/25
3/4/251626Z "REMOTELY PILOTED AERIAL TARGET OPERATIONS ON 10 MARCH 2025. FREQUENCY PROTECTION IS REQUIRED FOR THE AERIAL TARGET COMMAND AND CONTROL FREQUENCY OF 364.750 MHZ (MAINTAIN CLEAR 2 MHZ UP/DOWN). ALL UNITS WITHIN 200 NM OF NAWS CHINA LAKE RANGE CONTROL CENTER (35-41N 117-0W) UTILIZE PROCEDURES TO KEEP 2 MHZ UP/DOWN CLEAR OF FREQUENCY 364.750 MHZ. AERIAL TARGET EVENT TIME (ALL TIMES LOCAL): 10 MARCH 2025 (1000 - 1300) FREQ: 364.750 MHZ
3/4/251617Z "REMOTELY PILOTED AERIAL TARGET OPERATIONS ON 06, 07, 10 MARCH 2025. FREQUENCY PROTECTION IS REQUIRED FOR THE AERIAL TARGET COMMAND AND CONTROL FREQUENCY OF 364.750 MHZ (MAINTAIN CLEAR 2 MHZ UP/DOWN). ALL UNITS WITHIN 200 NM OF NAWS CHINA LAKE RANGE CONTROL CENTER (35-41N 117-0W) UTILIZE PROCEDURES TO KEEP 2 MHZ UP/DOWN CLEAR OF FREQUENCY 364.750 MHZ. AERIAL TARGET EVENT TIME (ALL TIMES LOCAL): 06 MARCH 2025 (1000 - 1300) FREQ: 364.750 MHZ 07 MARCH 2025 (1000 - 1300) FREQ: 364.750 MHZ 10 MARCH 2025 (1000 - 1300) FREQ: 364.750 MHZ
3/3/252101Z THE FOLLOWING PUBLISHED APPROACHES UNAVAILABLE UNTIL FURTHER NOTICE: RNAV/GPS RWY 3, TACAN RWY 3, HI-TACAN RWY 3.
3/3/252054Z HOT PIT CLSD DUE TO CONSTRUCTION UNTIL FURTHER NOTICE.
3/3/252051Z TWY C CLSD UNTIL FURTHER NOTICE.
2/12/250203Z SALTD SEVEN DEPARTURE RWY 32 ATC CLIMB RATE SALTD TO 15000, 500, 1000, 1500, 2000, 2500, 3000.
2/12/250157Z ROSIE FOUR DEPARTURE RWY 21 MINIMUM CLIMB RATE TO 6200 V/V (FPM) 306, 612, 918, 1224, 1530, 1836. RWY 26 NOT AVAILABLE.
2/12/250150Z ROSIE FOUR DEPARTURE RWY 14 MINIMUM CLIMB RATE 6200 V/V (FPM) 277, 554, 831, 1108, 1385, 1662
2/12/250145Z RNAV RWY 32 LNAV CAT A B MDA 2700-1 459 (500-1), CAT C D 2700-1 3/8 459 (500-1 3/8), CIRCLING CAT A 2780-1 496 (500-1) CAT D 3700-3 1416 (1500-3).
2/12/250140Z HI TACAN RWY 32 S-32 CAT C D E MDA 2740 HAT 499, CIRCLING MDA 3700 HAA 1416.
2/12/250136Z TACAN RWY 32 S-32 CAT A B C D MDA 2740 HAT 499. CIRCLING MDA CAT A 2780 HAA 496, CAT D MDA 3700 HAA 146.
1/29/251959Z AERODROME CLSD ALTERNATING FRIDAYS PER IFR SUPP. REFER TO THE FOLLOWING LINK FOR AIRFIELD SCHEDULE: HTTPS://WIKI.FUSION.NAVY.MIL/DISPLAY/NCAO/CALENDAR/83072C04-B1CE-4E4D-B2B9-2ACE0DCEDCEB?CALENDARNAME=NAWSCL%20AIR%20OPERATIONS%20CALENDAR
1/28/251730Z TWY J CLOSED FROM RWY26 TO TWY MIKE.
1/27/251710Z TWY K WEST OF HANGAR 5 AND HELO SPOT 1 ARE OPEN.
Yes
MON-FRI 1530-0630Z++
SUN 2300-0100Z++
CLSD ALTN FRI. OPEN 1530-2030Z++, CLSD 2030-2300Z++, OPEN 2330-0100Z++ 1ST WORKING/NON-HOL FRI OF THE MONTH. SAT-SUN OPR BY PPR/LCL USE ONLY. SEE FLIP AP/1 SUPPLEMENTARY ARPT INFO.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR FACILITY
CHINA LAKE, CA 93555
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
NID
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 03/21

10001 ft. x 200 ft.

CONC
NONE
HIGH
111/R/B/W/T
--
--
--
--
  Runway 03 Runway 21
True Heading 42°222°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 40' 32"N 35° 41' 45"N
Longitude 117° 42' 30"W 117° 41' 09"W
Elevation 2,284' 2,201'
Threshold Crossing Height -- 57 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 08/26

11199 ft. x 200 ft.

CONC
NONE
HIGH
59 /R/B/W/T
--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 41' 00"N 35° 40' 59"N
Longitude 117° 43' 09"W 117° 40' 53"W
Elevation 2,288' 2,232'
Threshold Crossing Height 45 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 14/32

9014 ft. x 200 ft.

ASPH
NONE
HIGH
16 /R/B/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 154°334°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 41' 56"N 35° 40' 35"N
Longitude 117° 41' 36"W 117° 40' 48"W
Elevation 2,203' 2,241'
Threshold Crossing Height 52 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-10TRAN ALERT - EXP SVC DELAY. LTD TRAN SVC AVBL 1530-0300Z++ MON-FRI.
A110-11RSTD - PPR DSN 437-5301. ALL PPR ISSUED 1530-0630Z++ WEEKDAYS ONLY.
A110-13CSTMS/AG/IMG - CSTMS NOT AVBL. ACFT ENTERING FR FOREIGN COUNTRIES MUST CLEAR CSTMS PRIOR ARR.
A110-14MISC - TRAN ACFT TO/FR CHINA LAKE NID MUST CTC R2508 COMPLEX CONTROL BOARD FOR SKED/BRIEF PRIOR TO OBTAINING A PPR. PORTIONS OF APCH END RWY 26 AND ADJ TWY NOT VISIBLE FR TWR.
A110-15MISC: LTD PAX SVC AVBL.
A110-16SERVICE LGT: RWY 03/21, RWY 08/26 AND 14/32 MRKD AND LGTD 200 FT WIDE.
A110-17RSTD: PPR CIVIL ACFT OFFL BUS. FOR CALP REQS CTC AIRFIELD MGR 760-939-5032 OR TRML 760-939-5301. RSTD AFLD HRS SUBJ CHG. PILOTS FILING KNID CHINA LAKE AS AN ALTN OR EMERG DIV ARE ADZD TO CALL BASE OPS DSN 437-5475 TO VFY OPERG HRS.
A110-18CAUTION - BIRD HAZ NEAR GOLF CRS, WI CLASS D AIRSPACE, OCT-APR.
A110-19CAUTION: TWY B AND TWY G NOT LGTD.
A110-20CAUTION: TWY C CLSD.
A110-6JASU - 3(GTC-85), 5(NC-10A1), 1(NC-10B), 1(NC-10C), 7(AM32A-108), 4(A/M47A-4), 4(MSU-200).
A110-7FUEL - F24- AVBL 1400-0700Z++ MON-THU; 1400-0430Z++ ALT THU-FRI; 2200-0700Z++ SUN
A110-9OIL - O-133-156.
CHINA LAKE NAWS (ARMITAGE FLD) (ICAO: KNID, IATA: NID) is a private airport located in CHINA LAKE, CA.
