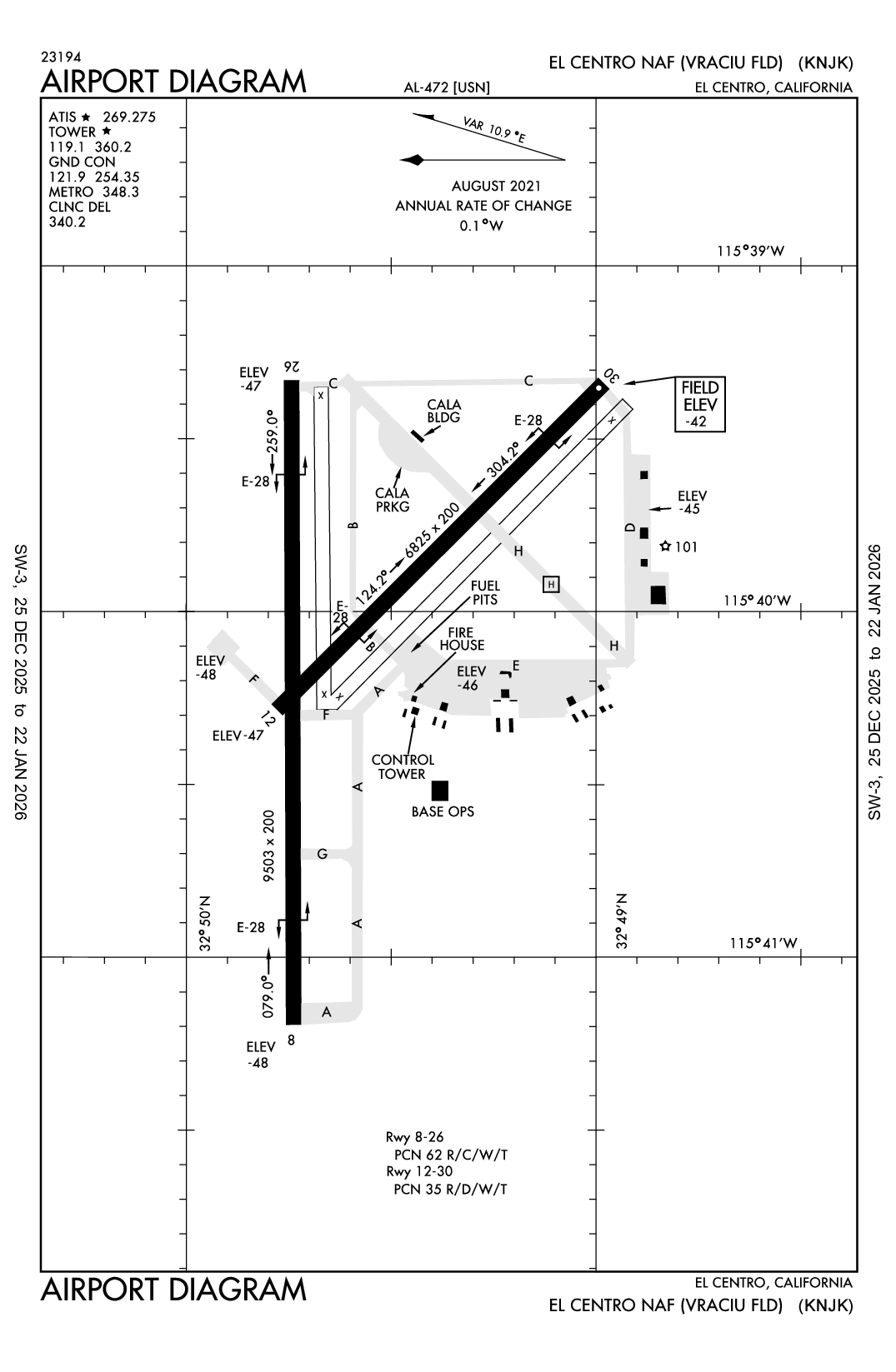

EL CENTRO NAF (VRACIU FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNJK
EL CENTRO NAF (VRACIU FLD)
PrivatePVT

6 miles NW of EL CENTRO, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 49' 36"N 115° 40' 07"W
-42' MSL
958' MSL
11E
None Listed
SAN DIEGO (SAN)
PHOENIX
LOS ANGELES (ZLA)
11/28/24-12/26/24
KNJK VFR
3:56 AM PST
Clear
10sm
49°F
31°F
30.04"Hg
Calm
AO2 SLP188 T00941006 10133 20094 58000 $
KNJK 231156Z AUTO 00000KT 10SM CLR 09/M01 A3004 RMK AO2 SLP188 T00941006 10133 20094 58000 $
Add Your Business

KNJK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 119.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIPL (5nm)
Mon, 12/23 3:20 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
VFR
4:00 AM PST - 7:00 AM PST
Broken 25,000'
6sm
270° 4kts
VFR
7:00 AM PST - 8:00 PM PST
Scattered 25,000'
6sm
VRB° 3kts
VFR
8:00 PM PST - 4:00 AM PST
Scattered 25,000'
6sm
260° 4kts
KIPL 231120Z 2312/2412 27004KT P6SM BKN250
   FM231500 VRB03KT P6SM SCT250
   FM240400 26004KT P6SM SCT250
KNJK
Military
12/25/242000Z AERODROME TWR HOURS OF OPERATION ON MON 06JAN24 ARE FROM 1800Z TO 0700Z.
12/18/242034Z AERODROME TWR CLSD FROM FRI 27DEC24 2130Z TO MON 06JAN24 1800Z. CLASS D SVC NOT AVBL. FOR ADDITIONAL SERVICES CONTACT EL CENTRO APPROACH ON 132.27 OR 292.2.
12/18/242031Z AERODROME TWR CLSD FROM WED 18DEC24 2100Z TO FRI 27DEC24 2030Z. CLASS D SVC NOT AVBL. FOR ADDITIONAL SERVICES CONTACT EL CENTRO APPROACH ON 132.27 OR 292.2.
12/17/240121Z !KNJK M0225/24 NJK TWY D EDGE LGTS U/S BETWEEN TWY E AND RWY30. 2412170121-2502282359
12/17/240119Z !KNJK M0224/24 NJK APRON CALA EDGE LGT U/S 2412170119-2502282359
12/17/240114Z !KNJK M0223/24 NJK TWY C EDGE LGTS U/S BETWEEN RY26 AND RWY30. 2412170114-2502282359
12/17/240112Z !KNJK M0222/24 NJK TWY G EDGE LGTS U/S BETWEEN RWY08 AND TWY A. 2412170112-2502282359
12/17/240111Z !KNJK M0221/24 NJK TWY A EDGE LGTS U/S BETWEEN RWY08 AND TWY B. 2412170111-2502282359
12/17/240108Z !KNJK M0220/24 NJK RWY 12/30 REDL U/S DAYTIME VMC USE ONLY. 2412170108-2502282359
10/29/242345Z RWY 08 IFLOLS UNAVAILABLE.
10/15/241748Z AERODROME UHF PILOT CONTROLLED LIGHTING UNAVAILABLE. UTILIZE VHF PCL.
10/7/242106Z AERODROME EL CENTRO APPROACH FREQ 132.27 OR 292.2.
Yes
MON-THU 1500-0700Z++
FRI 1500-0200Z++
SAT 1500-2300Z++
CLSD SUN AND HOL.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
BASE OPS

CA
Phone: 760-339-2601
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
NJK
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
High & Low Pressure
High & Low Pressure
None

Runway 08/26

9503 ft. x 200 ft.

PEM
NONE
HIGH
62 /R/C/W/T
--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 32° 49' 45"N 32° 49' 45"N
Longitude 115° 41' 14"W 115° 39' 22"W
Elevation -48' -46'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 12/30

6825 ft. x 200 ft.

PEM
NONE
HIGH
35 /R/D/W/T
--
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 32° 49' 47"N 32° 48' 59"N
Longitude 115° 40' 20"W 115° 39' 23"W
Elevation -47' -42'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-11SERVICE - LGT - CARRIER DECK LGT AVBL RWY 08-26 AND 30.
A110-12JASU - 1(RCPT-105) 1(NC8) (WELLS AIR START SYS).
A110-13FUEL - TRAN PILOTS EXP UP TO 2 HR DELAY WO PRIOR ARNG DSN 658-2425, C760-339-2425. - HOT REFUEL AVBL MOST ACFT 1630-0430Z++ MON-THU; 1600-0200Z++ FRI; 1630-2300Z++ SAT; CLSD SUN AND HOL. HOT REFUL HR SUBJ TO SHORT NTC CHG, REFER TO NOTAM. J8
A110-14FLUID - HPOX LOX
A110-15OIL - O-128-156
A110-16TRAN ALERT- NO TRAN SVC 0700-1500Z++. TRAN MAINT EXTREMELY LTD. TRAN ACFT INBD WITH ORDNANCE ADV TWR ON INITIAL CTC. TRAN ACFT INBD WITH ORDNANCE FOR HOT REFUL MUST SAFE THEIR ACFT PRIOR TO HOTPITTING, T-LINE CANNOT SAFETY OR PIN TRAN ACFT. LTD SVC AVBL FOR LARGE PAX ACFT RQR 48 HR NTC DSN 658-2655.
A110-18CAUTION - INBD ACFT USE EXTREME CAUTION TO AVOID R2510 LCTD 5 NM NW DUE TO A/G WEAPONS OPR AND PRCHT DROPS. EXTREME MID-AIR POTENTIAL DUE TO HI DENSITY VFR GEN AVN TFC AND CROP DUSTERS IN VCNTY. AVOID IMPERIAL CO ARPT 4.5 NM E UNCTL, BLW 3000' AGL.
A110-19CAUTION - BIRD ACT MID DEC TO MID MAR SR-SS WITHIN THE ADJ FLD LCTD E AND W OF THE ARPT. PJE ARE CONDUCTED ON REG BASIS OFF NJK TACAN 170/10 OR IPL VORTAC 240/12.
A110-20TFC PAT - DENSE FLD CARRIER LDG PRACTICE TFC ALL HR. REDUCED RWY SEPARATION STD IN EFF USN/USMC ACFT.
A110-21NS ABTMT - AVOID OVFT HSG LCTD SW OF TWR AND FUEL FARM LCTD IMMED SW APCH END RWY 30. AVOID OVFT TOWN OF EL CENTRO APRX 5 NM E, BLW 5000' AGL. NUMEROUS CATTLE FEED LOTS LCTD THRU-OUT AREA, AVOID OVFT AT LO ALT.
A110-22MISC - ACFT INBD MAKE INITIAL CTC WITH TWR 15 NM OR SOONER. ATCT IN A NON-RADAR ENVIRONMENT WITH HI VOLUME OF AIR TFC. IMPROVED FRESNEL LENS OLS AVBL RWY 08 AND 26.
A110-23RSTD: ALL CIV ACFT AND ALL ACFT THAT INTEND TO RON REQUIRE 72 HR PPR, DSN 658-2601, C760-339-2601 DUR SKED FIELD HRS.
A110-24FUEL - JAA/F24 AVBL
A110-25CTC AIRFIELD MGR/CIVIL ACFT LANDING PERMIT MGR FOR PERMIT INFO C760-339-2616, DSN 658-2616.
A110-26FOR CD WHEN ATCT CLSD CTC YUMA CERAP AT 928-269-9569.
EL CENTRO NAF (VRACIU FLD) (ICAO: KNJK, IATA: NJK) is a private airport located in EL CENTRO, CA.
