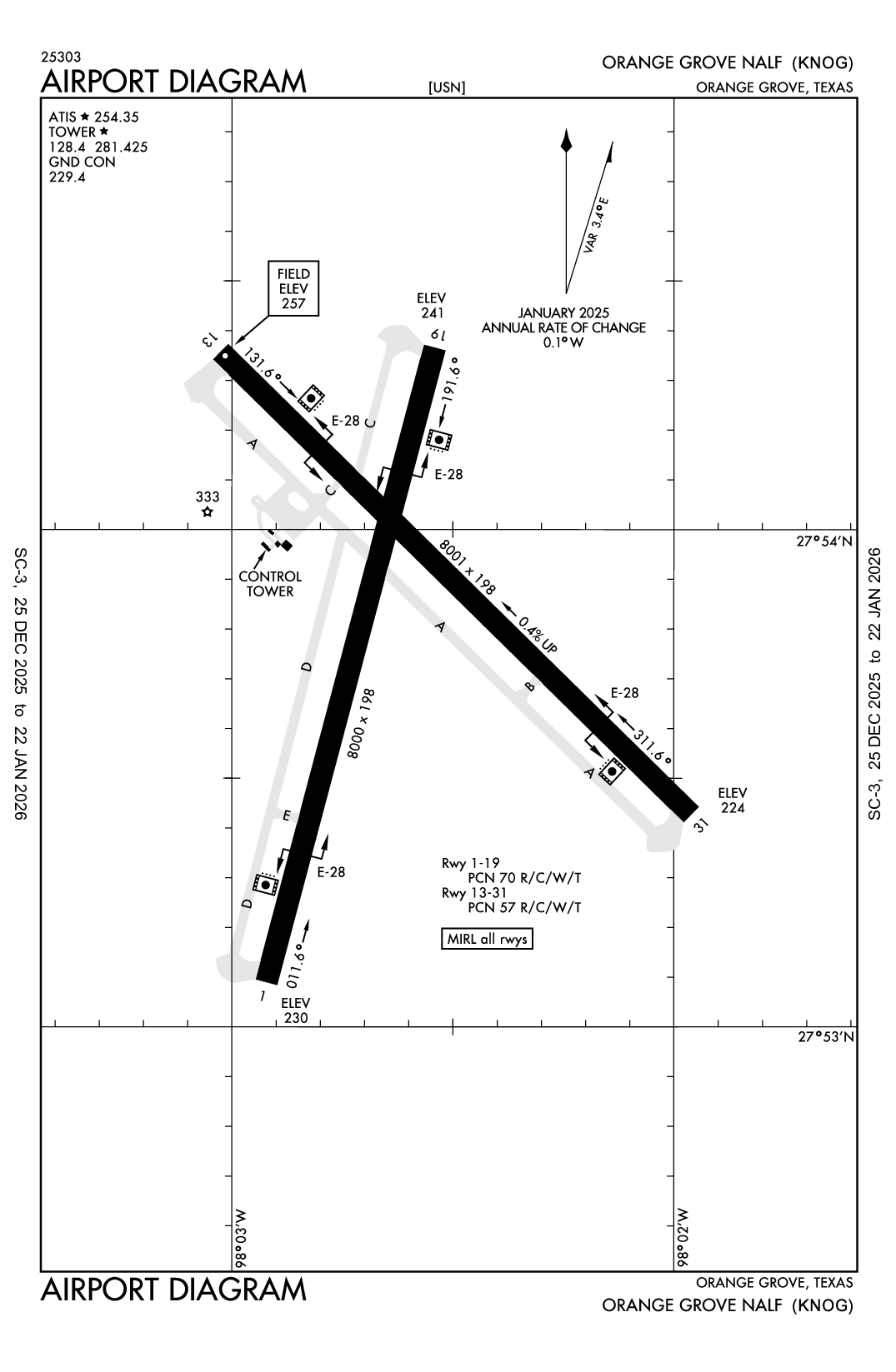

ORANGE GROVE NALF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNOG
ORANGE GROVE NALF
PrivatePVT

8 miles N of ORANGE GROVE, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
27° 53' 49"N 98° 02' 37"W
257' MSL
1257' MSL
05E
None Listed
SAN ANGELO (SJT)
BROWNSVILLE
HOUSTON (ZHU)
5/16/24-6/13/24
KNOG VFR
12:56 PM CDT
Clear
10sm
32°F
32°F
29.93"Hg
Calm
AO2 SLPNO 6//// 58003 PNO $
KNOG 121756Z AUTO 10SM CLR A2993 RMK AO2 SLPNO 6//// 58003 PNO $
Add Your Business

KNOG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Tower

LCL/P
 128.4

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KALI (9nm)
Wed, 6/12 12:20 PM CDT
Wed, 6/12 1:00 PM CDT - Thu, 6/13 1:00 PM CDT
VFR
1:00 PM CDT - 12:00 AM CDT
Showers in vicinity
Scattered 25,000'
Scattered 3,000'
6sm
110° 8kts
VFR
Temporary 4:00 PM CDT - 8:00 PM CDT
No Clouds
N/A
130° 12kts
VFR
12:00 AM CDT - 1:00 PM CDT
Scattered 25,000'
Scattered 1,500'
6sm
VRB° 3kts
MVFR
Temporary 4:00 AM CDT - 8:00 AM CDT
Mist
Broken 1,500'
5sm
Calm
KALI 121720Z 1218/1318 11008KT P6SM VCSH SCT030 SCT250
   TEMPO 1221/1301 13012KT
   FM130500 VRB03KT P6SM SCT015 SCT250
   TEMPO 1309/1313 5SM BR BKN015
KNOG
Military
6/11/241858Z AERODROME HOURS OF OPERATION FOR THE WEEK OF 09JUN24 TO 14JUN24 ARE; SUN: CLOSED, MON-WED: 1830Z-0430Z, THUR: 1500Z-0100Z, FRI: 1400Z-2200Z.
6/11/241851Z L0247/24 NOTAMC L0246/24
6/11/241608Z L0245/24 NOTAMC L0242/24
6/3/241720Z !KNOG V0033/24 NOG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS Z OR LOC Z RWY 13 REVISED CIRCLING MINIMA: CAT A [720-1 463 (500-1)]. 2406031720-2407311245
6/3/241718Z !KNOG V0031/24 NOG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN Z RWY 13 REVISED CIRCLING MINIMA: CAT A [720-1 463 (500-1)]. 2406031718-2407311245
6/3/241717Z !KNOG V0029/24 NOG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN A REVISED MINIMA: CAT AB [720-1 463 (500-1)]. 2406031717-2407311245
6/3/241715Z !KNOG V0027/24 NOG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS X OR LOC X RWY 13 REVISED MINIMA: CAT AB [720-1 463 (500-1)] CAT C [660-1 3/4 642 (700-1 3/4)] CAT D [660-2 642 (700-2)]. 2406031715-2407311245
6/3/241713Z !KNOG V0025/24 NOG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI TACAN Y RWY 13 REVISED MINIMA: CAT CDE [580-1 5/8 563 (600-1 5/8)]. 2406031713-2407311245
6/3/241710Z !KNOG V0022/24 NOG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 31 REVISED MINIMA: CAT AB [620-1 388 (400-1)] CAT CD [620-1 1/8 388 (400-1 1/8)]. REVISED CIRCLING MINIMA: CAT A [720-1 463 (500-1) 2406031710-2407311245
Yes
ALL
OPR HRS BY NOTAM IN SUPPORT OF TRAWING-2 FLT OPR.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
N/A
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 01/19

8000 ft. x 198 ft.
PEM
Fair
NONE
MED
25 /R/C/W/T
--
--
--
--
  Runway 01 Runway 19
True Heading 15°195°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 27° 53' 06"N 27° 54' 22"N
Longitude 98° 02' 55"W 98° 02' 33"W
Elevation 230' 241'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

8001 ft. x 198 ft.
PEM
Fair
NONE
MED
19 /R/C/W/T
--
--
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 27° 54' 21"N 27° 53' 25"N
Longitude 98° 03' 01"W 98° 01' 58"W
Elevation 257' 224'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1CAUTION: STUDENT JET TRNG IN VCNTY DUR OPR HR.
A110-10RWY-LGTS: RWY 01 - OLS. RWY 19 - OLS.
A110-11RWY-LGTS: RWY 13 - OLS. RWY 31 - OLS.
A110-12SERVICE-LGT: OLS GS 3.25DEG.
A110-13CAUTION: BIRD AND LARGE WILDLIFE HAZARD.
A110-14JET BREAK ALT 1300 FT MSL. USE LDG/TAXI LGT ON FINAL APCH DUR VFR COND.
A110-2RSTD: CNATRA USE ONLY EXC IN EMERG, NALF ADMIN DSN 876-6140, NAS KINGSVILLE BASE OPS DSN 876-6108.
A110-3TRAN ALERT: NO TRAN MAINT OR SVC AVBL. REFUEL CNATRA ACFT ONLY.
A110-5BEARING STRENGTH RWY 13/31: ST119 SBTT320 TRT306.
A110-7FUEL: JAA.
A110-8FLUID: SP PRESAIR.
A110-9OIL: O-156.
ORANGE GROVE NALF (ICAO: KNOG, IATA: NOG) is a private airport located in ORANGE GROVE, TX.
