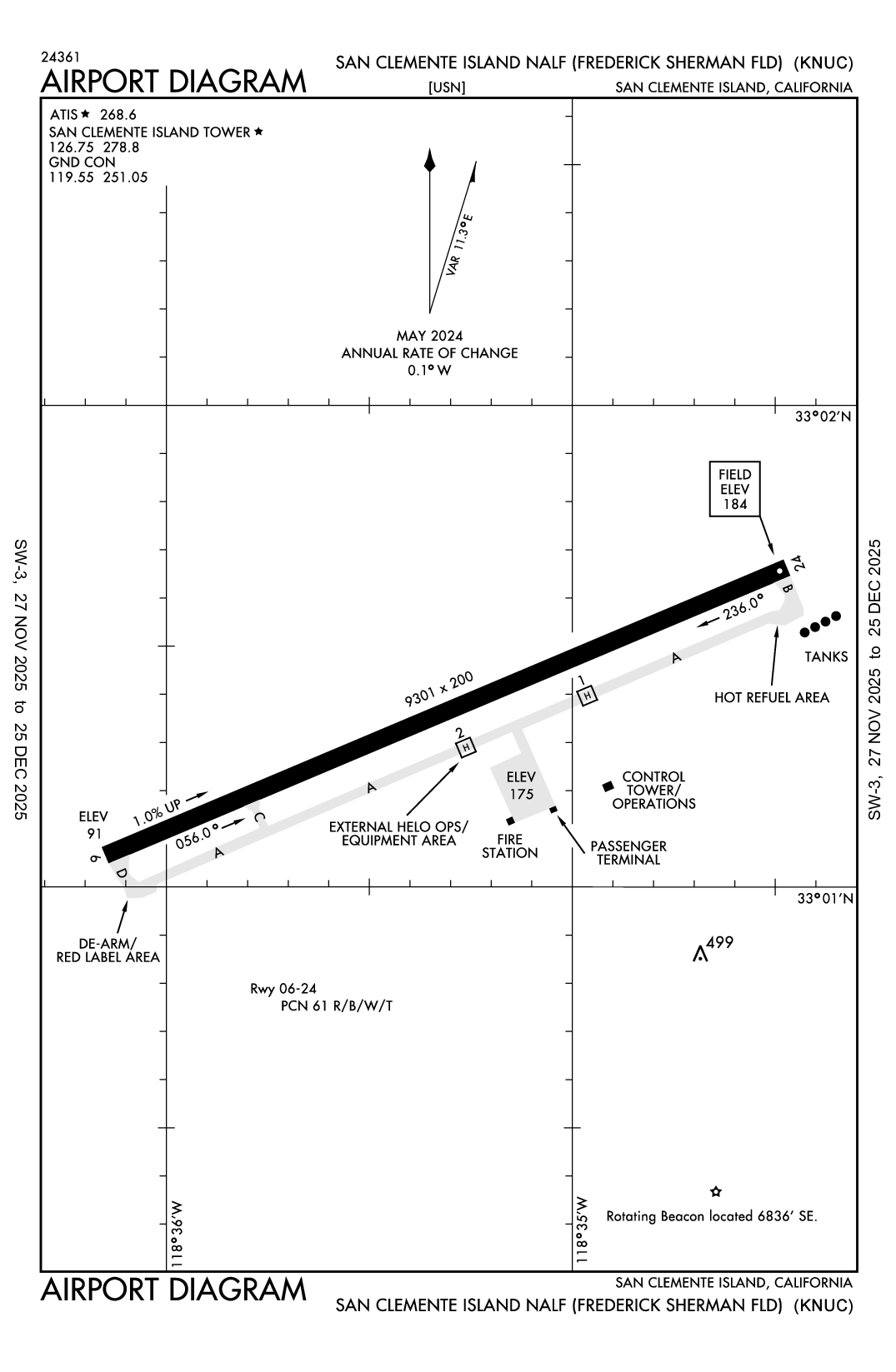

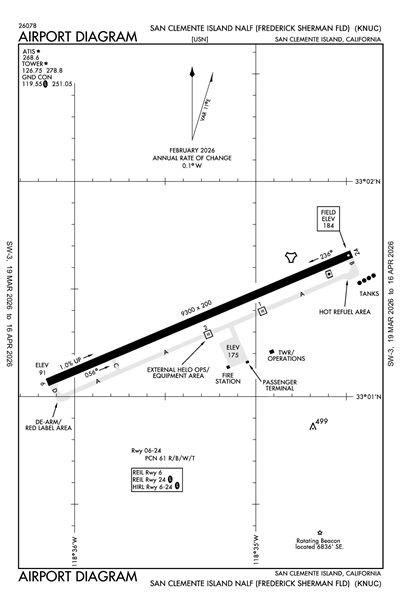

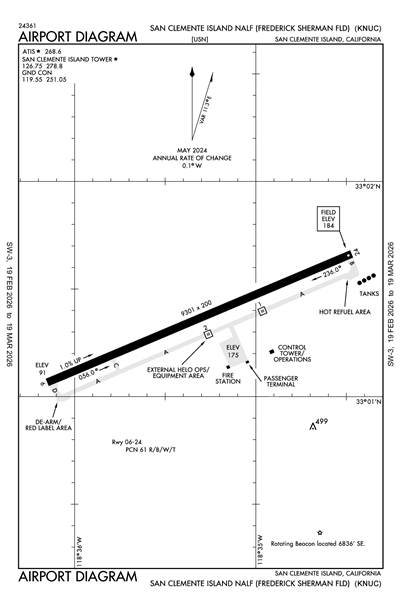

SAN CLEMENTE ISLAND NALF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNUC
SAN CLEMENTE ISLAND NALF
PrivatePVT

0 miles NW of SAN CLEMENTE ISLAND, CA
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 01' 22"N 118° 35' 19"W
184' MSL
1184' MSL
12E
None Listed
SAN DIEGO (SAN)
LOS ANGELES
LOS ANGELES (ZLA)
11/28/24-12/26/24
KAVX (25nm) LIFR
4:33 AM PST
Fog
Obscured
0.25sm
51°F
50°F
30.11"Hg
010° 3kts
AO2 VIS M1/4V5 T01060100 $
KAVX 231233Z AUTO 01003KT 1/4SM FG VV002 11/10 A3011 RMK AO2 VIS M1/4V5 T01060100 $

KNUC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Approach/Departure

APCH/P DEP/P
127.05

Emergency

EMERG
121.5

Ground

GND/P
119.55

Tower

LCL/P
126.75

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLGB (52nm)
Mon, 12/23 3:59 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
MVFR
4:00 AM PST - 7:00 AM PST
Mist
Overcast 1,100'
5sm
VRB° 3kts
MVFR
7:00 AM PST - 11:00 AM PST
Overcast 1,200'
6sm
VRB° 3kts
VFR
11:00 AM PST - 7:00 PM PST
Broken 25,000'
6sm
190° 7kts
MVFR
7:00 PM PST - 12:00 AM PST
Broken 1,200'
6sm
VRB° 3kts
IFR
12:00 AM PST - 4:00 AM PST
Mist
Overcast 800'
5sm
VRB° 3kts
KLGB 231159Z 2312/2412 VRB03KT 5SM BR OVC011
   FM231500 VRB03KT P6SM OVC012
   FM231900 19007KT P6SM BKN250
   FM240300 VRB03KT P6SM BKN012
   FM240800 VRB03KT 5SM BR OVC008
KNUC
Domestic
12/8/241411Z !NUC 12/002 NUC SVC PAR U/S 2412081411-2503312359
Military
12/19/242157Z AERODROME WILL OBSERVE REDUCED HOURS DUE TO WINTER HOLIDAYS. DEC16-DEC20 1000L -1800L (DEC16-DEC21 1800Z-0200Z). 23DEC 1000L-1600L (23DEC-24DEC 1800Z-2400Z). CLOSED 24DEC - 27DEC OPENING 27DEC 1000L -1600 (27DEC - 28DEC 1800Z-2400Z). DEC 30 0800L- 1600L ( DEC30 - DEC31 1600Z - 2400Z). CLOSED 31DEC - 03JAN OPENING 03JAN 1000-1600L (03JAN-04JAN 1800Z - 2400Z). 06JAN-10JAN 1000L - 1800L (06JAN-11JAN 1800Z-0200L).
12/13/241720Z TACAN WILL BE UNAVAILIBLE 27JAN25-7FEB25 FOR MAINTENANCE.
11/26/241811Z SIMULATED AIRCRAFT CARRIER DECK LIGHTS UNSERVICEABLE.
11/25/242233Z AERODROME HAS NON STANDARD AIRFIELD SIGNAGE. UTILIZE CAUTION.
11/25/242231Z AERODROME HAS NON STANDARD PARKING APRON WITHOUT A PERIPHERAL TAXILANE.
10/21/241409Z RWY 06/24 E-28 ARRESTING GEAR DE-RIGGED AND INOPERABLE UNTIL FURTHER NOTICE. CAUTION, REMOVAL IN PROGRESS, MEN AND EQUIPMENT IN VICINITY OF E-28 ARRESTING GEAR.
Yes
MON 1500-0200Z+
TUE-THU 1600-0200Z+
FRI 1600-0000Z+
CLSD SAT, SUN AND HOL.
OTHER TIMES BY NOTAM.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
N/A
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
NUC
--
AVBL ONLY DRG HRS OF OPN. AFTER HRS FOR EMERG ACTVT HIRL RWY 06/24 5 STEP AND REIL RWY 24 1 STEP - 119.55.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 06/24

9301 ft. x 200 ft.

CONC
NONE
HIGH
49 /R/B/W/T
--
--
--
--
  Runway 06 Runway 24
True Heading 67°247°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 01' 04"N 33° 01' 40"N
Longitude 118° 36' 09"W 118° 34' 28"W
Elevation 91' 184'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway H1

70 ft. x 70 ft.

CONC
NONE


--
--
--
--
  Runway H1 Runway
True Heading 73°253°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 01' 24"N N/A
Longitude 118° 34' 59"W N/A
Elevation 170' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

70 ft. x 70 ft.

CONC
NONE


--
--
--
--
  Runway H2 Runway
True Heading 73°253°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 01' 18"N N/A
Longitude 118° 35' 13"W N/A
Elevation 146' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10PRKG RAMP DESIGNED FOR FIVE METROLINER SIZED ACFT (ON THE LINE ADJACENT TO THE TRML) AND EIGHT H-60 SIZED ACFT (ON THE NORTHERN TWO LINES - 4 EACH LINE). WHEN CARGO ACFT OCCUPY THE CENTER PRKG LINE (VIC OF SPOT 5) NONSTD TAXILANE CLNC MAY EXIST, USE CTN TAXING AROUND CARGO ACFT.
A110-11WHEN ATCT CLSD, FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-2JASU - 1(GTC-85) 1(A-4).
A110-3FUEL - J5.
A110-4FLUID - SP.
A110-7CAUTION - EXTV MISL AND OFF-SHORE BOMBARDMENT IN VCNTY SAN CLEMENTE ISLAND. BEAVER TACAN NSD CH 86 LCTD 11 NM S OF NUC TACAN CH 123. PERIMETER RD IN CLOSE PROXIMITY TO AIRFIELD, USE EXTREME CAUTION. HOLD SHORT MARKINGS LESS THAN 175 FT. EXPECT HOLD SHORT INSTRUCTIONS FROM TOWER.
A110-8TFC PAT REDUCED RWY SEPARATION STD IN EFF USN/USMC ACFT (ONLY ALLOWED DURING CCAS).
A110-9RSTD - PPR FOR CIV ACFT AT ALL TIMES AND MIL OT, DSN 524-9240. REQ TO USE NUC AS BINGO FLD FOR CARRIER OPR RQR 7 DAYS PN AND SPECIAL AIR OPR AFTER NML OPR HR RQR 72 HR PN THRU SAN CLEMENTE ISLAND AIR OPS DSN 524-9240.
SAN CLEMENTE ISLAND NALF (ICAO: KNUC, IATA: NUC) is a private airport located in SAN CLEMENTE ISLAND, CA.
