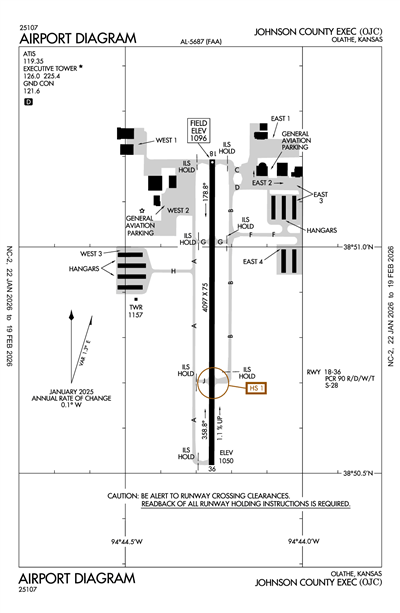

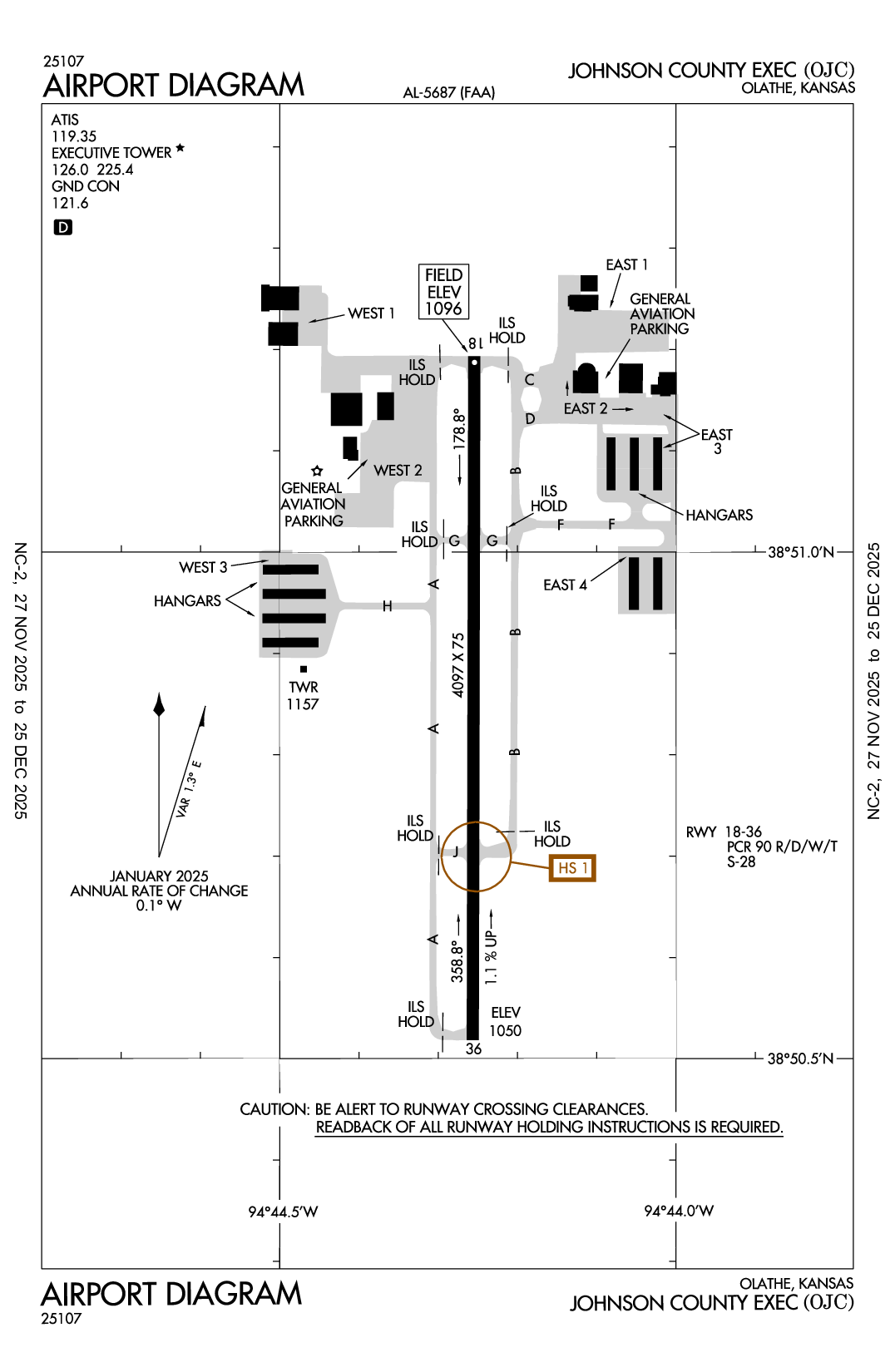

JOHNSON COUNTY EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOJC
JOHNSON COUNTY EXEC
PublicPUB

4 miles SE of OLATHE, KS
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 50' 51"N 94° 44' 15"W
1096' MSL
2096' MSL
04E
JET A, 100LL
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
11/28/24-12/26/24
KOJC MVFR
6:16 AM CST
Overcast 2,800'
10sm
45°F
33°F
30.06"Hg
230° 6kts
AO2 T00720006
KOJC 231216Z AUTO 23006KT 10SM OVC028 07/01 A3006 RMK AO2 T00720006

KOJC FBOs

Executive Aircraft Service
UNICOM: 122.95
Phone: (913) 261-8345
Other: (913) 764-4800
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel, Other
As of 12/16
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.89
Full Serve 6.15 4.89
Fuel Notes
Prices include tax
KCAC Aviation
UNICOM: 131.5
Phone: (913) 782-0530
No Rating Available
1 Review (Read | Sign In To Write)
1 out of 1 Recommend
Phillips 66
As of 12/17
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.15 6.05
Fuel Notes
Prices include tax
Air Associates
UNICOM: 122.95
Phone: (913) 764-4800
No Rating Available
0 Reviews (Read | Sign In To Write)

KOJC Aircraft Service & Maintenance

Kansas City Aviation Center
Phone: (913) 782-0530
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 126.0

ATIS

ATIS
913-764-9272
119.35

Ground

GND/P
121.6

Tower

LCL/P
126.0

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Terminal Area Forecast

KIXD (7nm)
Mon, 12/23 5:23 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
MVFR
6:00 AM CST - 10:00 AM CST
Broken 2,500'
6sm
220° 13kts
Gusts 22kts
VFR
10:00 AM CST - 3:00 PM CST
Broken 10,000'
Scattered 2,000'
6sm
250° 8kts
VFR
3:00 PM CST - 6:00 PM CST
Broken 12,000'
6sm
320° 7kts
VFR
6:00 PM CST - 6:00 AM CST
Overcast 7,000'
6sm
VRB° 4kts
KIXD 231123Z 2312/2412 22013G22KT P6SM BKN025
   FM231600 25008KT P6SM SCT020 BKN100
   FM232100 32007KT P6SM BKN120
   FM240000 VRB04KT P6SM OVC070
KOJC
Domestic
12/13/242002Z !OJC 12/008 OJC AD AP WINDCONE PRI LGT U/S 2412132002-2501032200
12/4/242046Z !OJC 12/003 OJC APRON WEST 3 APN TXL K AND L HANGARS CLSD
CONST N SIDE LGTD AND BARRICADED 2412042046-2412312300
FDC
12/20/241528Z !FDC 4/9354 OJC SID JOHNSON COUNTY EXEC, OLATHE, KS.
WILDCAT SIX DEPARTURE...
WICHITA TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ICT VOR OUT OF SERVICE. 2412201528-2502051528EST
9/20/241505Z !FDC 4/8701 OJC IAP JOHNSON COUNTY EXEC, OLATHE, KS.
RNAV (GPS) RWY 36, AMDT 1B...
CHANGE BARO VNAV SYSTEMS NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV
SYSTEMS, LNAV/VNAV NA BELOW -17C OR ABOVE 54C. DELETE NOTE: DME/DME
RNP-0.3 NA. PBN REQUIREMENTS NOTE RNP APCH - GPS. CHANGE HELICOPTER
VISIBILITY NOTE TO READ: RWY 36 HELICOPTER VISIBILITY REDUCTION
BELOW 3/4 SM NOT AUTHORIZED. CHANGE INOPERATIVE NOTE TO READ: FOR
INOPERATIVE ALS, INCREASE LPV, LNAV/VNAV AND LNAV ALL CATS
VISIBILITY TO 1 SM. DELETE PROFILE NOTE: ASTERISK LNAV ONLY. DELETE
ASTERISK FROM VDP 1 NM TO RWY36. ALTERNATE MINIMUMS STANDARD; NA
WHEN LOCAL WEATHER NOT AVAILABLE.
THIS IS RNAV (GPS) RWY 36, AMDT 1C. 2409201505-PERM
3/29/242000Z !FDC 4/4229 OJC STAR JOHNSON COUNTY EXEC, OLATHE, KS BRAYMER EIGHT
ARRIVAL..PROCEDURE AMEND SPINNER TRANSITION, MOCA 2700 SPI
VORTAC TO BQS VOR/DME. ALL OTHER DATA REMAINS AS PUBLISHED.

2403292000-2603190900
Yes
ALL
JOHNSON COUNTY
1 NEW CENTURY PARKWAY
OLATHE, KS 66031
Phone: 913-715-6000
LARRY PEET
ONE NEW CENTURY PARKWAY
NEW CENTURY, KS 66031
Phone: 913-715-6000
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
OJC
--
WHEN ATCT CLSD, ACTVT MALSR RWY 36; PAPI RWY 18; MIRL RWY 18-36; TWY LGTS; AND WIND CONE - CTAF. VASI RWY 36 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 18/36

4097 ft. x 75 ft.
CONC
Excellent
NONE
MED

28,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 51' 12"N 38° 50' 31"N
Longitude 94° 44' 15"W 94° 44' 15"W
Elevation 1,096' 1,050'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4R V2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No
A110-2UPON TAKEOFF FOR RYS 18 & 36 MAINTAIN RY HEADING UNTIL PASSING 1,600 FT MSL.
A110-5BIRDS, WATERFOWL, WILDLIFE ON & INVOF ARPT.
A110-6TO CONFIRM SNOW REMOVAL AND WINTER CONDITIONS NOV-APR CALL 913-292-9964.
A110-7FOR CD WHEN ATCT IS CLSD CTC MCI APCH AT 816-329-2710.
A110-8IT IS ADVISED THAT ROTOCRAFT AVOID THE OVERFLIGHTS OF SURROUNDING NEIGHBORHOODS.
JOHNSON COUNTY EXEC (ICAO: KOJC, IATA: OJC) is a public airport located in OLATHE, KS.
