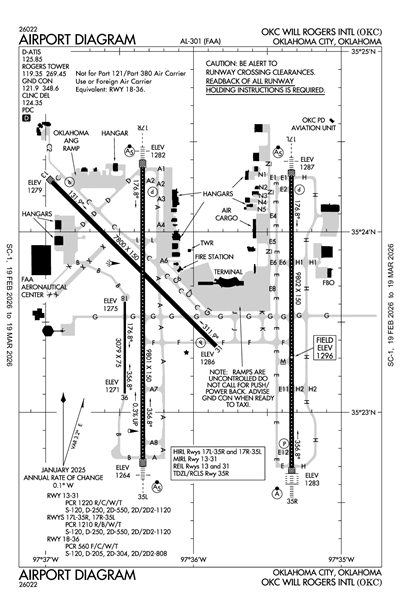

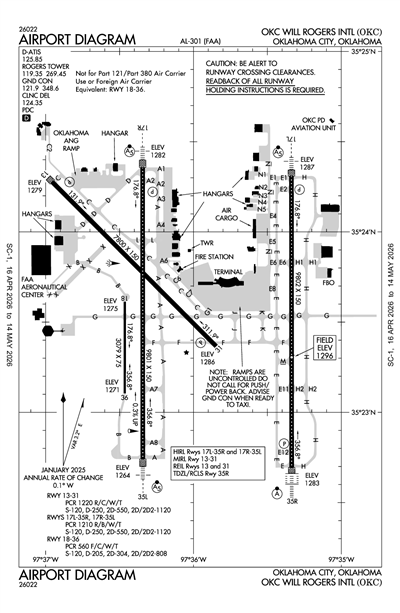

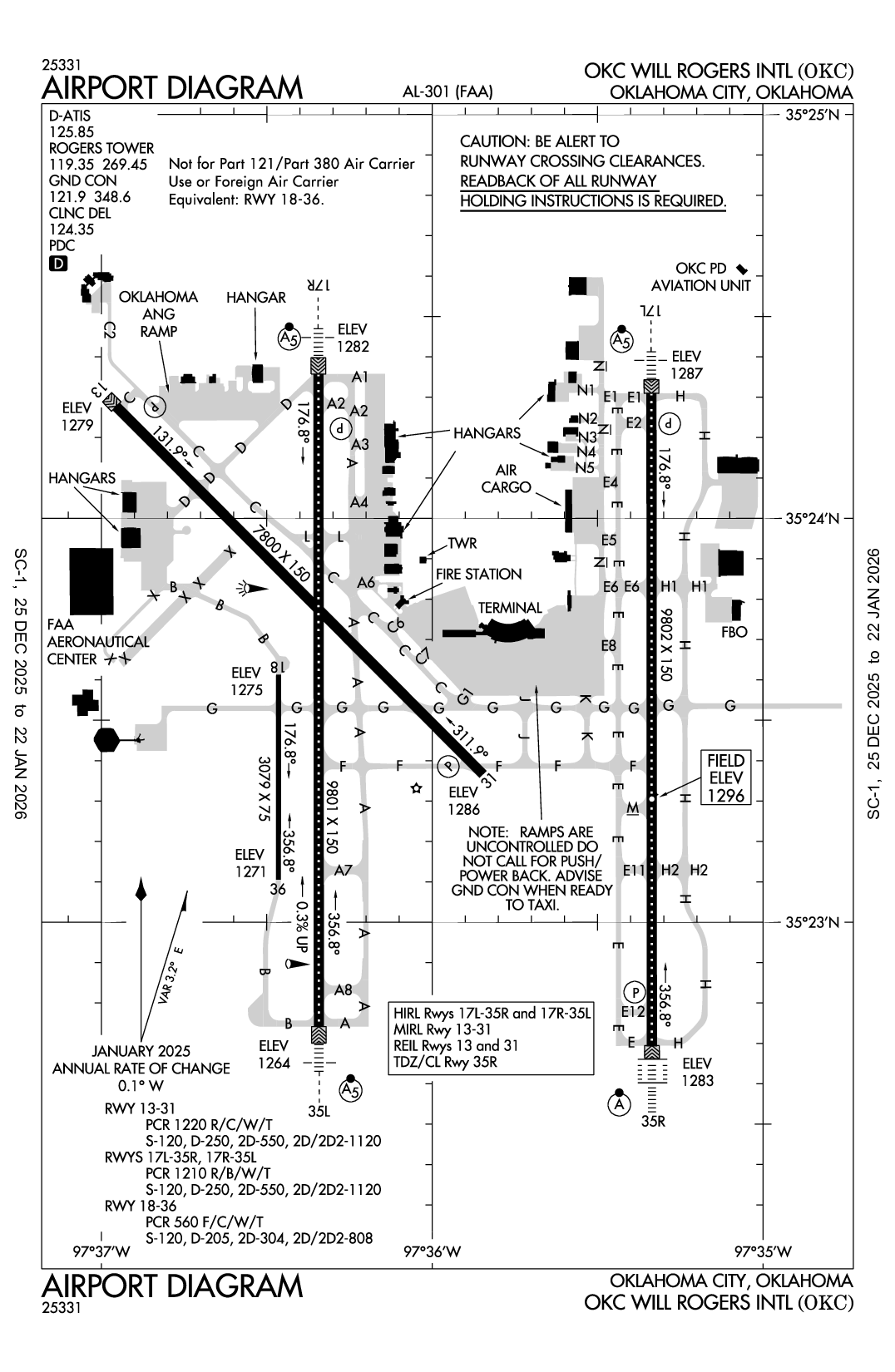

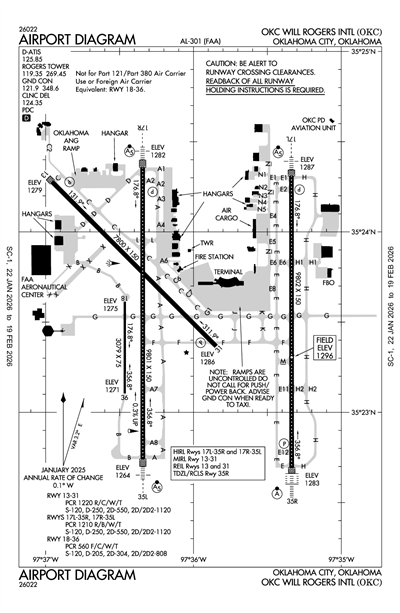

OKC WILL ROGERS INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOKC
OKC WILL ROGERS INTL
PublicPUB

6 miles SW of OKLAHOMA CITY, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 23' 35"N 97° 36' 03"W
1296' MSL
2296' MSL
04E
JET A, 100LL
MC ALESTER (MLC)
DALLAS-FT WORTH
FORT WORTH (ZFW)
2/20/25-3/20/25
KOKC VFR
9:52 AM CDT
Few 11,000'
10sm
44°F
35°F
30.17"Hg
010° 5kts
AO2 SLP221 T00670017 53010
KOKC 091452Z 01005KT 10SM FEW110 07/02 A3017 RMK AO2 SLP221 T00670017 53010
Add Your Business

KOKC FBOs

AAR Aircraft Services
UNICOM: 130.05
Phone: (405) 218-3160
Fax: (405) 218-3612
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 2/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.87 5.46 5.46
Fuel Notes
Prices include tax
Promote Listing
Atlantic Aviation
UNICOM: 131.875
Phone: (405) 787-4043
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 2/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.44 6.52
Fuel Notes
Prices include tax

KOKC Flight Schools & Aircraft Rental

Promote Listing
Metro Technology Center
Phone: (405) 595-5501
Fax: (405) 681-5644
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

D-ATIS
405-686-4707
 125.85

Approach/Departure

APCH/P DEP/P
081-170
 120.45
APCH/P DEP/P
001-080
 124.2
APCH/P DEP/P IC
171-360
 124.6
APCH/S DEP/S
 118.95

Clearance Delivery

CD PRE TAXI CLNC
 124.35

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 119.35
LCL/S
 120.25

Other

CAMET RNAV STAR
 124.6
CLASS C
081-170
 120.45
CLASS C
001-080
 124.2
CLASS C
171-360
 124.6
FINAL APCH
 119.3
FUNNL DP
 124.2
GHOST RNAV STAR
 124.6
GULLI STAR
 124.2
KRMSN DP
 124.2
MURAH RNAV STAR
 124.2
RDHWK DP
 124.2
RIFFL RNAV STAR
 124.2
SSYKO DP
 124.2
TEBRD DP
 124.2
TRUPR DP
 124.2
TSDEL RNAV STAR
 124.2
WENDY DP
 124.6
YUCKS RNAV STAR
 124.6

Terminal Area Forecast

KOKC
Sun, 3/9 6:20 AM CDT
Sun, 3/9 7:00 AM CDT - Mon, 3/10 7:00 AM CDT
VFR
7:00 AM CDT - 9:00 AM CDT
Overcast 5,000'
6sm
VRB° 5kts
VFR
9:00 AM CDT - 8:00 PM CDT
Scattered 25,000'
6sm
340° 8kts
VFR
8:00 PM CDT - 7:00 AM CDT
Sky Clear
6sm
230° 5kts
KOKC 091120Z 0912/1012 VRB05KT P6SM OVC050
   FM091400 34008KT P6SM SCT250
   FM100100 23005KT P6SM SKC
KOKC
Domestic
3/10/250400Z !OKC 03/014 OKC NAV ILS RWY 35R IM NOT MNT 2503100400-2503101100
3/10/250400Z !OKC 03/013 OKC NAV ILS RWY 35R CAT II NA 2503100400-2503101100
3/10/250400Z !OKC 03/012 OKC RWY 17L RVRR U/S 2503100400-2503101100
3/10/250400Z !OKC 03/011 OKC RWY 35R RVRT U/S 2503100400-2503101100
3/8/251842Z !OKC 03/027 OKC RWY 31 FICON 5/5/5 100 PCT WET OBS AT 2503081842. 2503081842-2503091842
3/8/251842Z !OKC 03/026 OKC RWY 35R FICON 5/5/5 100 PCT WET OBS AT 2503081842. 2503081842-2503091842
3/7/250848Z !OKC 03/025 OKC TWY G HLDG PSN SIGN WEST SIDE FOR RWY 17L/35R LGT U/S 2503070848-2503212200
3/5/250301Z !OKC 03/019 OKC RWY 35R RWY DESIGNATOR MARKING NOT STD 2503050301-2504252200
3/5/250301Z !OKC 03/018 OKC RWY 17L RWY DESIGNATOR MARKING NOT STD 2503050301-2504252200
3/5/250259Z !OKC 03/017 OKC TWY G CL MARKINGS BTN RWY 17L/35R AND TWY J NOT STD 2503050259-2504252200
3/5/250258Z !OKC 03/016 OKC TWY E CL MARKINGS BTN APCH END RWY 35R AND TWY F NOT STD 2503050258-2504252200
3/3/251806Z !OKC 03/006 OKC OBST RIG (ASN 2023-ASW-7064-NRA) 352442N0973452W (1.5NM NE OKC) 1367FT (107FT AGL) FLAGGED AND LGTD 2503031806-2503142359
3/1/252042Z !OKC 03/002 OKC AD AP FRICTION MEASURING DEVICE U/S 2503012042-2505302200
2/9/250503Z !OKC 02/030 OKC OBST TOWER LGT (ASR 1064078) 351354.90N0974112.70W (10.5NM SSW OKC) 1691.6FT (347.8FT AGL) U/S 2502090503-2506090503
2/5/251453Z !OKC 02/011 OKC OBST CRANE (ASN 2024-ASW-9706-NRA) 352417N0973609W (0.7NM N OKC) 1434FT (150FT AGL) FLAGGED AND LGTD 2502051453-2503282359EST
1/31/251531Z !OKC 01/099 OKC OBST SILO (ASN 2024-ASW-8640-NRA) 352444N0973653W (1.3NM NNW OKC) 1351FT (85FT AGL) FLAGGED AND LGTD 2501311531-2503282359EST
1/31/251529Z !OKC 01/098 OKC OBST SILO (ASN 2024-ASW-8587-NRA) 352248N0973558W (0.8NM S OKC) 1348FT (85FT AGL) FLAGGED AND LGTD 2501311529-2503282359EST
1/13/251743Z !OKC 01/063 OKC RWY 17R/35L RCLL U/S 2501131743-2503282359EST
1/13/251742Z !OKC 01/062 OKC RWY 17R/35L REDL U/S 2501131742-2503282359EST
1/13/251740Z !OKC 01/061 OKC RWY 17R CLSD EXC XNG DLY SS-SR 2501131740-2503282359EST
1/13/251609Z !OKC 01/060 OKC RWY 17R/35L N 2400FT CLSD 2501131609-2503282359EST
1/13/251558Z !OKC 01/059 OKC RWY 17R DECLARED DIST: TORA 7400FT TODA 7400FT ASDA 7400FT LDA 0FT. 2501131558-2503282359EST
1/13/251556Z !OKC 01/058 OKC RWY 17R CLSD EXC TKOF AND XNG DLY SR-SS 2501131556-2503282359EST
1/13/251555Z !OKC 01/057 OKC RWY 35L CLSD EXC XNG 2501131555-2503282359EST
1/10/252213Z !OKC 01/052 OKC APRON FIXED BASE OPR WEST RAMP N 300FT CLSD 2501102213-2503282359EST
1/10/251600Z !OKC 01/045 OKC TWY A1, TWY D BTN AIR NTL GUARD RAMP AND APCH END RWY 17R, TWY A BTN TWY A2 AND APCH END RWY 17R, TWY A2 BTN TWY A AND RWY 17R/35L CLSD 2501101600-2503282300EST
1/10/251400Z !OKC 01/013 OKC NAV ILS RWY 17R U/S 2501101400-2505102355
1/10/251400Z !OKC 01/012 OKC NAV ILS RWY 35L U/S 2501101400-2505102355
1/6/251400Z !OKC 12/062 OKC RWY 17R ALS U/S 2501061400-2505102355
1/6/251400Z !OKC 12/061 OKC RWY 35L ALS U/S 2501061400-2505102355
1/6/251400Z !OKC 12/060 OKC RWY 17R PAPI U/S 2501061400-2505102355
1/4/252001Z !OKC 01/005 OKC APRON TERMINAL RAMP WIP CONST LGTD AND BARRICADED 2501042001-2503282100
1/4/252000Z !OKC 01/004 OKC TWY J BTN TERMINAL RAMP AND TWY G CLSD 2501042000-2503282100
FDC
3/9/250044Z !FDC 5/0667 OKC IAP WILL ROGERS WORLD, OKLAHOMA CITY, OK.
ILS OR LOC RWY 17R, AMDT 13A...
ILS RWY 17R (SA CAT II), AMDT 13A...
MISSED APPROACH: CLIMB TO 2000 THEN CLIMBING RIGHT TURN TO 3100 ON IRW VORTAC R-263 TO JESKE INT/IRW 11.98 DME AND HOLD.
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PWA VOR OUT OF SERVICE. 2503090044-2504050044EST
3/9/250044Z !FDC 5/0666 OKC IAP WILL ROGERS WORLD, OKLAHOMA CITY, OK.
ILS OR LOC RWY 35L, AMDT 2D...
MISSED APPROACH: CLIMB TO 2000 THEN CLIMBING LEFT TURN TO 3100 ON HEADING 181 AND ON IRW VORTAC R-263 TO JESKE INT/IRW 11.98 DME AND HOLD,
PWA VOR OUT OF SERVICE. 2503090044-2504050044EST
3/9/250044Z !FDC 5/0662 OKC IAP WILL ROGERS WORLD, OKLAHOMA CITY, OK.
VOR RWY 17L, AMDT 2B...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PWA VOR OUT OF SERVICE. 2503090044-2504050044EST
3/5/251904Z !FDC 5/9560 OKC IAP OKC WILL ROGERS INTL, OKLAHOMA CITY, OK.
RNAV (RNP) Z RWY 17L, AMDT 3C...
RNP 0.11DA 1589/HAT 302 ALL CATS.
TEMPORARY RIG, 1367 MSL, 3323FT NE OF RWY 17L (2023-ASW-7064-NRA)..
2503051904-2509221904EST
3/5/251846Z !FDC 5/9547 OKC IAP OKC WILL ROGERS INTL, OKLAHOMA CITY, OK.
RNAV (GPS) Y RWY 17R, AMDT 6A...
LPV DA 1531/HAT 249 ALL CATS.
LNAV/VNAV DA 1595/HAT 313 ALL CATS.
LNAV MDA 1700/HAT 418 ALL CATS. VIS CATS C/D/E RVR 4000.
VDP NA.
FOR INOP ALS, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO RVR 4500, AND LNAV CATS C/D VISIBILITY TO RVR 6000.
TEMPORARY CRANES, 1434 MSL, 1062FT EAST OF RWY 17R (2024-ASW-9706/9711-NRA).
2503051846-2504141846EST
3/5/251838Z !FDC 5/9543 OKC IAP OKC WILL ROGERS INTL, OKLAHOMA CITY, OK.
RNAV (GPS) Y RWY 17L, AMDT 3D...
LNAV/VNAV DA 1595/HAT 308 ALL CATS.
LNAV MDA 1680/HAT 393 ALL CATS.
TEMPORARY CRANES, 1434 MSL, 4021FT WEST OF RWY 17L (2024-ASW-9706/9711-NRA).
2503051838-2504111838EST
1/13/251800Z !FDC 5/2792 OKC IAP OKC WILL ROGERS INTL, OKLAHOMA CITY, OK.
RNAV (RNP) Z RWY 17R, AMDT 2...
RNP 0.20 DA 1584/HAT 302 ALL CATS.
TEMPORARY CRANES, 1434 MSL, 1062FT EAST OF RWY 17R (2024-ASW-9706/9711-NRA).
2501131800-2504111155EST
1/13/251800Z !FDC 5/2790 OKC IAP OKC WILL ROGERS INTL, OKLAHOMA CITY, OK.
ILS RWY 17R (SA CAT II), AMDT 13A ...
PROCEDURE NA.
TEMPORARY CRANES, 1434 MSL, 1062FT EAST OF RWY 17R (2024-ASW-9706/9711-NRA) 2501131800-2504111155EST
1/13/251800Z !FDC 5/2789 OKC IAP OKC WILL ROGERS INTL, OKLAHOMA CITY, OK.
ILS OR LOC RWY 17R, AMDT 13A...
S-ILS 17R DA 1531/HAT 249 ALL CATS.
COTOX FIX MINIMUMS:
S-LOC 17R MDA 1680/HAT 398 ALL CATS. VIS CATS C/D/E RVR 3500.
ADD: FOR INOP ALS WHEN USING COTOX FIX MINIMUMS INCREASE S-LOC CATS C/D/E VISIBILITY TO RVR 6000, REST OF ALS INOP NOTE UNCHANGED.
VDP NA.
TEMPORARY CRANES, 1434 MSL, 1062FT EAST OF RWY 17R (2024-ASW-9706/9711-NRA).
2501131800-2504111155EST
10/16/241736Z !FDC 4/9920 OKC IAP WILL ROGERS WORLD, OKLAHOMA CITY, OK.
RNAV (GPS) Y RWY 17L, AMDT 3D...
LNAV MDA 1680/HAT 393 ALL CATS.
2410161736-2610161736EST
1/23/242123Z !FDC 4/7010 OKC IAP WILL ROGERS WORLD, OKLAHOMA CITY, OK.
ILS OR LOC RWY 35R, AMDT 10F...
ILS RWY 35R (SA CAT I), AMDT 10F... ILS RWY 35R (CAT II), AMDT 10F...
HOLDING AT ATREC / IRW 15.5 DME, DME REQUIRED.
2401232123-2601232123EST
Yes
ALL
OKLAHOMA CITY AIRPORT TRUST
7100 TERMINAL DR; BOX 937
OKLAHOMA CITY, OK 73159-0937
Phone: 405-316-3200
JEFF MULDER
7100 TERMINAL DR; BOX 937
OKLAHOMA CITY, OK 73159-0937
Phone: 405-316-3260
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
OKC
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

7800 ft. x 150 ft.
CONC
Excellent
GRVD
MED

120,000lbs
250,000lbs
550,000lbs
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 24' 17"N 35° 23' 22"N
Longitude 97° 36' 57"W 97° 35' 51"W
Elevation 1,279' 1,286'
Threshold Crossing Height 52 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17L/35R

9802 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 17L Runway 35R
True Heading 180°360°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 24' 19"N 35° 22' 42"N
Longitude 97° 35' 20"W 97° 35' 20"W
Elevation 1,287' 1,283'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 17R/35L

9801 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 17R Runway 35L
True Heading 180°360°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 24' 21"N 35° 22' 44"N
Longitude 97° 36' 21"W 97° 36' 21"W
Elevation 1,282' 1,264'
Threshold Crossing Height 60 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 18/36

3079 ft. x 75 ft.
ASPH
Good
NONE

46 /F/C/W/T
116,000lbs
164,000lbs
269,000lbs
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 23' 37"N 35° 23' 06"N
Longitude 97° 36' 28"W 97° 36' 28"W
Elevation 1,275' 1,271'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 18/36 USED AS TWY WHEN NOT USED AS RY.
A110-11RY 18/36 VFR DALGT OPNS ONLY EXCEPT FOR AIR NATIONAL GUARD.
A110-12FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.
A110-13COMPASS ROSE RSTRD TO ACFT UNDER 95000 LBS EXCP ANG C-130. TWY B NORTH OF COMPASS ROSE RSTRD TO ACFT UNDER 120000 LBS EXCP ANG C-130.
A110-15PILOTS OF ACFT WITH WING SPANS GREATER THAN 118 FT MUST USE JUDGMENTAL OVER STEERING AT ALL TWY INTXNS.
A110-17TWYS H2 AND G EAST OF TWY H CLSD INDEFLY.
A110-18NUMEROUS BIRDS ON & INVOF ARPT.
A110-19MIL: SVC: FUEL A, A+ (405-218-3000 EXT 1) (NC-100LL).
A110-2PPR FOR PARKING ON FAA AERONAUTICAL CENTER RAMP PHONE 405-954-9783 AND EMAIL MXC@FAA.GOV.
A110-20PILOTS CONDUCTING EFVS OPS; BE AWARE LED ALS IN USE.
A110-3RY 18/36 600 FT WEST OF RY 17R/35L ON EXISTING TWY.
A110-5RY 18/36; TWY G WEST OF RY 17R/35L; TWY A2 EAST OF TWY A; TWY D SW OF RY 13/31; TWYS A1; A3; A4; A6; B; AND C2 NOT AVBL FOR ACR OPNS WITH OVER 9 PSGR SEATS.
A110-6TWY G WEST OF TWY B CLSD TO ALL EXCEPT U.S. MARSHALS SERVICE ACFT.
A110-8TWY C2 CLSD TO ALL OPNS EXCEPT METRO TECH TFC.
A110-9ALL RAMPS ARE UNCONTROLLED.
OKC WILL ROGERS INTL (ICAO: KOKC, IATA: OKC) is a public airport located in OKLAHOMA CITY, OK.
