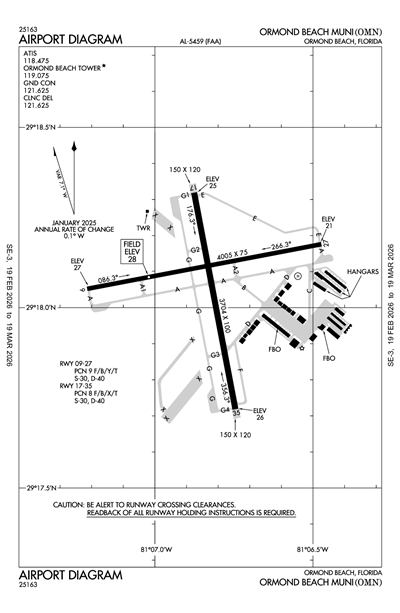

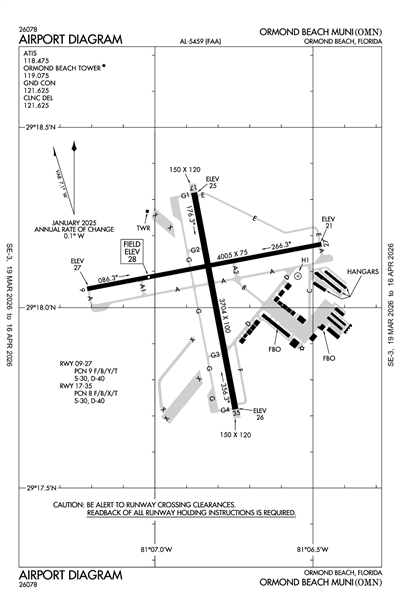

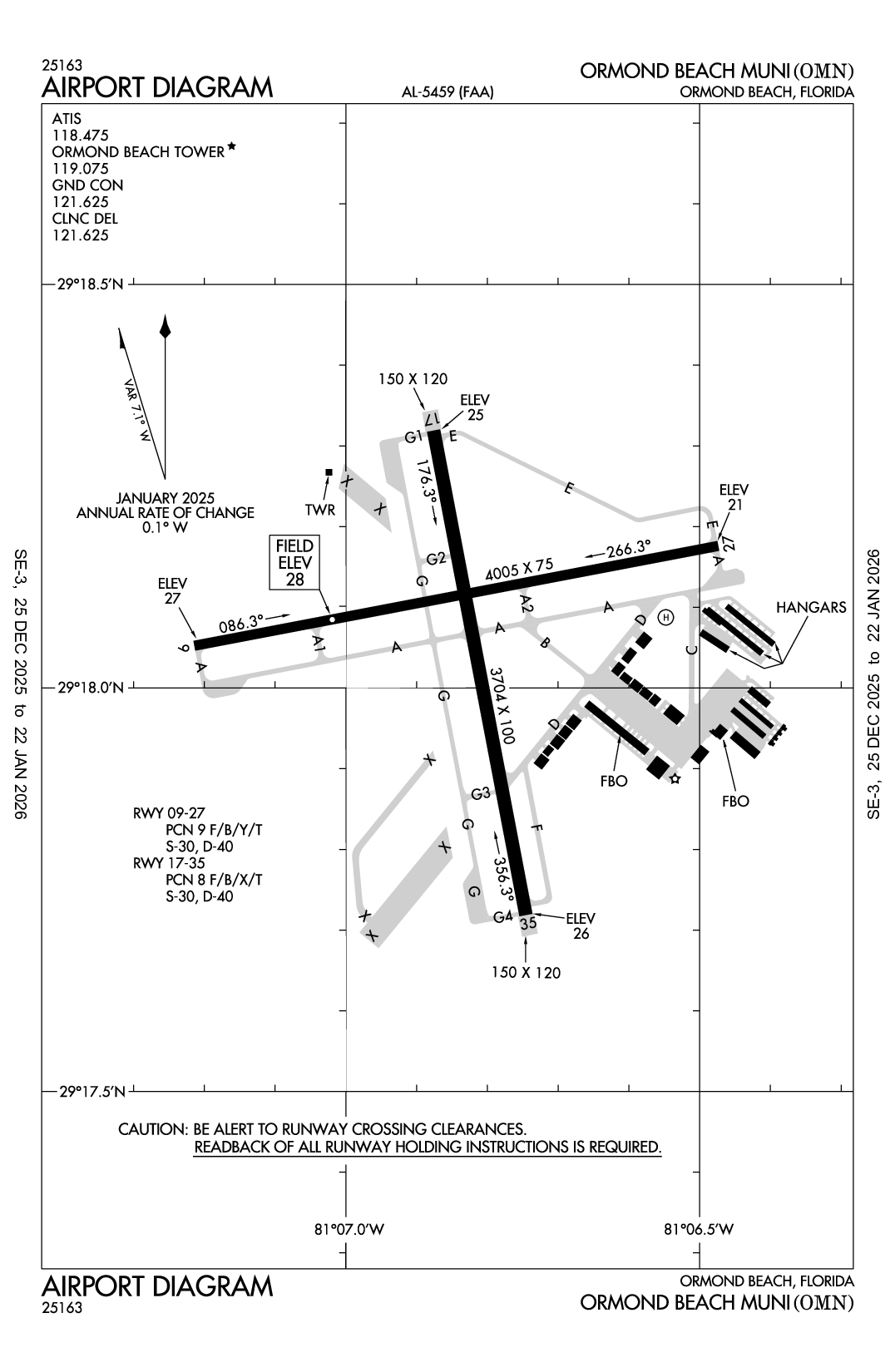

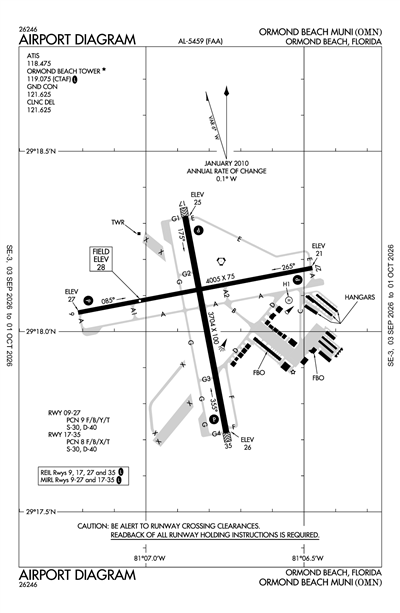

ORMOND BEACH MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOMN
ORMOND BEACH MUNI
PublicPUB

3 miles NW of ORMOND BEACH, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 18' 04"N 81° 06' 50"W
28' MSL
1028' MSL
06W
JET A, 100LL
SAINT PETERSBURG (PIE)
JACKSONVILLE
JACKSONVILLE (ZJX)
11/28/24-12/26/24
KOMN IFR
6:50 AM EST
Overcast 800'
7sm
61°F
61°F
30.28"Hg
360° 10kts
FIRST
KOMN 231150Z 36010KT 7SM OVC008 16/16 A3028 RMK FIRST
Add Your Business

KOMN FBOs

Promote Listing
Sunrise Aviation
UNICOM: 123.05
Phone: (386) 677-5724
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 12/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.81
Full Serve 6.55 6.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 119.075

ATIS

ATIS
 118.475

AWOS-3

AWOS-3
386-615-7084
 118.475

Clearance Delivery

CD/P
 121.625

Ground

GND/P
 121.625

Tower

LCL/P
 119.075

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KDAB (8nm)
Mon, 12/23 6:45 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Showers in vicinity
Broken 25,000'
Scattered 1,200'
Scattered 800'
6sm
360° 11kts
IFR
Temporary 7:00 AM EST - 8:00 AM EST
Broken 800'
N/A
Calm
VFR
9:00 AM EST - 11:00 PM EST
Showers in vicinity
Broken 6,000'
Scattered 2,500'
6sm
010° 12kts
VFR
11:00 PM EST - 2:00 AM EST
Broken 6,000'
Scattered 1,000'
6sm
340° 5kts
MVFR
2:00 AM EST - 7:00 AM EST
Mist
Scattered 6,000'
Scattered 2,500'
Scattered 800'
5sm
330° 4kts
KDAB 231145Z 2312/2412 36011KT P6SM VCSH SCT008 SCT012 BKN250
   TEMPO 2312/2313 BKN008
   FM231400 01012KT P6SM VCSH SCT025 BKN060
   FM240400 34005KT P6SM SCT010 BKN060
   FM240700 33004KT 5SM BR SCT008 SCT025 SCT060
KOMN
Domestic
12/17/242316Z !OMN 12/011 OMN OBST TOWER LGT (ASN 2020-ASO-7760-OE) 291413N0810631W (3.8NM S OMN) 236FT (215FT AGL) U/S 2412172316-2501312316
12/11/241921Z !OMN 12/009 OMN RWY 27 RWY END ID LGT U/S 2412111921-2506132111EST
12/11/241906Z !OMN 12/008 OMN RWY 09 RWY END ID LGT U/S 2412111906-2506132111EST
12/2/240250Z !OMN 12/002 OMN RWY 09 PAPI U/S 2412020250-2412311100
10/8/151147Z !OMN 10/003 OMN OBST TOWER LGT (ASR UNKNOWN) 285752.53N0813143.92W (13.5NM NW OMN) UNKNOWN (450FT AGL) OUT OF SERVICE 1510081147-PERM
FDC
8/25/231607Z !FDC 3/1387 OMN IAP ORMOND BEACH MUNI, ORMOND BEACH, FL.
RNAV (GPS) RWY 9, AMDT 1C...
LNAV/VNAV DA 318/ HAT 290 ALL CATS, LNAV MDA 420/HAT 392 ALL CATS.
2308251607-2508251606EST
8/25/231606Z !FDC 3/1385 OMN IAP ORMOND BEACH MUNI, ORMOND BEACH, FL.
RNAV (GPS) RWY 17, AMDT 1A...
LNAV/VNAV CAT C DA 297/HAT 270, LNAV MDA 500/HAT 473 ALL CATS. VISIBILITY CAT C 1 3/8.
2308251606-2508251606EST
Yes
0700-1900
CITY OF ORMOND BEACH
PO BOX 277
ORMOND BEACH, FL 32175-0277
Phone: 386-676-3201
STEVEN LICHLITER
ORMOND BEACH MUNICIPAL AIRPORT, P.O. BOX 277
ORMOND BEACH, FL 32175-8406
Phone: 386-615-7019
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
OMN
--
ACTVT REIL RWY 09, 17, 27, & 35; PAPI RWY 09, 17, 27, & 35; MIRL RWYS 09/27 & 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 09/27

4005 ft. x 75 ft.
ASPH
Excellent
GRVD
MED
9 /F/B/Y/T
30,000lbs
40,000lbs
--
--
  Runway 09 Runway 27
True Heading 79°259°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 29° 18' 03"N 29° 18' 11"N
Longitude 81° 07' 13"W 81° 06' 28"W
Elevation 28' 21'
Threshold Crossing Height 48 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3.4° 3.4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

3704 ft. x 100 ft.
ASPH
Fair
NONE
MED
8 /F/B/X/T
30,000lbs
40,000lbs
--
--
  Runway 17 Runway 35
True Heading 169°349°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 29° 18' 19"N 29° 17' 43"N
Longitude 81° 06' 53"W 81° 06' 45"W
Elevation 25' 26'
Threshold Crossing Height 51 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

86 ft. x 86 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading 94°274°
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 29° 18' 05"N N/A
Longitude 81° 06' 33"W N/A
Elevation 21' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TWY PTNS CRACKED WITH GRASS.
A110-2NOISE ABATEMENT PROC IN EFCT - 386-615-7019.
A110-3PRIM SFCS 500 FT WIDE WITH 7:1 TRSN SFC ON SIDES; TREES IN ALL TRSN SFCS AT APCH END.
A110-4LINE OF SIGHT OBSTD BTN RWY 09/27 & 17/35.
A110-6DEER ON & INVOF ARPT.
A110-7FOR CD OR TO CNL IFR WHEN ATCT IS CLSD CTC DAB APCH AT 386-226-3939.
ORMOND BEACH MUNI (ICAO: KOMN, IATA: OMN) is a public airport located in ORMOND BEACH, FL.
