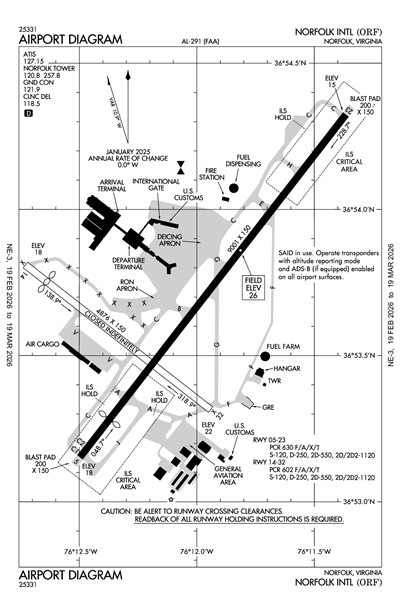

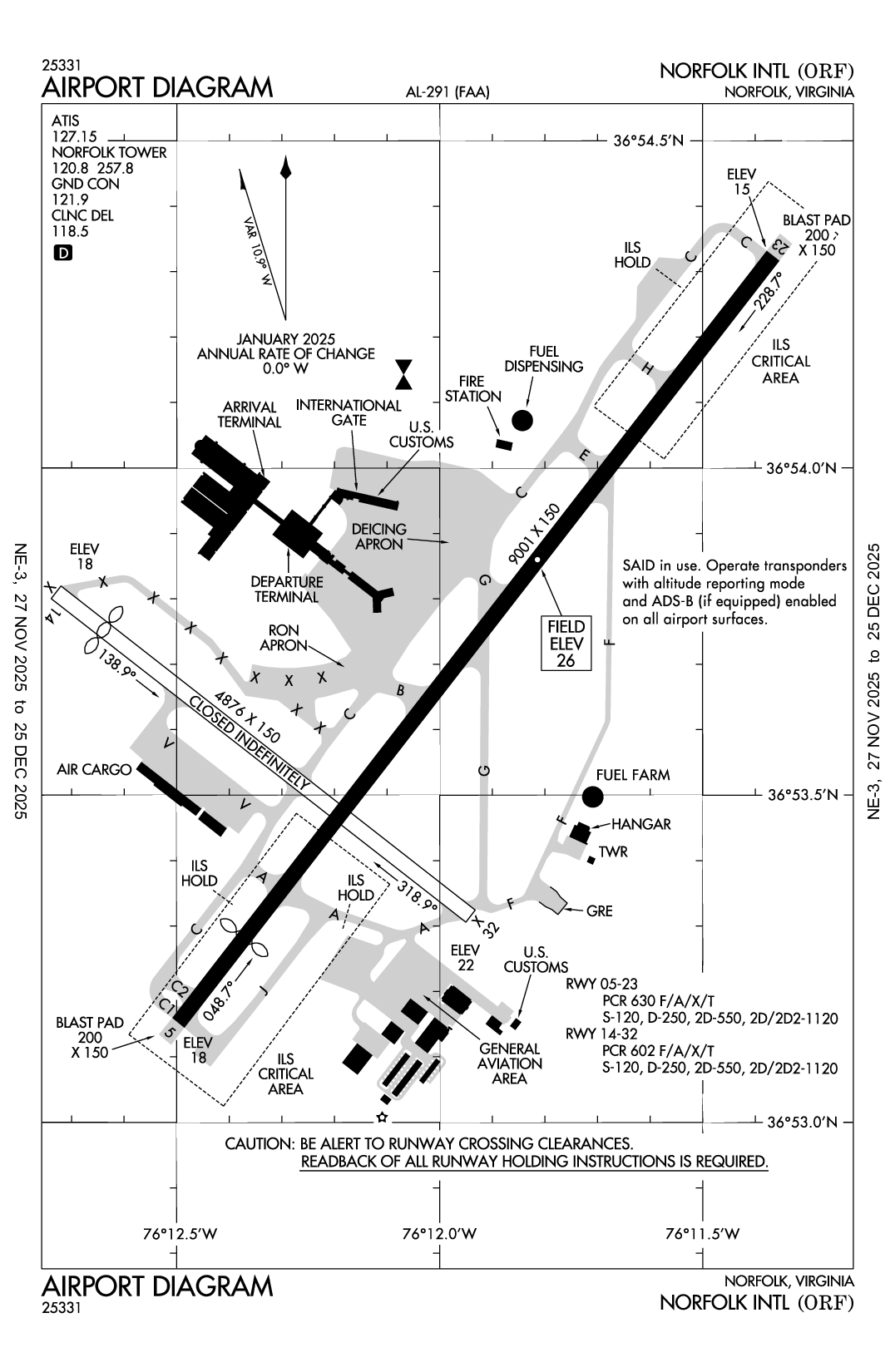

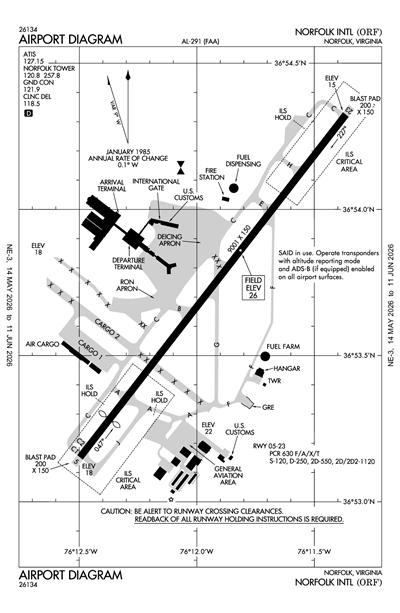

NORFOLK INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KORF
NORFOLK INTL
PublicPUB

3 miles NE of NORFOLK, VA
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 53' 41"N 76° 12' 04"W
26' MSL
1026' MSL
09W
JET A, 100LL
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
11/28/24-12/26/24
KORF VFR
6:51 AM EST
Clear
10sm
31°F
15°F
30.59"Hg
040° 12kts
AO2 SLP356 T10061094 11006 21011 51009
KORF 231151Z 04012KT 10SM CLR M01/M09 A3059 RMK AO2 SLP356 T10061094 11006 21011 51009

KORF FBOs

Signature Aviation
UNICOM: 130.575
Phone: (757) 857-3463
No Rating Available
1 Review (Read | Sign In To Write)
1 out of 1 Recommend
Titan
As of 12/19
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.45 6.58
Fuel Notes
Prices include tax

KORF Other Aviation Services

KITCO Fiber Optics
Phone: (757) 216-2222
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
757-464-1390
127.15

Approach

APCH/P IC
010-080, 180-310
118.9

Departure

DEP/P
125.2

Clearance Delivery

CD PRE TAXI CLNC
118.5

Emergency

EMERG
121.5

Ground

GND/P
121.9

Tower

LCL/P
120.8

Other

CLASS C
010-080, 180-310
118.9
CLASS C
311-009
125.7
DRONE STAR
118.9
TERKS STAR
118.9

Terminal Area Forecast

KORF
Mon, 12/23 6:35 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 4:00 PM EST
Sky Clear
6sm
030° 10kts
VFR
4:00 PM EST - 2:00 AM EST
Sky Clear
6sm
060° 5kts
VFR
2:00 AM EST - 7:00 AM EST
Scattered 10,000'
6sm
310° 4kts
KORF 231135Z 2312/2412 03010KT P6SM SKC
   FM232100 06005KT P6SM SKC
   FM240700 31004KT P6SM SCT100
KORF
Domestic
12/22/241117Z !ORF 12/044 ORF OBST POLE (ASN UNKNOWN) 365324N0761219W (0.349NM SW ORF) 36FT (12FT AGL) NOT LGTD 2412221117-2412242200
12/22/241112Z !ORF 12/043 ORF OBST CRANE (ASN 2022-AEA-16714-OE) 365508N0761022W (2.0NM NE ORF) 190FT (181FT AGL) FLAGGED AND LGTD 2412221112-2509142200
12/22/240017Z !ORF 12/042 ORF RWY 23 RAI LGT U/S 2412220017-2502022359
12/19/241107Z !ORF 12/040 ORF APRON TERMINAL APN WIP CONST ADJ GATE A9 LGTD AND BARRICADED 2412191107-2502012200
12/15/241129Z !ORF 12/030 ORF RWY 32 RWY END ID LGT U/S 2412151129-2503312200
12/15/241129Z !ORF 12/029 ORF RWY 14 RWY END ID LGT U/S 2412151129-2503312200
12/13/241732Z !ORF 12/028 ORF OBST TOWER LGT (ASR 1207603) 364700.50N0761202.00W (6.7NM S ORF) 470.1FT (453.1FT AGL) U/S 2412131732-2503130500
12/12/240347Z !ORF 12/026 ORF TWY F CL MARKINGS AT RWY 05/23 NOT STD
2412120347-2501010459
12/12/240347Z !ORF 12/025 ORF TWY G CL MARKINGS AT RWY 05/23 EAST SIDE NOT STD
2412120347-2501010459
12/12/240347Z !ORF 12/024 ORF TWY G EDGE MARKINGS AT RWY 05/23 EAST SIDE NOT STD
2412120347-2501010459
12/11/241736Z !ORF 12/022 ORF OBST TOWER LGT (ASR 1053614) 364837.40N0761657.20W (6.5NM SW ORF) 543.6FT (534.8FT AGL) U/S 2412111736-2504101736
12/4/242052Z !ORF 12/007 ORF SVC AUTOMATED WX BCST SYSTEM CHANGED TO 276-200-0952 2412042052-PERM
11/19/242038Z !ORF 11/070 ORF OBST TOWER LGT (ASR 1017885) 364945.00N0761225.00W (4.0NM S ORF) 538.1FT (534.8FT AGL) U/S 2411192038-2501032037
11/15/241604Z !ORF 11/060 ORF OBST TOWER LGT (ASR 1322263) 365710.68N0761802.11W (5.8NM NW ORF) 33FT (30FT AGL) U/S 2411151604-2412301603
11/14/241617Z !ORF 11/046 ORF OBST TOWER LGT (ASN 2012-AEA-5259-OE) 365440N0761328W (1.5NM NW ORF) 149FT (135FT AGL) U/S 2411141617-2412291615
11/13/241850Z !ORF 11/036 ORF OBST TOWER LGT (ASR 1017447) 364327.00N0760118.00W (13.2NM SE ORF) 273.0FT (265.1FT AGL) U/S 2411131850-2412281849
10/22/241200Z !ORF 10/044 ORF OBST CRANE (ASN 2023-AEA-13937-OE) 365444N0761028W (1.7NM NE ORF) 168FT (168FT AGL) FLAGGED AND LGTD 2410221200-2501010200
10/4/240022Z !ORF 10/021 ORF OBST TOWER LGT (ASR 1016345) 370104.00N0762012.00W (9.7NM NW ORF) 211.9FT (203.1FT AGL) U/S 2410040022-2504032359
9/23/240227Z !ORF 09/055 ORF OBST TOWER LGT (ASR 1043704) 365119.00N0761726.00W (4.9NM WSW ORF) 268.0FT (257.9FT AGL) U/S 2409230227-2501232359
FDC
11/7/242054Z !FDC 4/0961 ORF IAP NORFOLK INTL, NORFOLK, VA.
RNAV (RNP) Y RWY 23, AMDT 1...
RNP 0.10 DA 444/HAT 418 ALL CATS. RNP 0.30 DA 512/HAT 486 ALL CATS. TEMPORARY CRANE 190FT MSL 1.18NM NORTHEAST OF RWY 23 (2022-AEA-16713-OE). TEMPORARY CRANE 187FT MSL 1.03NM NORTHEAST OF RWY 23 (2024-AEA-1290-OE). TEMPORARY CRANE 168FT MSL 5038FT NORTHEAST OF RWY 23 (2023-AEA-13937-OE).
2411072054-2507222052EST
10/31/240430Z !FDC 4/6656 ORF SPECIAL IAP NORFOLK INTL. NORFOLK, VA.
RNAV (GPS) M RWY 05 ORIG.
PROCEDURE NA.

2410310430-2504300430
10/30/241322Z !FDC 4/6109 ORF IAP NORFOLK INTL, NORFOLK, VA.
RNAV (GPS) Z RWY 23, AMDT 2...
LNAV/VNAV DA 491/HAT 465 ALL CATS. VISIBILITY ALL CATS 1. CIRCLING MDA 560/HAA 533 CAT A/B/C. TEMPORARY CRANE 190FT MSL 1.15NM NORTHEAST OF RWY 23 (2022-AEA-16714-OE). . TEMPORARY CRANE 205FT MSL 5899FT SOUTH OF RWY 23 (2023-AEA-4246-NRA).
2410301322-2510311322EST
9/12/241808Z !FDC 4/4520 ORF SID NORFOLK INTL, NORFOLK, VA.
KISRR THREE DEPARTURE...
TAKE-OFF MINIMUMS: RWY 05, 300-1 1/4 OR STANDARD WITH MINIMUM CLIMB OF 307FT PER NM TO 300. TEMPORARY CRANE 1.03NM FROM DER, 1306FT RIGHT OF CENTERLINE, 187FT AGL/187FT MSL (2024-AEA-1290-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2409121808-2511291808EST
9/12/241807Z !FDC 4/4518 ORF ODP NORFOLK INTL, NORFOLK, VA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS: RWY 05, 300-1 1/4 OR STANDARD WITH MINIMUM CLIMB OF 307FT PER NM TO 300. TEMPORARY CRANE 1.03NM FROM DER, 1306FT RIGHT OF CENTERLINE, 187FT AGL/187FT MSL (2024-AEA-1290-OE). ADD TAKEOFF OBSTACLE NOTE: RWY 5, TEMPORARY CRANE 1.47NM FROM DER, 831FT RIGHT OF CENTERLINE, 181FT AGL/190FT MSL (2022-AEA-16714-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2409121807-2511291806EST
8/14/241415Z !FDC 4/8685 ORF IAP NORFOLK INTL, NORFOLK, VA.
ILS OR LOC RWY 23, AMDT 8A...
ILS OR LOC RWY 5, AMDT 26G...
RNAV (GPS) RWY 14, AMDT 1...
RNAV (GPS) Z RWY 5, AMDT 2A...
VOR RWY 14, AMDT 3...
VOR/DME RWY 32, AMDT 4F...
CIRCLING MDA 560/HAA 533 CAT A/B/C. TEMPORARY CRANE 187FT MSL 1.88NM NORTHEAST OF ORF AIRPORT (2024-AEA-1290-OE). TEMPORARY CRANE 190FT MSL 2.01NM NORTHEAST OF ORF AIRPORT (2022-AEA-16713-OE). TEMPORARY CRANE 190FT MSL 2.02NM NORTHEAST OF ORF AIRPORT (2022-AEA-16714-OE). TEMPORARY CRANE 210FT MSL 1.88NM NORTHEAST OF ORF AIRPORT (2023-AEA-4246-NRA).
2408141415-2505161415EST
8/14/241414Z !FDC 4/8683 ORF IAP NORFOLK INTL, NORFOLK, VA.
RNAV (GPS) RWY 32, ORIG-F...
LNAV MDA 520/HAT 495 ALL CATS. LNAV VISIBILITY CAT C/D 1 3/8. CIRCLING MDA 560/HAA 534 CAT A/B/C. VDP NA. TEMPORARY CRANE 187FT MSL 1.88NM NORTHEAST OF ORF AIRPORT (2024-AEA-1290-OE). TEMPORARY CRANE 190FT MSL 2.01NM NORTHEAST OF ORF AIRPORT (2022-AEA-16713-OE). TEMPORARY CRANE 190FT MSL 2.02NM NORTHEAST OF ORF AIRPORT (2022-AEA-16714-OE). TEMPORARY CRANE 210FT MSL 1.88NM NORTHEAST OF ORF AIRPORT (2023-AEA-4246-NRA).
2408141414-2505161414EST
3/22/241345Z !FDC 4/0346 ORF IAP NORFOLK INTL, NORFOLK, VA.
RNAV (GPS) RWY 32, ORIG-F...
VOR/DME RWY 32, AMDT 4F...
RWY 32 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA.
PROCEDURE NA AT NIGHT.
2403221345-2603221345EST
3/22/241345Z !FDC 4/0345 ORF IAP NORFOLK INTL, NORFOLK, VA.
ILS OR LOC RWY 23, AMDT 8A...
ILS OR LOC RWY 5, AMDT 26G...
RNAV (GPS) RWY 14, AMDT 1...
RNAV (GPS) Z RWY 23, AMDT 2...
RNAV (GPS) Z RWY 5, AMDT 2A...
VOR RWY 14, AMDT 3...
CIRCLING RWY 32 NA AT NIGHT.
2403221345-2603221345EST
Yes
ALL
NORFOLK AIRPORT AUTH
2200 NORVIEW AVE
NORFOLK, VA 23518-5807
Phone: 757-857-3351
MARK PERRYMAN, PRESIDENT & CEO
2200 NORVIEW AVE
NORFOLK, VA 23518-5807
Phone: 757-857-3344
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
ORF
Sunset to Sunrise
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
Low Pressure
High & Low Pressure
Avionics
Cargo Handling
Charter Service
Pilot Instruction

Runway 05/23

9001 ft. x 150 ft.
ASPH CONC
Fair
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 05 Runway 23
True Heading 38°218°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 53' 09"N 36° 54' 19"N
Longitude 76° 12' 30"W 76° 11' 22"W
Elevation 18' 15'
Threshold Crossing Height 71 ft. AGL 55 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 14/32

4876 ft. x 150 ft.
ASPH
Good
GRVD
MED

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 14 Runway 32
True Heading 128°308°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 53' 49"N 36° 53' 19"N
Longitude 76° 12' 44"W 76° 11' 56"W
Elevation 18' 22'
Threshold Crossing Height 36 ft. AGL 34 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1NOISE ABATEMENT PROCEDURES IN EFFECT.
A110-2FLOCKS OF BIRDS ON & INVOF ARPT.
A110-3INTMT AIRFIELD MOWING OPS MAR - NOV.
NORFOLK INTL (ICAO: KORF, IATA: ORF) is a public airport located in NORFOLK, VA.
