iFlightPlanner



...

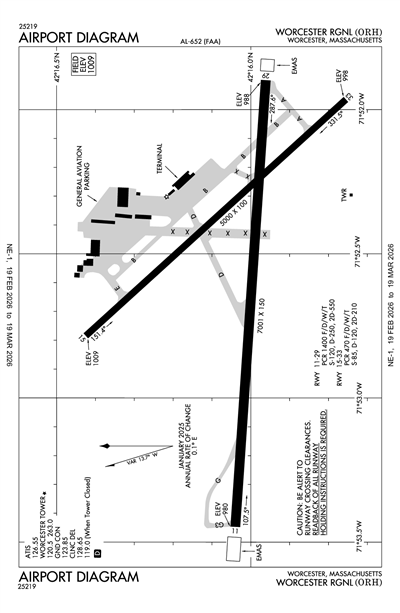

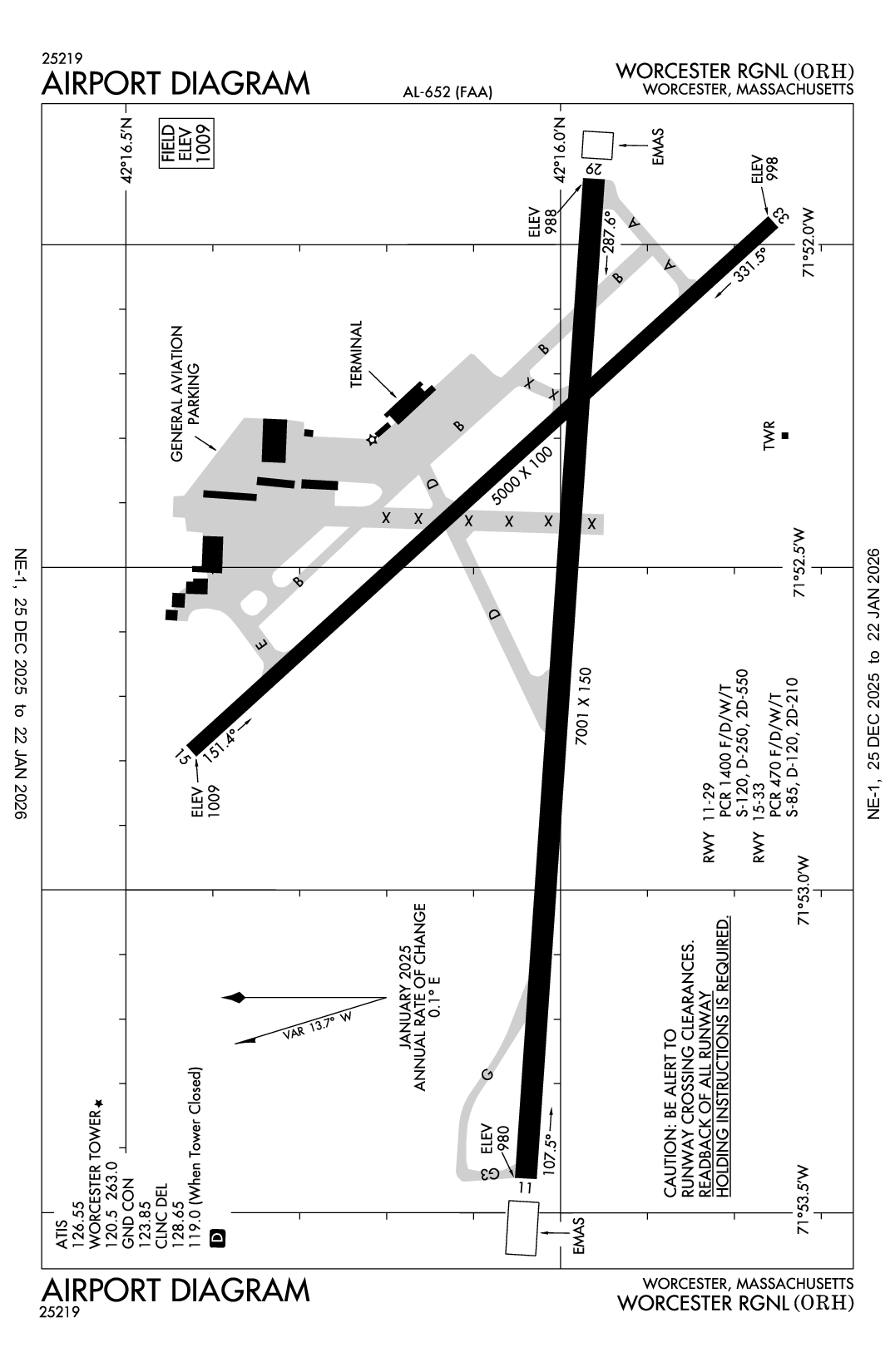

WORCESTER RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KORH
WORCESTER RGNL
PublicPUB

3 miles W of WORCESTER, MA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 16' 02"N 71° 52' 32"W
1009' MSL
2009' MSL
15W
JET A, 100LL
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
5/16/24-6/13/24
KORH VFR
4:54 PM EDT
Scattered 4,400'
Few 3,100'
10sm
66°F
52°F
29.55"Hg
260° 13kts
Gusts 19kts
AO2 RAB20E29 SLP004 P0000 60000 T01890111 56003 $
KORH 092054Z 26013G19KT 10SM FEW031 SCT044 19/11 A2955 RMK AO2 RAB20E29 SLP004 P0000 60000 T01890111 56003 $
Add Your Business

KORH FBOs

Promote Listing
Atlantic Aviation
UNICOM: 122.95
Phone: (508) 755-5870
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/26
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.45 7.40
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.5

ATIS

ATIS
508-757-0962
 126.55

Clearance Delivery

CD/P
 128.65

Emergency

EMERG
 121.5

Ground

GND/P
 123.85

Tower

LCL/P
 120.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KORH
Sun, 6/9 4:24 PM EDT
Sun, 6/9 4:00 PM EDT - Mon, 6/10 2:00 PM EDT
VFR
4:00 PM EDT - 8:00 PM EDT
Scattered 4,000'
6sm
280° 13kts
Gusts 20kts
VFR
8:00 PM EDT - 11:00 AM EDT
Broken 5,000'
6sm
260° 8kts
MVFR
11:00 PM EDT - 4:00 AM EDT
Light Showers and Rain
No Clouds
5sm
Calm
VFR
11:00 AM EDT - 2:00 PM EDT
Scattered 5,000'
6sm
290° 12kts
Gusts 20kts
KORH 092024Z 0920/1018 28013G20KT P6SM SCT040
   FM100000 26008KT P6SM BKN050
   PROB30 1003/1008 5SM -SHRA
   FM101500 29012G20KT P6SM SCT050
KORH
Domestic
6/6/242051Z !ORH 06/011 ORH RWY 33 PAPI U/S 2406062051-2406172000EST
6/3/240102Z !ORH 06/003 ORH TWY B LOCATION SIGN FOR TWY E LGT U/S 2406030102-2406302000
4/11/241849Z !ORH 04/077 ORH RWY 29 RCLL NOT STD 2404111849-2407011600
FDC
5/29/241959Z !FDC 4/0546 ORH IAP WORCESTER RGNL, WORCESTER, MA.
ILS OR LOC RWY 11, AMDT 25B...
ILS RWY 11 (CAT II-III), AMDT 25B...
MISSED APPROACH: CLIMB TO 1800 THEN CLIMBING RIGHT TURN TO 3000 ON HEADING 160 AND PUT VOR/DME R-030 TO TROYY INT/PUT 7.81 DME AND HOLD,
GDM VOR/DME OUT OF SERVICE. 2405291959-2407311959EST
5/29/241959Z !FDC 4/0542 ORH IAP WORCESTER RGNL, WORCESTER, MA.
ILS OR LOC RWY 29, AMDT 4E...
MISSED APPROACH: CLIMB TO 1600 THEN CLIMBING LEFT TURN TO 3000 ON HEADING 240 AND ON PUT VOR/DME R-359 TO GRIPE/PUT 11.20 DME AND HOLD,
GDM VOR/DME OUT OF SERVICE. 2405291959-2407311959EST
10/5/231320Z !FDC 3/1032 ORH IAP WORCESTER RGNL, WORCESTER, MA.
ILS RWY 11 (CAT II - III), AMDT 25B ...
PROCEDURE NA EXC FOR RDO ALTIMETER TOLERANT ACFT AND ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVE 2023-10-02 AND 5G C-BAND DOMESTIC NOTICES. 2310051320-2510061320EST
Yes
ALL
MASS PORT AUTHORITY
375 AIRPORT DR
WORCESTER, MA 01602
Phone: 508-849-5550
ANDREW B DAVIS
WORCESTER REGIONAL AIRPORT, 5 AIRPORT DR
WORCESTER, MA 01602
Phone: 508-849-5550
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
ORH
--
ACTVT REIL RWY 15, 29 & 33; HIRL RWY 11/29; MIRL RWY 15/33 - CTAF.
N/A
Yes
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
49
3
2
0
0
0
Major
Major
None
None
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 11/29

7001 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH
89 /F/C/W/T
120,000lbs
250,000lbs
550,000lbs
--
  Runway 11 Runway 29
True Heading 94°274°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 16' 02"N 42° 15' 58"N
Longitude 71° 53' 27"W 71° 51' 54"W
Elevation 980' 988'
Threshold Crossing Height 55 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes

Runway 15/33

5000 ft. x 100 ft.
ASPH
Good
GRVD
MED
35 /F/C/W/T
85,000lbs
120,000lbs
210,000lbs
--
  Runway 15 Runway 33
True Heading 138°318°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 42° 16' 22"N 42° 15' 46"N
Longitude 71° 52' 43"W 71° 51' 58"W
Elevation 1,009' 998'
Threshold Crossing Height 42 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.6° 3°
Visual Slope Indicator V4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1WILDLIFE & BIRDS ON & INVOF ARPT.
A110-2DURG SN REMOVAL OPS, 30 MIN PPR, FREQ 120.50 DURG TWR HRS, FREQ 119.0 DURG NON-TWR HRS OR CALL 508-799-1325.
A110-4USE CTN FOR ARPT VEHICLES MNT CTAF & OPERG ON ARPT DURG NON-TWR HRS.
A110-5TSNT ACFT CTC FBO ON 122.95 FOR SVCS.
A110-6RWY GUARD LGTS INSTLD ON ALL TWY TO RWY INTXNS, RWY 11/29 ONLY.
WORCESTER RGNL (ICAO: KORH, IATA: ORH) is a public airport located in WORCESTER, MA.
