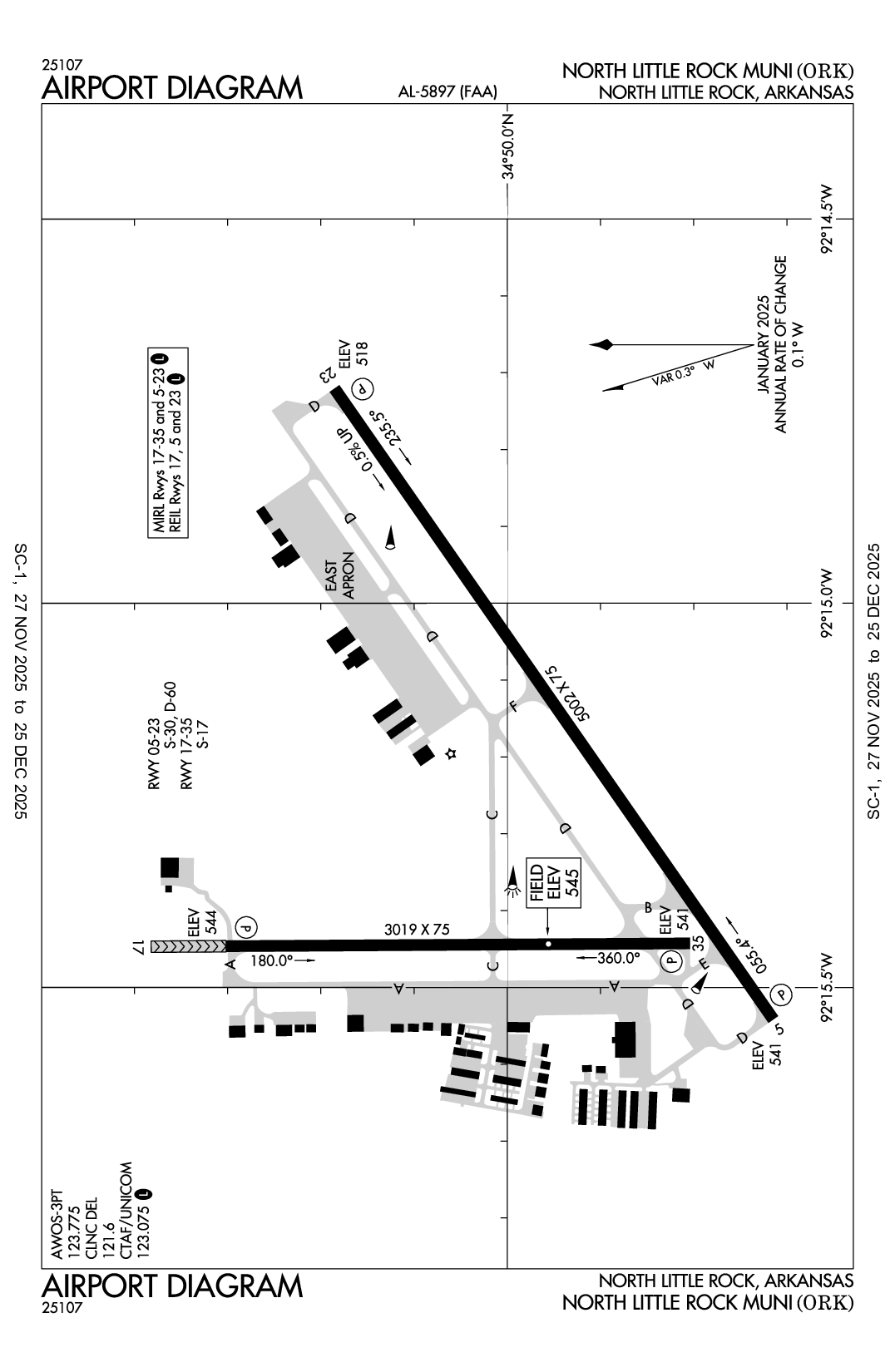

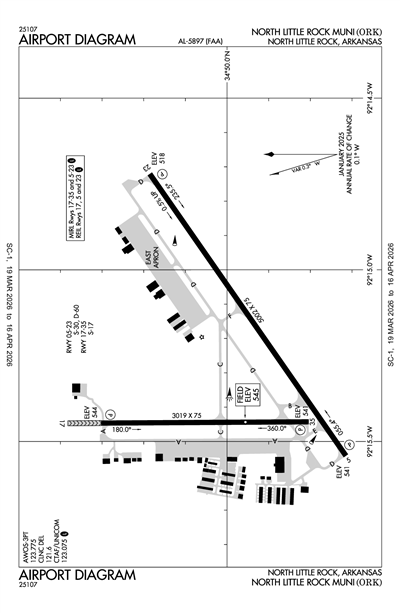

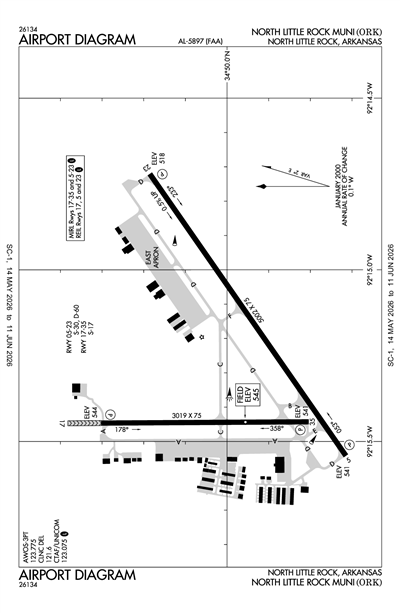

NORTH LITTLE ROCK MUNI - Airport Diagram

KORK

NORTH LITTLE ROCK MUNI

PublicPUB

4 miles N of NORTH LITTLE ROCK, AR

View on Map

Status

Operational

Coordinates

34° 49' 59"N 92° 15' 15"W

Elevation

545' MSL

Pattern Alt

1545' MSL

Mag Variation

02E

Fuel

JET A, 100LL

FSS

JONESBORO (JBR)

Sectional

MEMPHIS

ARTCC

MEMPHIS (ZME)

Data Effective

11/28/24-12/26/24

KORK VFR

6:35 AM CST RAW

Overcast 8,000'
Broken 7,000'

Viz

10sm

Temp

43°F

Dew

32°F

Pres

30.27"Hg

Wind

180° 5kts

RMK

AO2

KORK 231235Z AUTO 18005KT 10SM BKN070 OVC080 06/00 A3027 RMK AO2

Add Your Business

KORK FBOs

Promote Listing

North Little Rock Jet Center

UNICOM: 123.0

Phone: (501) 833-5600

0 Reviews (Read | Sign In To Write)

Titan

As of 12/13	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.75
Full Serve			4.77

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 123.075 CTAF 123.075

AWOS-3PT

501-906-6529

123.775

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KLIT (6nm)

RAW

Reported

Mon, 12/23 5:29 AM CST

Valid

Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST

VFR

6:00 AM CST - 9:00 AM CST

Overcast 7,000'

Viz

6sm

Wind

180° 4kts

VFR

9:00 AM CST - 5:00 AM CST

Broken 12,000'
Scattered 7,000'

Viz

6sm

Wind

160° 10kts

VFR

5:00 AM CST - 6:00 AM CST

Light Showers and Rain and Mist

Overcast 5,000'

Viz

6sm

Wind

150° 6kts

KLIT 231129Z 2312/2412 18004KT P6SM OVC070
FM231500 16010KT P6SM SCT070 BKN120
FM241100 15006KT 6SM -SHRA BR OVC050

KORK

Domestic
12/20/241601Z	!JBR 12/220 ORK OBST TOWER LGT (ASN 2024-ASW-11258-OE) 350206N0920223W (16.1NM NE ORK) 543FT (261FT AGL) U/S 2412201601-2501202300
12/18/241038Z	!JBR 12/200 ORK OBST TOWER LGT (ASR 1026937) 345333.00N0922451.00W (8.6NM WNW ORK) 751.3FT (252.6FT AGL) U/S 2412181038-2501102359
12/13/241848Z	!JBR 12/132 ORK OBST TOWER LGT (ASR 1323279) 344703.95N0921638.33W (3.1NM SSW ORK) 444FT (160FT AGL) U/S 2412131848-2501271847
12/12/241555Z	!JBR 12/125 ORK OBST TOWER LGT (ASR 1309924) 345231.27N0915858.40W (13.7NM E ORK) 558FT (300FT AGL) U/S 2412121555-2501122300
11/25/241822Z	!JBR 11/269 ORK OBST TOWER LGT (ASR 1250449) 345301.00N0921413.00W (3.1NM NNE ORK) 536.7FT (270.0FT AGL) U/S 2411251822-2412252300
11/14/240306Z	!JBR 11/152 ORK OBST TOWER LGT (ASN 2018-ASW-19199-OE) 345231N0915858W (13.7NM E ORK) 558FT (300FT AGL) U/S 2411140306-2412290305

ATC Tower

Attendance

0600-2000

Owner

CITY OF NORTH LITTLE ROCK
PO BOX 5757
NORTH LITTLE ROCK, AR 72119
Phone: 501-340-5302

Manager

BARRY BRAY
8240 REMOUNT ROAD
NORTH LITTLE ROCK, AR 72118
Phone: 501-835-5654

FSS

JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF

NOTAM

JBR

Light Schedule

Lights

ACTVT REIL RWYS 05, 23, 17; MIRL RWYS 05/23 & 17/35 - CTAF. PAPI RWYS 05, 23, 17 & 35 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

Dimensions

5002 ft. x 75 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 05	Runway 23
True Heading	55°	235°
Traffic Pattern		Right
Markings	PIR	NPI
Markings Condition	GOOD	GOOD
Latitude	34° 49' 43"N	34° 50' 11"N
Longitude	92° 15' 32"W	92° 14' 43"W
Elevation	541'	518'
Threshold Crossing Height	49 ft. AGL	43 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2R	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 17/35

Dimensions

3019 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

17,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	180°	360°
Traffic Pattern	Right	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	34° 50' 18"N	34° 49' 48"N
Longitude	92° 15' 27"W	92° 15' 27"W
Elevation	544'	541'
Threshold Crossing Height	44 ft. AGL	44 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes

A110-10	FOR CD WHEN UNA VIA FREQ CTC LITTLE ROCK APCH 501-379-2908 OR LITTLE ROCK ATCT 501-379-2911
A110-2	RY 23 THLD NOT VISIBLE FM RY 17 THLD.
A110-5	DEER ON & INVOF ARPT.
A110-7	RY 17/35 500 FT BLAST PAD NORTH END.
A110-8	FOR ARPT ACCESS CALL 501-835-5654; 501-529-1051
A110-9	ULTRALIGHT ACTIVITY ON & INVOF ARPT.

NORTH LITTLE ROCK MUNI (ICAO: KORK, IATA: ORK) is a public airport located in NORTH LITTLE ROCK, AR.
