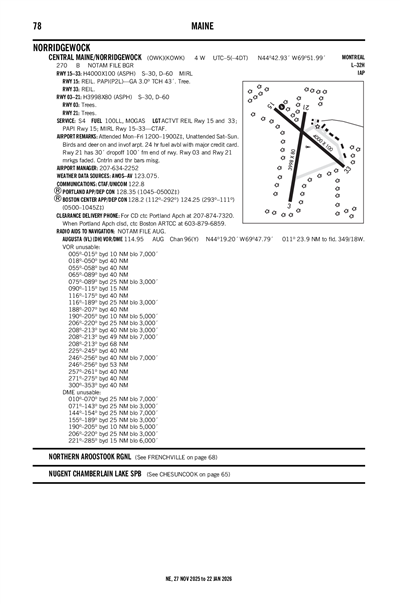

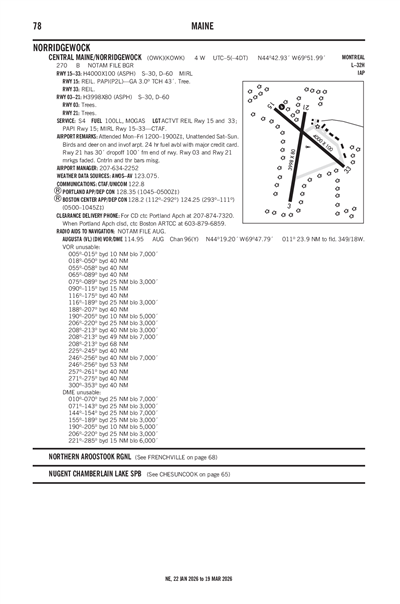

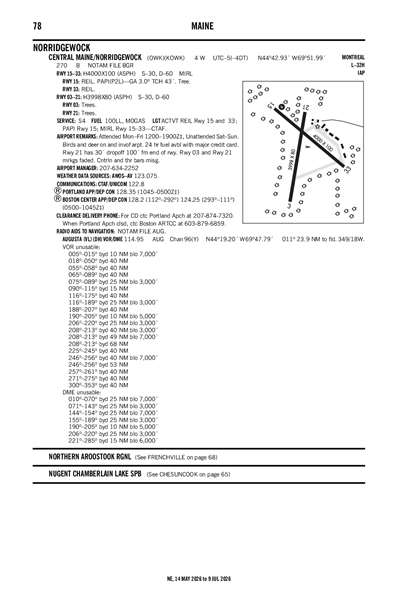

CENTRAL MAINE/NORRIDGEWOCK - Airport Diagram

KOWK

CENTRAL MAINE/NORRIDGEWOCK

PublicPUB

4 miles W of NORRIDGEWOCK, ME

View on Map

Status

Operational

Coordinates

44° 42' 56"N 69° 51' 59"W

Elevation

270' MSL

Pattern Alt

1270' MSL

Mag Variation

18W

Fuel

100LL, MOGAS

FSS

BANGOR (BGR)

Sectional

MONTREAL

ARTCC

BOSTON (ZBW)

Data Effective

11/28/24-12/26/24

KWVL (14nm) VFR

6:56 AM EST RAW

No Clouds

Viz

10sm

Temp

32°F

Dew

32°F

Pres

N/A

Wind

Calm

RMK

AO2 SLPNO 6//// 7//// FZRANO $

KWVL 231156Z AUTO 10SM RMK AO2 SLPNO 6//// 7//// FZRANO $

Add Your Business

KOWK FBOs

Promote Listing

Central Maine Regional Airport

UNICOM: 122.8

Phone: (207) 634-5351

0 Reviews (Read | Sign In To Write)

Avfuel, Phillips 66

As of 12/16	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.79			4.99
Full Serve

Fuel Notes

Prices include tax

Fuel Hours

Self Serve pump available 24hrs

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-AV

123.075

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KAUG (24nm)

RAW

Reported

Mon, 12/23 6:37 AM EST

Valid

Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST

VFR

7:00 AM EST - 9:00 PM EST

Sky Clear

Viz

6sm

Wind

VRB° 5kts

VFR

9:00 PM EST - 11:00 PM EST

Broken 8,000'

Viz

6sm

Wind

190° 5kts

VFR

11:00 PM EST - 4:00 AM EST

Light Snow

Broken 5,000'

Viz

6sm

Wind

200° 5kts

IFR

4:00 AM EST - 7:00 AM EST

Light Snow

Overcast 2,000'

Viz

2sm

Wind

210° 5kts

KAUG 231137Z 2312/2412 VRB05KT P6SM SKC
   FM240200 19005KT P6SM BKN080
   FM240400 20005KT 6SM -SN BKN050
   FM240900 21005KT 2SM -SN OVC020

KOWK

Domestic
8/20/242012Z	!BGR 08/115 OWK RWY 15 RWY END ID LGT U/S 2408202012-2502202111EST
FDC
5/9/231210Z	!FDC 3/3164 OWK IAP CENTRAL MAINE/NORRIDGEWOCK, NORRIDGEWOCK, ME. RNAV (GPS) RWY 15, AMDT 1... NOTE: PROCEDURE NA AT NIGHT. DISREGARD NOTE: CIRCLING RWY 3, 21, 33 NA AT NIGHT. CHANGE HELICOPTER NOTE TO READ RWY 15 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE AUGUSTA STATE ALTIMETER SETTING: INCREASE LPV DA TO 607 FEET, LNAV/VNAV DA TO 659 FEET AND LNAV/VNAV VISIBILITY ALL CATS 1/8 SM. INCREASE ALL MDA 80 FEET AND LNAV CAT C VISIBILITY 1/4 SM AND AND CIRCLING CAT C VISIBILITY 1/2 SM. 2305091210-2505091209EST

ATC Tower

Attendance

MON-FRI 0700-1400
SAT-SUN UNATNDD

Owner

TOWN OF NORRIDGEWOCK
PO BOX 7
NORRIDGEWOCK, ME 04957
Phone: 207-634-2252

Manager

RICHARD LABELLE
PO BOX 7
NORRIDGEWOCK, ME 04957
Phone: 207-634-2252

FSS

BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF

NOTAM

BGR

Light Schedule

Lights

ACTVT REIL RWY 15 & 33; PAPI RWY 15; MIRL RWY 15/33 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 03/21

Dimensions

3998 ft. x 80 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

30,000lbs

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	10°	190°
Traffic Pattern	Left	Left
Markings	NPI	BSC
Markings Condition	POOR	POOR
Latitude	44° 42' 32"N	44° 43' 11"N
Longitude	69° 52' 08"W	69° 51' 58"W
Elevation	265'	266'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

Dimensions

4000 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 15	Runway 33
True Heading	130°	310°
Traffic Pattern	Left	Left
Markings	NPI	BSC
Markings Condition	GOOD	GOOD
Latitude	44° 43' 13"N	44° 42' 47"N
Longitude	69° 52' 17"W	69° 51' 34"W
Elevation	264'	258'
Threshold Crossing Height	43 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P2L	--
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	BIRDS & DEER ON & INVOF ARPT.
A110-3	RWY 21 HAS 30 FT DROPOFF 100 FT FM END OF RWY.
A110-4	FOR CD CTC PORTLAND APCH AT 207-874-7320. WHEN PORTLAND APCH CLSD, CTC BOSTON ARTCC AT 603-879-6859.

CENTRAL MAINE/NORRIDGEWOCK (ICAO: KOWK, IATA: OWK) is a public airport located in NORRIDGEWOCK, ME.
