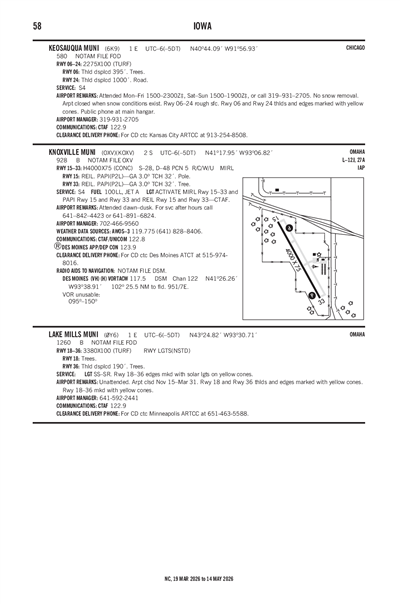

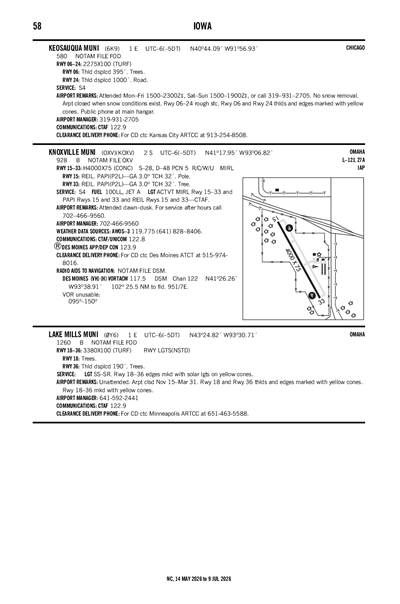

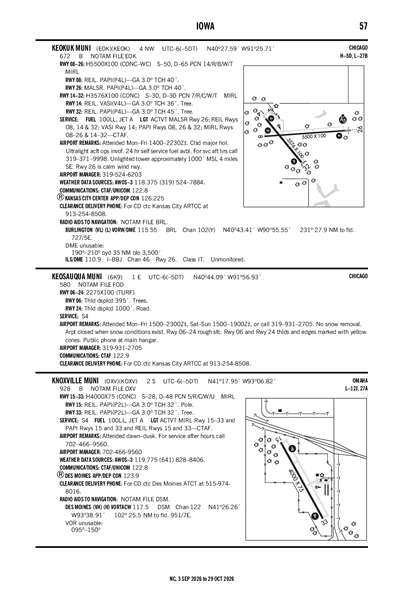

KNOXVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOXV
KNOXVILLE MUNI
PublicPUB

2 miles S of KNOXVILLE, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 17' 57"N 93° 06' 49"W
928' MSL
1928' MSL
02E
JET A, 100LL
FORT DODGE (FOD)
OMAHA
CHICAGO (ZAU)
11/28/24-12/26/24
KOXV VFR
6:15 AM CST
Overcast 16,000'
Few 14,000'
10sm
39°F
34°F
29.94"Hg
220° 7kts
AO2
KOXV 231215Z AUTO 22007KT 10SM FEW140 OVC160 04/01 A2994 RMK AO2
Add Your Business

KOXV FBOs

Promote Listing
Knoxville Aviation
UNICOM: 122.8
Phone: (641) 842-4423
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.95 5.90
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
641-828-8406
 119.775

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDSM (28nm)
Mon, 12/23 5:21 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 7:00 AM CST
Broken 15,000'
6sm
220° 8kts
VFR
7:00 AM CST - 1:00 PM CST
Broken 12,000'
Few 4,000'
6sm
300° 10kts
VFR
1:00 PM CST - 6:00 PM CST
Broken 15,000'
Scattered 3,000'
6sm
320° 9kts
MVFR
6:00 PM CST - 12:00 AM CST
Broken 2,200'
Scattered 1,200'
6sm
340° 5kts
IFR
12:00 AM CST - 6:00 AM CST
Mist
Broken 800'
4sm
VRB° 3kts
KDSM 231121Z 2312/2412 22008KT P6SM BKN150
   FM231300 30010KT P6SM FEW040 BKN120
   FM231900 32009KT P6SM SCT030 BKN150
   FM240000 34005KT P6SM SCT012 BKN022
   FM240600 VRB03KT 4SM BR BKN008
KOXV
Domestic
12/16/241834Z !OXV 12/005 OXV OBST TOWER LGT (ASR 1249160) 411251.00N0931351.80W (7.4NM SW OXV) 1193.9FT (258.9FT AGL) U/S 2412161834-2502162359
9/26/240623Z !OXV 09/008 OXV OBST TOWER LGT (ASR 1245511) 411141.20N0925628.60W (10.0NM SE OXV) 1063.6FT (259.8FT AGL) U/S 2409260623-2412272359
9/18/241223Z !OXV 09/006 OXV RWY 33 PAPI U/S 2409181223-2503182111EST
4/19/241931Z !OXV 04/005 OXV AIRSPACE PJE WI AN AREA DEFINED AS 2.5NM RADIUS OF OXV SFC-15000FT 2404191931-2412312359
FDC
4/1/241200Z !FDC 4/4709 OXV IAP KNOXVILLE MUNI, KNOXVILLE, IA.
RNAV (GPS) RWY 15, ORIG...
LNAV/VNAV DA 1402/HAT 474 AND VISIBILITY ALL CATS 1 3/8. CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE PELLA ALTIMETER SETTING AND INCREASE LPV DA TO 1271 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE LNAV/VNAV DA TO 1431 FEET; INCREASE ALL MDAS 40 FEET.
2404011200-2604011200EST
No
DAWN-DUSK
FOR SERVICE AFTER HOURS CALL 641-842-4423 OR 641-891-6824.
CITY OF KNOXVILLE
305 SOUTH 3RD
KNOXVILLE, IA 50138
Phone: 641-842-3147
KATHERINE SHAWVER
1545 HWY 14 SOUTH
KNOXVILLE, IA 50138
Phone: 702-466-9560
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
OXV
--
ACTVT MIRL RY 15/33 AND PAPI RYS 15 & 33 AND REIL RYS 15 & 33 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 15/33

4000 ft. x 75 ft.
CONC
Good
NONE
MED
5 /R/C/W/U
28,000lbs
48,000lbs
--
--
  Runway 15 Runway 33
True Heading 156°336°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 18' 15"N 41° 17' 39"N
Longitude 93° 07' 00"W 93° 06' 39"W
Elevation 924' 927'
Threshold Crossing Height 32 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC DES MOINES ATCT AT 515-974- 8016.
KNOXVILLE MUNI (ICAO: KOXV, IATA: OXV) is a public airport located in KNOXVILLE, IA.
