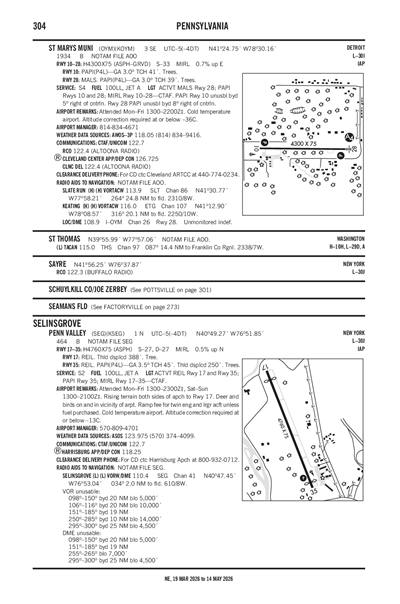

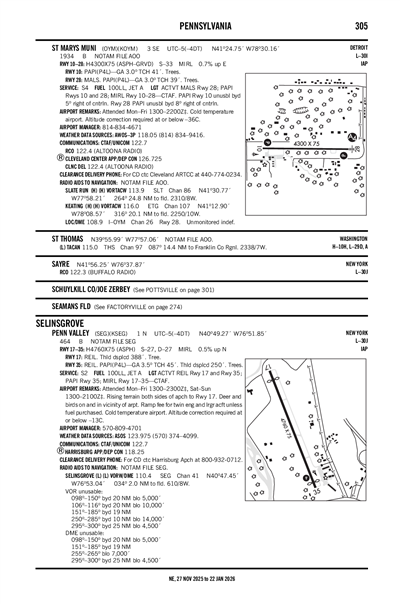

ST MARYS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOYM
ST MARYS MUNI
PublicPUB

3 miles SE of ST MARYS, PA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 24' 45"N 78° 30' 09"W
1934' MSL
2934' MSL
11W
JET A, 100LL
ALTOONA (AOO)
DETROIT
CLEVELAND (ZOB)
11/28/24-12/26/24
KOYM VFR
7:15 AM EST
Clear
10sm
3°F
0°F
30.43"Hg
Calm
AO2 PWINO
KOYM 231215Z AUTO 00000KT 10SM CLR M16/M18 A3043 RMK AO2 PWINO
Add Your Business

KOYM FBOs

Promote Listing
St. Marys Municipal Airport
UNICOM: 122.7
Phone: (814) 834-4671
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.94 5.94
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3P

AWOS-3P
814-834-9416
 118.05

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDUJ (23nm)
Mon, 12/23 6:20 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 11:00 AM EST
Broken 20,000'
6sm
130° 5kts
VFR
11:00 AM EST - 10:00 PM EST
Broken 8,000'
6sm
170° 10kts
VFR
10:00 PM EST - 1:00 AM EST
Overcast 3,500'
6sm
180° 10kts
IFR
1:00 AM EST - 4:00 AM EST
Light Snow
Overcast 600'
1sm
200° 10kts
LIFR
4:00 AM EST - 7:00 AM EST
Overcast 300'
6sm
210° 6kts
KDUJ 231120Z 2312/2412 13005KT P6SM BKN200
   FM231600 17010KT P6SM BKN080
   FM240300 18010KT P6SM OVC035
   FM240600 20010KT 1SM -SN OVC006
   FM240900 21006KT P6SM OVC003
KOYM
Domestic
12/19/240420Z !AOO 12/225 OYM OBST TOWER LGT (ASN 2020-AEA-3814-OE) 411616N0782958W (8.6NM S OYM) 1671FT (260FT AGL) U/S 2412190420-2502020419
12/17/240805Z !AOO 12/210 OYM OBST TOWER LGT (ASR 1319472) 411640.20N0783529.90W (9.0NM SW OYM) 2724FT (610FT AGL) U/S 2412170805-2501172359
12/13/241126Z !AOO 12/150 OYM OBST TOWER LGT (ASR 1256947) 412317.90N0780734.20W (16.9NM E OYM) 2416.7FT (279.9FT AGL) U/S 2412131126-2501012359
12/10/241959Z !AOO 12/125 OYM OBST TOWER LGT (ASR 1298249) 412126.00N0783605.40W (5.6NM SW OYM) 2274.6FT (259.8FT AGL) U/S 2412101959-2501241959
12/9/241213Z !AOO 12/116 OYM OBST TOWER LGT (ASR 1221848) 413103.70N0781419.00W (13.5NM ENE OYM) 1975.1FT (314.0FT AGL) U/S 2412091213-2504081213
12/2/240306Z !AOO 12/011 OYM OBST TOWER LGT (ASR 1232249) 412314.10N0784141.50W (8.7NM W OYM) 2498.0FT (270.0FT AGL) U/S 2412020306-2501020400
12/2/240305Z !AOO 12/010 OYM OBST TOWER LGT (ASR 1250035) 413429.20N0782801.10W (10.0NM NE OYM) 2725.4FT (350.1FT AGL) U/S 2412020305-2501020400
10/29/241755Z !AOO 10/243 OYM OBST TOWER LGT (ASR 1040946) 412619.00N0783200.70W (2.1NM NW OYM) 2355.0FT (412.1FT AGL) U/S 2410291755-2501270400
12/8/230016Z !AOO 12/063 OYM COM REMOTE COM OUTLET 122.4 U/S 2312080016-2501032000EST
No
MON-FRI 0800-1600
CITY OF ST. MARYS
159 CESSNA ROAD
ST MARYS, PA 15857
Phone: 814-834-4671
VINCE CAGGIANO
159 CESSNA RD
ST MARYS, PA 15857
Phone: 814-834-4671
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
AOO
--
ACTVT MALS RWY 28; PAPI RWYS 10 & 28; MIRL RWY 10/28 - CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction

Runway 10/28

4300 ft. x 75 ft.
ASPH
Good
GRVD
MED

33,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 24' 45"N 41° 24' 45"N
Longitude 78° 30' 38"W 78° 29' 41"W
Elevation 1,902' 1,934'
Threshold Crossing Height 41 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights
A110-3FOR CD CTC CLEVELAND ARTCC AT 440-774-0234.
A110-4COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -36C.
ST MARYS MUNI (ICAO: KOYM, IATA: OYM) is a public airport located in ST MARYS, PA.
