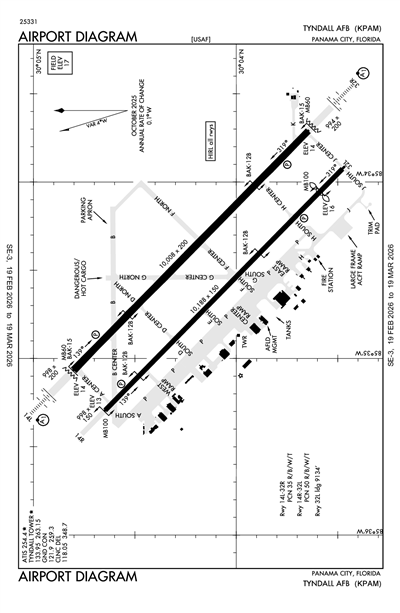

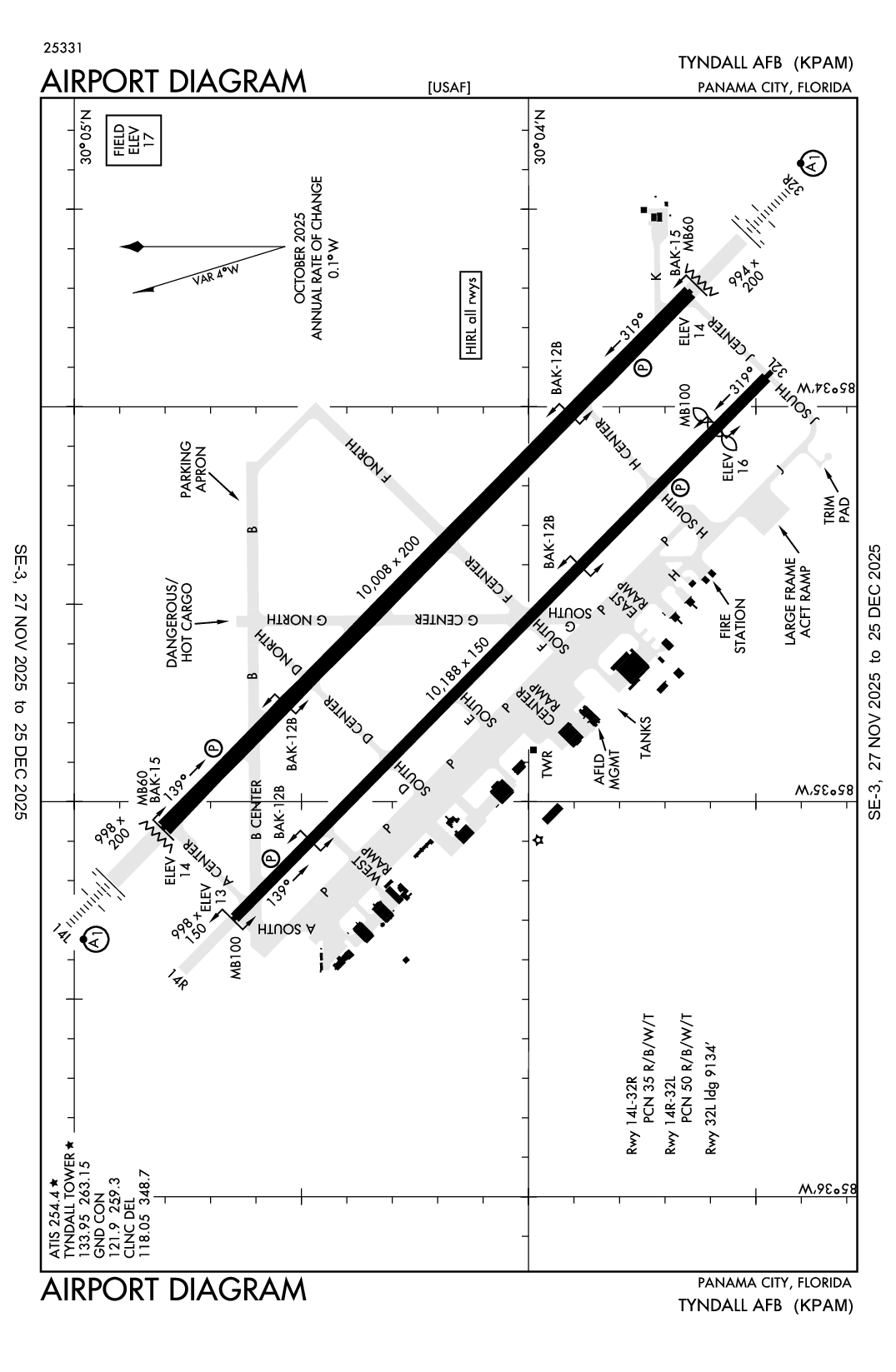

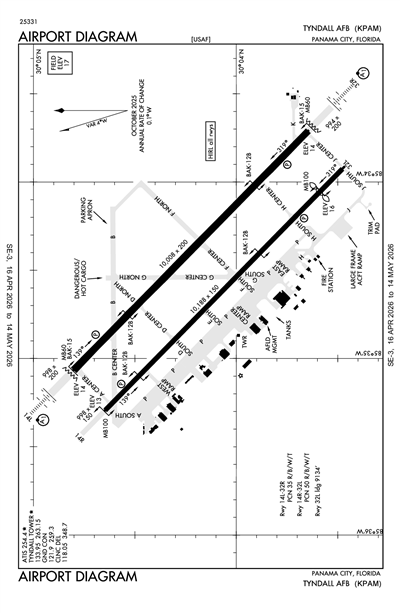

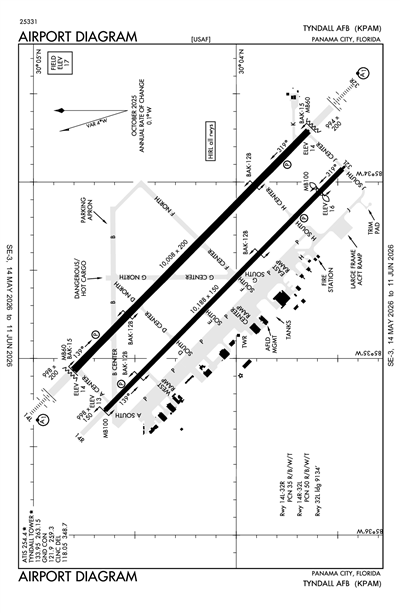

TYNDALL AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPAM
TYNDALL AFB
PrivatePVT

6 miles SE of PANAMA CITY, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 04' 09"N 85° 34' 30"W
17' MSL
1017' MSL
04W
JET A+, CILI
GAINESVILLE (GNV)
NEW ORLEANS
JACKSONVILLE (ZJX)
11/28/24-12/26/24
KPAM VFR
5:56 AM CST
Clear
10sm
40°F
32°F
30.34"Hg
060° 9kts
AO2A SLP277 T00450001 10077 20045 51006
KPAM 231156Z 06009KT 10SM CLR 05/00 A3034 RMK AO2A SLP277 T00450001 10077 20045 51006
Add Your Business

KPAM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Approach/Departure

APCH/P DEP/P
SFC TO 5000 FT
 119.775
APCH/P DEP/P
SFC TO 5000 FT
 120.825
APCH/P DEP/P
ABV 5000 FT
 124.15
APCH/P DEP/P
ABV 5000 FT
 125.2

Clearance Delivery

CD/P
 118.05

Ground

GND/P
 121.9

Tower

LCL/P
 133.95

Other

PTD
 139.9

Terminal Area Forecast

KPAM
Mon, 12/23 6:00 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 12:00 PM CST
VFR
6:00 AM CST - 11:00 AM CST
Scattered 2,000'
6sm
30.32"Hg
060° 9kts
MVFR
Becoming 11:00 AM CST - 12:00 AM CST
Broken 2,000'
6sm
30.30"Hg
060° 9kts
VFR
Becoming 12:00 AM CST - 12:00 PM CST
Scattered 3,000'
6sm
30.32"Hg
070° 6kts
TAF KPAM 231200Z 2312/2418 06009KT 9999 SCT020 QNH3032INS
   BECMG 2317/2318 06009KT 9999 BKN020 QNH3029INS
   BECMG 2406/2407 07006KT 9999 SCT030 QNH3032INS TX16/2320Z TN03/2312Z
KPAM
Military
12/27/241400Z AERODROME HOURS OF OPERATION 1400-2200
12/24/241200Z AERODROME CLSD
12/23/241400Z AERODROME HOURS OF OPERATION 1400-2200
12/12/241614Z ALL CAUTION B TAXILANE ON CENTER RAMP IS OPEN BUT RESTRICTED TO ACFT WITH A WINGSPAN UP TO 44.5 FT. WINGWALKERS ARE REQUIRED FOR ALL ACFT UTILIZING BRAVO ROW EXCEPT F35'S. SPOTTERS WILL BE USED FOR ACFT ENTERING AND EXITING ALL SUNSHADES
12/10/241751Z 28 UNLIT CONCRETE OBSTRUCTIONS LOCATED IN THE INFIELD BETWEEN TWY A AND TWY C WITH A MAX HEIGHT OF 6FT
12/3/241257Z PRECISION RADAR UNSERVICEABLE
11/26/241947Z AERODROME TYNDALL APPROACH FREQUENCY 125.2 OUT OF SERVICE. USE FREQUENCY 132.625.
11/26/241947Z AERODROME TYNDALL ARRIVAL FREQUENCY 119.775 OUT OF SERVICE.
11/21/241546Z !KPAM V0426/24 PAM AERODROME STANDARD INSTRUMENT DEPARTURE (SID) CHANGED DIVERSE DEPARTURE AND TROWT ONE RWY 32L/R LOW CLOSE IN OBSTACLES RWY 32L, CRANE 2210 FT FROM DER 968 FT RIGHT OF CENTERLINE, 95 FT AGL/113 FT MSL AND RWY 32R, CRANE 2409 FT FROM DER 552 FT LEFT OF CENTERLINE, 95 FT AGL/113 FT MSL. 2411211546-2412310500
11/21/241541Z !KPAM V0423/24 PAM AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 14L LPV MINIMA CAT ABCDE CHANGES FROM 214/24 200 (200-1/2) TO READ 285/40 271 (300-3/4). LNAV/VNAV MISSED APPROACH SEGMENT CONTROLLING OBSTACLE CHANGE CRANE AT LOCATION 30° 5' 0.96'' N/85° 35' 27.852'' W AT THE HEIGHT OF 95? AGL/113? MSL. 2411211541-2412310500
11/21/241531Z !KPAM V0420/24 PAM AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI-ILS OR LOC Z RWY 14L S-ILS CAT CDE MINIMA CHANGED FROM 214/24 200 (200-1/2) TO READ 271/24 257 (300-1/2). 2411211531-2412310500
11/21/241528Z !KPAM V0417/24 PAM AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC Z RWY 14L S-ILS MINIMA CAT ABCDE CHANGES FROM 214/24 200 (200-1/2) TO READ 285/40 271 (300-3/4). 2411211528-2412310500
11/21/241524Z !KPAM V0415/24 PAM AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN Z RWY 14L S-14L MINIMA CAT AB CHANGES FROM 50/24 586 (600-1/2) TO READ 500/40 486 (500-3/4). 2411211524-2412310500
11/12/241838Z OBST OBST USE CAUTION: CONTROLLING OBSTABLE CHANGE. CRANE ERECTED IN THE VICINITY OF 30° 5' 6 0.96" N 85° 35' 27.852" W (RWY14L APPROACH). MAX HEIGHT IS 113 FEET. MEN AND EQUIPMENT ALSO OPERATING IN THE AREA.
11/7/242309Z SPOT CLOSURE FOR A31-36
11/6/241100Z OBST USE CAUTION: CRANE ERECTED IN THE VICINITY OF N30-04-46.72/W85-35-58.11. MAX EQUIPMENT HEIGHT 100FT.
11/4/241229Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'10.0"/W 85°35'21.0" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 330 FEET.
11/4/241228Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'10.93"/W 85°35'21.11" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 331 FEET.
11/4/241227Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'05.0"/W 85°35'13.0" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 328 FEET.
11/4/241225Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'13.0"/W 85°35'19.0" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 327 FEET.
11/4/241224Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'13.0"/W 85°35'03.0" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 316 FEET.
11/4/241222Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'25.0"/W 85°35'34.0" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 327 FEET.
11/4/241221Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'05.95"/W 85°35'14.28" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 330 FEET.
11/4/241220Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'25.06.0"/W 85°35'11.0" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 330 FEET.
11/4/241216Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'25.0"/W 85°35'34.0" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 328 FEET.
11/4/241214Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'42.0"/W 85°35'37.0" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 317 FEET.
11/4/241212Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'13.0"/W 85°35'03.0" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 327 FEET.
11/4/241211Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'32.0"/W 85°35'26.0" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 315 FEET.
11/4/241208Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'36.0"/W 85°35'39.0" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 322 FEET.
11/4/241204Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N 30°04'07.11'/W 85°35'12.7" (WEST OF RWY14L/32R) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 327 FEET.
11/4/241201Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF N30°04'12.61"/W85° 35' 19.19" (WEST OF RWY14R/32L) (CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 326 FEET.
11/4/241156Z OBST USE CAUTION: CRANE ERFECTED IN THE VICINITY OF 30° 3'53.177948", W -85° 35' 3.826904" CONSTRUCTION ZONE 1) MAX EQUIPMENT HEIGHT IS 193 FEET.
10/2/242125Z TWY P (TAXILANE) BETWEEN TWY A AND TWY D RESTRICTED TO AIRCRAFT WITHY A WINGSPAN OF 85 FT OR LESS.
10/2/242122Z TWY P (TAXILANE) FROM TWY D TO TWY H RESTRICTED TO AIRCRAFT WITH A WINGSPAN OF 58 FT OR LESS. THIS RESTRICTION DOESN'T APPLY WHEN NO AIRCRAFT ARE PARKED ON ALPHA ROW.
Yes
MON-THU 1100-0300Z++
FRI 1100-2300Z++
CLSD WKEND, HOL & ACC DOWN DAYS; AFT HR - TCC DSN 523-2155; SVCS NOT AVBL WHEN AFLD NOTAM CLSD.
USAF
DEPT OF THE AF HDQRTS ADC
TYNDALL AFB, FL 32401
CHIEF OF AFLD MANAGEMENT
DEPT OF THE AF HDQRTS ADC
TYNDALL AFB, FL 32401
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
PAM
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
High & Low Pressure
High & Low Pressure
None

Runway 14L/32R

10008 ft. x 200 ft.

CONC
GRVD
HIGH
35 /R/B/W/T
--
--
--
--
  Runway 14L Runway 32R
True Heading 134°314°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 04' 48"N 30° 03' 39"N
Longitude 85° 35' 04"W 85° 33' 43"W
Elevation 14' 14'
Threshold Crossing Height 49 ft. AGL 50 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 14R/32L

10114 ft. x 150 ft.
ASPH
CONC
GRVD
HIGH
50 /R/B/W/T
--
--
--
--
  Runway 14R Runway 32L
True Heading 134°314°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 04' 39"N 30° 03' 29"N
Longitude 85° 35' 18"W 85° 33' 56"W
Elevation 14' 16'
Threshold Crossing Height 36 ft. AGL 41 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-24JASU: (C-26) (MD-3) (MC-11) (M32A-10)
A110-25FLUID: SP PRESAIR LHOX LOX
A110-26OIL: O-148 SOAP
A110-29RSTD: 48 HR PPR - AIRFIELD MGMT DSN 523-4244/45, C850-283-4244/45; PPR VALID 1 HR +/- ETA; EARLY/LATE ARR/DEP MUST RECOORDINATE; C130 & LRGR PROVIDE AMOPS 48 HR PRIOR COORD FOR ACFT OPS RQRG BARRIER REMOVAL.
A110-30CAUTION: DRONE LAUNCH & RECOVERY 2.5 SM & 3 SM SSE OF MAIN ARPT; EXTV TRNG JET TFC 40 NM E; NIGHT WX OBS LIMITATIONS DUE TO HIGH INTST STADIUM LGTS.
A110-31NOISE ABATEMENT: SUBJ TO WX COND; HVY ACFT EXP RADAR VECTORS TIL REACHING 6000 FT.
A110-33MISC: BASE OPS DSN 523-4244.
A110-34MISC: INBD CANADIAN ACFT - 1AF DSN 523-3760 PRIOR TO ARR; EXP PROGRESSIVE TAXIING INSTR.
A110-35MISC: TSNT FIGHTER ACFT EXP 2 SHIP LAUNCH & RECOVERY; EXP TRAN SVC DLA DURG PEAK MISSION TIMES & WKENDS. INBD VIP ACFT CTC PTD 30 MIN PRIOR LDG. RTNE CLASSIFIED/COMSEC STORAGE AVBL - AIRFIELD MGMT DSN 523-4244/4245; C 850-283-4244/4245.
A110-39RWY 14R 979 FT OVRN USED FOR TAXING ACFT & ROLLOUT ONLY; C130 & LRGR ACFT HAVE OUTBOARD ENG IDLE WHEN TAXIING ON TWY BRAVO CNTR.
A110-40RSTD: C-130 OR LRGR EXCT 180 DEG TURN ON RWY 14R-32L; EXCT IN LAST 1000 FT.
A110-44RSTD: PAR RWY 32L HGT GROUP 4; WHEEL XNG HGT 15 FT. PAR RWY 14R HGT GROUP 4; WHEEL XNG HGT 11 FT. PAR RWY 14R HGT GROUP 3; WHEEL XNG HGT 16 FT.
A110-46MISC: WX DSN 523-4203/4235; C850-283-4203/4235.
A110-48MISC: AUGMENTED WX PT OBST BY BLDGS, HGR & TREES SPCLY SE - NW; A COOP WX WATCH WITH ATCT SUPPLS SOME RSTRS. AT NIGHT RAMP LGTS MAKE IT DIFFICULT TO EST CLOUD COVER, CLOUD HGT & VIS.
A110-49MISC: DURG AIRFIELD CLOSURE RSC/RCR NOT RPRTD.
A110-51RSTD: ACFT OPS & TAXI AFT AIRFIELD OPS HR EXC EMERG OR PRIOR COORD WITH AFLD MGT NA.
A110-53TRAN ALERT: PROGRESSIVE TAXI AVBL; TSNT ACFT MUST ARR/DEP DUR NML DUTY HR UNLESS APV. MAINT CAPABILITY LTD TO F22 ACFT.
A110-54TRAN ALERT: FLW ME SVC AVBL; FLEET SVC UNAVBL; DOES NOT SUPPORT LCL FLTS BY TSNT ACFT.
A110-57CAUTION: DRONE RWY; LED OBSTN LGT IN USE ON FMQ-22 WX EQUIP LCTD MIDFIELD.
A110-58MISC: WX FLT OPS H24. WX BRIEF FOR TNST AFT NML AFLD HRS-26TH OWS BARKSDALE AFB DSN 331/2690/2607; C318-529-2690/2607; AUGMENTED WX OBS WHEN FLW COND OBSERVED OR EXP: TDO, FCS, WTSPT, HAIL GTR THAN OR EQUAL TO 1/4 IN OR VOLCANIC ASH.
A110-69RSTD: TWY B NORTH OF TWY G & TWY F EDGE LGTS UNAVBL; TWYS AVBL FOR DAYTIME VFR OPS ONLY.
A110-70SERVICE-LGT: RWY 32L DSPLCD THR LGTS NSTD; ROLLOUT ON RWY 14R DSPLCD THR RWY END LGTS UNAVBL; TWO AMBER LGTS IN PLACE AT END OF DISPLACEMENT.
A110-73A-GEAR: RWY 14L-32R NML BAK-12B CONFIGURATION; APCH END DISCONNECTED; MP 1100-1400Z++ THU. RWY 14R-32L NML BAK-12B CONFIGURATION; DEP END MB-100 ALWAYS IN PLACE; MP 1100-1400Z++ TUE.
A110-74USE EXTRM CTN FOR EXTV UAS OPS.
TYNDALL AFB (ICAO: KPAM, IATA: PAM) is a private airport located in PANAMA CITY, FL.
