iFlightPlanner



...

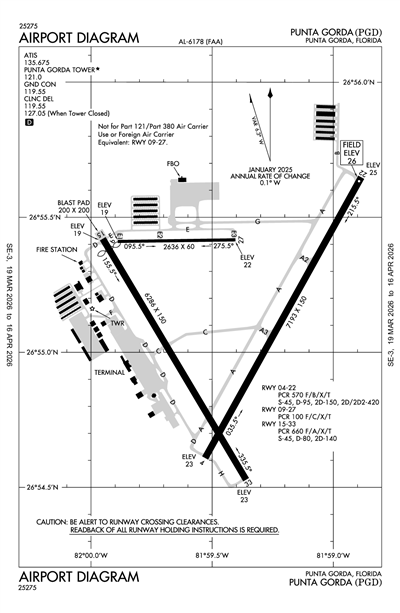

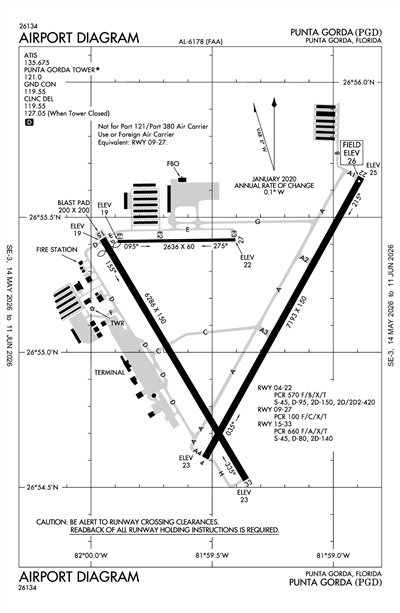

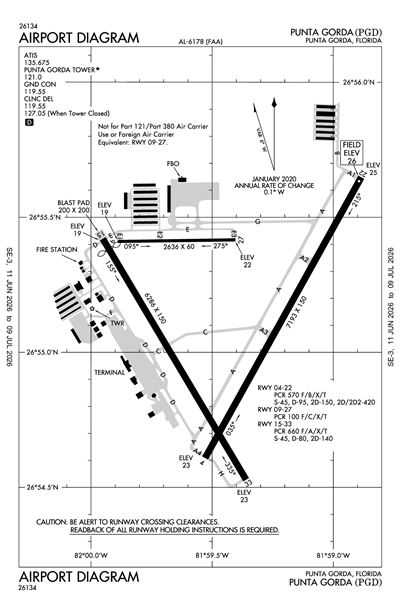

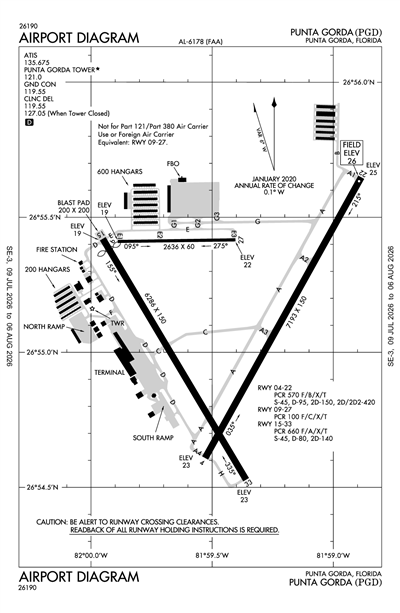

PUNTA GORDA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPGD
PUNTA GORDA
PublicPUB

3 miles SE of PUNTA GORDA, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
26° 55' 07"N 81° 59' 27"W
26' MSL
1026' MSL
06W
JET A, JET A (FSII), 100LL
SAINT PETERSBURG (PIE)
MIAMI
MIAMI (ZMA)
11/28/24-12/26/24
KPGD VFR
6:53 AM EST
Clear
10sm
53°F
51°F
30.25"Hg
040° 5kts
AO2 SLP242 T01170106 10133 20117 51009
KPGD 231153Z 04005KT 10SM CLR 12/11 A3025 RMK AO2 SLP242 T01170106 10133 20117 51009
Add Your Business

KPGD FBOs

Promote Listing
PGD Air Center
UNICOM: 122.975
Phone: (941) 639-4119
Other: (941) 639-1101
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 12/15
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.28
Full Serve 4.98 5.03 5.13
Fuel Notes
Prices include tax

KPGD Aircraft Service & Maintenance

Promote Listing
Aero Components and Electronics (ACE)
Phone: (941) 621-8978 x101
Fax: (941) 613-9019
No Rating Available
0 Reviews (Read | Sign In To Write)

KPGD Other Aviation Services

Promote Listing
Aviation Partners Group
Phone: (941) 637-8585
Fax: (941) 637-0388
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 121.0

ATIS

ATIS
Hours: 0600-2100
 135.675

ASOS

ASOS
941-639-0076
 135.675

Clearance Delivery

CD/P
 119.55

Ground

GND/P
 119.55

Tower

LCL/P
 121.0

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KPGD
Mon, 12/23 6:28 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 12:00 PM EST
Scattered 25,000'
6sm
040° 7kts
VFR
12:00 PM EST - 7:00 PM EST
Broken 5,000'
6sm
080° 7kts
VFR
7:00 PM EST - 7:00 AM EST
Scattered 25,000'
Scattered 5,000'
6sm
050° 5kts
KPGD 231128Z 2312/2412 04007KT P6SM SCT250
   FM231700 08007KT P6SM BKN050
   FM240000 05005KT P6SM SCT050 SCT250
KPGD
Domestic
12/23/240729Z !PGD 12/067 PGD OBST TOWER LGT (ASR 1209493) 270328.80N0820934.00W (12.1NM NW PGD) 383.9FT (358.9FT AGL) U/S 2412230729-2501070629
12/22/240209Z !PGD 12/066 PGD SVC PCL ALL U/S EXC MEDIUM INTST ON CONS 2412220209-2412231400
12/19/241824Z !PGD 12/060 PGD TWY A2 HLDG PSN MARKINGS BTN RWY 04/22 AND TWY A NOT STD 2412191824-2501312100
12/19/241808Z !PGD 12/059 PGD TWY A2 SFC PAINTED HLDG PSN SIGNS BTN RWY 04/22 AND TWY A NOT STD 2412191808-2501312100
12/19/241503Z !PGD 12/057 PGD OBST TOWER LGT (ASR 1277608) 265541.00N0815936.40W (0.6NM NNW PGD) 128.0FT (111.5FT AGL) U/S 2412191503-2502022359
12/18/241106Z !PGD 12/055 PGD OBST TOWER (ASN UNKNOWN) 265541N0815938W (0.38NM NE APCH END RWY 15)
UNKNOWN (150FT AGL) NOT LGTD 2412181106-2501182100
11/26/241305Z !PGD 11/075 PGD OBST TOWER LGT (ASR 1058425) 270117.00N0820254.00W (6.8NM NNW PGD) 313.0FT (288.1FT AGL) U/S 2411261305-2501262359
11/21/242326Z !PGD 11/072 PGD APRON AIR CENTER RAMP NE 200FT CLSD 2411212326-2501021600
10/31/241203Z !PGD 10/143 PGD APRON 600 HANGAR RAMP WIP CONST ADJ W SIDE 2410311203-2412312200
FDC
12/18/241500Z !FDC 4/8377 PGD IAP PUNTA GORDA, PUNTA GORDA, FL.
RNAV (GPS) RWY 33, AMDT 2...
LPV DA 334/HAT 310 ALL CATS, VIS ALL CATS 7/8. LNAV/VNAV DA 405/HAT 382 ALL CATS, VIS ALL CATS 1 1/8. LNAV MDA 460/HAT 436 ALL CATS, VIS CATS C/D 1 1/4. CIRCLING CAT A/B/C MDA 660/HAA 634, VIS CAT C 1 3/4. VDP NA. TEMPORARY CRANES 302 MSL 3468FT NW OF RWY 33 (2024-ASO-7247/9144-NRA). TEMPORARY CRANES 143 MSL BEGINNING 2754FT E OF RWY 33 (2022-ASO-38410, 39209 THRU 39212-OE). TEMPORARY CRANE 138 MSL 3582FT SW OF RWY 33 (2024-ASO-15-OE). TEMPORARY CRANE 170 MSL 4071FT NE OF RWY 33 (2024-ASO-4779-OE).
2412181500-2504281500EST
12/18/241500Z !FDC 4/8374 PGD IAP PUNTA GORDA, PUNTA GORDA, FL.
ILS OR LOC RWY 4, AMDT 1...
S-ILS 4 DA 378/HAT 354 ALL CATS, VIS ALL CATS 1. CIRCLING CAT A MDA 560/HAA 534. ISOXE FIX MINIMUMS (DME REQUIRED): S-LOC 4 MDA 440/HAT 416 ALL CATS, VIS CATS C/D 1 1/8. CIRCLING CAT A MDA 560/HAA 534. TEMPORARY CRANE 138 MSL 3299FT SW OF RWY 4 (2024-ASO-15-OE). TEMPORARY CRANE 170 MSL 4158FT SE OF PGD AIRPORT (2024-ASO-4779-OE).
2412181500-2504281459EST
12/18/241459Z !FDC 4/8372 PGD IAP PUNTA GORDA, PUNTA GORDA, FL.
RNAV (GPS) RWY 4, AMDT 3...
LPV DA 378/HAT 354 ALL CATS, VIS ALL CATS 1. LNAV/VNAV DA 513/HAT 489 ALL CATS, VIS ALL CATS 1 3/8. LNAV MDA 620/HAT 596 ALL CATS, VIS CATS C/D 1 3/4. CIRCLING CAT A/B/C MDA 660/HAA 634, VIS CAT C 1 3/4. VDP NA. TEMPORARY CRANES 302 MSL 2467FT NW OF RWY 4 (2024-ASO-7247/9144-NRA). TEMPORARY CRANE 138 MSL 3299FT SW OF RWY 4 (2024-ASO-15-OE). TEMPORARY CRANE 170 MSL 4158FT SE OF PGD AIRPORT (2024-ASO-4779-OE).
2412181459-2504281459EST
12/18/241458Z !FDC 4/8370 PGD IAP PUNTA GORDA, PUNTA GORDA, FL.
RNAV (GPS) RWY 15, AMDT 2...
LPV DA 356/HAT 334 ALL CATS, VIS ALL CATS 1. LNAV/VNAV DA 408/HAT 386 ALL CATS, VIS ALL CATS 1 1/8. CIRCLING CAT A/B/C MDA 660/HAA 634, VIS CAT C 1 3/4. TEMPORARY CRANES 302 MSL 2700FT S OF RWY 15 (2024-ASO-7247/9144-NRA). TEMPORARY CRANE 170 MSL 4158FT SE OF PGD AIRPORT (2024-ASO-4779-OE).
2412181458-2504281458EST
11/25/241950Z !FDC 4/8733 PGD ODP PUNTA GORDA, PUNTA GORDA, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
ADD TAKEOFF OBSTACLE NOTE: RWY 22, TEMPORARY CRANE 3282FT FROM DER, 338FT RIGHT OF CENTERLINE, 112FT AGL/ 138FT MSL (2024-ASO-15-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2411251950-2504281950EST
Yes
ALL
CHARLOTTE COUNTY ARPT AUTH
28000 A-1 AIRPORT RD
PUNTA GORDA, FL 33982
Phone: 941-639-1101
JAMES W PARISH
28000 A-1 AIRPORT RD
PUNTA GORDA, FL 33982
Phone: 941-639-1101
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PGD
--
ACTVT REIL RWY 04, 15, 22 & 33; PAPI RWY 04, 15, 22 & 33 - CTAF. HIRL RWY 04/22; MIRL RWY 15/33 PRESET ON LOW INTST; TO INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

7193 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

45,000lbs
95,000lbs
150,000lbs
420,000lbs
  Runway 04 Runway 22
True Heading 29°209°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 26° 54' 37"N 26° 55' 39"N
Longitude 81° 59' 32"W 81° 58' 53"W
Elevation 23' 25'
Threshold Crossing Height 50 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 09/27

2636 ft. x 60 ft.
ASPH
Poor
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 26° 55' 25"N 26° 55' 25"N
Longitude 81° 59' 53"W 81° 59' 24"W
Elevation 19' 22'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

6286 ft. x 150 ft.
ASPH
Excellent
GRVD
MED

45,000lbs
80,000lbs
140,000lbs
--
  Runway 15 Runway 33
True Heading 149°329°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 26° 55' 25"N 26° 54' 32"N
Longitude 81° 59' 57"W 81° 59' 21"W
Elevation 18' 23'
Threshold Crossing Height 47 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC FT MYERS APCH AT 239-416-1026, WHEN APCH CLSD CTC MIAMI ARTCC AT 305-716-1731.
PUNTA GORDA (ICAO: KPGD, IATA: PGD) is a public airport located in PUNTA GORDA, FL.
