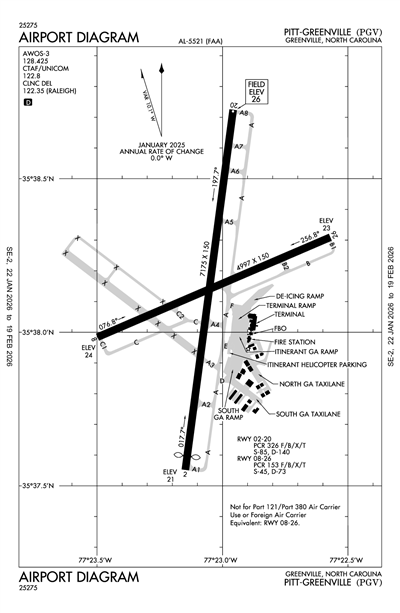

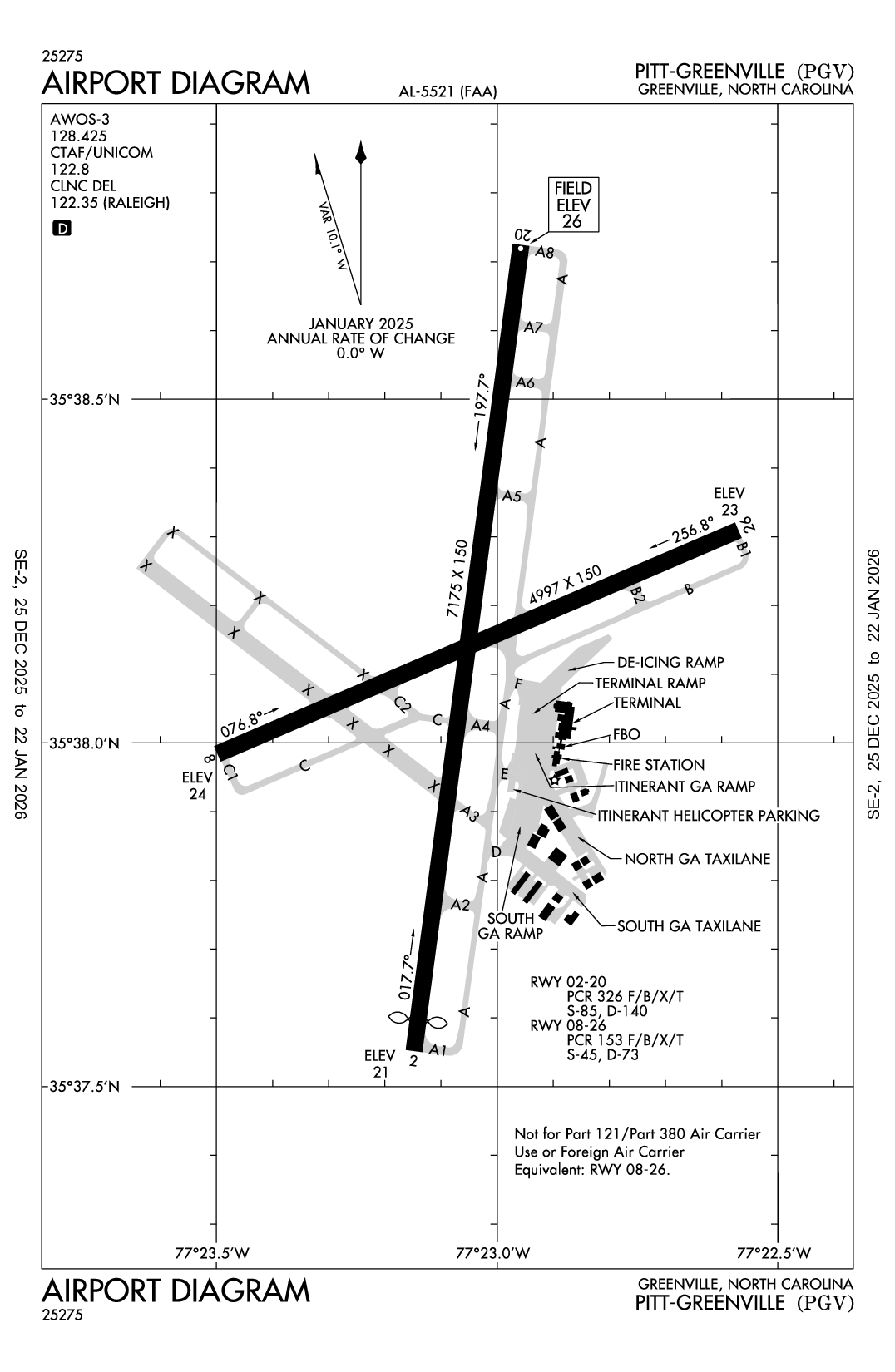

PITT-GREENVILLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPGV
PITT-GREENVILLE
PublicPUB

2 miles N of GREENVILLE, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 38' 09"N 77° 23' 03"W
26' MSL
1026' MSL
09W
JET A, 100LL
RALEIGH (RDU)
CHARLOTTE
WASHINGTON (ZDC)
2/20/25-3/20/25
KPGV VFR
10:50 AM EDT
Clear
10sm
46°F
30°F
30.16"Hg
090° 3kts
AO2
KPGV 091450Z AUTO 09003KT 10SM CLR 08/M01 A3016 RMK AO2
Add Your Business

KPGV FBOs

Promote Listing
Pitt-Greenville Airport
UNICOM: 122.8
Phone: (252) 902-2026
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 2/25
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.32 5.66
Fuel Notes
Prices include tax
Prist (FSII) is available upon request for $5.71 per gallon.
Fuel Hours
afterhours available, with cost, after pre-approval 252-902-2026

KPGV Aircraft Service & Maintenance

Promote Listing
C-Ray Avionics
Phone: (770) 540-8185
No Rating Available
0 Reviews (Read | Sign In To Write)

KPGV Other Aviation Services

Promote Listing
Pilot John International
Phone: (252) 585-4553
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
252-758-6485
 128.425

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPGV
Sun, 3/9 7:20 AM EDT
Sun, 3/9 8:00 AM EDT - Mon, 3/10 8:00 AM EDT
VFR
8:00 AM EDT - 1:00 PM EDT
Scattered 20,000'
6sm
VRB° 3kts
VFR
1:00 PM EDT - 8:00 PM EDT
Scattered 17,000'
6sm
210° 5kts
VFR
8:00 PM EDT - 8:00 AM EDT
Few 21,000'
6sm
Calm
KPGV 091120Z 0912/1012 VRB03KT P6SM SCT200
   FM091700 21005KT P6SM SCT170
   FM100000 00000KT P6SM FEW210 AMD LTD TO CLD VIS AND WIND
KPGV
Domestic
3/1/251612Z !PGV 03/003 PGV OBST CRANE (ASN 2023-ASO-3092-OE) 353706N0772324W (1.1NM SSW PGV) 95FT (86FT AGL) FLAGGED AND LGTD 2503011612-2503312300
3/1/251611Z !PGV 03/002 PGV OBST CRANE (ASN 2024-ASO-2906-OE) 353706N0772324W (1.1NM SSW PGV) 150FT (141FT AGL) FLAGGED AND LGTD 2503011611-2503312300
3/1/251611Z !PGV 03/001 PGV OBST CRANE (ASN 2024-ASO-5201-OE) 353821N0772215W (0.7NM ENE PGV) 95FT (68FT AGL) FLAGGED AND LGTD 2503011611-2503312300
2/20/251917Z !PGV 02/038 PGV OBST TOWER LGT (ASR 1252215) 353424.30N0771641.20W (6.3NM SE PGV) 308.7FT (250.0FT AGL) U/S 2502201917-2504202359
2/17/251832Z !PGV 02/010 PGV OBST TOWER LGT (ASR 1249091) 354729.80N0772253.10W (9.4NM NE PGV) 551.8FT (500.0FT AGL) U/S 2502171832-2503182359
2/13/251728Z !PGV 02/008 PGV RWY 08 RWY END ID LGT U/S 2502131728-2508302200
FDC
12/10/240650Z !FDC 4/3988 PGV IAP PITT-GREENVILLE, GREENVILLE, NC.
RNAV (GPS) RWY 26, AMDT 2B...
LPV VIS ALL CATS 1. LNAV/VNAV VIS ALL CATS 1. TEMPORARY CONSTRUCTION EQUIPMENT UP TO 48 MSL BEGINNING 1979FT S WOF RWY 20 (2023-ASO-6807 THRU 6820-NRA).
2412100650-2506170650EST
12/10/240650Z !FDC 4/3987 PGV IAP PITT-GREENVILLE, GREENVILLE, NC.
RNAV (GPS) RWY 20, AMDT 3A...
LPV VIS ALL CATS 1. LNAV/VNAV VIS ALL CATS 1. LNAV VIS ALL CATS 1. INOP TABLE DOES NOT APPLY TO LPV, LNAV/VNAV AND LNAV ALL CATS. CHANGE NOTE TO READ: FOR INOP ALS WHEN USING WASHINGTON ALTIMETER SETTING, INCREASE LNAV CAT C/D VISIBILITY TO 1 1/4 SM. TEMPORARY CONSTRUCTION EQUIPMENT UP TO 48 MSL BEGINNING 3573FT S OF RWY 20 (2023-ASO-6807 THRU 6820-NRA).
2412100650-2506170650EST
12/10/240650Z !FDC 4/3986 PGV IAP PITT-GREENVILLE, GREENVILLE, NC.
ILS Z OR LOC Z RWY 20, AMDT 5A...
S-ILS 20 VIS ALL CATS 1. S-LOC 20 VIS ALL CATS 1. TEMPORARY CONSTRUCTION EQUIPMENT UP TO 48 MSL BEGINNING 3573FT S OF RWY 20 (2023-ASO-6807 THRU 6820-NRA).
2412100650-2506170650EST
12/10/240650Z !FDC 4/3985 PGV IAP PITT-GREENVILLE, GREENVILLE, NC.
ILS Y OR LOC Y RWY 20, ORIG-A...
S-ILS 20 VIS ALL CATS 1. S-LOC 20 VIS ALL CATS 1. TEMPORARY CONSTRUCTION EQUIPMENT UP TO 48 MSL BEGINNING 3573FT S OF RWY 20 (2023-ASO-6807 THRU 6820-NRA).
2412100650-2506170650EST
12/10/240650Z !FDC 4/3982 PGV IAP PITT-GREENVILLE, GREENVILLE, NC.
RNAV (GPS) RWY 2, AMDT 1A...
LPV DA NA ALL CATS. LNAV/VNAV DA NA ALL CATS. VDP NA. CHANGE NOTE TO READ: RWY 2 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA.
TEMPORARY CONSTRUCTION EQUIPMENT 45 MSL 357FT S OF RWY 2 (2023-ASO-6807-NRA).
2412100650-2506170650EST
12/4/240555Z !FDC 4/1270 PGV ODP PITT-GREENVILLE, GREENVILLE, NC.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5...
ADD TAKEOFF OBSTACLE NOTES: RWY 20, TEMPORARY CONSTRUCTION EQUIPMENT BEGINNING 79FT FROM DER, BEGINNING 72FT LEFT OF CENTERLINE, 25FT AGL/ UP TO 45FT MSL (2023-ASO-6807/6808/6812-NRA).
TEMPORARY CRANES BEGINNING 2642FT FROM DER, BEGINNING 722FT RIGHT OF CENTERLINE, UP TO 98FT AGL/ 125FT MSL (2023-ASO-3092-OE, 2024-ASO-1706-OE). TEMPORARY CRANE 2928FT FROM DER, 853FT RIGHT OF CENTERLINE, 141FT AGL/ 150FT MSL (2024-ASO-2906-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2412040555-2604020555EST
No
0600-2200
PITT CO & GREENVILLE CITY
400 AIRPORT RD
GREENVILLE, NC 27834
Phone: 252-902-2026
KIM W BILL HOPPER
400 AIRPORT RD
GREENVILLE, NC 27834
Phone: 252-902-2026
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
PGV
--
ACTVT MALSR RWY 20; PAPI RWYS 02, 20, 08 & 26; HIRL RWY 02/20; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Freight
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 02/20

7175 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

85,000lbs
140,000lbs
--
--
  Runway 02 Runway 20
True Heading 8°188°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 37' 33"N 35° 38' 43"N
Longitude 77° 23' 09"W 77° 22' 57"W
Elevation 21' 26'
Threshold Crossing Height 41 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3.1° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 08/26

4997 ft. x 150 ft.
ASPH
Poor
NONE
MED

45,000lbs
73,000lbs
--
--
  Runway 08 Runway 26
True Heading 67°247°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 37' 59"N 35° 38' 19"N
Longitude 77° 23' 30"W 77° 22' 34"W
Elevation 24' 23'
Threshold Crossing Height 53 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-124 HR HELICOPTER OPNS AT HOSPITAL 1.5 NM SSW OF ARPT; MONITORING CTAF.
A110-7JET ACFT DEPARTING FROM RWY 20 SHALL HOLD ON AIR CARRIER OR GA APRON UNTIL TAKE OFF CLEARANCE IS RECEIVED.
A110-8FOR CD IF UNA TO CTC ON FSS FREQ, CTC WASHINGTON ARTCC AT 703-771-3587.
PITT-GREENVILLE (ICAO: KPGV, IATA: PGV) is a public airport located in GREENVILLE, NC.
