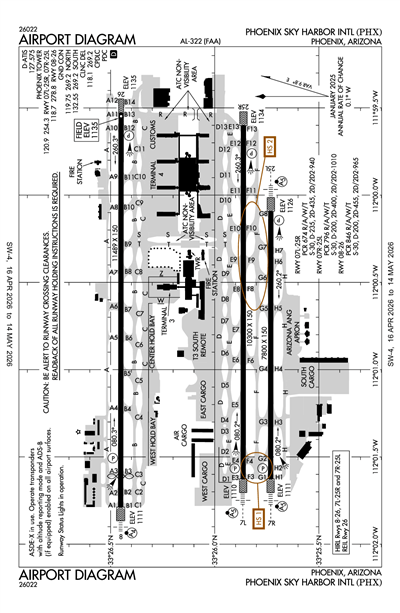

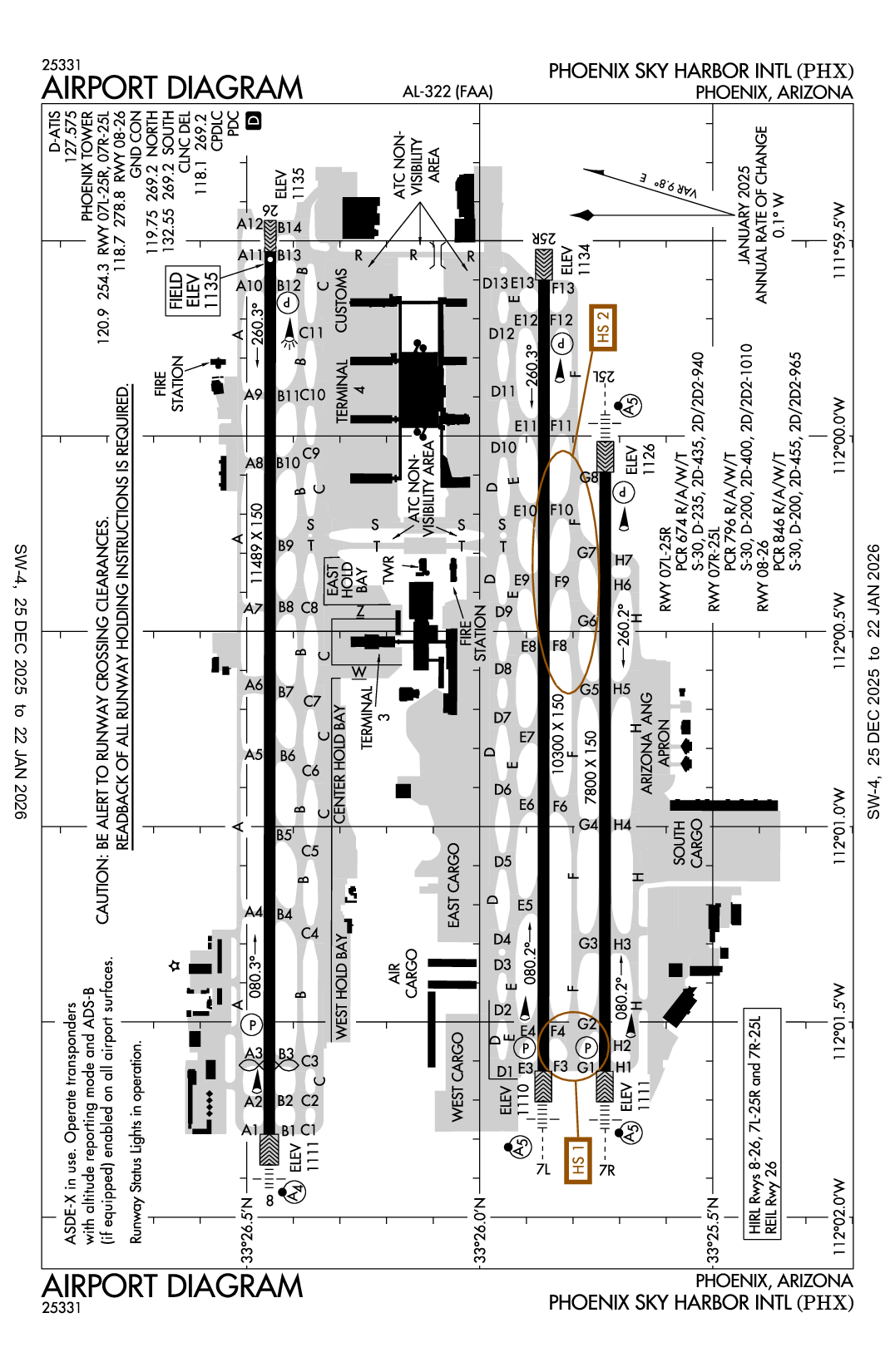

PHOENIX SKY HARBOR INTL - Airport Diagram

KPHX

PHOENIX SKY HARBOR INTL

PublicPUB

3 miles E of PHOENIX, AZ

View on Map

Status

Operational

Coordinates

33° 26' 03"N 112° 00' 42"W

Elevation

1135' MSL

Pattern Alt

2135' MSL

Mag Variation

12E

Fuel

JET A, 100LL

FSS

PRESCOTT (PRC)

Sectional

PHOENIX

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

2/20/25-3/20/25

KPHX VFR

6:51 AM MST RAW

Clear

Viz

10sm

Temp

50°F

Dew

41°F

Pres

30.24"Hg

Wind

Calm

RMK

AO2 SLP235 T01000050

KPHX 091351Z 00000KT 10SM CLR 10/05 A3024 RMK AO2 SLP235 T01000050

Add Your Business

KPHX FBOs

Promote Listing

Jackson Jet Center

UNICOM: 132.0

Phone: (602) 273-3770

0 Reviews (Read | Sign In To Write)

World Fuel

As of 2/17	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.56	7.19	7.29

Fuel Notes

Prices include tax

Cutter Aviation

UNICOM: 128.875

Phone: (602) 267-4047

Fax: (602) 267-7806

0 Reviews (Read | Sign In To Write)

Other

As of 3/4	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.47		7.15

Fuel Notes

Prices include tax

KPHX Aircraft Service & Maintenance

Promote Listing

Daedalean Inc.

Phone: (480) 431-3007

0 Reviews (Read | Sign In To Write)

KPHX Other Aviation Services

Promote Listing

StandardAero

Phone: (480) 373-3153

Fax: (480) 377-3105

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM -- CTAF --

ATIS

D-ATIS

127.575

Clearance Delivery

CD/P

118.1

Ground

GND/P NORTH	119.75
GND/P SOUTH	132.55

Tower

LCL/P RWY 08/26	118.7
LCL/P RWY 07L/25R, 07R/25L	120.9

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Hotspot

HOT SPOT

Terminal Area Forecast

KPHX

RAW

Reported

Sun, 3/9 4:20 AM MST

Valid

Sun, 3/9 5:00 AM MST - Mon, 3/10 11:00 AM MST

VFR

5:00 AM MST - 5:00 PM MST

Sky Clear

Viz

6sm

Wind

090° 5kts

VFR

5:00 PM MST - 11:00 PM MST

Sky Clear

Viz

6sm

Wind

310° 4kts

VFR

11:00 PM MST - 11:00 AM MST

Sky Clear

Viz

6sm

Wind

090° 5kts

KPHX 091120Z 0912/1018 09005KT P6SM SKC
FM100000 31004KT P6SM SKC
FM100600 09005KT P6SM SKC

KPHX

Domestic
3/13/251600Z	!PHX 03/022 PHX SVC TAR/SSR U/S 2503131600-2503140001
3/12/251600Z	!PHX 03/019 PHX SVC TAR/SSR U/S 2503121600-2503130001
3/11/251600Z	!PHX 03/010 PHX SVC TAR/SSR U/S 2503111600-2503120001
3/11/251300Z	!PHX 03/031 PHX OBST CRANE (ASN 2024-AWP-9456-OE) 332530N1115855W (1.6NM ESE PHX) 1344FT (210FT AGL) FLAGGED AND LGTD 2503111300-2503112359
3/11/250600Z	!PHX 03/035 PHX RWY 08/26 CLSD DLY 0600-1330 2503110600-2503121330
3/11/250100Z	!PHX 03/030 PHX OBST CRANE (ASN 2024-AWP-7005-NRA) 332607N1120221W (1.4NM W PHX) 1298FT (200FT AGL) FLAGGED AND LGTD 2503110100-2503111300
3/10/251600Z	!PHX 03/012 PHX SVC SMR U/S 2503101600-2503102330
3/10/251600Z	!PHX 03/011 PHX SVC TAR/SSR U/S 2503101600-2503102330
3/10/251300Z	!PHX 03/036 PHX OBST CRANE (ASN 2024-AWP-2996-OE) 332552N1115837W (1.8NM E PHX) 1250FT (125FT AGL) FLAGGED AND LGTD 2503101300-2503102359
3/10/251300Z	!PHX 03/028 PHX OBST CRANE (ASN 2024-AWP-6638-OE) 332509N1115947W (1.2NM SE PHX) 1355FT (220FT AGL) FLAGGED AND LGTD 2503101300-2503102359
3/10/250600Z	!PHX 03/034 PHX RWY 07R/25L CLSD 2503100600-2503101300
3/7/251300Z	!PHX 03/016 PHX OBST CRANE (ASN UNKNOWN) 332537N1120236W (.82NM SW APCH END RWY 07R) 1267FT (177FT AGL) FLAGGED AND LGTD 2503071300-2503312359
3/4/250000Z	!PHX 03/002 PHX AIRSPACE SEE PXR 03/009 UAS DLY 0000-2359 2503040000-2503312359
2/27/250103Z	!PHX 02/103 PHX SVC KPHX ARRIVALS SEE LTA-ZAB-10 2502270103-2602260001
2/21/251300Z	!PHX 02/067 PHX OBST CRANE (ASN 2024-AWP-11809-OE) 332714N1120357W (3.0NM WNW PHX) 1344FT (255FT AGL) FLAGGED AND LGTD 2502211300-2601010659
2/20/251312Z	!PHX 02/069 PHX OBST TOWER LGT (ASR 1007948) 332317.00N1120025.00W (2.8NM S PHX) 1496.1FT (354.3FT AGL) U/S 2502201312-2504061311
1/29/251847Z	!PHX 01/153 PHX SVC AUTOMATED WX BCST SYSTEM CHANGED TO 602-551-6092 2501291847-PERM
1/1/250700Z	!PHX 12/071 PHX TWY C BTN TWY S AND TERMINAL 4 NORTH RAMP Q ALLEY CLSD TO ACFT WINGSPAN MORE THAN 171FT 2501010700-2601010659
1/1/250700Z	!PHX 12/070 PHX TWY A BTN TWY A3 AND TWY A10 CLSD TO ACFT WINGSPAN MORE THAN 125FT 2501010700-2601010659
1/1/250700Z	!PHX 12/069 PHX TWY A BTN TWY A11 AND TWY A12 CLSD TO ACFT WINGSPAN MORE THAN 135FT 2501010700-2601010659
1/1/250700Z	!PHX 12/068 PHX TWY F8 CLSD TO ACFT EXITING RWY 07L/25R 2501010700-2601010659
1/1/250700Z	!PHX 12/067 PHX TWY D BTN TWY D13 AND TWY R CLSD TO ACFT WINGSPAN MORE THAN 135FT 2501010700-2601010659
1/1/250700Z	!PHX 12/066 PHX TWY D BTN TWY S AND TWY D13 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2501010700-2601010659
1/1/250700Z	!PHX 12/055 PHX OBST CRANE (ASN 2023-AWP-19030-OE) 332736N1115958W (1.7NM NNE PHX) 1423FT (275FT AGL) FLAGGED AND LGTD 2501010700-2505020659
1/1/250700Z	!PHX 12/054 PHX APRON EAST CARGO APN E 400FT CLSD 2501010700-2504010659
1/1/250700Z	!PHX 12/053 PHX OBST CRANE (ASN 2024-AWP-13233-OE) 332645N1115844W (1.8NM ENE PHX) 1281FT (120FT AGL) FLAGGED AND LGTD 2501010700-2509010659
1/1/250700Z	!PHX 12/052 PHX OBST CRANE (ASN 2023-AWP-8011-OE) 332721N1120424W (3.4NM WNW PHX) 1428FT (343FT AGL) FLAGGED AND LGTD 2501010700-2601010659
1/1/250700Z	!PHX 12/051 PHX OBST CRANE (ASN 2024-AWP-6628-NRA) 332605N1120103W (0.3NM W PHX) 1326FT (210FT AGL) FLAGGED AND LGTD 2501010700-2601010659
1/1/250700Z	!PHX 12/050 PHX OBST CRANE (ASN 2024-AWP-6249-NRA) 332613N1120135W (0.8NM WNW PHX) 1273FT (165FT AGL) FLAGGED AND LGTD 2501010700-2601010659
12/30/240100Z	!PHX 12/049 PHX OBST TOWER LGT (ASR 1001134) 331960.00N1120352.00W (6.6NM SSW PHX) 3030.8FT (345.8FT AGL) U/S 2412300100-2505302359
FDC
3/10/251500Z	!FDC 5/0712 PHX SID PHOENIX SKY HARBOR INTL, PHOENIX, AZ. FORPE ONE DEPARTURE (RNAV)... MRBIL ONE DEPARTURE (RNAV)... QUAKY ONE DEPARTURE (RNAV)... TAKEOFF RWY 25L,25R,26: GPS REQUIRED, TFD VORTAC OUT OF SERVICE. 2503101500-2503170727EST
3/10/251500Z	!FDC 5/0711 PHX SID PHOENIX SKY HARBOR INTL, PHOENIX, AZ. BROAK ONE DEPARTURE (RNAV)... ECLPS ONE DEPARTURE (RNAV)... DEPARTURE PROCEDURE GPS REQUIRED, TFD VORTAC OUT OF SERVICE. 2503101500-2503170727EST
3/10/251500Z	!FDC 5/0706 PHX SID PHOENIX SKY HARBOR INTL, PHOENIX, AZ. STANFIELD FOUR DEPARTURE... DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, TFD VORTAC OUT OF SERVICE. 2503101500-2503170727EST
3/7/251614Z	!FDC 5/0452 PHX SID PHOENIX SKY HARBOR INTL, PHOENIX, AZ. ST. JOHNS NINE DEPARTURE... ALBUQUERQUE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. ALL OTHER DATA REMAINS AS PUBLISHED, ABQ VOR OUT OF SERVICE. 2503071614-2504071614EST
3/7/251300Z	!FDC 5/8976 PHX IAP PHOENIX SKY HARBOR INTL, PHOENIX, AZ. ILS OR LOC/DME RWY 7L, AMDT 11B... S-LOC 7L MDA 1580/HAT 464 ALL CATS, VIS CAT C/D RVR 5000. TEMPORARY CRANE 1267 MSL 5195FT W OF RWY 7L (2025-AWP-911-OE). 2503071300-2504151300EST
3/7/251300Z	!FDC 5/8975 PHX IAP PHOENIX SKY HARBOR INTL, PHOENIX, AZ. ILS OR LOC RWY 7R, AMDT 2D... S-LOC 7R MDA 1580/HAT 464 ALL CATS, VIS ALL CATS 1. VDP AT I-AHA 2.70 DME; DISTANCE VDP TO THLD 1.23 MILES. TEMPORARY CRANE 1267 MSL 5017FT W OF RWY 7R (2025-AWP-911-OE). 2503071300-2504151300EST
3/6/251718Z	!FDC 5/0076 PHX ODP PHOENIX SKY HARBOR INTL, PHOENIX, AZ. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 6... TAKEOFF MINIMUMS: RWY 25L/25R, 300-1 OR STANDARD WITH A MINIMUM CLIMB OF 254FT PER NM TO 1400. ADD TAKEOFF OBSTACLE NOTES: RWY 25L, TEMPORARY CRANE 4962FT FROM DER, 738FT LEFT OF CENTERLINE, 177FT AGL/1267FT MSL (2025-AWP-911-OE). RWY 25R, TEMPORARY CRANE 4962FT FROM DER, 1538FT LEFT OF CENTERLINE, 177FT AGL/1267FT MSL (2025-AWP-911-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2503061718-2504151718EST
3/3/251607Z	!FDC 5/8583 PHX IAP PHOENIX SKY HARBOR INTL, PHOENIX, AZ. ILS OR LOC RWY 26, AMDT 1... S-LOC 26 MDA 1880/HAT 745 ALL CATS. VIS CAT B 1 1/4, CAT C/D 2. CIRCLING CATS A/B MDA 1880/HAA 745. VIS CAT B 1 1/4. DELSE FIX AND FIX ALTITUDE NA. VDP NA. TEMPORARY CRANES UP TO 1579 MSL BEGINNING 3.7NM E OF RWY 26 (2023-AWP-5980/10002-OE), TEMPORARY CRANE 1580 MSL 3.8NM E OF RWY 26 (2023-AWP-5983-OE). 2503031607-2512301607EST
3/3/251607Z	!FDC 5/8581 PHX IAP PHOENIX SKY HARBOR INTL, PHOENIX, AZ. RNAV (GPS) Y RWY 25R, AMDT 2C... LNAV MDA 1880/HAT 746 ALL CATS. VIS CAT B 1 1/4, CATS C/D 2. CIRCLING CATS A/B MDA 1880/HAA 745. VIS CAT B 1 1/4. DISREGARD YASCU FIX AND YASCU FIX ALTITUDE. VDP NA. TEMPORARY CRANES UP TO 1579 MSL BEGINNING 3.7NM E OF RWY 25R (2023-AWP-5980/10002-OE), TEMPORARY CRANE 1580 MSL 3.8NM E OF RWY 25R (2023-AWP-5983-OE). 2503031607-2512301607EST
3/3/251607Z	!FDC 5/8579 PHX IAP PHOENIX SKY HARBOR INTL, PHOENIX, AZ. RNAV (GPS) Y RWY 26, AMDT 3... LNAV MDA 1880/HAT 745 ALL CATS. VIS CAT B 1 1/4, CATS C/D 2. CIRCLING CAT A/B MDA 1880/HAA 745. VIS CAT B 1 1/4. VDP 2.11 NM TO RW26. TEMPORARY CRANE 1580 MSL 3.8NM E OF RWY 26 (2023-AWP-5983-OE). 2503031607-2512301607EST
8/7/231636Z	!FDC 3/9605 PHX SID PHOENIX SKY HARBOR INTL, PHOENIX, AZ. BUCKEYE FOUR DEPARTURE... PALMDALE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. PMD VORTAC RESTRICTED. 2308071636-2508081636EST

ATC Tower

Yes

Attendance

ALL

Owner

CITY OF PHOENIX
2485 E BUCKEYE RD
PHOENIX, AZ 85034
Phone: 602-273-3302

Manager

CHAD MAKOVSKY
2485 E BUCKEYE RD
PHOENIX, AZ 85034
Phone: 602-273-3302

FSS

PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF

NOTAM

PHX

Light Schedule

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

High & Low Pressure

Other Services

Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Aircraft Sales

Runway 07L/25R

Dimensions

10300 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

30,000lbs

Double Wheel

235,000lbs

Double Tandem

435,000lbs

Dual Dbl Tand

940,000lbs

	Runway 07L	Runway 25R
True Heading	90°	270°
Traffic Pattern	Right	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 25' 52"N	33° 25' 52"N
Longitude	112° 01' 38"W	111° 59' 36"W
Elevation	1,110'	1,134'
Threshold Crossing Height	73 ft. AGL	70 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSR
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 07R/25L

Dimensions

7800 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

30,000lbs

Double Wheel

200,000lbs

Double Tandem

400,000lbs

Dual Dbl Tand

1,010,000lbs

	Runway 07R	Runway 25L
True Heading	90°	270°
Traffic Pattern
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 25' 44"N	33° 25' 44"N
Longitude	112° 01' 38"W	112° 00' 06"W
Elevation	1,111'	1,126'
Threshold Crossing Height	70 ft. AGL	66 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSR	MALSR
Centerline Lights
Runway End Identifier Lights

Runway 08/26

Dimensions

11489 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

30,000lbs

Double Wheel

200,000lbs

Double Tandem

455,000lbs

Dual Dbl Tand

965,000lbs

	Runway 08	Runway 26
True Heading	90°	270°
Traffic Pattern	Left	Right
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 26' 27"N	33° 26' 27"N
Longitude	112° 01' 47"W	111° 59' 32"W
Elevation	1,111'	1,135'
Threshold Crossing Height	69 ft. AGL	71 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSF
Centerline Lights	No	No
Runway End Identifier Lights	No	Yes

A110-12	NOISE ABATEMENT PROC IN EFCT.
A110-16	TWY R & PTNS OF TWY S & T BLW ATCT NOT VSB FM ATCT.
A110-19	TWY R OVHD TRAIN BRIDGE AT MIDPT PRVDS 82 FT 4 IN CLNC. TXL Y3 OVHD TRAIN BRIDGE AT MIDPT PRVDS 44 FT 7 IN CLNC.
A110-23	EXPERIMENTAL OR GND DMSTN NA WO PRIOR APVL - AIRSIDE OPS.
A110-25	ANG: OFFL BUS ONLY; BASH PHASE II IN EFCT 1 MAR - 31 MAY & 1 AUG - 31 OCT; LTD RAMP SPACE AVBL - 602-273-3770.
A110-26	PPR WINGSPAN 215 FT OR GTR GROUP VI - OPS 602-273-2008 FOR FOLLOW ME SVC WHILE TAX TO & FM RAMP & RWYS.
A110-27	PRAC INST APCH, STOP & TAX BACK LDG, STOP & GO LDG, TGL NA. OTR FLIGHT TRNG OPS NA WO PRIOR WRITTEN APVL - AIRSIDE OPS 602-273-2008.
A110-29	ENG RUNS NA WO PRIOR COORD WITH AIRSIDE OPS.
A110-31	INTL GATE USE RQR CDN WITH ARPT OPS 48 HR PRIOR TO ARR.
A110-32	INTL LDG RIGHTS RQR US CUST & BDR PROTECTION NOTIFICATION 48 HR PRIOR TO LDG.
A110-33	REVIEW HOT SPOT INFO ON ARPT DIAGRAM.
A110-35	RWY STATUS LGTS IN OPRN.
A110-36	GEN INFO - 602-273-3302.
A110-4	FEE FOR CHARTERS, TRAVEL CLUB & REVENUE PRODUCING ACFT.
A110-41	TWYS A BTN A3 AND A10, A4, A5, A6, A7, A8, A9 CLSD TO ACFT WINGSPAN OF MORE THAN 125FT.
A110-42	TWY A BTN INT A11 & A12, A12, D BTN INT D13 TO R, D13, F BTW INT G2 & G3 CLSD TO WINGSPAN GTR THAN 135 FT.
A110-43	TWY C BTN S & TXL Q, D BTN D8 & T, D9, H BTN H4 & H7, H5, H6, H7 CLSD TO WINGSPAN GTR THAN 171 FT.
A110-44	TWY D BTN S & D13, D10, D11, D12 CLSD TO WINGSPAN GTR THAN 118 FT.

PHOENIX SKY HARBOR INTL (ICAO: KPHX, IATA: PHX) is a public airport located in PHOENIX, AZ.
