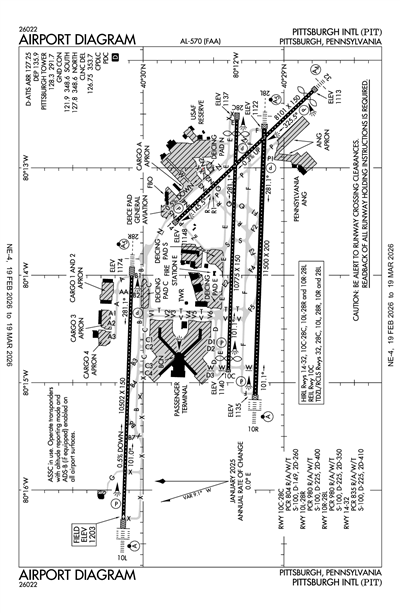

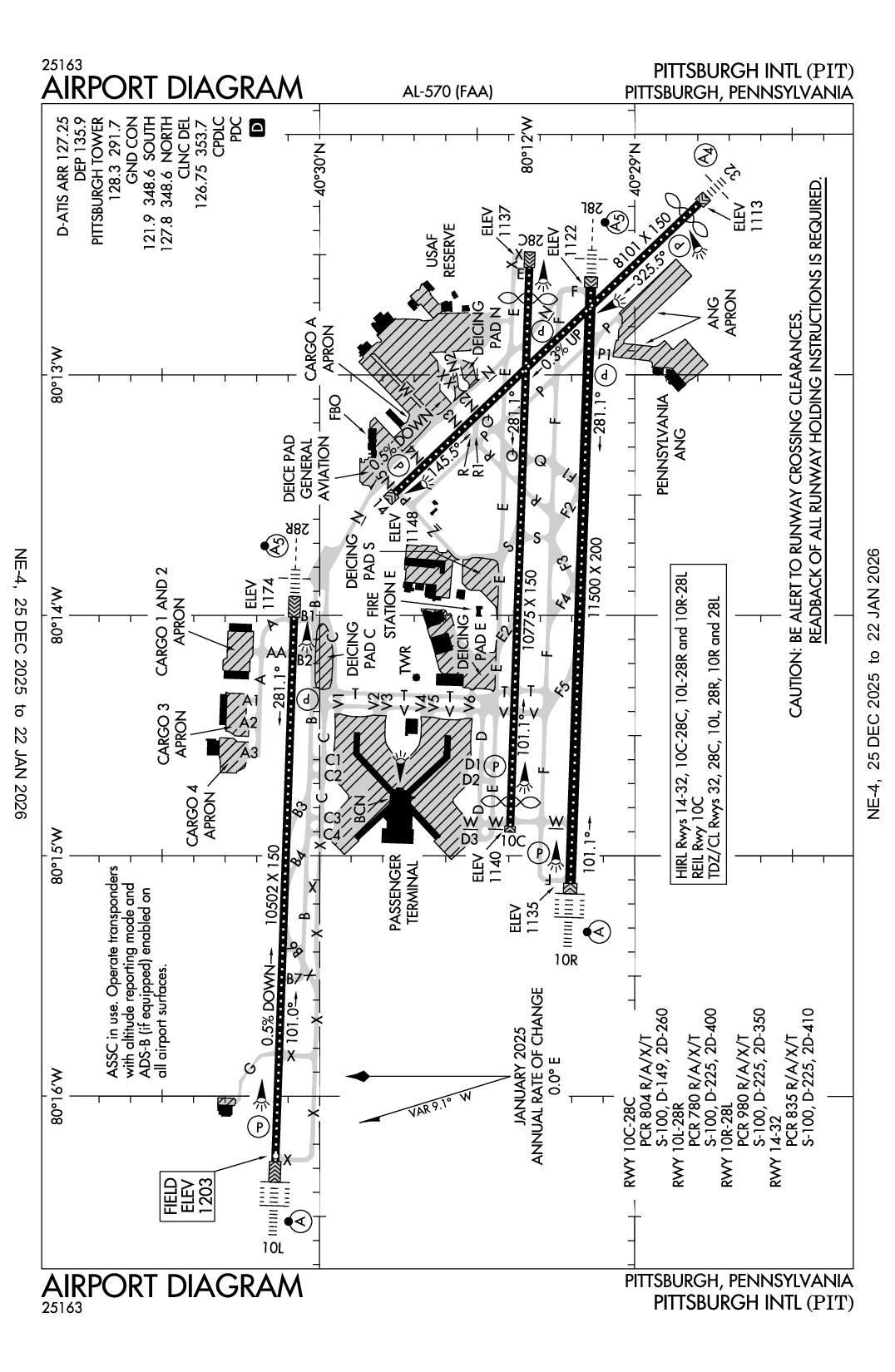

PITTSBURGH INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPIT
PITTSBURGH INTL
PublicPUB

12 miles NW of PITTSBURGH, PA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 29' 29"N 80° 13' 58"W
1203' MSL
2203' MSL
09W
JET A, 100LL
ALTOONA (AOO)
DETROIT
CLEVELAND (ZOB)
2/20/25-3/20/25
KPIT VFR
9:51 AM EDT
Few 8,000'
10sm
38°F
23°F
30.00"Hg
250° 10kts
Gusts 16kts
AO2 SLP175 T00331050
KPIT 091351Z 25010G16KT 10SM FEW080 03/M05 A3000 RMK AO2 SLP175 T00331050
Add Your Business

KPIT FBOs

Promote Listing
Atlantic Aviation
UNICOM: 129.825
Phone: (412) 472-6700
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 2/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.89 7.12
Fuel Notes
Prices include tax

KPIT Aircraft Service & Maintenance

Promote Listing
NFF Aviation Services
Phone: (724) 378-9454
Fax: (724) 378-9461
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
ARR
 127.25
D-ATIS
DEP
 135.9

Approach

APCH/P
271-360
 121.25
APCH/P
001-090
 124.15
APCH/P
181-270
 133.7
APCH/P IC
091-180
 123.95

Departure

DEP/P
SOUTH
 119.35
DEP/P
NORTH
 124.75
DEP/S
 125.275

Clearance Delivery

CD PRE TAXI CLNC
 126.75

Emergency

EMERG
 121.5

Ground

GND/P
SOUTH
 121.9
GND/P
NORTH
 127.8

Tower

LCL/P
 128.3

Other

CLASS B
271-360
 121.25
CLASS B
091-180
 123.95
CLASS B
001-090
 124.15
CLASS B
181-270
 133.7
OPS
FM
 36.35

Terminal Area Forecast

KPIT
Sun, 3/9 7:20 AM EDT
Sun, 3/9 8:00 AM EDT - Mon, 3/10 2:00 PM EDT
VFR
8:00 AM EDT - 10:00 AM EDT
Sky Clear
6sm
230° 8kts
VFR
10:00 AM EDT - 6:00 PM EDT
Scattered 25,000'
6sm
260° 11kts
Gusts 17kts
VFR
6:00 PM EDT - 2:00 PM EDT
Sky Clear
6sm
250° 6kts
KPIT 091120Z 0912/1018 23008KT P6SM SKC
   FM091400 26011G17KT P6SM SCT250
   FM092200 25006KT P6SM SKC
KPIT
Domestic
3/9/250751Z !PIT 03/096 PIT OBST TOWER LGT (ASR 1025997) 402503.90N0802129.60W (7.3NM SW PIT) 1527.2FT (366.1FT AGL) U/S 2503090751-2506070400
3/8/251020Z !PIT 03/094 PIT OBST TOWER LGT (ASR 1060001) 403223.60N0801728.20W (3.9NM NW PIT) 1436.0FT (233.9FT AGL) U/S 2503081020-2506060500
3/6/252229Z !PIT 03/070 PIT RWY 32 ALS U/S 2503062229-2503282000
3/2/250137Z !PIT 03/012 PIT OBST TOWER LGT (ASR 1063830) 402014.00N0802105.00W (10.8NM SSW PIT) 1617.5FT (255.9FT AGL) U/S 2503020137-2503112359
2/28/251123Z !PIT 02/527 PIT TWY N5 HLDG PSN SIGN FOR APCH END RWY 14 LGT U/S 2502281123-2506302359
2/28/251119Z !PIT 02/526 PIT TWY N3 HLDG PSN SIGN LGT U/S 2502281119-2506302359
2/27/251725Z !PIT 02/507 PIT OBST TOWER LGT (ASR 1038499) 401937.60N0801244.40W (10.0NM S PIT) 1509.8FT (257.9FT AGL) U/S 2502271725-2505280500
2/19/252004Z !PIT 02/351 PIT NAV ILS RWY 10R U/S 2502192004-2503192000EST
2/13/251857Z !PIT 02/175 PIT RWY 28L ALS U/S 2502131857-2511272000EST
2/13/250419Z !PIT 02/159 PIT NAV ILS RWY 10R NOT MNT 2502130419-2504042000EST
2/13/250419Z !PIT 02/158 PIT NAV ILS RWY 10R CAT II/III NA 2502130419-2504042000EST
2/4/250046Z !PIT 02/049 PIT RWY 10R RWY EXIT SIGN AT TWY F1 LGT U/S 2502040046-2602052359
2/3/251455Z !PIT 02/046 PIT OBST TOWER LGT (ASR 1025948) 403232.00N0795920.00W (11.4NM ENE PIT) 1341.9FT (282.2FT AGL) U/S 2502031455-2504032359
1/30/252329Z !PIT 01/913 PIT RWY 10R SEQUENCED FLG LGT U/S 2501302329-2503252000EST
1/30/251842Z !PIT 01/911 PIT TWY E BTN TWY N AND APCH END RWY 28C WIP CONST ADJ NORTH SIDE TAX SPEED RESTRICTED 10MPH 2402221954 2501301842-2508312359EST
1/30/251840Z !PIT 01/910 PIT TWY A3 CLSD 2501301840-2506302359EST
1/30/251839Z !PIT 01/909 PIT TWY A BTN TWY A2 AND TWY A3 CLSD 2501301839-2506302359EST
1/30/251838Z !PIT 01/908 PIT APRON CARGO 4 APN CLSD 2501301838-2506302359EST
1/21/251010Z !PIT 01/763 PIT OBST TOWER LGT (ASR 1027461) 403527.00N0801731.00W (6.5NM NNW PIT) 1505.2FT (325.1FT AGL) U/S 2501211010-2504210500
FDC
1/16/251757Z !FDC 5/4236 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
RNAV (GPS) Y RWY 10C, AMDT 5...
DELETE NOTE: USE OF FD OR AP PROVIDING RNAV TRACK GUIDANCE REQUIRED
DURING SIMULTANEOUS OPERATIONS.
THIS IS RNAV (GPS) Y RWY 10C, AMDT 5A. 2501161757-PERM
12/26/241554Z !FDC 4/1214 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 10R, AMDT 11 ...
ILS RWY 10R (SA CAT I), AMDT 11 ...
ILS RWY 10R (CAT II AND III), AMDT 11 ...
MISSED APPROACH: CLIMB TO 1900 THEN CLIMBING RIGHT TURN TO 5000 DIRECT HLG VOR/DME AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE 2412261554-2503271552EST
11/1/241312Z !FDC 4/7842 PIT ODP PITTSBURGH INTL, PITTSBURGH, PA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5...
ADD TAKEOFF OBSTACLE NOTE: RWY 28R, TEMPORARY CRANE 518FT FROM DER, 553FT LEFT OF CENTERLINE, 30FT AGL/ 1219FT MSL (2019-AEA-1569-NRA). TEMPORARY CRANE 1067FT FROM DER, 652FT LEFT OF CENTERLINE, 30FT AGL/ 1235FT MSL (2019-AEA-1568-NRA). TEMPORARY CRANE 1653FT FROM DER, 711FT LEFT OF CENTERLINE, 30FT AGL/ 1245FT MSL (2019-AEA-1567-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2411011312-2503181312EST
8/15/241318Z !FDC 4/9589 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 28L, AMDT 11...
ILS OR LOC RWY 28R, AMDT 10A...
ILS RWY 28R (SA CAT I-II), AMDT 10A....
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE. 2408151318-2503271318EST
8/15/241318Z !FDC 4/9586 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 10L, AMDT 26...
ILS RWY 10L (CAT II-III), AMDT 26....
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE. 2408151318-2503271318EST
8/15/241318Z !FDC 4/9585 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 32, AMDT 14...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE. 2408151318-2503271318EST
Military
2/10/251851Z !KPIT M0001/25 PIT APRON US AIR FORCE RESERVE RAMP SOUTH ACCESS CLSD 2502101851-2509302359
Yes
ALL
ALLEGHENY CO ARPT AUTHORITY
PO BOX 12370, SUITE. 4000
PITTSBURGH, PA 15231-0370
Phone: 412-472-3500
CHRISTINA A. CASSOTIS
PO BOX 12370, SUITE 4000
PITTSBURGH, PA 15231-0370
Phone: (412) 472-3509
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
PIT
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Air Freight
Cargo Handling

Runway 10C/28C

10775 ft. x 150 ft.
ASPH CONC
Fair
GRVD
HIGH

100,000lbs
149,000lbs
260,000lbs
--
  Runway 10C Runway 28C
True Heading 92°272°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 29' 24"N 40° 29' 20"N
Longitude 80° 14' 53"W 80° 12' 33"W
Elevation 1,140' 1,137'
Threshold Crossing Height 50 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 10L/28R

10502 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

100,000lbs
225,000lbs
400,000lbs
--
  Runway 10L Runway 28R
True Heading 92°272°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 30' 08"N 40° 30' 05"N
Longitude 80° 16' 16"W 80° 14' 00"W
Elevation 1,203' 1,174'
Threshold Crossing Height 83 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 10R/28L

11500 ft. x 200 ft.
CONC
Good
GRVD
HIGH

100,000lbs
225,000lbs
350,000lbs
--
  Runway 10R Runway 28L
True Heading 92°272°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 29' 12"N 40° 29' 08"N
Longitude 80° 15' 07"W 80° 12' 38"W
Elevation 1,135' 1,122'
Threshold Crossing Height 71 ft. AGL 70 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 14/32

8101 ft. x 150 ft.
CONC
Good
GRVD
HIGH

100,000lbs
225,000lbs
410,000lbs
--
  Runway 14 Runway 32
True Heading 136°316°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 29' 46"N 40° 28' 48"N
Longitude 80° 13' 30"W 80° 12' 17"W
Elevation 1,148' 1,113'
Threshold Crossing Height 67 ft. AGL 72 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-1DEER & BIRDS ON & INVOF ARPT.
A110-10ATCT IS AUTHORIZED TO HAVE ACFT LINE-UP & WAIT ON RYS 28L AT TWY 'P' DURG HRS OF DARKNESS. THE SPECIFIC RY SHALL BE USED ONLY FOR DEPARTURES & THE INTXN MUST BE VSB FM ATCT.
A110-17SERVICE-JASU: (ANG) (A/M32A-86) (AM 32-95; (AFRC - 2(A/M32-86 (AM32-95).
A110-18SERVICE-FLUID: LPOX LHNIT.
A110-19SERVICE-OIL: O-156.
A110-20SERVICE-TRAN ALERT: NO PRIORITY BASIS.
A110-24ANG: OPR 1130-2030Z++MON-FRI EXCP HOL. (CLSD EV OTH MON). NO TRAN DE-ICE CAPABILITY ON ANG RAMP.
A110-27TWY G INTXN AT RY 10L/28R RIGHT TURN NA.
A110-28FUEL: A++ PROVIDED BY ANG AND AFRC.(MIL).
A110-3ACFT USING TWY 'N' PROHIBITED TO STOP ON OVERPASS AREA DUE TO POSSIBLE EMERGENCY EVACUATION HAZARD.
A110-30PPR/OFFL BUS MIN 48 HR CTC AFLD MGMT DSN 277 8163, C412 474 8163. LTD TRAN SVC. AFLD MGT NML DUTY HRS 1300 0100++ MON, WED, FRI, 1300-0500++ TUE, THU, EXC HOL. UNIT TRAINING ASSEMBLY 1300 2100Z++SAT. TRAN ACFT MUST HAVE APPVL OF 911OG/CC FOR PPR DUR OFF DUTY HR. NO SVC AVBL FOR SPACE AVBL PAX DUR OFF DUTY HR. CALL PITT COMD POST (IRON CITY) BY RDO 15 MIN PRIOR TO ARRIVAL. ALFD MGMT DOES NOT ISSUE OR STOR COMSEC. COMSEC STOR CTC COMD POST DSN 277 8146.
A110-31TWY AA NO TURN-OFF ONTO TWY A FOR ACFT WINGSPAN 171 FT OR GREATER EXC PPR (412) 472-5630.
A110-33[MILITARY]: CAUTION: BASH PHASE II OPS IN EFFECT 1 JUL - 31 AUG ANNUALLY. UNLESS MSN REQUIREMENTS DIRECT OTHERWISE, FLIGHTS SHOULD NOT BE SKED WITHIN +/-1HR OF SS/SR. TRAN AIRCREW SHOULD REQ BIRD WATCH COND FR AFRC (PITT OPS) ON 252.1 OR ANG OPS (STEEL CTL) ON 311.0. AIRCREW WILL BE INFORMED BY STEEL CONTROL OR PITT OPS (AS APPLICABLE) IF CURRENT BWC IS OTHER THAN LOW REGARDLESS OF BASH PHASE.
A110-34TRML APN UNCONTROLLED. PUSHBACK PILOT DESCRETION. DO NOT EXIT TRML APN AT TWY C1, C4, V3, V4, D1, W. CTC GC WHEN HLDG AT TWY C2, C3, V1, V2, V5, V6, D2, D3.
A110-35LDG FEE.
A110-36PUSHBACK CLNC REQUIRED FR GATES A100 AND A101 AT CARGO A. CTC GC. PUSHBACK FM THESE GATES ENTERS TWY N.
A110-4ANG ACFT MUST CTC TANKER 303.0/FTR OPNS 293.7 BEFORE CROSSING RWY 28L TO OBTAIN CLNC TO ENTER.
A110-5TERML TAXILANES E OF CONCOURSES A & B RESTRD TO GROUP 3 ACFT & SMALLER.
PITTSBURGH INTL (ICAO: KPIT, IATA: PIT) is a public airport located in PITTSBURGH, PA.
