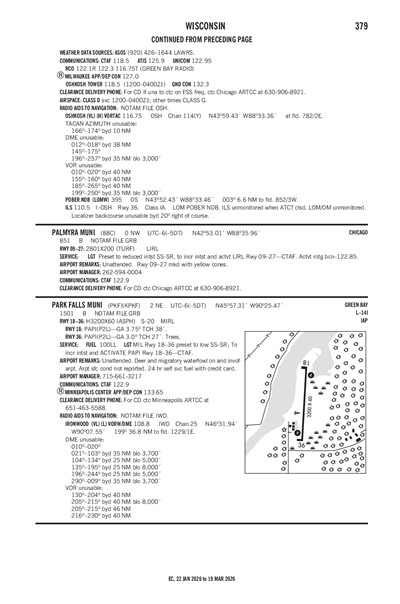

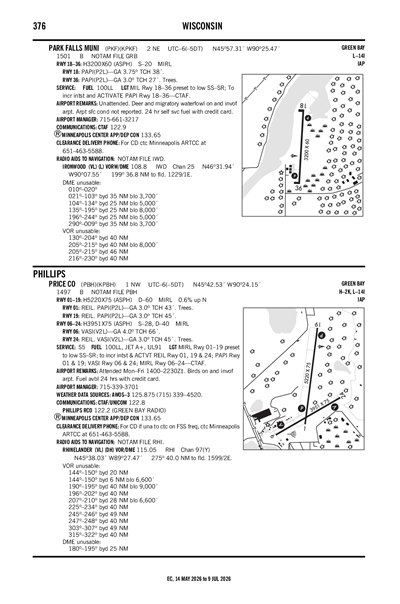

PARK FALLS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPKF
PARK FALLS MUNI
PublicPUB

2 miles NE of PARK FALLS, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 57' 18"N 90° 25' 28"W
1501' MSL
2501' MSL
01W
100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KPBH (15nm) VFR
6:55 PM CDT
Clear
10sm
73°F
57°F
29.70"Hg
210° 9kts
Gusts 14kts
AO2 T02250141 10242 20207
KPBH 122355Z AUTO 21009G14KT 10SM CLR 23/14 A2970 RMK AO2 T02250141 10242 20207
Add Your Business

KPKF FBOs

Promote Listing
Park Falls Municipal Airport
Phone: (715) 762-3971
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.98
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIWD (37nm)
Wed, 6/12 6:22 PM CDT
Wed, 6/12 7:00 PM CDT - Thu, 6/13 7:00 PM CDT
VFR
7:00 PM CDT - 12:00 AM CDT
Thunderstorm in vicinity
Broken 10,000'
6sm
220° 11kts
Gusts 25kts
Shear 230° 40kts @ 2000'
MVFR
Temporary 8:00 PM CDT - 11:00 PM CDT
Heavy Thunderstorm and Rain and Mist
Overcast 4,000'
4sm
VRB° 20kts
Gusts 40kts
VFR
12:00 AM CDT - 6:00 AM CDT
Scattered 6,000'
6sm
200° 9kts
VFR
6:00 AM CDT - 10:00 AM CDT
Few 7,000'
6sm
250° 8kts
VFR
10:00 AM CDT - 7:00 PM CDT
Few 18,000'
6sm
280° 12kts
Gusts 28kts
KIWD 122322Z 1300/1324 22011G25KT P6SM VCTS BKN100CB WS020/23040KT
   TEMPO 1301/1304 VRB20G40KT 4SM +TSRA BR OVC040CB
   FM130500 20009KT P6SM SCT060
   FM131100 25008KT P6SM FEW070
   FM131500 28012G28KT P6SM FEW180
KPKF
Domestic
6/10/242051Z !GRB 06/186 PKF OBST TOWER LGT (ASR 1204307) 455256.20N0902615.80W (4.4NM S PKF) 2005.2FT (493.1FT AGL) U/S 2406102051-2410082051
6/7/240716Z !GRB 06/119 PKF OBST TOWER LGT (ASN 2022-AGL-21263-OE) 455053N0904132W (12.9NM WSW PKF) 1712FT (280FT AGL) U/S 2406070716-2407220715
6/7/240510Z !GRB 06/118 PKF OBST TOWER LGT (ASR 1290971) 455255.60N0905206.00W (19.0NM WSW PKF) 1709.6FT (254.9FT AGL) U/S 2406070510-2406220410
6/5/241704Z !GRB 06/074 PKF OBST TOWER LGT (ASR 1035226) 455642.50N0901622.50W (6.3NM E PKF) 3048.9FT (1499.0FT AGL) U/S 2406051704-2409052359
FDC
8/15/231145Z !FDC 3/4462 PKF IAP PARK FALLS MUNI, PARK FALLS, WI.
RNAV (GPS) RWY 18, ORIG-C...
NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI ANGLE 3.75/TCH 38).
2308151145-2508151145EST
No
UNATNDD
CITY OF PARK FALLS
CITY HALL 400 4TH AVE SOUTH
PARK FALLS, WI 54552
Phone: 715-762-2436
MICHAEL DURMEYER
400 FOURTH AVENUE SOUTH
PARK FALLS, WI 54552
Phone: 715-661-3217
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
MIRL RWY 18/36 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT PAPI RWYS 18 & 36 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
3
0
0
0
0
0
None
None
None
None
None

Runway 18/36

3200 ft. x 60 ft.
ASPH
Good
NONE
MED

20,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 183°3°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 45° 57' 34"N 45° 57' 03"N
Longitude 90° 25' 27"W 90° 25' 29"W
Elevation 1,494' 1,501'
Threshold Crossing Height 38 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3.75° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1ARPT SFC COND NOT REPORTED.
A110-2DEER & MIGRATORY WATERFOWL ON & INVOF ARPT.
A110-3FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
PARK FALLS MUNI (ICAO: KPKF, IATA: PKF) is a public airport located in PARK FALLS, WI.
