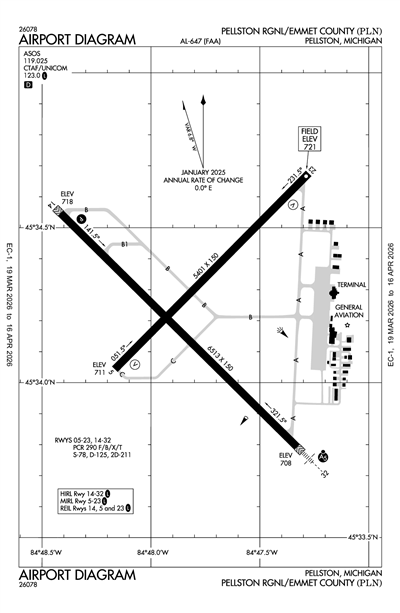

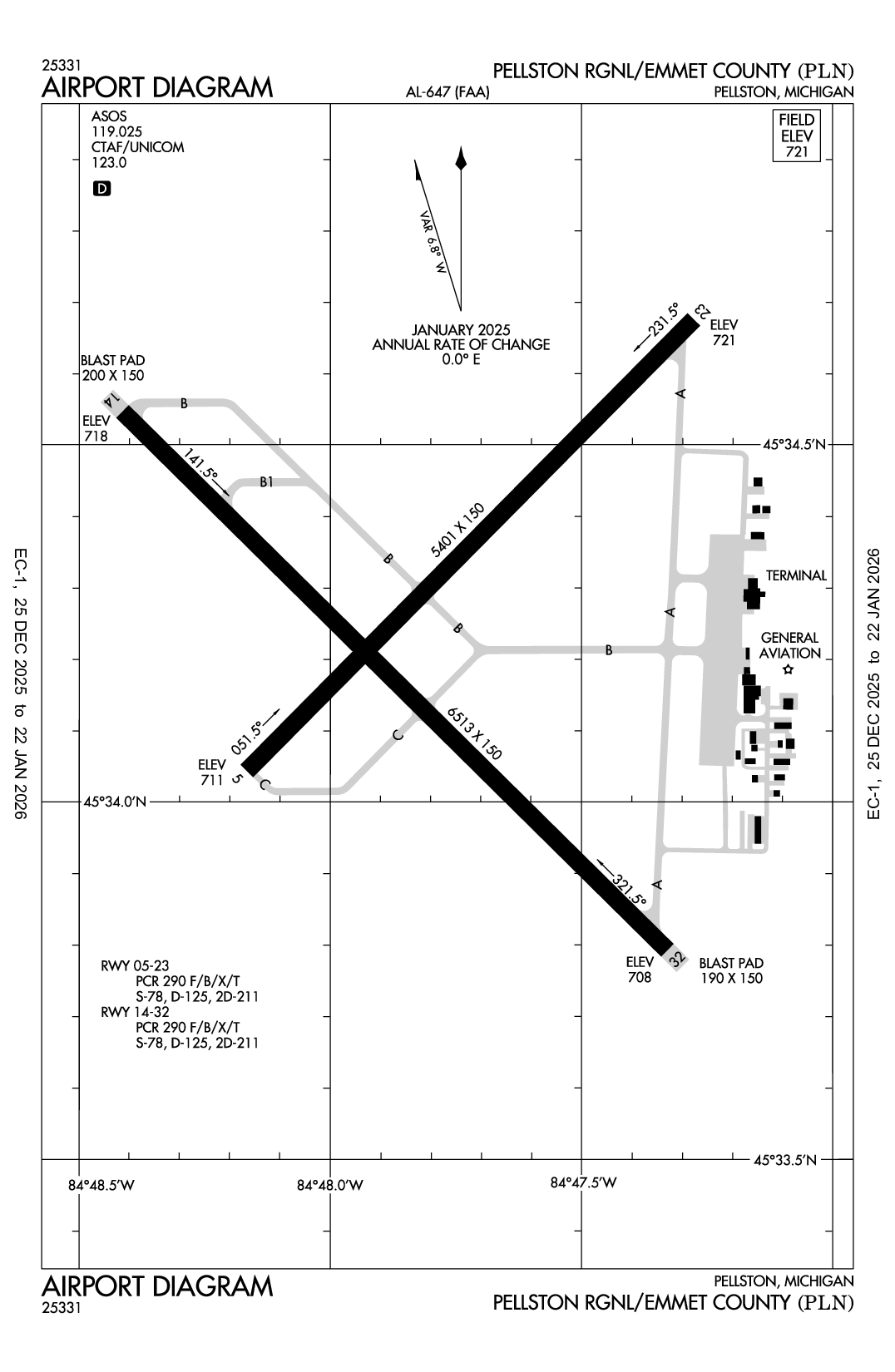

PELLSTON RGNL/EMMET COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPLN
PELLSTON RGNL/EMMET COUNTY
PublicPUB

1 miles NW of PELLSTON, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 34' 15"N 84° 47' 48"W
721' MSL
1721' MSL
06W
JET A, 100LL
LANSING (LAN)
LAKE HURON
MINNEAPOLIS (ZMP)
11/28/24-12/26/24
KPLN IFR
7:30 AM EST
Light Snow and Mist
Overcast 1,500'
1.25sm
26°F
23°F
30.10"Hg
150° 6kts
AO2 P0000 T10331050
KPLN 231230Z AUTO 15006KT 1 1/4SM -SN BR OVC015 M03/M05 A3010 RMK AO2 P0000 T10331050
Add Your Business

KPLN FBOs

Promote Listing
Pellston Regional Airport
UNICOM: 123.0
Phone: (231) 539-8442
Other: (231) 539-8441
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.20 6.23
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
231-539-7700
 119.025

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPLN
Mon, 12/23 6:33 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
MVFR
7:00 AM EST - 1:00 PM EST
Showers in vicinity
Overcast 3,500'
Broken 2,500'
6sm
160° 9kts
IFR
Temporary 7:00 AM EST - 9:00 AM EST
Light Snow and Mist
Broken 1,500'
Scattered 800'
1sm
Calm
MVFR
1:00 PM EST - 7:00 PM EST
Light Snow and Mist
Overcast 1,500'
Scattered 800'
3sm
160° 8kts
MVFR
7:00 PM EST - 7:00 AM EST
Showers in vicinity
Overcast 2,500'
6sm
300° 4kts
KPLN 231133Z 2312/2412 16009KT P6SM VCSH BKN025 OVC035
   TEMPO 2312/2314 1SM -SN BR SCT008 BKN015
   FM231800 16008KT 3SM -SN BR SCT008 OVC015
   FM240000 30004KT P6SM VCSH OVC025
KPLN
Domestic
12/25/241700Z !PLN 12/500 PLN AD AP NOT ATTENDED EXC 2HR PPR 231-539-8442 OPTION 1 2412251700-2412260330
12/25/241700Z !PLN 12/499 PLN AD AP SFC COND NOT REP 2412251700-2412261030
12/23/241218Z !PLN 12/591 PLN AD AP DEICING EQPT NOT AVBL 2412231218-2501011500EST
12/23/241217Z !PLN 12/590 PLN TWY C BTN APCH END RWY 05 AND RWY 14/32 CLSD 2412231217-2412241215
12/23/241216Z !PLN 12/589 PLN TWY A BTN TWY B AND APCH END RWY 23 CLSD 2412231216-2412241215
12/23/241214Z !PLN 12/587 PLN RWY 05 CLSD 2412231214-2412241214
12/22/241839Z !PLN 12/585 PLN RWY 32 FICON DRY 120FT WID REMAINDER 1/8IN DRY SN OBS AT 2412221839. 2412221839-2412231839
12/22/241839Z !PLN 12/583 PLN APRON MAIN RAMP FICON COMPACTED SN OBS AT 2412221839. 2412221839-2412231839
12/20/240518Z !PLN 12/520 PLN OBST TOWER LGT (ASN 2024-AGL-4589-OE) 453828N0844110W (6.3NM NE PLN) 1001FT (260FT AGL) U/S 2412200518-2502030517
11/20/241659Z !PLN 11/064 PLN TWY B1 CLSD 2411201659-2504151659
FDC
12/26/240905Z !FDC 4/9266 PLN IAP PELLSTON RGNL/EMMET COUNTY, PELLSTON, MI.
RNAV (GPS) RWY 5, AMDT 1...
PROCEDURE NA.
2412260905-2508011217EST
No
0600-2300
EMMET COUNTY
1395 N US HIGHWAY 31
PELLSTON, MI 49769-9307
Phone: 231-539-8441
RYAN BACHELOR
1395 N US HIGHWAY 31
PELLSTON, MI 49769-9307
Phone: 231-539-8442
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
PLN
--
ACTVT MALSR RWY 32; REIL RWY 14, 05, & 23; PAPI RWY 14; HIRL RWY 14/32; MIRL RWY 05/23 - CTAF. VASI RWY 05 & 23 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Charter Service

Runway 05/23

5401 ft. x 150 ft.
ASPH
Good
GRVD
MED
25 /F/B/X/U
76,000lbs
115,000lbs
215,000lbs
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 34' 03"N 45° 34' 41"N
Longitude 84° 48' 10"W 84° 47' 17"W
Elevation 711' 720'
Threshold Crossing Height 48 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4R V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 14/32

6513 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
25 /F/B/X/U
76,000lbs
115,000lbs
215,000lbs
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 45° 34' 33"N 45° 33' 48"N
Longitude 84° 48' 25"W 84° 47' 20"W
Elevation 718' 708'
Threshold Crossing Height 49 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1DEER & GULLS OCNLY ON & INVOF ARPT.
A110-2BE ALERT FOR SNOW REMOVAL EQUIP & ACTIVITY ON & INVOF RYS DURG WINTER MONTHS.
A110-4TWY B1 & E1 CLSD 1 NOV THRU 15 APR..
A110-5SFC CONDS UNMON 2300-0530 DLY.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
PELLSTON RGNL/EMMET COUNTY (ICAO: KPLN, IATA: PLN) is a public airport located in PELLSTON, MI.
