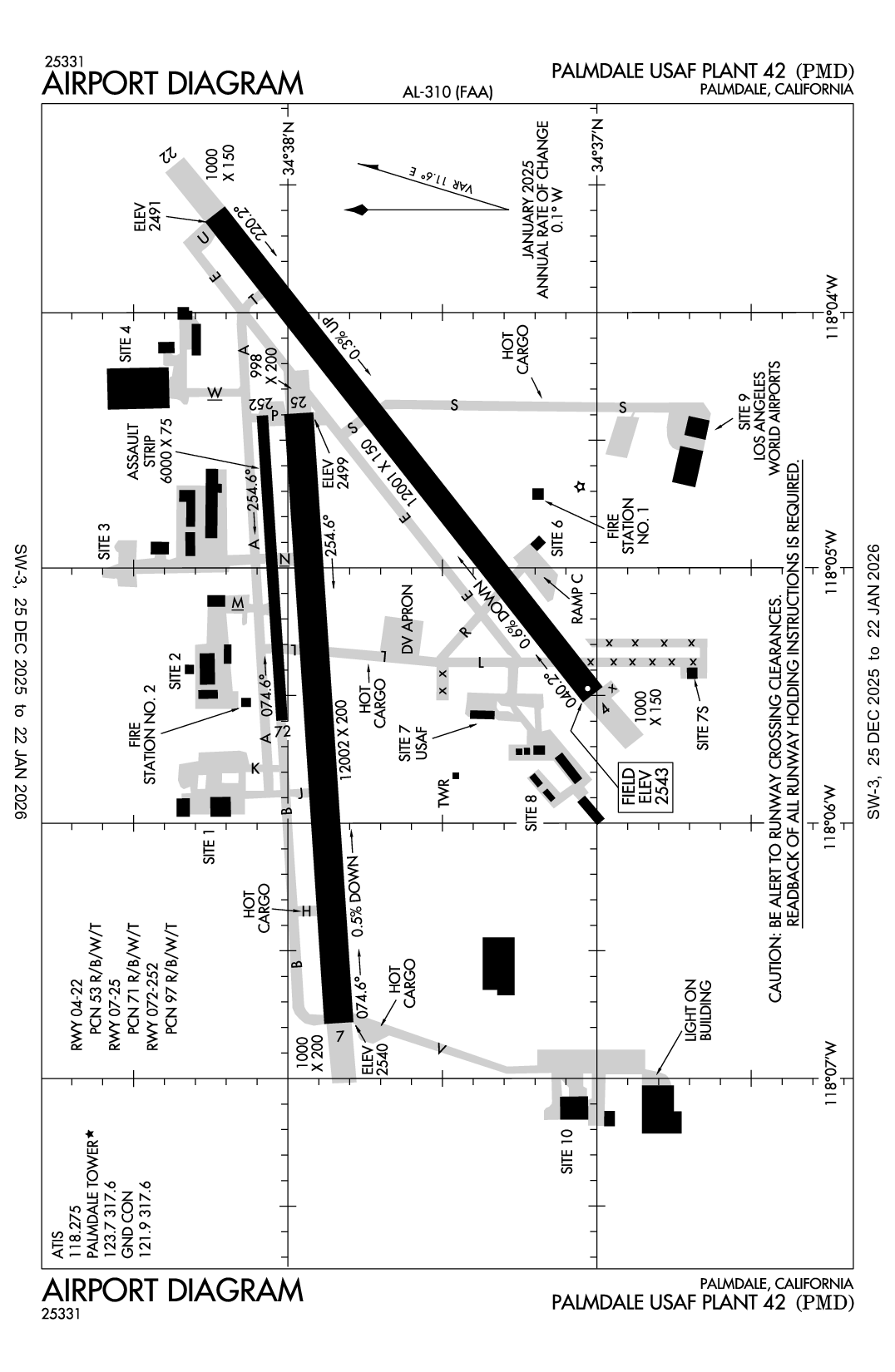

PALMDALE USAF PLANT 42 - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPMD
PALMDALE USAF PLANT 42
PublicPUB

3 miles NE of PALMDALE, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 37' 46"N 118° 05' 04"W
2542' MSL
3542' MSL
12E
None Listed
RIVERSIDE (RAL)
LOS ANGELES
LOS ANGELES (ZLA)
11/28/24-12/26/24
KPMD VFR
3:53 AM PST
Clear
10sm
48°F
36°F
30.16"Hg
Calm
AO2 SLP203 T00890022 10144 20083 53002 $
KPMD 231153Z AUTO 00000KT 10SM CLR 09/02 A3016 RMK AO2 SLP203 T00890022 10144 20083 53002 $
Add Your Business

KPMD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.7

ATIS

ATIS
 118.275

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 123.7

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPMD
Mon, 12/23 3:59 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
VFR
4:00 AM PST - 1:00 PM PST
Broken 20,000'
6sm
VRB° 5kts
VFR
1:00 PM PST - 4:00 AM PST
Broken 25,000'
6sm
280° 10kts
KPMD 231159Z 2312/2412 VRB05KT P6SM BKN200
   FM232100 28010KT P6SM BKN250
KPMD
Domestic
12/8/242217Z !PMD 12/003 PMD OBST POWER LINE LGT (ASN 2010-AWP-4478-OE) 343350N1181122W (6.4NM SW PMD) 3459FT (114FT AGL) U/S 2412082217-2412232217
11/25/242106Z !PMD 11/005 PMD OBST WIND TURBINE (ASN UNKNOWN) 343318N1180701W (5NM SSW PMD) 3112FT (292FT AGL) NOT LGTD 2411252106-2511302359
4/9/241430Z !PMD 04/006 PMD OBST WIND TURBINE LGT (ASN 2002-AWP-3506-OE) 343319N1180701W (4.7NM SSW PMD) 3112FT (292FT AGL) U/S 2404091430-2501312359
2/13/221947Z !PMD 02/008 PMD OBST TOWER LGT (ASR 1014645) 343954.30N1180046.10W (4.1NM ENE PMD) 2667.3FT (206.7FT AGL) U/S 2202131947-2412312359
FDC
11/19/241513Z !FDC 4/5951 PMD IAP U.S. DOD PALMDALE USAF PLANT 42, PALMDALE, CA.
HI - TACAN RWY 25, AMDT 3...
S-25 CAT C/D/E MDA 2980/HAT 477, VIS CAT C/D/E 1 1/4. TEMPORARY CRANES 2815 MSL BEGINNING 2975FT N OF RWY 25 (2024-AWP-10707 THRU 10712-OE).
2411191513-2502041513EST
11/14/241518Z !FDC 4/4227 PMD IAP U.S. DOD PALMDALE USAF PLANT 42, PALMDALE, CA.
HI - ILS OR LOC/DME RWY 25, AMDT 6...
S-LOC 25 MDA CATS C/D/E 2920/HAT 417, VIS CATS C/D/E 1. TEMPORARY CRANES 2815 MSL BEGINNING 2975FT N OF RWY 25 (2024-AWP-10707 THRU 10712-OE).
2411141518-2502041518EST
11/14/241518Z !FDC 4/4221 PMD IAP PALMDALE USAF PLANT 42, PALMDALE, CA.
RNAV (GPS) RWY 22, ORIG...
LNAV MDA 2920/HAT 422 ALL CATS, VIS CAT C/D 1 1/2. CIRCLING CATS A/B MDA 3120/HAA 577. TEMPORARY CRANES 2815 MSL BEGINNING 4544FT NW OF RWY 22 (2024-AWP-10707 THRU 10712-OE).
2411141518-2502041518EST
11/14/241518Z !FDC 4/4214 PMD IAP PALMDALE USAF PLANT 42, PALMDALE, CA.
RNAV (GPS) RWY 25, AMDT 2...
LNAV/VNAV DA 2976/HAT 473 ALL CATS, VIS ALL CATS 1 1/4. LNAV MDA 3080/HAT 577 ALL CATS, VIS CAT C/D 1 1/4. CIRCLING CATS A/B MDA 3120/HAA 577. VDP 1.60NM TO RW25. TEMPORARY CRANES 2815 MSL BEGINNING 2975FT N OF RWY 25 (2024-AWP-10707 THRU 10712-OE).
2411141518-2502041518EST
11/14/241518Z !FDC 4/4210 PMD IAP PALMDALE USAF PLANT 42, PALMDALE, CA.
VOR OR TACAN RWY 25, AMDT 8...
S-25 MDA 2980/HAT 477 ALL CATS, VIS CATS C/D/E 1 1/4. CIRCLING CATS A/B MDA 31210/HAA 577. TEMPORARY CRANES 2815 MSL BEGINNING 5002FT NE OF PMD AIRPORT (2024-AWP-10707 THRU 10712-OE).
2411141518-2502041518EST
11/14/241518Z !FDC 4/4209 PMD IAP PALMDALE USAF PLANT 42, PALMDALE, CA.
RNAV (GPS) RWY 7, ORIG-A...
CIRCLING CATS A/B/C MDA 3120/HAA 577. TEMPORARY CRANES 2815 MSL BEGINNING 5002FT NE OF PMD AIRPORT (2024-AWP-10707 THRU 10712-OE).
2411141518-2502041518EST
11/14/241518Z !FDC 4/4208 PMD IAP PALMDALE USAF PLANT 42, PALMDALE, CA.
ILS OR LOC RWY 25, AMDT 10...
SKKEE FIX MINIMUMS (DME REQUIRED): S-LOC 25 MDA 2900/HAT 397 ALL CATS, VIS CATS C/D/E 1 1/4. TEMPORARY CRANES 2815 MSL BEGINNING 2975FT N OF RWY 25 (2024-AWP-10707 THRU 10712-OE).
2411141518-2502041518EST
10/25/241449Z !FDC 4/4417 PMD IAP PALMDALE USAF PLANT 42, PALMDALE, CA.
ILS OR LOC RWY 25, AMDT 10...
RADAR OR DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LHS VORTAC OUT OF SERVICE. 2410251449-2502261449EST
Military
12/22/241330Z AIRFIELD CLOSED IN OBSERVANCE OF HOLIDAY. CONTACT AIRFIELD OPERATIONS CHIEF (661) 878-3298 FOR MISSION ESSENTIAL DEPARTURE/ARRIVAL REQUESTS.
12/13/242353Z !KPMD M0357/24 PMD TWY R APCH AREA HLDG PSN SIGN SOUTH SIDE NOT LGTD 2412132353-2501312359
11/6/242105Z AERODROME PILOT CONTROLLED LIGHTING OUT OF SERVICE
Yes
1330-0600Z++
OTHER TIMES CLSD TO ALL TFC WITHOUT WRITTEN APVL.
USAF
2503 E AVE P
PALMDALE, CA 93550-2196
Phone: 661-275-9341
MATT FISHER
2503 E AVE P
PALMDALE, CA 93550-2196
Phone: 661-275-9342
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
PMD
--
ACTVT REIL RWY 04, 07, 22, 25; HIRL RWY 04/22 & 07/25 - CTAF. PAPI RWY 04, 07, 22, & 25 ON CONSLY.
N/A
Yes
Yes
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 04/22

12001 ft. x 150 ft.
CONC
Good
NONE
HIGH
53 /R/B/W/T
--
--
--
--
  Runway 04 Runway 22
True Heading 52°232°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 37' 01"N 34° 38' 14"N
Longitude 118° 05' 30"W 118° 03' 37"W
Elevation 2,542' 2,491'
Threshold Crossing Height 75 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 07/25

12002 ft. x 200 ft.
CONC
Good
NONE
HIGH
71 /R/B/W/T
--
--
--
--
  Runway 07 Runway 25
True Heading 86°266°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 34° 37' 50"N 34° 37' 58"N
Longitude 118° 06' 47"W 118° 04' 24"W
Elevation 2,540' 2,499'
Threshold Crossing Height 78 ft. AGL 76 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 072/252

6000 ft. x 75 ft.
CONC
Excellent
NONE

97 /R/B/W/T
--
--
--
--
  Runway 072 Runway 252
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1MISC: INDUS INSTLN - NO TRNSPN, LODGING OR NML SVC AVBL ON SITE.
A110-17UNLGT OBSTN SURROUND AFLD.
A110-18DRAINAGE DITCHES PARL RWY 22 FM TWY S TO TWY U.
A110-19BIRD HAZ POTENTIAL EXISTS. MIGRATORY SEASON PHASE II 1 OCT - 31 MAR. DURG BWC MODERATE, TKOF AND LNDG PERMITTED. DURG BWC SEVERE, TKOF AND LNDG PROHIBITED.
A110-21MILITARY USE: ASSAULT LDG ZONE LCTD 1ST 6,000 EAST END OF TWY B. RWY 252 MRK ONLY FOR C-130 ASSAULT OPR; ONE-WAY LDG ONLY.
A110-23MISC: WINDS ARE EST DUE TO FMQ-13 WIND SENSORS BEING ACCURATE TO WITHIN ONLY +/- 2 KT. ATC/WX WILL NOT INCL/RELAY WIND CORR INTO FCST/PHRASEOLOGY. THEREFORE, AIRCREWS WILL INCORPORATE A +/- 2 KT ACCURACY INTO THEIR DECISION MAKING PROCESS FOR FLYING OPR.
A110-28TRAN ALERT (1 OF 2): NO FLEET SVC AVBL. NO FLW ME SVC AVBL. EXP PROGRESSIVE TAXI TO PRK. AIRCREW RESPONSIBLE FOR ACFT PINNING/SAFING.
A110-29MISC: COMSEC STORAGE UNAVBL.
A110-3PRKG RAMP LCTD S OF RWY 22 & TWY V NOT VSB FM ATCT.
A110-31CAUTION: USE EXTREME CAUTION FOR UNMANNED AERIAL SYSTEMS (UAS) OPS IN VCNTY.
A110-32FUEL: A++ AVBL. NO TRANS ACFT FUEL SVC AVBL. LTD FUELING AVBL; GOVT ACFT ONLY 1600-2300Z++ MON-FRI. 24 HR PN WITH AFLD MGR RQR; NO SAME DAY REQ; GAS AND GO UNAVBL. EXPECT 2+ HR DELAY FOR FUEL.
A110-33RSTD - OFFL BUS ONLY. MIL ARPT. CIVIL USE RQR USAF APVL AND DD FORM 2400/01/02. PPR RQR FOR FULL STOP LDG ONLY. CALL C661-275-9342.
A110-34TRAN ALERT (2 OF 2): UNABLE TO SVC ACFT WITH ORDNANCE. LTD GRD SUPPORT EQUIPMENT AVBL. NO POTABLE WATER SVC. NO TRAN MAINT AVBL. GND SVC UNAVBL WHEN LIGHTNING WITHIN 5 NM.
A110-35MISC: FLT PLANS MUST BE FILED AND ACTIVATED WITH P42 AFLD MGMT. USE FLT SVC WHEN P42 AFLD MGMT CLSD.
A110-38CAUTION: VARIOUS ACFT TEST OPS MARKINGS PAINTED IN WHITE ON TAXIWAY UNIFORM.
A110-39CAUTION: RWY 25 NSTD MRK: SPOT LDG ZONE MRK LCTD AT 6000 FT REMAINING MRK. RWY 07-25 DECEPTIVE SFC MRK EXCEED STANDARD BY APPROX 50 FT.
A110-40RSTD: OVERNIGHT PRK UNAUTHD ON C-RAMP.
A110-41RSTD: TWY L BTN RWY 04/22 AND PAX TRML UNLGTD AND USABLE FOR DAYLT VFR ONLY.
A110-42ALL DEPT ACFT MUST FILE FPL WITH P42 AFLD MGMT OPS.
A110-44SERVICE-JASU: POWER CARS UNAVBL.
A110-45MISC: BASE OPS OPR 1330-0600Z++, CLSD FEDERAL HOL.
A110-47CAUTION: CONTRACTOR LEASED SITES ARE INTENDED FOR ACFT BASED THEREIN; ENTRY GATES AND APRONS MAY NOT MEET AF OBST STDS.
A110-48CAUTION: CIV ACFT MAY NOT BE GRANTED ACCESS TO KPMD CLASS D FOR PRACTICE APCH OR TRSN OVER ARPT BDRYS.
PALMDALE USAF PLANT 42 (ICAO: KPMD, IATA: PMD) is a public airport located in PALMDALE, CA.
