iFlightPlanner



...

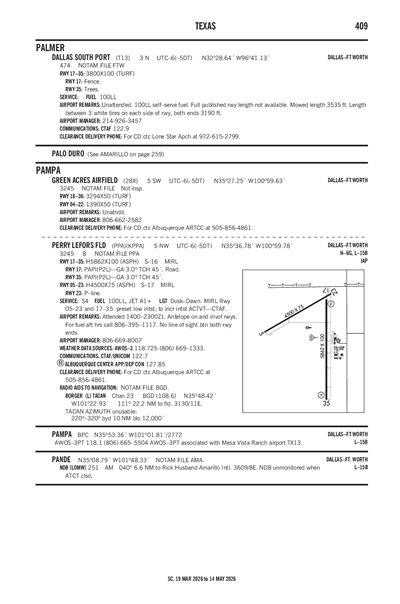

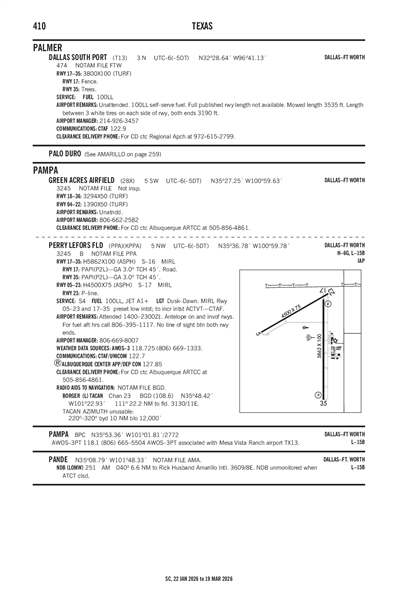

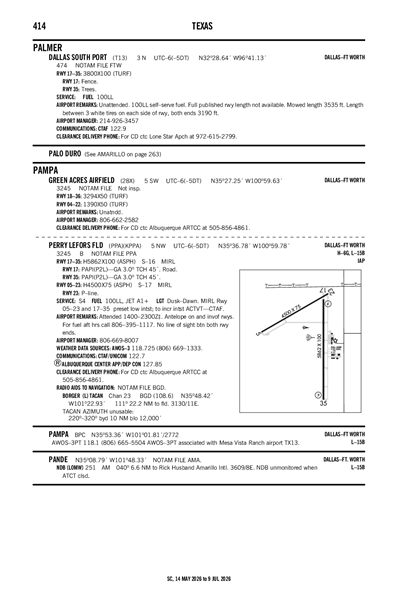

PERRY LEFORS FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPPA
PERRY LEFORS FLD
PublicPUB

5 miles NW of PAMPA, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 36' 47"N 100° 59' 47"W
3245' MSL
4245' MSL
06E
JET A-1+, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
ALBUQUERQUE (ZAB)
11/28/24-12/26/24
KPPA MVFR
5:55 AM CST
Mist
Clear
4sm
35°F
35°F
29.95"Hg
Calm
AO2 T00190018 10069 20016
KPPA 231155Z AUTO 00000KT 4SM BR CLR 02/02 A2995 RMK AO2 T00190018 10069 20016
Add Your Business

KPPA FBOs

Promote Listing
Pampa Aircraft
UNICOM: 122.7
Phone: (806) 665-1881
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.25 4.30
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
806-669-1333
 118.725

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAMA (42nm)
Mon, 12/23 5:20 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 1:00 PM CST
Few 24,000'
6sm
320° 6kts
VFR
1:00 PM CST - 6:00 PM CST
Scattered 23,000'
6sm
360° 11kts
MVFR
6:00 PM CST - 5:00 AM CST
Broken 1,700'
6sm
020° 9kts
VFR
5:00 AM CST - 6:00 AM CST
Scattered 3,500'
6sm
340° 7kts
KAMA 231120Z 2312/2412 32006KT P6SM FEW240
   FM231900 36011KT P6SM SCT230
   FM240000 02009KT P6SM BKN017
   FM241100 34007KT P6SM SCT035
KPPA
Domestic
12/22/240252Z !PPA 12/003 PPA OBST TOWER LGT (ASN 2020-ASW-4230-OE) 352639N1004802W (13.9NM SE PPA) 3177FT (265FT AGL) U/S 2412220252-2502050251
12/12/240501Z !PPA 12/002 PPA OBST TOWER LGT (ASR 1252776) 353415.60N1011049.50W (9.4NM WSW PPA) 3576.4FT (331.7FT AGL) U/S 2412120501-2504110501
12/10/241417Z !PPA 12/001 PPA OBST TOWER LGT (ASR 1202108) 353439.20N1005709.50W (3.0NM SE PPA) 3510.2FT (299.9FT AGL) U/S 2412101417-2503102359
11/25/241548Z !PPA 11/004 PPA OBST TOWER LGT (ASR 1262837) 353338.80N1010727.40W (7.0NM WSW PPA) 3511.8FT (252.0FT AGL) U/S 2411251548-2503152359
9/26/241223Z !PPA 09/004 PPA OBST TOWER LGT (ASN 2021-ASW-14745-OE) 352948N1005717W (7.3NM SSE PPA) 3603FT (343FT AGL) U/S 2409261223-2412252359
8/19/241200Z !PPA 08/002 PPA AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 352901N1010247W (2.5NM NW 28X) SFC-200FT AGL 2408191200-2412302359
No
0800-1700
GRAY COUNTY
GRAY CO COURTHOUSE
PAMPA, TX 79065
Phone: 806-669-8007
CHRIS PORTER
205 N. RUSSELL
PAMPA, TX 79065
Phone: (806) 669-8007
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
PPA
--
DUSK-DAWN. MIRL RWYS 05/23 & 17/35 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction

Runway 05/23

4500 ft. x 75 ft.
ASPH
Good
NONE
MED

17,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 60°240°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 36' 48"N 35° 37' 10"N
Longitude 101° 00' 22"W 100° 59' 34"W
Elevation 3,242' 3,238'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5862 ft. x 100 ft.
ASPH
Good
NONE
MED

16,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 37' 07"N 35° 36' 09"N
Longitude 100° 59' 38"W 100° 59' 38"W
Elevation 3,239' 3,241'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1ANTELOPE ON & INVOF RWY.
A110-2NO LINE OF SIGHT BTN BOTH RWY ENDS.
A110-3FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
PERRY LEFORS FLD (ICAO: KPPA, IATA: PPA) is a public airport located in PAMPA, TX.
