KRAW
WARSAW MUNI
Public
PUB
6 miles N of WARSAW, MO
View on
Map
Status
Operational
Coordinates
38° 20' 52"N
93° 20' 43"W
Elevation
936' MSL
Pattern Alt
1936' MSL
Mag Variation
01E
Fuel
100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
11/28/24-12/26/24
KRAW
VFR
6:15 AM CST
RAW
Overcast 6,000'
Broken 4,800'
Broken 3,700'
Viz
10sm
Temp
43°F
Dew
30°F
Pres
30.09"Hg
Wind
200° 8kts
RMK
AO2
KRAW 231215Z AUTO 20008KT 10SM BKN037 BKN048 OVC060 06/M01 A3009 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KRAW FBOs
Promote Listing
Warsaw Municipal Airport
Phone: (660) 438-5522
Other: (660) 723-1944
0 Reviews
(
Read
|
Sign In To Write
)
Phillips 66
As of
12/16
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
4.85
Full Serve
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
AWOS-3PT
AWOS-3PT
660-547-3761
118.325

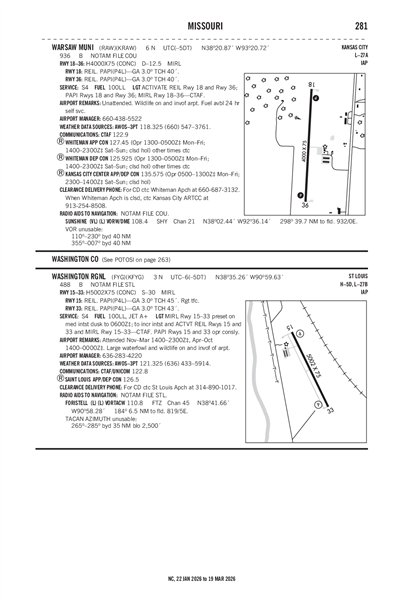

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 18
RNAV (GPS) RWY 36
Terminal Area Forecast
KSZL (25nm)
RAW
Reported
Mon, 12/23 5:30 AM CST
Valid
Mon, 12/23 5:00 AM CST - Tue, 12/24 11:00 AM CST
MVFR
5:00 AM CST - 10:00 AM CST
Broken 3,000'
Viz
6sm
Pres
30.03"Hg
Wind
210° 12kts
MVFR
Becoming
10:00 AM CST - 3:00 PM CST
Overcast 2,000'
Viz
6sm
Pres
30.09"Hg
Wind
220° 10kts
Gusts 15kts
Icing
Light, In Cloud (Rime): 16,000-20,000'
MVFR
Becoming
3:00 PM CST - 9:00 PM CST
Overcast 1,500'
Viz
6sm
Pres
30.12"Hg
Wind
240° 9kts
Icing
Light, In Cloud (Rime): 12,000-20,000'
VFR
Becoming
9:00 PM CST - 12:00 AM CST
Broken 14,000'
Scattered 2,000'
Viz
6sm
Pres
30.18"Hg
Wind
VRB° 6kts
Icing
Light, In Cloud (Rime): 14,000-17,000'
VFR
Becoming
12:00 AM CST - 11:00 AM CST
Scattered 14,000'
Viz
6sm
Pres
30.21"Hg
Wind
030° 6kts
IFR
Temporary
5:00 AM CST - 9:00 AM CST
Mist
Overcast 700'
Viz
2.49sm
Wind
040° 6kts
TAF AMD KSZL 231130Z 2311/2417 21012KT 9999 BKN030 QNH3004INS
BECMG 2316/2317 22010G15KT 9999 OVC020 621604 QNH3008INS
BECMG 2321/2322 24009KT 9999 OVC015 621208 QNH3011INS
BECMG 2403/2404 VRB06KT 9999 SCT020 BKN140 621403 QNH3019INS
BECMG 2406/2407 03006KT 9999 SCT140 QNH3022INS
TEMPO 2411/2415 04006KT 4000 BR OVC007 TX11/2321Z TN03/2411Z
KRAW
Domestic
10/30/24
0445Z
!COU 10/455 RAW OBST TOWER LGT (ASR 1259710) 381524.00N0931734.00W (6.0NM SSE RAW) 1121.4FT (259.8FT AGL) U/S 2410300445-2412292359
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF WARSAW
P.O. BOX 68, 181 W. HARRISON
WARSAW, MO 65355
Phone: 660-438-5522
Manager
RANDY POGUE
P.O. BOX 68, 181 W. HARRISON
WARSAW, MO 65355
Phone: 660-438-5522
FSS
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
NOTAM
COU
Light Schedule
--
Lights
ACTVT REIL RWYS 18 & 36; PAPI RWYS 18 & 36; MIRL RWYS 18 & 36 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Avionics
Pilot Instruction
Aircraft Rental
Annual Surveying
Runway 18/36
Dimensions
4000 ft. x 75 ft.
Surface Type
CONC
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
12,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
183°
3°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
38° 21' 12"N
38° 20' 33"N
Longitude
93° 20' 42"W
93° 20' 45"W
Elevation
933'
928'
Threshold Crossing Height
40 ft. AGL
40 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
WILDLIFE ON & INVOF ARPT.
A110-2
FOR CD CTC WHITEMAN APCH AT 660-687-3132. WHEN WHITEMAN APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.
WARSAW MUNI (ICAO: KRAW, IATA: RAW) is a public airport located in WARSAW, MO.
