KRCM
SKYHAVEN
PublicPUB

3 miles NW of WARRENSBURG, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 47' 03"N 93° 48' 10"W
798' MSL
1798' MSL
01E
JET A, 100LL
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
5/16/24-6/13/24
KSZL (12nm) MVFR
9:56 PM CDT
Rain
Overcast 2,100'
Broken 1,500'
Broken 1,000'
10sm
65°F
63°F
29.94"Hg
040° 7kts
AO2A DZE06RAB06E10DZB10E14RAB14 CIG 010V012 SLP137 P0003 60025 T01840172 55008 $
KSZL 010256Z 04007KT 10SM RA BKN010 BKN015 OVC021 18/17 A2994 RMK AO2A DZE06RAB06E10DZB10E14RAB14 CIG 010V012 SLP137 P0003 60025 T01840172 55008 $
Add Your Business

KRCM FBOs

Promote Listing
UCM Aviation
UNICOM: 123.0
Phone: (660) 543-4921
Other: (660) 543-4947
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/27
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.50 6.55
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
660-422-7010
 119.575

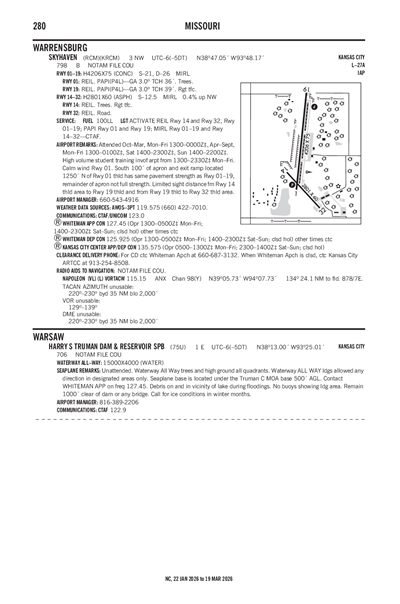

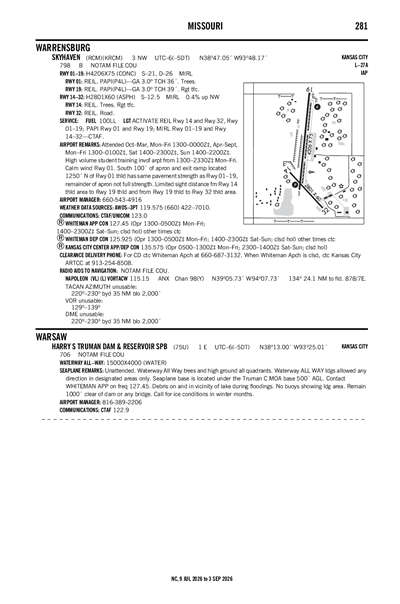

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSZL (12nm)
Fri, 5/31 2:00 PM CDT
Fri, 5/31 2:00 PM CDT - Sat, 6/1 8:00 PM CDT
VFR
2:00 PM CDT - 7:00 PM CDT
Overcast 20,000'
Broken 10,000'
Few 2,000'
6sm
29.97"Hg
120° 9kts
Light, In Cloud (Rime): 12,000-21,000'
MVFR
Becoming 7:00 PM CDT - 11:00 PM CDT
Light Showers and Rain
Overcast 4,000'
Broken 2,000'
3.73sm
29.91"Hg
090° 9kts
Light, In Cloud (Rime): 12,000-21,000'
IFR
Becoming 11:00 PM CDT - 8:00 AM CDT
Light Drizzle and Mist
Overcast 500'
1.99sm
29.91"Hg
VRB° 6kts
Light, In Cloud (Rime): 12,000-21,000'
LIFR
Temporary 12:00 AM CDT - 8:00 AM CDT
Fog
Overcast 200'
0.5sm
Calm
MVFR
Becoming 8:00 AM CDT - 11:00 AM CDT
Broken 1,000'
6sm
29.97"Hg
320° 6kts
MVFR
Becoming 11:00 AM CDT - 8:00 PM CDT
Broken 2,500'
6sm
29.91"Hg
320° 6kts
TAF KSZL 311900Z 3119/0201 12009KT 9999 FEW020 BKN100 OVC200 621209 QNH2996INS
   BECMG 0100/0101 09009KT 6000 -SHRA BKN020 OVC040 621209 QNH2992INS
   BECMG 0104/0105 VRB06KT 3200 -DZ BR OVC005 621209 QNH2990INS
   TEMPO 0105/0113 0800 FG OVC002
   BECMG 0113/0115 32006KT 9999 NSW BKN010 QNH2998INS
   BECMG 0116/0117 32006KT 9999 BKN025 QNH2992INS TX27/3121Z TN19/0111Z
KRCM
Domestic
5/31/242142Z !COU 05/637 RCM SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2405312142-2406202359EST
5/30/241357Z !COU 05/613 RCM OBST TOWER LGT (ASR 1005438) 384216.00N0934347.00W (5.9NM SE RCM) 1227.7FT (379.9FT AGL) U/S 2405301357-2406202359
5/29/241619Z !COU 05/592 RCM RWY 14/32 MIRL DECOMMISSIONED 2405291619-2406301800
5/29/241618Z !COU 05/591 RCM AD AP JET A FUEL NOT AVBL 2405291618-2410311800
5/24/240135Z !COU 05/458 RCM OBST TOWER LGT (ASR 1059130) 384555.20N0934432.90W (3.0NM ESE RCM) 1068.9FT (228.0FT AGL) U/S 2405240135-2408210400
5/23/241254Z !COU 05/448 RCM OBST TOWER LGT (ASN 2023-ACE-7028-OE) 383704N0933707W (13.2NM SE RCM) 1284FT (308FT AGL) U/S 2405231254-2406221159
3/22/240530Z !COU 03/318 RCM OBST TOWER LGT (ASR 1208620) 384701.80N0933456.30W (10.3NM E RCM) 1032.2FT (257.9FT AGL) U/S 2403220530-2406200400
FDC
5/17/241322Z !FDC 4/5793 RCM IAP SKYHAVEN, WARRENSBURG, MO.
VOR-A, AMDT 3B...
PROCEDURE NA.
2405171322-2605161322EST
2/9/241403Z !FDC 4/3126 RCM IAP SKYHAVEN, WARRENSBURG, MO.
RNAV (GPS) RWY 1, AMDT 1A...
LPV DA NA.
LNAV/VNAV DA NA.
DISREGARD NOTE: CIRCLING RWY 32 NA AT NIGHT.
NOTE: CIRCLING RWY 1, 14 NA AT NIGHT.
NOTE: STRAIGHT IN RWY 1 NA AT NIGHT.
2402091403-2602091403EST
2/8/242023Z !FDC 4/2908 RCM IAP SKYHAVEN, WARRENSBURG, MO.
RNAV (GPS) RWY 19, AMDT 1A...
VOR-A, AMDT 3B...
DISREGARD NOTE: CIRCLING RWY 32 NA AT NIGHT.
NOTE: CIRCLING RWY 1, 14 NA AT NIGHT.
2402082023-2602082023EST
No
SAT 0800-1700
SUN 0800-1600
MON-FRI 0700-1900
UNIV. OF CENTRAL MISSOURI
T.R. GAINES, BLDG 210
WARRENSBURG, MO 64093
Phone: 660-543-4921
DAN DIETZ
UNIVERSITY OF CENTRAL MISSOURI, 281 N.W. 50 HWY
WARRENSBURG, MO 64093
Phone: 660-422-1110
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
ACTVT REIL RWY 14 & 32; PAPI RWY 01 & 19; MIRL RWY 01/19 & 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
49
3
0
0
0
0
Minor
Minor
None
None
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental
Annual Surveying
Glider Towing

Runway 01/19

4206 ft. x 75 ft.
CONC
Good
NONE
MED

21,000lbs
26,000lbs
--
--
  Runway 01 Runway 19
True Heading 8°188°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 46' 50"N 38° 47' 31"N
Longitude 93° 48' 13"W 93° 48' 05"W
Elevation 788' 795'
Threshold Crossing Height 36 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

2801 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 137°317°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 38° 47' 03"N 38° 46' 42"N
Longitude 93° 48' 24"W 93° 48' 00"W
Elevation 798' 786'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-3SOUTH 100 FT OF APRON & EXIT RAMP LCTD 1250 FT N OF RWY 01 THR HAS SAME PAVEMENT STRENGTH AS RWY 01/19; REMAINDER OF APRON NOT FULL STRENGTH.
A110-5LIMITED SIGHT DSTC FM RWY 14 THR AREA TO RWY 19 THR AND FM RWY 19 THR TO RWY 32 THR AREA.
A110-8HIGH VOL STUDENT TRNG INVOF ARPT FM 0700-1730 LCL MON THRU FRI.
A110-9FOR CD CTC WHITEMAN APCH AT 660-687-3132. WHEN WHITEMAN APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.
SKYHAVEN (ICAO: KRCM, IATA: RCM) is a public airport located in WARRENSBURG, MO.
