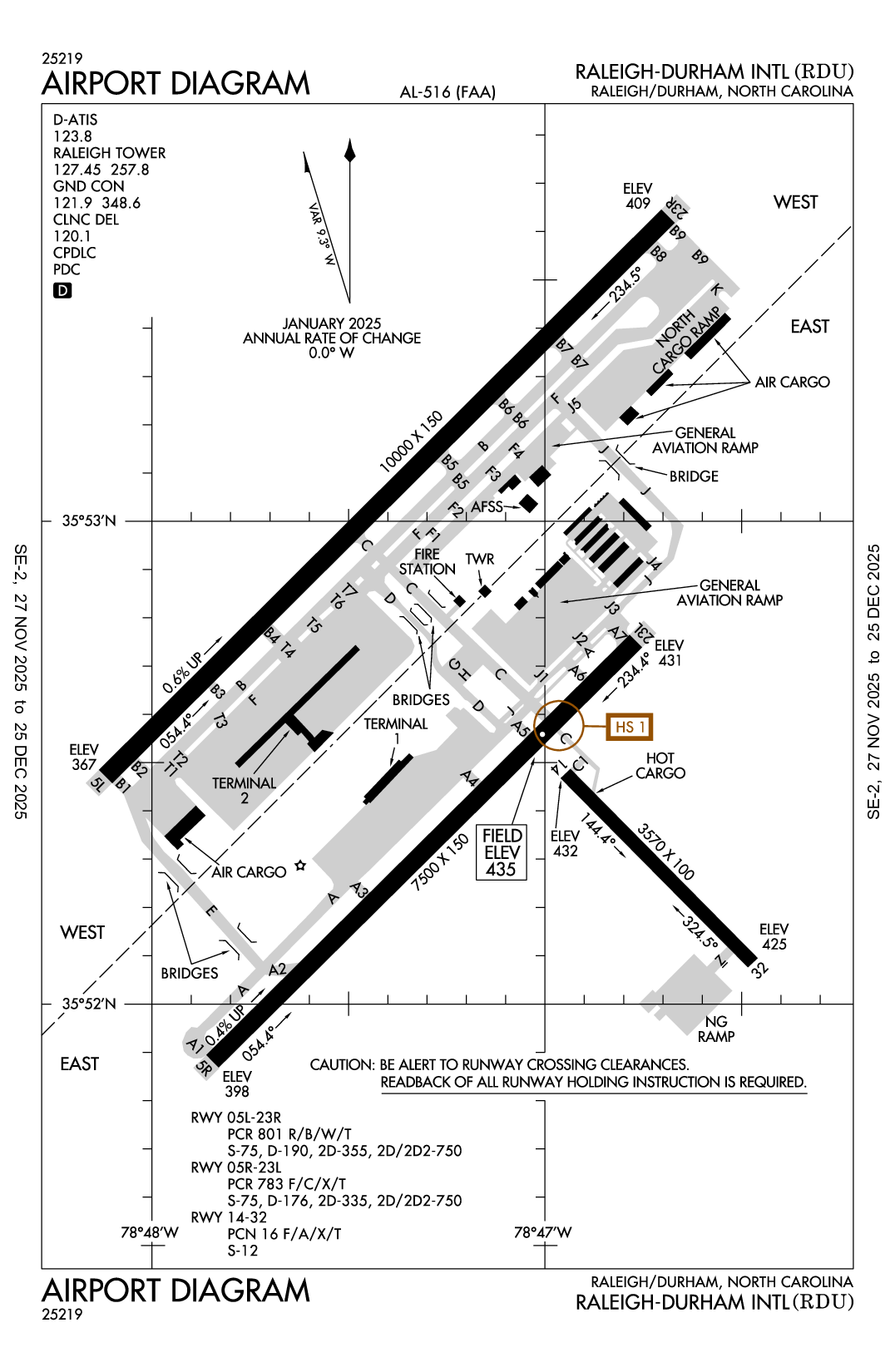

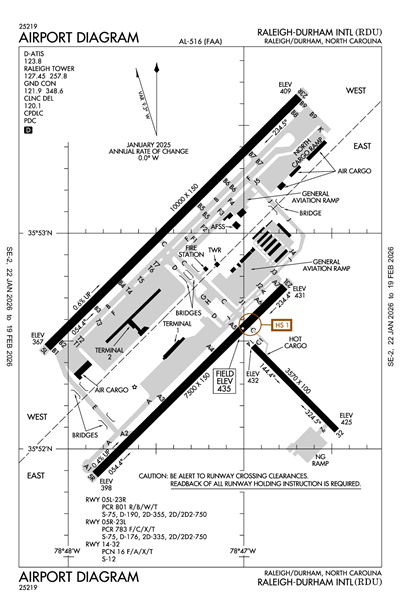

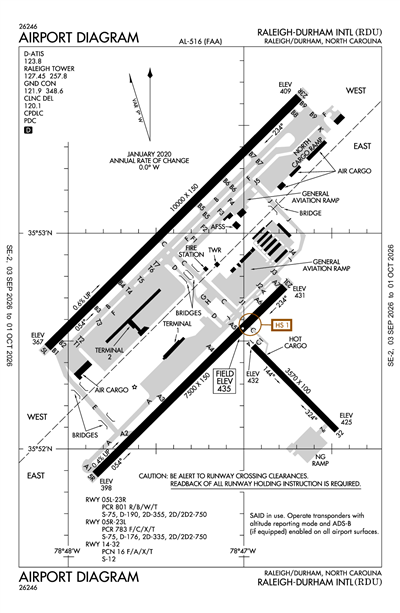

RALEIGH-DURHAM INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRDU
RALEIGH-DURHAM INTL
PublicPUB

9 miles NW of RALEIGH/DURHAM, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 52' 39"N 78° 47' 15"W
435' MSL
1435' MSL
09W
JET A, 100LL
RALEIGH (RDU)
CHARLOTTE
WASHINGTON (ZDC)
11/28/24-12/26/24
KRDU VFR
6:51 AM EST
Clear
10sm
24°F
18°F
30.57"Hg
Calm
AO2 SLP356 T10441078 11028 21056 53012 $
KRDU 231151Z 00000KT 10SM CLR M04/M08 A3057 RMK AO2 SLP356 T10441078 11028 21056 53012 $
Add Your Business

KRDU FBOs

Promote Listing
Atlantic Aviation
UNICOM: 131.0
Phone: (919) 532-1423
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.11 6.57
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
UNICOM: 131.15
Phone: (919) 840-2200
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 12/19
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.97 6.55 6.95
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
919-840-0486
 123.8

Approach

APCH/P
055-229
 124.95
APCH/P IC
230-054
 127.675

Departure

DEP/P
055-229
 125.3
DEP/P
230-054
 132.35

Clearance Delivery

CD/P
 120.1

Emergency

EMERG
 121.5

Ground

GND/P
WEST, RWY 05L/23R
 121.7
GND/P
EAST, RWY 05R/23L, 14/32
 121.9

Tower

LCL/P
WEST, RWY 05L/23R
 119.3
LCL/P
EAST, RWY 05R/23L, 14/32
 127.45

Other

BEXGO DP
 132.35
BLOGS STAR
 124.95
BRADE STAR
 124.95
BUZZY STAR
 127.675
CLASS C
055-229
 125.3
CLASS C
230-054
 132.35
DMSTR STAR
 127.675
FINAL CTL
 124.8
HOOKZ DP
 125.3
HURIC DP
 125.3
LWOOD DP
 132.35
OXFRD DP
 132.35
PACKK DP
055-229
 125.3
PACKK DP
230-054
 132.35
RALEIGH DP
055-229
 125.3
RALEIGH DP
230-054
 132.35
ROZBO DP
 125.3
SHPRD DP
 132.35
TAQLE STAR
 124.95

Terminal Area Forecast

KRDU
Mon, 12/23 6:20 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 1:00 AM EST
Sky Clear
6sm
VRB° 5kts
VFR
1:00 AM EST - 7:00 AM EST
Broken 7,000'
6sm
Calm
KRDU 231120Z 2312/2412 VRB05KT P6SM SKC
   FM240600 00000KT P6SM BKN070
KRDU
Domestic
12/23/241020Z !RDU 12/292 RDU TWY F BTN TWY E AND TERMINAL 2 RAMP NONMOVEMENT AREA 2412231020-2412231400
12/23/240611Z !RDU 12/291 RDU OBST TOWER LGT (ASR 1232491) 360249.70N0784126.90W (11.3NM NNE RDU) 632.9FT (280.8FT AGL) U/S 2412230611-2501070511
12/18/241844Z !RDU 12/252 RDU OBST TOWER LGT (ASR 1004866) 355423.40N0785508.30W (6.6NM WNW RDU) 612.2FT (263.1FT AGL) U/S 2412181844-2504171844
12/18/241451Z !RDU 12/244 RDU OBST TOWER LGT (ASR 1048276) 355617.00N0790135.00W (12.0NM WNW RDU) 478.0FT (203.1FT AGL) U/S 2412181451-2501212359
11/15/240957Z !RDU 11/189 RDU NAV ILS RWY 05L U/S 2411150957-2501022030
9/28/240022Z !RDU 09/420 RDU NAV ILS RWY 23R DME NOT MNT 2409280022-2412312359
9/5/241706Z !RDU 09/054 RDU TWY E CLSD TO ACFT WINGSPAN MORE THAN 171FT 2409051706-2509010400
8/27/242114Z !RDU 08/472 RDU TWY F4 CLSD 2408272114-2509012300
4/4/241200Z !RDU 04/050 RDU AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF 355418N0785611W (7.2NM WNW RDU) SFC-400FT AGL DLY 1200-0300 2404041200-2501020300
FDC
12/22/240227Z !FDC 4/0105 RDU SID RALEIGH-DURHAM INTL, RALEIGH/DURHAM, NC.
RALEIGH ONE DEPARTURE...
FAYETTEVILLE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FAY VOR OUT OF SERVICE. 2412220227-2501210227EST
12/22/240227Z !FDC 4/0104 RDU SID RALEIGH-DURHAM INTL, RALEIGH/DURHAM, NC.
PACKK NINE DEPARTURE...
FAYETTEVILLE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FAY VOR OUT OF SERVICE. 2412220227-2501210227EST
12/20/241617Z !FDC 4/9562 RDU SID RALEIGH-DURHAM INTL, RALEIGH/DURHAM, NC.
PACKK NINE DEPARTURE...
FAYETTEVILLE TRANSITION, ROZBO TRANSITION, SHPRD TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RDU VORTAC OUT OF SERVICE. 2412201617-2508011617EST
12/20/241617Z !FDC 4/9561 RDU IAP RALEIGH-DURHAM INTL, RALEIGH/DURHAM, NC.
ILS OR LOC RWY 23R, AMDT 12...
ILS RWY 23R (CAT II AND III) AMDT 12....
MISSED APPROACH: CLIMB TO 1000 THEN CLIMBING RIGHT TURN TO 2200 ON HEADING 340 AND LIB VORTAC R-072 TO DUHAM INT AND HOLD,
RDU VORTAC OUT OF SERVICE. 2412201617-2508011617EST
12/20/241617Z !FDC 4/9560 RDU IAP RALEIGH-DURHAM INTL, RALEIGH/DURHAM, NC.
ILS OR LOC RWY 23L, AMDT 10...
ILS OR LOC RWY 5R, AMDT 31...
ILS RWY 5R (SA CAT I AND II), AMDT 31...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RDU VORTAC OUT OF SERVICE. 2412201617-2508011617EST
12/20/241617Z !FDC 4/9558 RDU SID RALEIGH-DURHAM INTL, RALEIGH/DURHAM, NC.
RALEIGH ONE DEPARTURE...
FAYETTEVILLE TRANSITION, GREENSBORO TRANSITION, ROZBO TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RDU VORTAC OUT OF SERVICE. 2412201617-2508011617EST
12/20/241617Z !FDC 4/9554 RDU IAP RALEIGH-DURHAM INTL, RALEIGH/DURHAM, NC.
ILS OR LOC RWY 5L, AMDT 6...
MISSED APPROACH: CLIMB TO 1000 THEN CLIMBING LEFT TURN TO 2200 ON HEADING 350 AND SBV VORTAC R-172 TO DUHAM INT AND HOLD,
RDU VORTAC OUT OF SERVICE. 2412201617-2508011617EST
12/17/241726Z !FDC 4/8041 RDU CHART RALEIGH-DURHAM INTL,
RALEIGH/DURHAM, NC.
ILS RWY 5R (SA CAT I & II), AMDT 31 ...
CORRECT PROFILE: ADD NOTE USE I-RDU DME WHEN ON THE LOCALIZER
COURSE 2412171726-PERM
8/15/241500Z !FDC 4/9720 RDU IAP RALEIGH-DURHAM INTL,
RALEIGH/DURHAM, NC.
RNAV (RNP) Z RWY 5R, AMDT 3...
RNP 0.30 DA 721/HAT 301.
THIS IS RNAV (RNP) Z RWY 5R, AMDT 3A. 2408151500-PERM
8/15/241449Z !FDC 4/9718 RDU IAP RALEIGH-DURHAM INTL,
RALEIGH/DURHAM, NC.
RNAV (GPS) Y RWY 23R, AMDT 2...
LNAV/VNAV DA 826/HAT 417 ALL CATS, VISIBILITY ALL CATS RVR 4000.
CHANGE NOTE TO READ: FOR INOPERATIVE ALS, INCREASE LNAV/VNAV ALL
CATS VISIBILITY TO RVR 6000 AND LNAV CAT C/D VISIBILITY TO 1 5/8
NM.
DELETE PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK IN PROFILE VIEW AT
VDP 1.6 NM TO RW23R.
THIS IS RNAV (GPS) Y RWY 23R, AMDT 2A. 2408151449-PERM
10/12/231500Z !FDC 3/4847 RDU STAR RALEIGH DURHAM INTL, RALEIGH/DURHAM, NC.
TAQLE TWO ARRIVAL CHG NOTE: LANDING NORTHEAST USE RWY 05R
TRANSITION, LANDING SOUTHWEST USE RWY 23L TRANSITION.
EXPECT RUNWAY ASSIGNMENT PRIOR TO TAQLE, TO READ NOTE: LANDING
NORTHEAST USE RWY 05R TRANSITION, LANDING SOUTHWEST USE RWY 23L
TRANSITION. EXPECT RUNWAY ASSIGNMENT FROM TRACON PRIOR TO TAQLE.
2310121500-PERM
Yes
ALL
RALEIGH-DURHAM ARPT AUTH
P.O. BOX 80001
RDU AIRPORT, NC 27623
Phone: 919-840-7700
MICHAEL LANDGUTH
RALEIGH-DURHAM ARPT AUTH, P.O. BOX 80001
RDU AIRPORT, NC 27623
Phone: (919) 840-7701
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
Sunset to Sunrise
--
N/A
VISIBILITY OF BCN SHIELDED TO THE NORTH.
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 05L/23R

10000 ft. x 150 ft.
CONC
Good
WC
HIGH
33 /R/B/X/T
75,000lbs
190,000lbs
355,000lbs
750,000lbs
  Runway 05L Runway 23R
True Heading 45°225°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 52' 28"N 35° 53' 38"N
Longitude 78° 48' 07"W 78° 46' 41"W
Elevation 367' 409'
Threshold Crossing Height 72 ft. AGL 69 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 05R/23L

7500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
89 /F/A/X/T
75,000lbs
176,000lbs
335,000lbs
750,000lbs
  Runway 05R Runway 23L
True Heading 45°225°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 51' 53"N 35° 52' 45"N
Longitude 78° 47' 50"W 78° 46' 46"W
Elevation 398' 431'
Threshold Crossing Height 62 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 14/32

3570 ft. x 100 ft.
ASPH
Good
NONE
MED
16 /F/A/X/T
12,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 52' 30"N 35° 52' 05"N
Longitude 78° 46' 58"W 78° 46' 27"W
Elevation 432' 425'
Threshold Crossing Height -- 47 ft. AGL
Visual Glide Path Angle -- 3.5°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1NO JET ENGINE MAINTENANCE RUNS BETWEEN 0000-0600.
A110-10RSTD: PPR FOR ALL MILITARY AIRCRAFT F/W - R/W & UNSCHEDULED CHARTER FLIGHTS WITH 30 OR MORE PASSENGERS. 24 HR PN RQR FOR MIL PRACTICE APCH. CTC ARPT OPS 919-840-7510 OR RDU APP C919-380-3125. 24 HR PN RQR FOR PPR FOR ALL F/W AND R/W MIL ACFT GOING TO ARNG RAMP, POC C984-661-6200. OSACOM FLT DET C984-661-6202.
A110-11ARPT CLSD TO AIRSHIPS.
A110-12TWY E BEHIND SOUTH CARGO 4 & TWY J BEHIND CORPORATE HANGARS NOT VSBL FM ATCT.
A110-15ARNG: LTD PRK. ARNG OPS C984-661-6200. CTC FORECAST BASE 10 MIN PRIOR LDG. RAMP CLSD TO ALL F/W EXCEPT ARMY & MIL TRANSPORT WITH PPR, FACILITY HRS 1300-2130Z++ MON-FRI EXC HOL. MAKE APPT FOR AFTER DUTY HRS. OSACOM FLT DET C984-661-6202.
A110-16TWY F5 IS CLSD UFN.
A110-17ALL TDG V AIRCRAFT TXG ON TWY A ARE RSTD TO TAXI SPD OF 15 MPH.
A110-18APN TXL F BTN TWY T1 AND TWY T7 CLSD TO ACFT WITH WINGSPAN MORE THAN 171 FT.
A110-2NG PPR FOR LDG CTC V582-9181 C(919)664-9181.
A110-20TWY D CLSD TO ACFT WITH WINGSPAN MORE THAN 171 FT WHEN TWY G AND H ARE OCCUPIED.
A110-21TRML 1 ACFT MUST CTC ATC ON 121.9 PRIOR TO PUSH ONTO TWY A. TRML 2 ACFT MUST CTC RAMP TWR ON 130.175 PRIOR TO PUSH. NORTH CARGO APRON ADG IV OR V ACFT MUST CTC ATC ON 121.9 PRIOR TO PUSH.
A110-22TWY C BTN TWY F AND G IS RSTRD TO ACFT LESS THAN A MAX GROSS TKOF WEIGHT OF 490000 LBS.
A110-3NG 24 HR PPR FOR JET ACFT & TRANS MIL ACFT - 919-840-7510.
RALEIGH-DURHAM INTL (ICAO: KRDU, IATA: RDU) is a public airport located in RALEIGH/DURHAM, NC.
