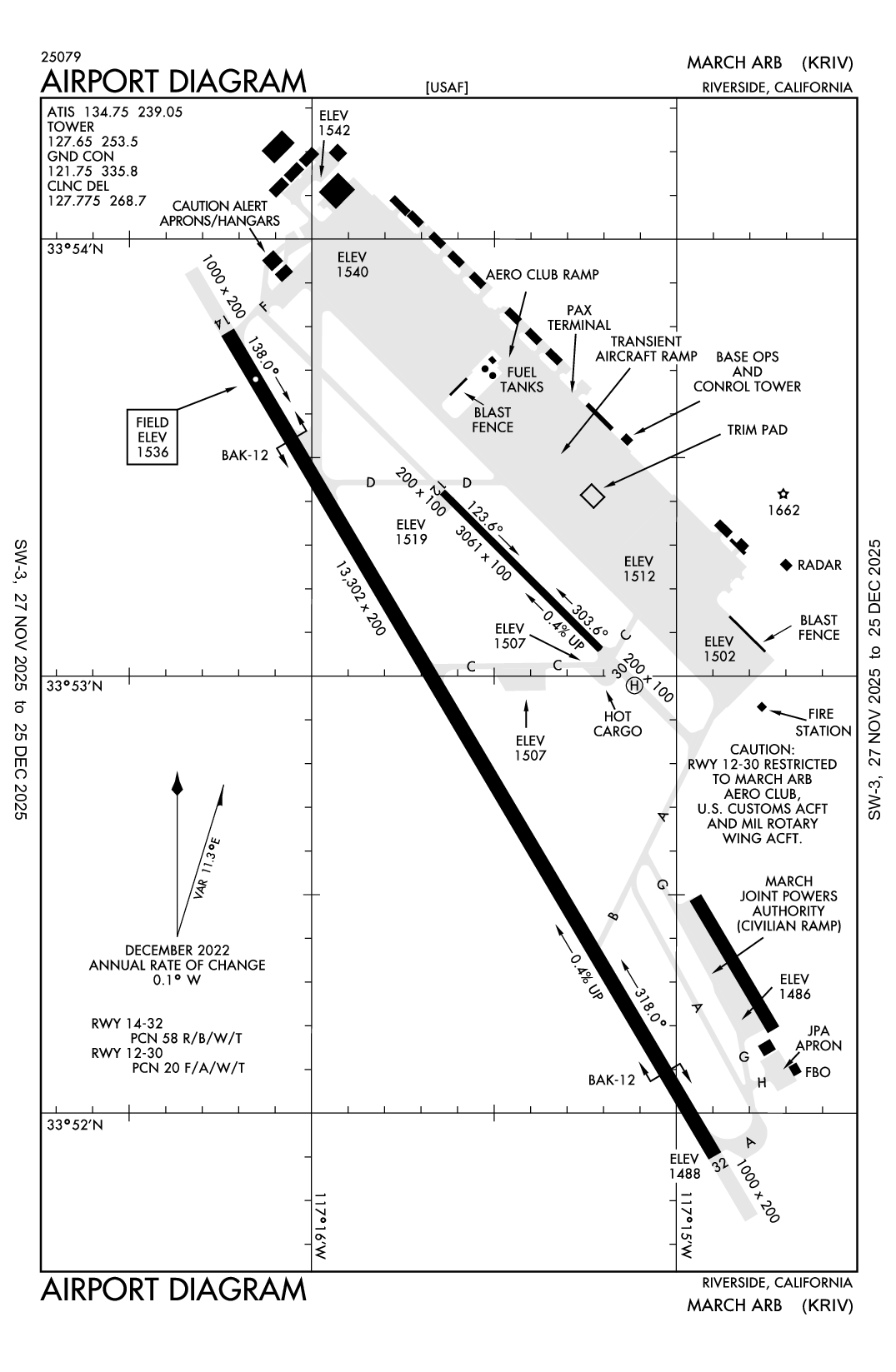

MARCH ARB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRIV
MARCH ARB
PublicPUB

6 miles SE of RIVERSIDE, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 52' 55"N 117° 15' 32"W
1536' MSL
2536' MSL
14E
JET A, JET A+, CILI, 100LL
RIVERSIDE (RAL)
LOS ANGELES
LOS ANGELES (ZLA)
11/28/24-12/26/24
KRIV VFR
3:55 AM PST
Clear
10sm
42°F
35°F
30.12"Hg
Calm
AO2 SLP198 T00540019 10092 20050 58000
KRIV 231155Z AUTO 00000KT 10SM CLR 05/02 A3012 RMK AO2 SLP198 T00540019 10092 20050 58000
Add Your Business

KRIV FBOs

Promote Listing
Million Air
UNICOM: 130.075
Phone: (951) 247-2111
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.64 5.93 6.03
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
 134.75

Approach/Departure

APCH/P DEP/P
 133.5
APCH/S DEP/S
 119.25

Emergency

EMERG
 121.5

Ground

GND/P
 121.75

Tower

LCL/P
 127.65

Other

CLASS C
 119.25
CLASS C
 133.5
COMD POST
 138.45

Terminal Area Forecast

KRIV
Mon, 12/23 4:15 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 10:00 AM PST
VFR
4:00 AM PST - 1:00 PM PST
Broken 25,000'
Few 15,000'
6sm
30.06"Hg
VRB° 4kts
VFR
Becoming 1:00 PM PST - 5:00 PM PST
Broken 25,000'
6sm
30.09"Hg
310° 9kts
VFR
Becoming 5:00 PM PST - 10:00 AM PST
Broken 25,000'
Scattered 15,000'
6sm
30.06"Hg
VRB° 4kts
TAF KRIV 231215Z 2312/2418 VRB04KT 9999 FEW150 BKN250 QNH3007INS
   BECMG 2321/2322 31009KT 9999 BKN250 QNH3008INS
   BECMG 2401/2402 VRB04KT 9999 SCT150 BKN250 QNH3005INS TX22/2322Z TN04/2314Z
KRIV
Military
12/20/241938Z M0431/24 NOTAMC M0429/24
12/20/241935Z M0430/24 NOTAMC M0424/24
12/18/242345Z AIRCRAFT WITH A WINGSPAN OF 130? OR GREATER RESTRICTED TO TAXIING WITH OUTBOARD ENGINES AT IDLE THRUST ON TAXIWAYS ALPHA AND FOXTROT DUE TO SHOULDER PAVEMENT CONDITIONS AND FOD POTENTIAL.
12/15/240324Z USE CAUTION MEN AND CONSTRUCTION EQUIPMENT 300' EAST OF SPOT P1 ON SOUTH RAMP.
12/13/240112Z NORTH PARKING RAMP PARKING SPOT D-4 CLOSED
12/13/240111Z AERODROME FIRE FIGHTING AND RESCUE CAPABILITY IS 4900 GALLONS.
12/9/241646Z AERODROME TRANSIENT RAMP INTERSECTION OF HEAVY ROW 2 AND THIRD TAXILANE EAST OF TAXIWAY ALPHA CLOSED DUE TO FAILING CONCRETE SLABS.
12/5/240031Z !KRIV M0365/24 RIV NAV ILS RWY 32 NOT MNT 2412050031-2503042359
11/18/240311Z !KRIV M0333/24 RIV SVC PTD 372.2 UNSERVICEABLE 2411180311-2502152359
10/25/241727Z AERODROME DEPARTURE PROCEDURES: RWY 32, CLIMB LEFT TURN HDG BETWEEN 150° TO 135° CCW FROM DER. DO NOT EXCEED 250 KIAS. FOR CLIMB IN VISUAL CONDITIONS OBTAIN ATC APPROVAL FOR VCOA WHEN REQUESTING IFR CLEARANCE. CLIMB IN VISUAL CONDITIONS. WITHIN 4.5 NM OF MARCH ARB, TO CROSS MARCH ARB AT OR ABOVE 3700 MSL, THEN CLIMB AND MAINTAIN 6000 DIRECT HDF VOR, THEN VIA HDF R-153 TO HDF R-153/PDZ R-130, DIRECT SKYES INT. DO NOT EXCEED 250 KIAS UNTIL PASSING SKYES. VCOA NOT AVAILABLE FOR CAT E AIRCRAFT.
10/25/241727Z AERODROME VOR HOMELAND HDF OTS
10/25/241726Z AERODROME RWY 14 DEPARTURE PROCEDURES AND SKYES FOUR RWY 14 DEPARTURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEMS WITH GPS
10/25/241726Z AERODROME ILS OR LOC Y RWY 32 MISSED APPROACH ISSUED BY ATC
10/25/241725Z AERODROME HI-VOR Z RWY 32 NA
10/25/241724Z AERODROME TAKEOFF MINIMUMS: RWY 32, 1200-3 OR STANDARD WITH A MINIMUM CLIMB OR 240 FT PER NM TO 3100, AND 2300-3 FOR VCOA.
10/25/241724Z AERODROME VOR Y RWY 32 NA
10/23/241440Z AERODROME HELIPAD AND RUNWAY12-30 RESTRICTED TO HELICOPTERS ONLY. NO FIXED WING AIRCRAFT OR V-22S PERMITTED DUE TO PAVEMENT RATING OF VERY POOR.
10/3/241327Z SOUTH END OF RUNWAY APRON SOUTHERN MOST TAXILANE CLOSED DUE TO FAILING CONCRETE PATCHES.
Yes
0700-2300
OPR H24; OPS FM 0700-1500Z++ RQR 452 OG/CC APVL, EXC FOR KRIV BASED ALERT MSN.
UNITED STATES AIR FORCE
2685 GRAEBER STREET, BLDG 395
MARCH ARB, CA 92518
Phone: 951-655-4053
BART W. DARNELL
2685 GRAEBER STREET, BLDG 395
MARCH ARB, CA 92518
Phone: 951-655-4053
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
RIV
--
--
N/A
N/A
No
No
None
NOT a Landing Rights Airport
Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Cargo Handling
Charter Service

Runway 12/30

3061 ft. x 100 ft.
ASPH
Poor
NONE

20 /F/A/W/T
--
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 53' 25"N 33° 53' 04"N
Longitude 117° 15' 38"W 117° 15' 13"W
Elevation 1,519' 1,507'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

13302 ft. x 200 ft.
CONC
Good
NONE
HIGH
58 /R/B/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 149°329°
Traffic Pattern Left Left
Markings BSC PIR
Markings Condition GOOD GOOD
Latitude 33° 53' 47"N 33° 51' 54"N
Longitude 117° 16' 14"W 117° 14' 54"W
Elevation 1,536' 1,488'
Threshold Crossing Height 56 ft. AGL 59 ft. AGL
Visual Glide Path Angle 2.59° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-1CAUTION: NSTD RWY MRK-LANDING ZONE (LZ) MARK (3500X90 PAINTED ON RWY 32 FOR BASE ASGN C17 ACFT ONLY).
A110-11TSNT ACFT NO PRACTICE APCH 2100-0700.
A110-12GEN AVN OPS PMTD DUR FBO BUS HRS. FBO BUS HRS 1400-0600Z++ MON-FRI, OPEN SAT-SUN (IF REQ PRIOR TO CLOSE OF BUS FRI) AND WILL HONOR MEDICAL REQ MADE AT ANY TIME, CALL 951-247-2111.
A110-13USE EXTREME CAUTION FOR EXTV UAS OPS IN VCNTY.
A110-14NONSTANDARD TACAN CHECKPOINT SIGNS LCTD AT RWY A AND TWY F.
A110-16MIL RMK: 24 HR PN/PPR FOR ALL TRAN ACFT, CTC AFLD MGMT OPS DSN 447-4404/2422, C951-655-4404/2422.
A110-17MIL RMK: ALL INBD PAX/CARGO ACFT MUST CTC COMD POST DSN 447-4665 24 HR PRIOR TO ARR WITH TYPE CARGO AND NR OF PAX.
A110-18CSTMS/AG/IMG - CTC AFLD MGMT OPS DSN 447-4404/2422, C951-655-4404/2422 AT LEAST 24 HR PN TO ARR RQR. LTD SVC, NO RESIDENT CSTMS AGENT, BUT ON CALL H24, DRIVING FR ONTARIO INTL. NO-NTC ACFT THAT RQR CSTMS EXP MIN 2 HR DELAY. CSTMS RQR FOLLOWING FORMS FOR ARR ACFT - CBP FORM 7507 GENERAL DECLARATION, CBP FORM 6059B CUSTOMS DECLARATION FR ALL PERS ONBOARD LCTD HTTPS://WWW.CBP.GOV/NEWSROOM/PUBLICATIONS/FORMS, PAX/CARGO MANIFEST AS APPLICABLE. AIRCREW, PAX, CARGO RQR TO REMAIN IN ACFT TIL RELEASED BY CSTMS. APV LDG RIGHTS AND OVFT EXM REQ. NOT A PORT OF ENTRY, IMG SVC EXTREMELY LTD, CASE-BY-CASE BASIS. CTC PTD 2 HR PRIOR TO LDG VIA DRCT A/G COM OR FONE PATCH.
A110-19SERVICE - OIL: JOAP AVBL ONLY ON RESERVE WKEND. O-148.
A110-2CAUTION: EXTV GLIDER, SKYDIVING, BALLOONIST AND ULTRALIGHT ACT AT PERRIS ARPT, 7 NM S OF MARCH.
A110-20RSTD: V-22 OPS RSTRD TO RWY 14/32. HELIPAD AND RWY 12/30 RSTRD TO HELS ONLY. NO FIXED WING OR V-22 ACFT PMTD DUE TO PAVEMENT RATING OF VERY POOR.
A110-21RSTD: TSNT RAMP PRKG SPOTS J1, K1 AND L1 RSTRD TO ACFT WITH WINGSPANS LESS THAN 185 FT.
A110-3CAUTION: HEAVY MILITARY FLIGHT TRAINING.
A110-4JOINT USE AIRPORT - OWNED AND OPERATED BY US AIR FORCE/ NO CIVIL TOUCH AND GO OPS OR MANEUVERS.
A110-5AIRFIELD USE AGREEMENT WITH CIVIL ARPT AUTH (MARCH INLAND PORT ARPT AUTH) MILITARY, CIVIL COMMERCIAL AND GENERAL AVIATION(GA) USES.
A110-6GA OPS - PPR AND/OR LANDING PERMIT NOT REQ FOR USE OF CIVIL APRON AND RAMPS/FBO INF. -FREEMAN HOLDINGS 951-247-2111 / FREQS 130.075.
A110-8RY 12/30 CLSD TO PUBLIC DUE TO MUNITIONS AND EXPLOSIVES OPS IN CLOSE PROXIMITY OF RY 12/30 PER UFC & DOD REGULATIONS.
A110-9TRANSPORTATION LIMITED, PRIOR COORDINATION REQUIRED, CTC DSN 447-7787 WKND.
MARCH ARB (ICAO: KRIV, IATA: RIV) is a public airport located in RIVERSIDE, CA.
