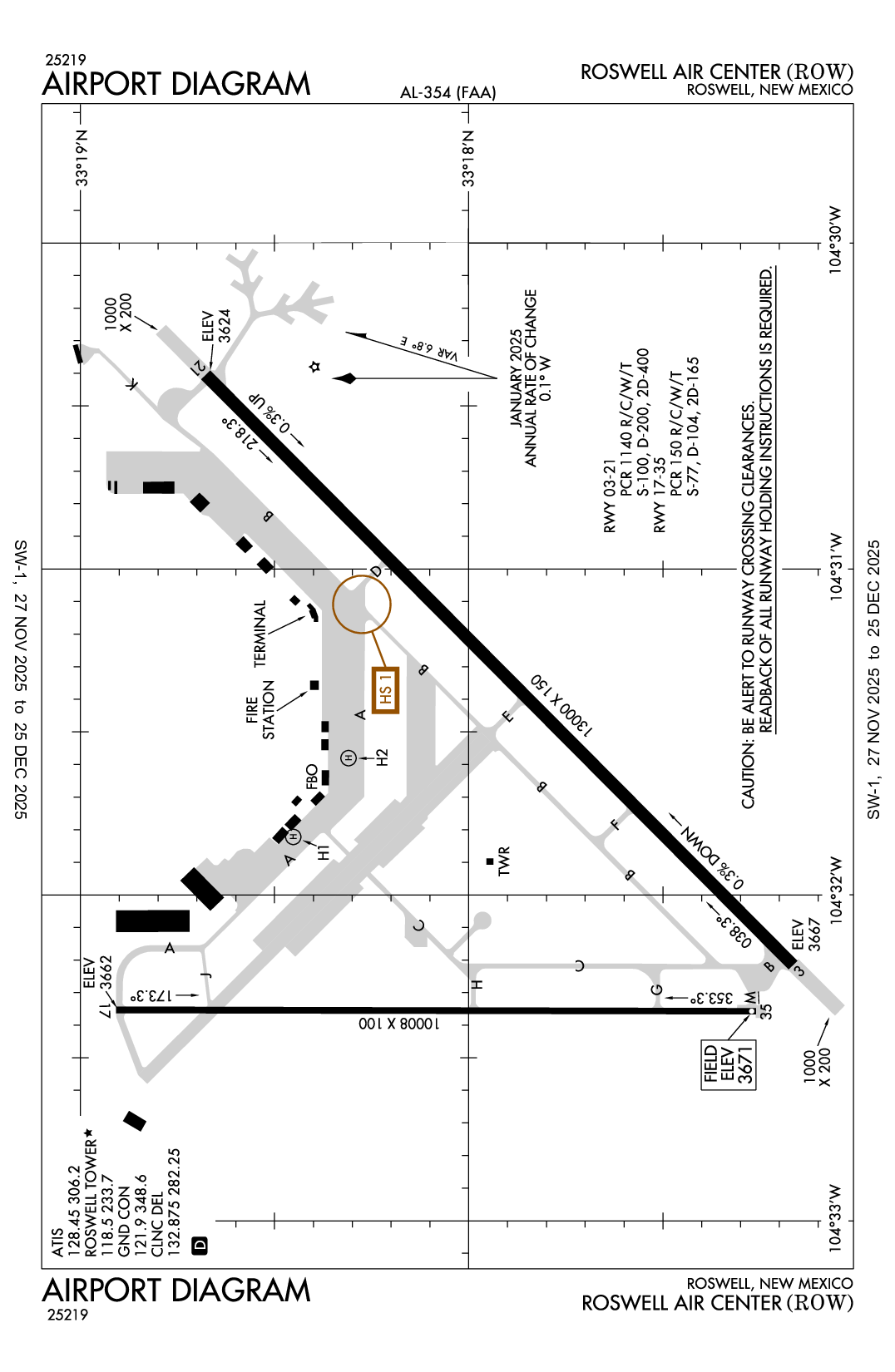

ROSWELL AIR CENTER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KROW
ROSWELL AIR CENTER
PublicPUB

3 miles S of ROSWELL, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 17' 60"N 104° 31' 46"W
3671' MSL
4671' MSL
10E
JET A, JET A-1+, 100LL
ALBUQUERQUE (ABQ)
ALBUQUERQUE
ALBUQUERQUE (ZAB)
11/28/24-12/26/24
KROW VFR
4:51 AM MST
Clear
10sm
34°F
23°F
30.00"Hg
240° 4kts
AO2 SLP132 T00111050 10083 20006 58004
KROW 231151Z AUTO 24004KT 10SM CLR 01/M05 A3000 RMK AO2 SLP132 T00111050 10083 20006 58004
Add Your Business

KROW FBOs

Avflight Roswell
UNICOM: 122.95
Phone: (575) 347-2054
Fax: (575) 347-2431
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/20
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.75 6.15 6.22
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.5

ATIS

ATIS
 128.45

ASOS

ASOS
575-347-0040
 128.45

Approach/Departure

APCH/P DEP/P
WEST OF V291
 120.35
APCH/P DEP/P IC
EAST OF V291
 119.6

Clearance Delivery

CD/P
 132.875

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KROW
Mon, 12/23 4:38 AM MST
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 1:00 PM MST
Broken 20,000'
Scattered 10,000'
6sm
VRB° 6kts
VFR
1:00 PM MST - 9:00 PM MST
Broken 10,000'
6sm
340° 9kts
VFR
9:00 PM MST - 5:00 AM MST
Few 20,000'
6sm
360° 7kts
KROW 231138Z 2312/2412 VRB06KT P6SM SCT100 BKN200
   FM232000 34009KT P6SM BKN100
   FM240400 36007KT P6SM FEW200
KROW
Domestic
12/14/241312Z !ROW 12/015 ROW NAV ILS RWY 21 OM U/S 2412141312-2503112111EST
12/14/240530Z !ROW 12/014 ROW OBST TOWER LGT (ASN 2020-ASW-5954-OE) 333524N1045054W (23.7NM NW ROW) 4497FT (255FT AGL) U/S 2412140530-2501280529
12/9/241627Z !ROW 12/009 ROW OBST TOWER LGT (ASR 1302716) 332613.31N1043302.63W (8.3NM N ROW) 3845FT (225FT AGL) U/S 2412091627-2501231626
11/24/240222Z !ROW 11/017 ROW OBST TOWER LGT (ASR 1052110) 332405.00N1042247.00W (9.7NM NE ROW) 3996.1FT (245.1FT AGL) U/S 2411240222-2412232359
11/23/240616Z !ROW 11/016 ROW OBST TOWER LGT (ASR 1241573) 332310.30N1043028.80W (5.3NM NNE ROW) 3805.1FT (220.1FT AGL) U/S 2411230616-2503012359
9/20/241136Z !ROW 09/011 ROW OBST TOWER LGT (ASR 1296110) 334502.10N1043422.40W (27.12NM NNW ROW) 4377FT (202FT AGL) U/S 2409201136-2501172359
Yes
0600-2100
AFT HR - 575-347-2054 OR 575-626-3697.
CITY OF ROSWELL
425 N RICHARDSON AVE
ROSWELL, NM 88201-4730
Phone: 575-624-6700
BOBBI THOMPSON
1 JERRY SMITH CIR
ROSWELL, NM 88203-8427
Phone: 239-980-5114
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ROW
--
ACTVT MALSR RWY 21; MIRL RWY 17/35 - CTAF. VASI RWY 03; PAPI RWY 17 & 35 - ON CONSLY. WHEN ATCT CLSD MIRL RWY 03/21 ON MED INTST.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
Low Pressure
Air Freight
Air Ambulance
Pilot Instruction

Runway 03/21

13000 ft. x 150 ft.
CONC
Excellent
NONE
MED

100,000lbs
200,000lbs
400,000lbs
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Right Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 33° 17' 10"N 33° 18' 41"N
Longitude 104° 32' 13"W 104° 30' 24"W
Elevation 3,667' 3,624'
Threshold Crossing Height 48 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V6L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 17/35

10008 ft. x 100 ft.
ASPH
Good
GRVD
MED

77,000lbs
104,000lbs
165,000lbs
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 18' 55"N 33° 17' 16"N
Longitude 104° 32' 21"W 104° 32' 21"W
Elevation 3,662' 3,671'
Threshold Crossing Height 49 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

55 ft. x 55 ft.

ASPH
NONE


--
--
--
--
  Runway H1 Runway
True Heading 82°262°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 18' 27"N N/A
Longitude 104° 31' 49"W N/A
Elevation 3,660' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

55 ft. x 55 ft.

ASPH
NONE


--
--
--
--
  Runway H2 Runway
True Heading 82°262°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 18' 19"N N/A
Longitude 104° 31' 35"W N/A
Elevation 3,653' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1AFT HR EXIT RAMP/FBO AREA USE LGTD PEDESTRIAN GATE - 575-347-2054.
A110-3BIRDS ON & INVOF ARPT.
A110-6LRG ACFT LONG TERM STORAGE AVBL.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
ROSWELL AIR CENTER (ICAO: KROW, IATA: ROW) is a public airport located in ROSWELL, NM.
