KRQE
WINDOW ROCK
Public
PUB
1 miles S of WINDOW ROCK, AZ
View on
Map
Status
Operational
Coordinates
35° 39' 07"N
109° 04' 03"W
Elevation
6742' MSL
Pattern Alt
7742' MSL
Mag Variation
09E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
DENVER
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
11/28/24-12/26/24
KRQE
VFR
4:53 AM MST
RAW
Overcast 7,500'
Viz
10sm
Temp
36°F
Dew
14°F
Pres
30.17"Hg
Wind
Calm
RMK
AO2 SLP162 T00221100 10067 20017 58007 $
KRQE 231153Z AUTO 00000KT 10SM OVC075 02/M10 A3017 RMK AO2 SLP162 T00221100 10067 20017 58007 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KRQE FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
ASOS
ASOS
928-810-7235
118.325

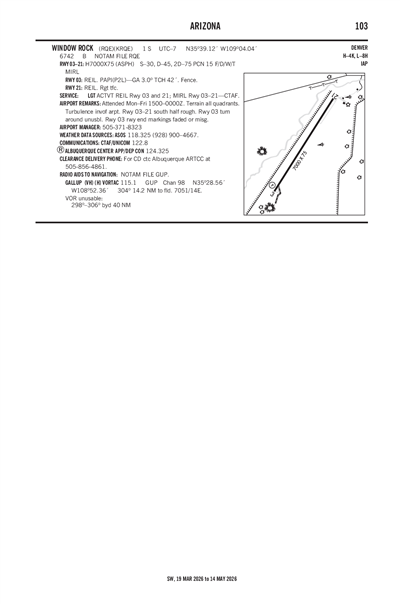

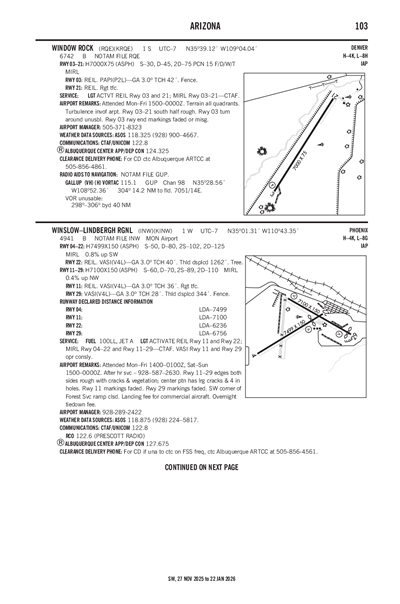

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 03
RNAV (GPS)-B
VOR-A
Terminal Area Forecast
KGUP (16nm)
RAW
Reported
Mon, 12/23 4:38 AM MST
Valid
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 11:00 AM MST
Broken 10,000'
Viz
6sm
Wind
VRB° 4kts
VFR
11:00 AM MST - 6:00 PM MST
Scattered 20,000'
Viz
6sm
Wind
280° 9kts
VFR
6:00 PM MST - 5:00 AM MST
Sky Clear
Viz
6sm
Wind
VRB° 3kts
KGUP 231138Z 2312/2412 VRB04KT P6SM BKN100
FM231800 28009KT P6SM SCT200
FM240100 VRB03KT P6SM SKC
KRQE
Domestic
12/20/24
1257Z
!RQE 12/005 RQE OBST TOWER LGT (ASR 1001733) 354016.00N1091230.00W (7.0NM W RQE) 8125.0FT (372.0FT AGL) U/S 2412201257-2501200756EST
ATC Tower
No
Attendance
MON-FRI 0800-1700
Owner
NAVAJO NATION-C/O NAVAJO DOT
P.O. BOX 4620
WINDOW ROCK, AZ 86515
Phone: (505) 371-8320
Manager
MICHAEL TSOSIE
P.O. BOX 706
WINDOW ROCK, AZ 86515
Phone: 928-871-6466
FSS
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
NOTAM
RQE
Light Schedule
--
Lights
ACTVT REIL RWY 03 & 21; MIRL RWY 03/21 - CTAF.
Beacon
Yellow Only
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 03/21
Dimensions
7000 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
30,000lbs
Double Wheel
45,000lbs
Double Tandem
75,000lbs
Dual Dbl Tand
--
Runway 03
Runway 21
True Heading
34°
214°
Traffic Pattern
Left
Right
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
35° 38' 39"N
35° 39' 36"N
Longitude
109° 04' 26"W
109° 03' 39"W
Elevation
6,702'
6,742'
Threshold Crossing Height
42 ft. AGL
--
Visual Glide Path Angle
3°
--
Visual Slope Indicator
P2L
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
Yes
Yes
A110-1
HILLS AND CLIFFS ALL QUADRANTS.
A110-11
FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-2
TURBULENCE MAY BE EXPERIENCED INVOF ARPT.
A110-6
GATE ACCESS CODE 2476.
A110-8
TWY TURN-A-ROUND AT RWY 2 THR UNUSABLE DUE TO LARGE CRACKS, RUTS, HOLES & LOOSE AGGREGATE.
WINDOW ROCK (ICAO: KRQE, IATA: RQE) is a public airport located in WINDOW ROCK, AZ.
