ROCKY MOUNT/WILSON RGNL - Airport Diagram

KRWI

ROCKY MOUNT/WILSON RGNL

PublicPUB

7 miles SW of ROCKY MOUNT, NC

View on Map

Status

Operational

Coordinates

35° 51' 23"N 77° 53' 31"W

Elevation

158' MSL

Pattern Alt

1158' MSL

Mag Variation

09W

Fuel

JET A, 100LL

FSS

RALEIGH (RDU)

Sectional

CHARLOTTE

ARTCC

WASHINGTON (ZDC)

Data Effective

11/28/24-12/26/24

KRWI VFR

6:53 AM EST RAW

Clear

Viz

10sm

Temp

21°F

Dew

16°F

Pres

30.59"Hg

Wind

030° 5kts

RMK

AO2 SLP360 T10611089 11044 21072 53013 $

KRWI 231153Z AUTO 03005KT 10SM CLR M06/M09 A3059 RMK AO2 SLP360 T10611089 11044 21072 53013 $

Add Your Business

KRWI FBOs

Promote Listing

Rocky Mount-Wilson Regional Airport

UNICOM: 123.05

Phone: (252) 446-7057

0 Reviews (Read | Sign In To Write)

Titan

As of 12/18	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.59		4.65
Full Serve	4.99		5.15

Fuel Notes

Prices include tax

KRWI Other Businesses

Promote Listing

Air Care Aviation Services

UNICOM: 123.05

Phone: (252) 977-1717

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 123.05 CTAF 123.05

ASOS

252-446-0732

118.875

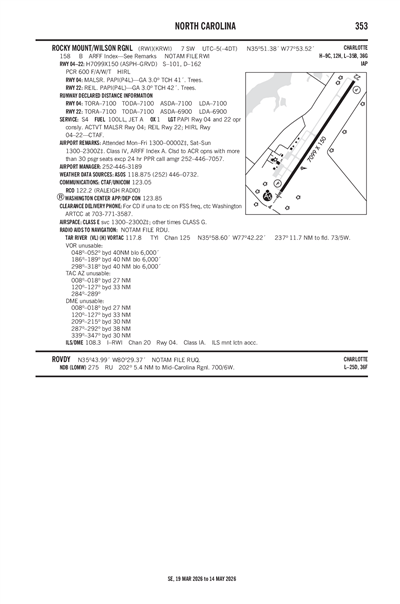

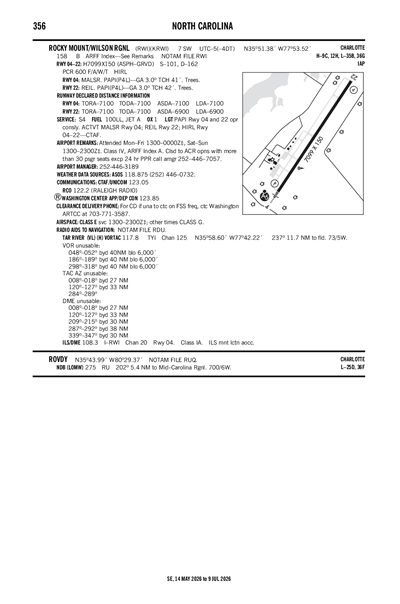

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KRWI

RAW

Reported

Mon, 12/23 6:20 AM EST

Valid

Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST

VFR

7:00 AM EST - 1:00 AM EST

Sky Clear

Viz

6sm

Wind

VRB° 5kts

VFR

1:00 AM EST - 7:00 AM EST

Broken 8,000'

Viz

6sm

Wind

Calm

KRWI 231120Z 2312/2412 VRB05KT P6SM SKC
FM240600 00000KT P6SM BKN080

KRWI

Domestic
11/16/241200Z	!RWI 11/005 RWI OBST TOWER LGT (ASR 1260867) 355719.50N0775302.90W (6.0NM NE RWI) 585.0FT (419.9FT AGL) U/S 2411161200-2412311159
11/5/240118Z	!RWI 11/002 RWI OBST TOWER LGT (ASR 1003320) 355545.00N0780412.00W (9.6NM WNW RWI) 578.7FT (348.8FT AGL) U/S 2411050118-2501042359
6/7/241300Z	!RWI 06/001 RWI AD AP ABN U/S 2406071300-PERM

ATC Tower

Attendance

MON-FRI 0600-2000
SAT-SUN 0800-1800

Owner

ROCKY MOUNT-WILSON ARPT AUTH
7265 AIR TERMINAL DR
ELM CITY, NC 27822
Phone: 252-446-7057

Manager

JARRETT MOSS
7265 AIR TERMINAL DR
ELM CITY, NC 27822
Phone: 252-446-7057

FSS

RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF

NOTAM

RWI

Light Schedule

Lights

ACTVT MALSR RWY 04; REIL RWY 22; HIRL RWY 04/22 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

High Pressure

Other Services

Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 04/22

Dimensions

7099 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

40 /F/B/X/T

Single Wheel

101,000lbs

Double Wheel

162,000lbs

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	33°	213°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	35° 50' 53"N	35° 51' 52"N
Longitude	77° 53' 55"W	77° 53' 07"W
Elevation	158'	150'
Threshold Crossing Height	41 ft. AGL	42 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSR
Centerline Lights
Runway End Identifier Lights		Yes

A110-1

FOR CD IF UNA TO CTC ON FSS FREQ, CTC WASHINGTON ARTCC AT 703-771-3587.

ROCKY MOUNT/WILSON RGNL (ICAO: KRWI, IATA: RWI) is a public airport located in ROCKY MOUNT, NC.
