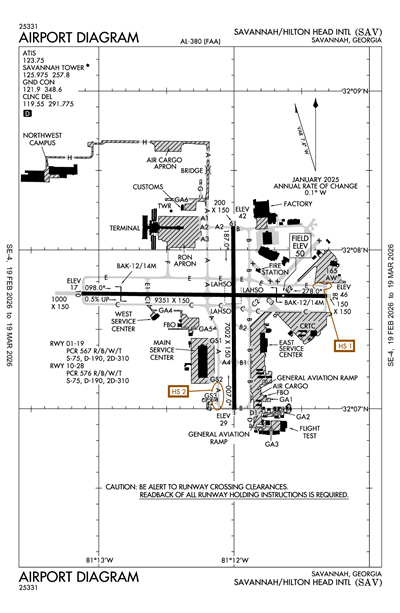

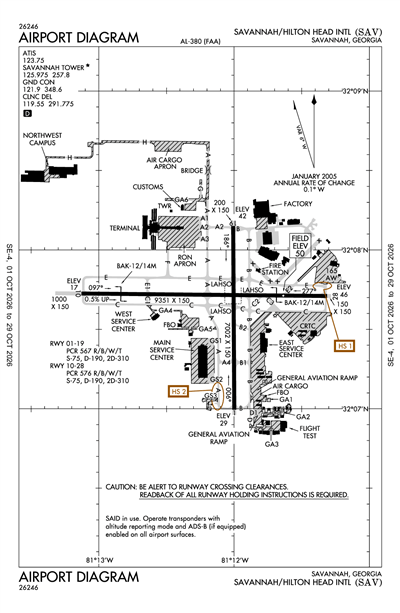

SAVANNAH/HILTON HEAD INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSAV
SAVANNAH/HILTON HEAD INTL
PublicPUB

7 miles NW of SAVANNAH, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 07' 39"N 81° 12' 08"W
50' MSL
1050' MSL
06W
JET A, JET A+, CILI, 100LL
MACON (MCN)
ATLANTA
JACKSONVILLE (ZJX)
10/3/24-10/31/24
KSAV VFR
6:53 PM EDT
Scattered 6,000'
10sm
75°F
63°F
30.31"Hg
110° 10kts
AO2 SLP264 T02390172
KSAV 302253Z 11010KT 10SM SCT060 24/17 A3031 RMK AO2 SLP264 T02390172
Add Your Business

KSAV FBOs

Promote Listing
Signature Aviation
UNICOM: 130.375
Phone: (912) 964-1557
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 10/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.60 5.89 6.45
Fuel Notes
Prices include tax
Sheltair
UNICOM: 128.825
Phone: (912) 965-0095
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 10/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.54 6.00 6.07
Fuel Notes
Prices include tax

KSAV Aircraft Service & Maintenance

Promote Listing
Gulfstream Aerospace Corp.
Phone: (912) 251-5177
Fax: (912) 279-3112
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 125.975

ATIS

ATIS
 123.75

Approach/Departure

APCH/P DEP/P
270-010
 118.4
APCH/P DEP/P
110-269
 120.4
APCH/P DEP/P IC
011-109
 125.3
APCH/S DEP/S
 121.1

Clearance Delivery

CD/P
 119.55

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 125.975

Other

CLASS C
270-010
 118.4
CLASS C
110-269
 120.4
CLASS C
011-109
 125.3

Terminal Area Forecast

KSAV
Wed, 10/30 1:25 PM EDT
Wed, 10/30 2:00 PM EDT - Thu, 10/31 2:00 PM EDT
VFR
2:00 PM EDT - 9:00 PM EDT
Scattered 4,500'
6sm
100° 13kts
VFR
9:00 PM EDT - 2:00 AM EDT
Few 2,500'
6sm
100° 5kts
VFR
2:00 AM EDT - 10:00 AM EDT
Few 2,500'
6sm
VRB° 3kts
VFR
10:00 AM EDT - 2:00 PM EDT
Scattered 3,500'
6sm
120° 8kts
KSAV 301725Z 3018/3118 10013KT P6SM SCT045
   FM310100 10005KT P6SM FEW025
   FM310600 VRB03KT P6SM FEW025
   FM311400 12008KT P6SM SCT035
KSAV
Domestic
10/30/240936Z !SAV 10/073 SAV OBST TOWER LGT (ASR 1217303) 321153.70N0811607.90W (5.4NM NW SAV) 274.9FT (257.9FT AGL) U/S 2410300936-2411140400
10/29/241911Z !SAV 10/071 SAV OBST TOWER LGT (ASR 1300295) 321530.90N0811922.10W (9.8NM NW SAV) 338.6FT (259.8FT AGL) U/S 2410291911-2411290311EST
10/26/240007Z !SAV 10/068 SAV OBST TOWER LGT (ASR 1031483) 320438.10N0810924.80W (3.7NM SE SAV) 271.0FT (261.2FT AGL) U/S 2410260007-2411110400
10/25/241422Z !SAV 10/066 SAV APRON TERMINAL RAMP WIP CONST E END NO TAXI/TOW BTN A1/A3 ON RAMP 2410251422-2612010001
10/24/242102Z !SAV 10/064 SAV OBST TOWER LGT (ASR 1013667) 315842.60N0811003.30W (9.1NM S SAV) 220.1FT (200.1FT AGL) U/S 2410242102-2502212102
10/24/241049Z !SAV 10/063 SAV OBST TOWER LGT (ASR 1244157) 315943.10N0810901.50W (8.3NM SSE SAV) 196.9FT (154.9FT AGL) U/S 2410241049-2411071300
10/20/240050Z !SAV 10/058 SAV OBST TOWER LGT (ASR 1038626) 321232.20N0812812.10W (14.3NM WNW SAV) 376.0FT (305.1FT AGL) U/S 2410200050-2411030400
10/18/240439Z !SAV 10/053 SAV OBST TOWER LGT (ASR 1280339) 320342.70N0810422.60W (7.6NM ESE SAV) 162.1FT (143.0FT AGL) U/S 2410180439-2411020339
10/18/240439Z !SAV 10/052 SAV OBST TOWER LGT (ASR 1054462) 315926.00N0811734.00W (9.5NM SSW SAV) 425.9FT (419.9FT AGL) U/S 2410180439-2411020339
10/17/241705Z !SAV 10/051 SAV OBST TANK LGT (ASN UNKNOWN) 320510N0805955W (11.5NM E SAV) UNKNOWN (150FT AGL) U/S 2410171705-2412312359
10/17/241600Z !SAV 10/050 SAV OBST CRANE (ASN 2024-ASO-11848-NRA) 320828N0811238W (0.9NM NNW SAV) 207FT (185FT AGL) FLAGGED 2410171600-2504022359
10/17/241557Z !SAV 10/049 SAV OBST CRANE (ASN 2024-ASO-11847-NRA) 320838N0811222W (1.0NM NNW SAV) 204FT (185FT AGL) FLAGGED 2410171557-2504022359
10/17/241555Z !SAV 10/048 SAV OBST CRANE (ASN 2024-ASO-11846-NRA) 320838N0811221W (1.0NM NNW SAV) 204FT (185FT AGL) FLAGGED 2410171555-2504022359
10/17/241552Z !SAV 10/047 SAV OBST CRANE (ASN 2024-ASO-11845-NRA) 320838N0811238W (1.1NM NNW SAV) 204FT (185FT AGL) FLAGGED 2410171552-2504022359
10/17/241201Z !SAV 10/045 SAV OBST CRANE LGT (ASN 2024-ASO-11846-NRA) 320839N0811222W (1.0NM N SAV) 204FT (185FT AGL) U/S 2410171201-2504022359
10/17/241155Z !SAV 10/044 SAV OBST CRANE LGT (ASN 2024-ASO-11845-NRA) 320839N0811238W (1.1NM NNW SAV) 204FT (185FT AGL) U/S 2410171155-2504022359
10/15/241125Z !SAV 10/034 SAV OBST TOWER LGT (ASR 1031374) 320407.00N0810535.00W (6.5NM ESE SAV) 411.1FT (367.1FT AGL) U/S 2410151125-2501130400
10/10/241532Z !SAV 10/025 SAV OBST TOWER LGT (ASR 1054797) 322213.00N0811916.90W (15.6NM NNW SAV) 335.0FT (266.1FT AGL) U/S 2410101532-2501090400
10/7/241552Z !SAV 10/019 SAV OBST TOWER LGT (ASR 1018626) 320315.00N0812100.00W (8.8NM WSW SAV) 1548.6FT (1530.8FT AGL) U/S 2410071552-2504072359
10/5/240845Z !SAV 10/016 SAV OBST TOWER LGT (ASR 1022213) 321302.00N0813100.00W (16.7NM WNW SAV) 320.2FT (265.1FT AGL) U/S 2410050845-2501030400
10/3/241414Z !SAV 10/010 SAV OBST TOWER LGT (ASR 1051911) 320524.90N0810846.60W (3.6NM SE SAV) 227.0FT (211.9FT AGL) U/S 2410031414-2411031415
10/2/240442Z !SAV 10/007 SAV OBST TOWER LGT (ASR 1025117) 321441.20N0811227.00W (7.0NM N SAV) 285.1FT (265.1FT AGL) U/S 2410020442-2412310400
9/27/240746Z !SAV 09/092 SAV OBST TOWER LGT (ASR 1226205) 315849.30N0811031.20W (8.9NM S SAV) 195.2FT (185.0FT AGL) U/S 2409270746-2501250746
9/27/240547Z !SAV 09/071 SAV OBST TOWER LGT (ASR 1227429) 320256.50N0810841.80W (5.5NM SSE SAV) 408.1FT (391.1FT AGL) U/S 2409270547-2501250547
9/26/240332Z !SAV 09/061 SAV OBST TOWER LGT (ASR 1279974) 322032.90N0811520.50W (13.1NM NNW SAV) 310.7FT (259.8FT AGL) U/S 2409260332-2501240332
9/24/242009Z !SAV 09/060 SAV OBST TOWER LGT (ASR 1028296) 320249.00N0810441.00W (7.8NM SE SAV) 546.6FT (522.0FT AGL) U/S 2409242009-2412242359
9/23/241920Z !SAV 09/057 SAV OBST TOWER LGT (ASR 1023884) 321612.00N0810411.00W (11.0NM NE SAV) 333.0FT (315.0FT AGL) U/S 2409231920-2412220400
9/10/241500Z !SAV 09/025 SAV TWY A2 BTN TERMINAL RAMP AND TWY A CLSD 2409101500-2612312200
9/7/241454Z !SAV 09/022 SAV OBST TOWER LGT (ASR 1039122) 322202.90N0811638.10W (14.8NM NNW SAV) 549.2FT (476.0FT AGL) U/S 2409071454-2412060400
8/27/241120Z !SAV 08/063 SAV OBST TOWER LGT (ASR 1211041) 321747.30N0812310.50W (13.6NM NW SAV) 430.1FT (348.1FT AGL) U/S 2408271120-2411250400
8/26/241728Z !SAV 08/060 SAV OBST TOWER LGT (ASR 1021802) 321729.70N0811454.40W (10.1NM NNW SAV) 431.8FT (359.9FT AGL) U/S 2408261728-2412241728
6/28/241021Z !SAV 06/060 SAV OBST CRANE (ASN 2024-ASO-9065-NRA) 320808N0811418W (2NM WNW SAV) 163FT (140FT AGL) FLAGGED NOT LGTD DLY SR-SS 2406281021-2412312231
4/1/241058Z !SAV 04/001 SAV NAV ILS RWY 01 LOC/GP U/S 2404011058-2412312300
5/30/221307Z !SAV 05/051 SAV AD AP SELF SERVE FUEL NOT AVBL 2205301307-PERM
FDC
9/23/241355Z !FDC 4/9156 SAV IAP SAVANNAH/HILTON HEAD INTL, SAVANNAH, GA.
VOR/DME OR TACAN RWY 1, ORIG-E...
VOR/DME OR TACAN RWY 19, ORIG-B...
TACAN PORTION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAV TACAN AZIMUTH OUT OF SERVICE. 2409231355-2505051355EST
Military
10/18/241705Z ALL MIL C-130 APRON: TAXILANE ECHO 2 AND PARKING SPOTS BRAVO 1-4 CLOSED FOR CONSTRUCTION. TRANSIENT AIRCRAFT NOT AUTHORIZED.
Yes
1100-0300Z++
SAVANNAH AIRPORT COMMISSION
400 AIRWAYS AVE.
SAVANNAH, GA 31408
Phone: 912-964-0514
GREG B. KELLY, A.A.E.
400 AIRWAYS AVE.
SAVANNAH, GA 31408
Phone: 912-964-0514
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
SAV
--
WHEN ATCT CLSD ACTVT MALSR RWY 10; REIL RWYS 19 & 28; HIRL RWYS 01/19 & 10/28 - CTAF. VASI RWY 19 AND PAPI RWYS 01, 10, & 28 OPER CONTINUOUSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 01/19

7002 ft. x 150 ft.
CONC
Good
GRVD
HIGH
70 /R/C/W/T
75,000lbs
190,000lbs
310,000lbs
--
  Runway 01 Runway 19
True Heading 360°180°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 06' 60"N 32° 08' 09"N
Longitude 81° 11' 60"W 81° 12' 00"W
Elevation 29' 42'
Threshold Crossing Height 74 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4R
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes

Runway 10/28

9351 ft. x 150 ft.
CONC
Good
GRVD
HIGH
70 /R/C/W/T
75,000lbs
190,000lbs
310,000lbs
--
  Runway 10 Runway 28
True Heading 91°271°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 07' 44"N 32° 07' 43"N
Longitude 81° 13' 08"W 81° 11' 19"W
Elevation 17' 46'
Threshold Crossing Height 69 ft. AGL 66 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-1BIRDS & DEER ON & INVOF OF ARPT. AIR CARRIER ACFT CTC GND PRIOR TO PUSH BACK FROM ALL GATES. PILOTS SHOULD COMPLETE ALL CALCULATIONS PRIOR TO PUSH BACK FM TRML GATE. OPR TRANSPONDERS WITH ALT REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
A110-14TWY 'E2' CONNECTOR CLSD TO ACFT LANDING RY 28. DISTANCE FM TOUCHDOWN TOO SHORT FOR SAFE TURN.
A110-16ANG: COMBAT READINESS TRNG CNTR (CRTC)/AIR DOMINANCE CENTER (ADC) AFLD MGMT DSN 860-3145/3497, C912-963-3145/3497. DUTY HR 1230-2100Z++ MON-FRI. CTC ADC BASE OPS ON UHF 237.00 (CALL SIGN "ADC OPS").
A110-17165AW (C130 UNIT) AFLD MGMT DSN 860-8184/8433, C912-966-8184. DUTY HR 1230-2100Z++MON-THUR, 1230-1900Z++ FRI. ACFT INBD TO 165AW CTC COMD POST DSN 860-8244, C912-966-8244 OR UHF 225.75 WITHIN 50 NM WITH ETA AND REQ. ADC COMSEC STORAGE UNAVBL. 165AW COMSEC STORAGE UP TO SECRET AVBL VIA COMD POST DUR NORMAL DUTY HR ONLY.
A110-20TRAN ACFT PROH WHEN TRAN ALERT UNAVBL. FLEET SVC UNAVBL.
A110-21ACFT/VEHICLES ON THE SOUTH END OF TWY A AND THE EAST END OF TWY E NOT VSB FROM THE ATCT.
A110-22BASH PHASE II 01 APR - 31 OCT. CTC TWR OR COMD POST FOR BIRD HAZ. WILDLIFE MOST ACTIVE +/- 1 HR OF SS OR SR.
A110-23ANG: MIL E2 TAXILANE.
A110-24FOR CD IF UNA TO CTC ON FSS FREQ, CTC SAVANNAH APCH AT 912-964-3205, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A110-25AP CLSD TO INTL GA ARR EXC 24HR PPR CTC US CUST 912-232-7507 AND SERVICING FIXED BASE OPR FOR PROCESSING AND INSTRUCTIONS.
A110-3NO 180 DEG TURNS ON ASPH FOR ACFT OVER 12500 LBS GROSS.
A110-4PPR FOR ACES OF GEN AVN ACFT ON THE ACR TRML RAMP CTC 912-964-7501.
A110-5TWY A, TWY B TWY C, TWY D, TWY E, TWY F, TWY G AND TWY H ARE LTD TO DUAL WHEEL ACFT UP TO 173,000 LBS AND DUAL TANDEM WHEEL ACFT UP TO 310,000 LBS.
A110-8TWY B2, C2 ARE LIMITED TO 12500 LBS.
A110-9TWY E CLSD FM RY 28 TO BUT NOT INCLUDING TWY E2 TO ACFT WITH WING SPAN OF 175 FT OR GREATER.
SAVANNAH/HILTON HEAD INTL (ICAO: KSAV, IATA: SAV) is a public airport located in SAVANNAH, GA.
