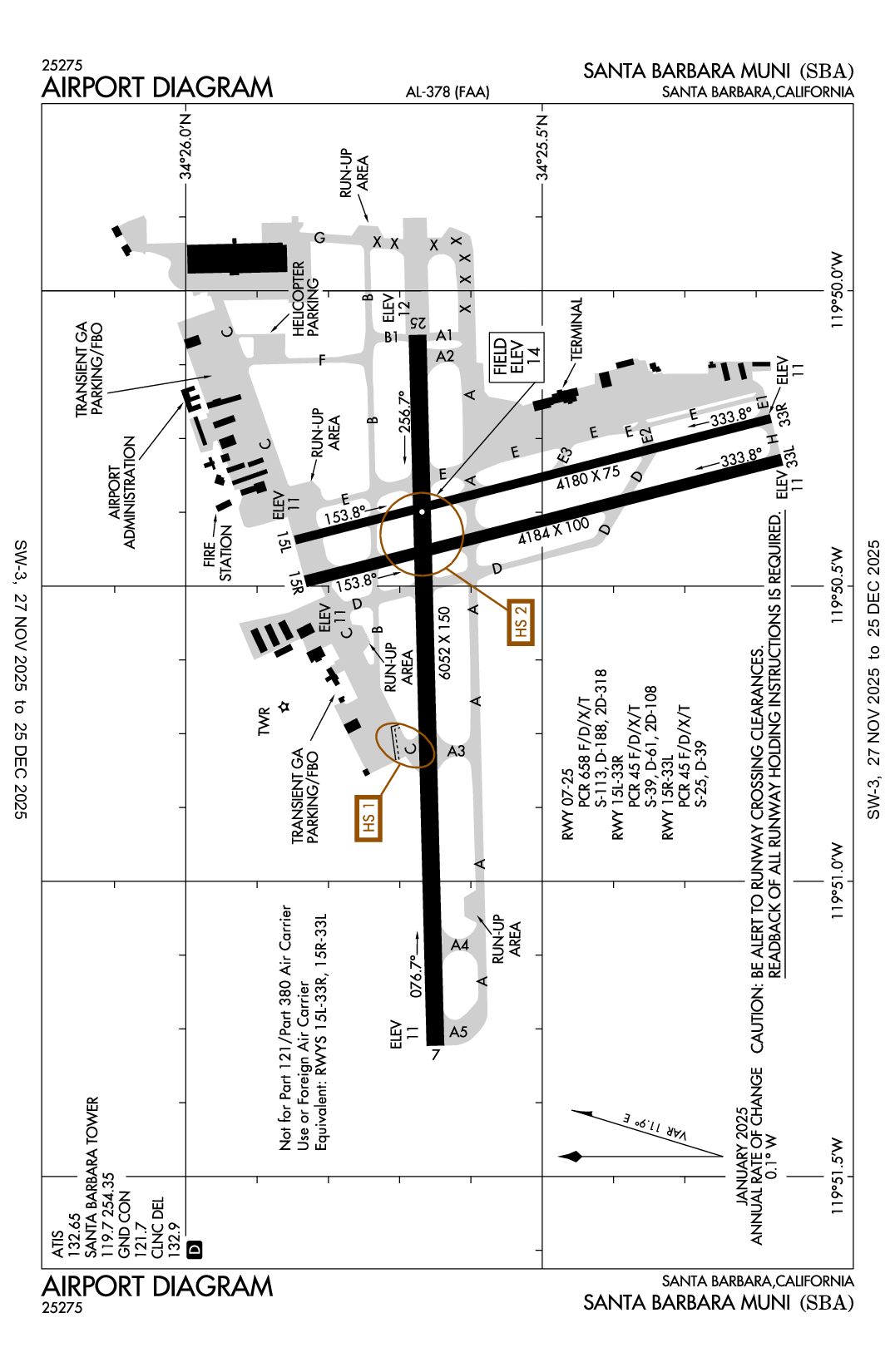

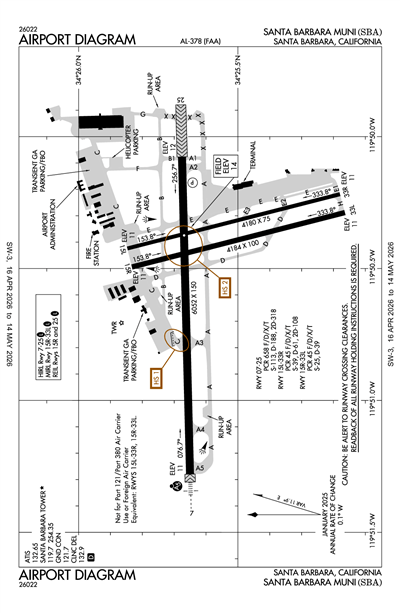

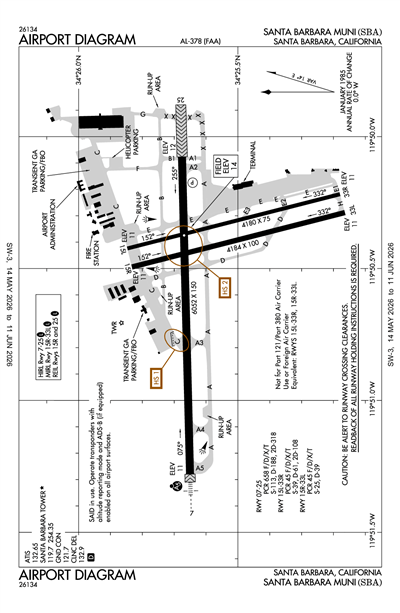

SANTA BARBARA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSBA
SANTA BARBARA MUNI
PublicPUB

7 miles W of SANTA BARBARA, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 25' 34"N 119° 50' 29"W
14' MSL
1014' MSL
14E
JET A, 100LL
HAWTHORNE (HHR)
LOS ANGELES
LOS ANGELES (ZLA)
12/26/24-1/23/25
KSBA VFR
7:53 AM PST
Clear
10sm
39°F
28°F
30.25"Hg
360° 3kts
AO2 SLP243 T00391022 $
KSBA 221553Z 36003KT 10SM CLR 04/M02 A3025 RMK AO2 SLP243 T00391022 $
Add Your Business

KSBA FBOs

Promote Listing
Signature Aviation
UNICOM: 131.475
Phone: (805) 967-5608
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 1/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.58
Full Serve 6.48 7.73
Fuel Notes
Prices include tax
Promote Listing
Atlantic Aviation
UNICOM: 122.95
Phone: (805) 964-6733
No Rating Available
1 Review (Read | Sign In To Write)
1 out of 1 Recommend
Independent
As of 1/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.48 8.29
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.7

ATIS

ATIS
805-967-0283
 132.65

ASOS

ASOS
805-681-0583
 132.65

Approach/Departure

APCH/P DEP/P
 124.15
APCH/P DEP/P
 127.725
APCH/P DEP/P IC
151-329
 120.55
APCH/P DEP/P IC
330-150
 125.4

Clearance Delivery

CD/P
 132.9

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
 119.7

Other

CLASS C
151-329
 120.55
CLASS C
330-150
 125.4
GAUCH DP
 120.55
MISHN DP
 120.55

Terminal Area Forecast

KSBA
Wed, 1/22 3:43 AM PST
Wed, 1/22 4:00 AM PST - Thu, 1/23 4:00 AM PST
VFR
4:00 AM PST - 9:00 AM PST
Scattered 25,000'
6sm
VRB° 3kts
VFR
9:00 AM PST - 12:00 PM PST
Scattered 25,000'
6sm
160° 6kts
VFR
12:00 PM PST - 6:00 PM PST
Scattered 25,000'
6sm
240° 8kts
VFR
6:00 PM PST - 4:00 AM PST
Scattered 25,000'
6sm
VRB° 3kts
KSBA 221143Z 2212/2312 VRB03KT P6SM SCT250
   FM221700 16006KT P6SM SCT250
   FM222000 24008KT P6SM SCT250
   FM230200 VRB03KT P6SM SCT250
KSBA
Domestic
1/24/250700Z !SBA 01/029 SBA COM REMOTE TRANS/REC U/S 2501240700-2501241400
1/24/250700Z !SBA 01/028 SBA SVC ATIS 132.65 U/S 2501240700-2501241400
1/23/251430Z !SBA 01/033 SBA OBST CRANE (ASN 2023-AWP-12707-OE) 342605N1195127W (0.9NM WNW SBA) 215FT (175FT AGL) FLAGGED AND LGTD 2501231430-2501231900
1/22/251536Z !SBA 01/037 SBA AD AP ALL SFC WIP GRASS CUTTING 2501221536-2501222300
1/21/252247Z !SBA 01/035 SBA TWY A1 IN PAVEMENT RWY GUARD LGT NOT STD 2501212247-2501280100
1/21/251700Z !SBA 01/032 SBA APRON TERMINAL APN AT GATE 3 CLSD BARRICADED
2501211700-2501250100
1/17/251500Z !SBA 01/026 SBA OBST CRANE (ASN 2022-AWP-17046-OE) 342522N1194959W (0.5NM ESE SBA) 190FT (160FT AGL) FLAGGED AND LGTD DLY 1500-2359 2501171500-2506302359
1/16/251610Z !SBA 01/025 SBA AD AP BIRD ACT HVY 2501161610-2501311600
1/16/251527Z !SBA 01/024 SBA RWY 25 RWY END ID LGT U/S 2501161527-2501242000EST
1/16/250738Z !SBA 01/023 SBA COM REMOTE COM OUTLET 122.3 U/S 2501160738-2502122000EST
10/4/240600Z !SBA 10/012 SBA APRON SOUTH TERMINAL APN CLSD EXC 15MIN PPR 805-681-4803 DLY 0600-1300 2410040600-2510031300
10/3/241555Z !SBA 10/011 SBA TWY E2 BTN TWY E AND TERMINAL APN CLSD 2410031555-PERM
2/2/241240Z !SBA 02/023 SBA NAV ILS RWY 07 DME NOT MNT 2402021240-2501312000EST
FDC
1/22/251400Z !FDC 5/5040 SBA ODP SANTA BARBARA MUNI, SANTA BARBARA, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8A...
ADD TAKEOFF OBSTACLE NOTE: RWY 25, TEMPORARY CRANE 3615FT FROM DER, 1409FT RIGHT OF CENTERLINE, 125FT AGL/150FT MSL (2022-AWP-11854-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2501221400-2502131400EST
1/21/251843Z !FDC 5/5318 SBA IAP SANTA BARBARA MUNI, SANTA BARBARA, CA.
ILS OR LOC RWY 7, AMDT 5D...
ALTERNATE MINIMUMS NA WHEN CONTROL TOWER CLOSED.
2501211843-2701271843EST
1/13/251530Z !FDC 5/2635 SBA SID SANTA BARBARA MUNI, SANTA BARBARA, CA.
FLOUT FIVE DEPARTURE...
GAVIOTA TRANSITION, SAN MARCUS TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GVO VORTAC OUT OF SERVICE. 2501131530-2501311326EST
1/13/251530Z !FDC 5/2634 SBA SID SANTA BARBARA MUNI, SANTA BARBARA, CA.
HABUT FOUR DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GVO VORTAC OUT OF SERVICE. 2501131530-2501311326EST
1/13/251530Z !FDC 5/2633 SBA SID SANTA BARBARA MUNI, SANTA BARBARA, CA.
KWANG FIVE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GVO VORTAC OUT OF SERVICE. 2501131530-2501311326EST
1/13/251530Z !FDC 5/2630 SBA IAP SANTA BARBARA MUNI, SANTA BARBARA, CA.
ILS OR LOC RWY 7, AMDT 5D...
MISSED APPROACH: CLIMB TO 700 THEN CLIMBING RIGHT TURN TO 4000 ON HEADING 160 AND FIM VORTAC R-250 TO GOLET INT/FIM 49.06 DME AND HOLD E, RT, 250.00 INBOUND. GVO VORTAC OUT OF SERVICE.
2501131530-2501311326EST
1/13/251530Z !FDC 5/2628 SBA IAP SANTA BARBARA MUNI, SANTA BARBARA, CA.
VOR OR GPS RWY 25, AMDT 6E...
VOR PORTION NA,
GVO VORTAC OUT OF SERVICE. 2501131530-2501311326EST
12/26/241224Z !FDC 4/0906 SBA SID SANTA BARBARA MUNI, SANTA BARBARA, CA.
MISHN FOUR DEPARTURE (RNAV) ...
IKAYE TRANSITION, NNAVY TRANSITION, SANTA CATALINA TRANSITION: GPS REQUIRED. ALL OTHER DATA REMAINS AS PUBLISHED. 2412261224-2508071224EST
12/25/240909Z !FDC 4/0735 SBA SID SANTA BARBARA MUNI, SANTA BARBARA, CA.
KWANG FIVE DEPARTURE...
HENER TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FIM VOR OUT OF SERVICE. 2412250909-2504012000EST
12/12/241822Z !FDC 4/5862 SBA SPECIAL SANTA BARBARA MUNI, SANTA BARBARA, CA.
RNAV (RNP) RWY 7, AMDT1...
PROCEDURE NOT AUTHORIZED

2412121822-2502200900EST
11/25/241550Z !FDC 4/8488 SBA IAP SANTA BARBARA MUNI, SANTA BARBARA, CA.
VOR OR GPS RWY 25, AMDT 6E...
S-25 MDA 1000/HAT 990 ALL CATS. VIS CAT B 1 1/2. CIRCLING MDA 1000/HAA 990 ALL CATS. VIS CAT B 1 1/2, CAT C 3.
2411251550-2611251550EST
8/14/231708Z !FDC 3/4034 SBA ODP SANTA BARBARA MUNI, SANTA BARBARA, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8A...
TAKE-OFF MINIMUMS: RWY 15R, 300-1.
ALL OTHER DATA REMAINS AS PUBLISHED. 2308141708-2508141708EST
Yes
0600-2300
CITY OF SANTA BARBARA
CITY HALL
SANTA BARBARA, CA 93101
Phone: 805-967-7111
CHRISTOPHER HASTERT
601 FIRESTONE RD
SANTA BARBARA, CA 93117
Phone: 805-967-7111
HAWTHORNE FSS (HHR)
Toll Free: 1-800-WX-BRIEF
SBA
--
WHEN ATCT CLSD ACTVT MALSR RWY 07; REIL RWY 15R; MIRL RWY 15R/33L - CTAF. REIL RWY 25; PAPI RWY 25; HIRL RWY 07/25 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Crop Dusting
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Sales

Runway 07/25

6052 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

113,000lbs
188,000lbs
318,000lbs
--
  Runway 07 Runway 25
True Heading 89°269°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 25' 39"N 34° 25' 41"N
Longitude 119° 51' 17"W 119° 50' 04"W
Elevation 11' 12'
Threshold Crossing Height -- 50 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 15L/33R

4180 ft. x 75 ft.
ASPH
Good
NONE


39,000lbs
61,000lbs
108,000lbs
--
  Runway 15L Runway 33R
True Heading 166°346°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 25' 51"N 34° 25' 11"N
Longitude 119° 50' 25"W 119° 50' 13"W
Elevation 11' 11'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 15R/33L

4184 ft. x 100 ft.
ASPH
Good
NONE
MED

25,000lbs
39,000lbs
--
--
  Runway 15R Runway 33L
True Heading 166°346°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 25' 50"N 34° 25' 10"N
Longitude 119° 50' 30"W 119° 50' 17"W
Elevation 11' 11'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-10RWY 15L/33R DALGT HRS ONLY.
A110-11COML AIRLINE RAMP CLSD TO ALL GA ACFT.
A110-14NO CUSTOMS PSNL OR FACS ARE AVBL AND INTL ACFT WILL NOT BE ALLOWED TO LAND UNLESS AN EMERG EXISTS.
A110-15RWYS 15L/33R AND 15R/33L NOT AVBL FOR SKED ACR OPNS WITH MORE THAN 9 PSGR SEATS OR UNSKED ACR AT LEAST 31 PSGR SEATS.
A110-16ALL ACR ACFT CTC ATC ON FREQ 121.7 PRIOR TO PUSHBACK FROM TRML RAMP AND RON PRKG 0600-2300. ESCORTS RQRD FROM RON PRKG WHEN ATC IS CLSD; CTC ARPT OPS 805-681-4803.
A110-4NUMEROUS FLOCKS OF BIRDS ON AND INVOF ARPT.
A110-5PURE JET TOUCH/GO OR LOW APCHS PROHIBITED.
A110-7DUE TO LMTD RAMP SPACE AT THE AIRLINE TRML NON-SKED TRNSP CAT ACFT WITH MORE THAN 30 PASSENGER SEATS ARE RQRD TO CTC ARPT OPNS 805-681-4803 24 HRS PRIOR TO ARR.
A110-9NOISE ABATEMENT PROCS IN EFCT CTC ARPT OPNS 805-692-6011.
SANTA BARBARA MUNI (ICAO: KSBA, IATA: SBA) is a public airport located in SANTA BARBARA, CA.
