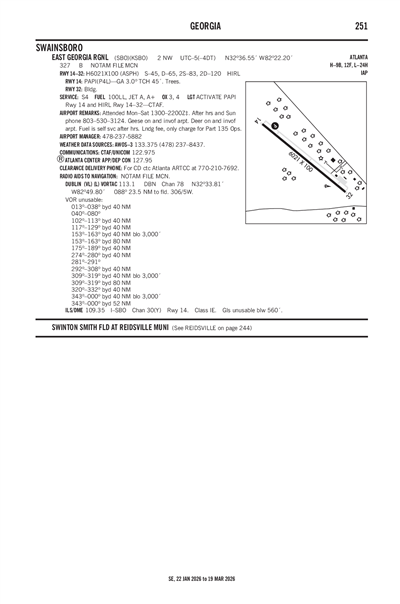

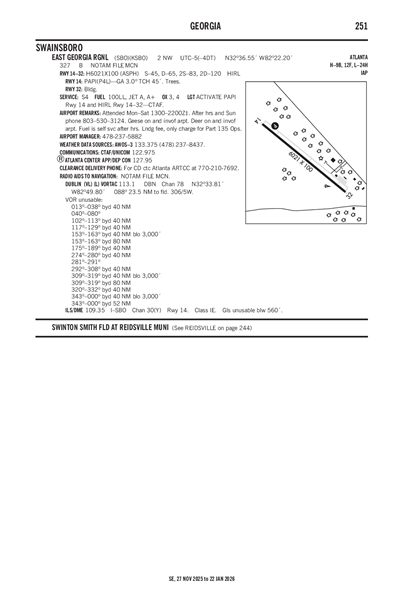

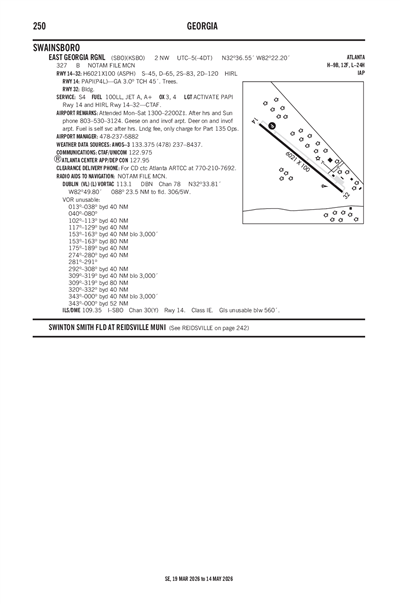

EAST GEORGIA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSBO
EAST GEORGIA RGNL
PublicPUB

2 miles NW of SWAINSBORO, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 36' 33"N 82° 22' 12"W
327' MSL
1327' MSL
06W
JET A, JET A (FSII), 100LL
MACON (MCN)
ATLANTA
ATLANTA (ZTL)
11/28/24-12/26/24
KSBO VFR
7:35 AM EST
Clear
10sm
32°F
23°F
30.47"Hg
060° 5kts
AO2
KSBO 231235Z AUTO 06005KT 10SM CLR 00/M05 A3047 RMK AO2
Add Your Business

KSBO FBOs

Promote Listing
AirStar Flight Support
UNICOM: 122.975
Phone: (478) 237-5882
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 12/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.20 4.89 5.04
Full Serve 6.45 4.89 5.04
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 122.975

AWOS-3

AWOS-3
478-237-8437
 133.375

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAGS (50nm)
Mon, 12/23 6:20 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Sky Clear
6sm
VRB° 3kts
VFR
9:00 AM EST - 6:00 PM EST
Sky Clear
6sm
050° 9kts
VFR
6:00 PM EST - 1:00 AM EST
Scattered 10,000'
Few 5,000'
6sm
VRB° 3kts
MVFR
1:00 AM EST - 7:00 AM EST
Broken 2,500'
6sm
360° 4kts
KAGS 231120Z 2312/2412 VRB03KT P6SM SKC
   FM231400 05009KT P6SM SKC
   FM232300 VRB03KT P6SM FEW050 SCT100
   FM240600 36004KT P6SM BKN025
KSBO
Domestic
12/19/241503Z !MCN 12/529 SBO OBST TOWER LGT (ASR 1327827) 323344.20N0822920.00W (6.64NM WSW SBO) 530FT (275FT AGL) U/S 2412191503-2501192359
12/11/242306Z !MCN 12/325 SBO OBST TOWER LGT (ASN 2020-ASO-38257-OE) 324338N0821146W (11.4NM NE SBO) 619FT (315FT AGL) U/S 2412112306-2501252306
12/8/241527Z !MCN 12/194 SBO OBST TOWER LGT (ASN 2018-ASO-20815-OE) 324346N0821640W (8.7NM NNE SBO) 724FT (420FT AGL) U/S 2412081527-2501221515
10/24/241634Z !MCN 10/821 SBO OBST TOWER LGT (ASR 1019584) 323236.50N0821808.40W (5.2NM SE SBO) 788.1FT (500.0FT AGL) U/S 2410241634-2501222359
FDC
11/25/241448Z !FDC 4/8399 SBO IAP EAST GEORGIA RGNL, SWAINSBORO, GA.
ILS OR LOC RWY 14, AMDT 2...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
DBN VOR OUT OF SERVICE. 2411251448-2507071448EST
12/29/221210Z !FDC 2/9613 SBO IAP EAST GEORGIA RGNL, SWAINSBORO, GA.
ILS OR LOC RWY 14, AMDT 2...
MSA DBN VORTAC 25NM 2600.
2212291210-2412291210EST
No
MON-SAT 0800-1700
AFT HRS & SUNDAY PHONE 803-530-3124.
CITY OF SWAINSBORO
101 WEST MAIN STREET
SWAINSBORO, GA 30401
Phone: 478-237-7025
KEN WARNOCK
102 SOUTH MAIN STREET
SWAINSBORO, GA 30401
Phone: 478-237-5882
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT PAPI RWY 14; HIRL RWY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
None
Air Freight
Charter Service
Pilot Instruction
Annual Surveying

Runway 14/32

6021 ft. x 100 ft.
ASPH
Good
NONE
HIGH

45,000lbs
65,000lbs
120,000lbs
--
  Runway 14 Runway 32
True Heading 129°309°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition FAIR FAIR
Latitude 32° 36' 52"N 32° 36' 14"N
Longitude 82° 22' 39"W 82° 21' 45"W
Elevation 324' 322'
Threshold Crossing Height 45 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3DEER ON & INVOF ARPT.
A110-4GEESE ON AND INVOF ARPT.
A110-5FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
EAST GEORGIA RGNL (ICAO: KSBO, IATA: SBO) is a public airport located in SWAINSBORO, GA.
