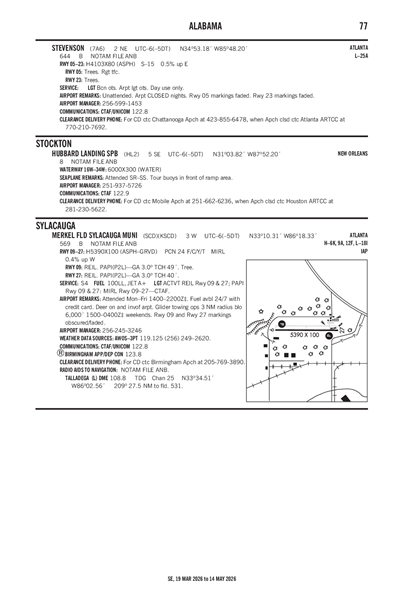

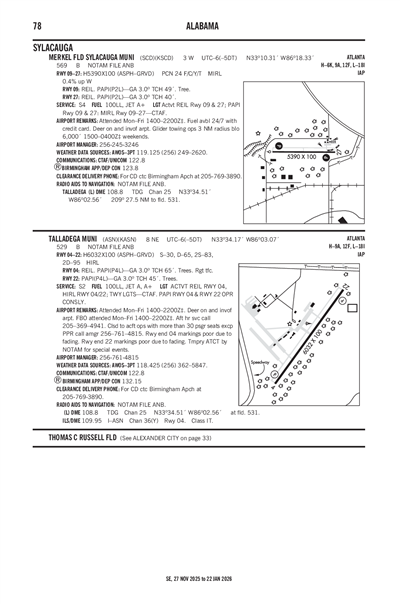

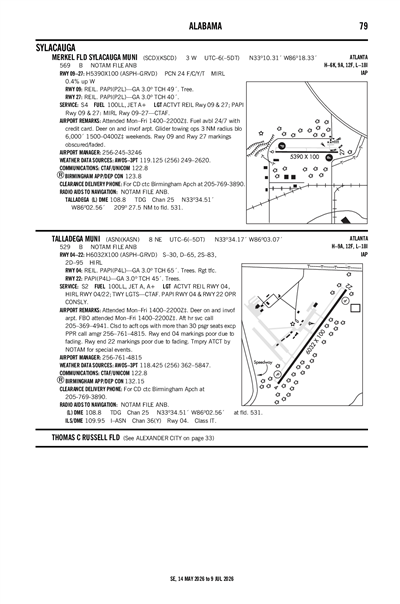

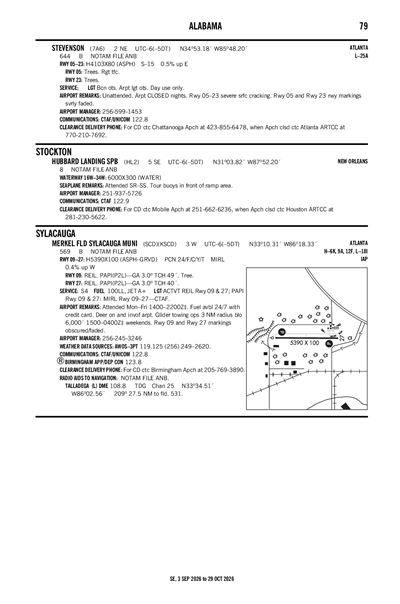

MERKEL FLD SYLACAUGA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSCD
MERKEL FLD SYLACAUGA MUNI
PublicPUB

3 miles W of SYLACAUGA, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 10' 19"N 86° 18' 20"W
569' MSL
1569' MSL
03W
JET A (FSII), 100LL
ANNISTON (ANB)
ATLANTA
ATLANTA (ZTL)
5/16/24-6/13/24
KSCD VFR
12:15 AM CDT
Overcast 10,000'
Scattered 7,000'
10sm
75°F
58°F
30.11"Hg
120° 3kts
AO2 T02380142
KSCD 010515Z AUTO 12003KT 10SM SCT070 OVC100 24/14 A3011 RMK AO2 T02380142
Add Your Business

KSCD FBOs

Promote Listing
Sylacauga Airport
UNICOM: 122.8
Phone: (256) 245-3246
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.69
Full Serve 5.89
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
256-249-2620
 119.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEET (24nm)
Fri, 5/31 6:24 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 1:00 AM CDT
Overcast 25,000'
Broken 11,000'
6sm
130° 7kts
VFR
1:00 AM CDT - 5:00 AM CDT
Showers in vicinity
Overcast 10,000'
6sm
140° 5kts
Shear 140° 40kts @ 2000'
MVFR
4:00 AM CDT - 5:00 AM CDT
Thunderstorm and Rain and Mist
Overcast 2,500'
4sm
Calm
VFR
5:00 AM CDT - 7:00 AM CDT
Overcast 3,500'
6sm
130° 6kts
Shear 140° 40kts @ 2000'
MVFR
5:00 AM CDT - 7:00 AM CDT
Thunderstorm and Rain and Mist
Overcast 2,500'
4sm
Calm
MVFR
7:00 AM CDT - 11:00 AM CDT
Showers and Rain and Mist
Broken 1,500'
6sm
130° 8kts
Shear 140° 40kts @ 2000'
IFR
7:00 AM CDT - 11:00 AM CDT
Thunderstorm and Rain and Mist
Overcast 900'
4sm
Calm
MVFR
11:00 AM CDT - 7:00 PM CDT
Showers and Rain and Mist
Overcast 2,200'
6sm
150° 8kts
MVFR
1:00 PM CDT - 7:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 1,200'
4sm
Calm
KEET 312324Z 0100/0124 13007KT P6SM BKN110 OVC250
   FM010600 14005KT P6SM VCSH OVC100 WS020/14040KT
   PROB30 0109/0110 4SM TSRA BR OVC025CB
   FM011000 13006KT P6SM OVC035 WS020/14040KT
   PROB30 0110/0112 4SM TSRA BR OVC025CB
   FM011200 13008KT 6SM SHRA BR BKN015 WS020/14040KT
   PROB30 0112/0116 4SM TSRA BR OVC009CB
   FM011600 15008KT 6SM SHRA BR OVC022
   PROB30 0118/0124 4SM TSRA BR OVC012CB
KSCD
Domestic
5/29/240428Z !ANB 05/142 SCD OBST TOWER LGT (ASR 1217042) 330023.40N0861213.90W (11.1NM SSE SCD) 1053.1FT (270.0FT AGL) U/S 2405290428-2406130328
5/28/240428Z !ANB 05/103 SCD OBST TOWER LGT (ASR 1278883) 330913.40N0861657.50W (1.6NM SE SCD) 834.0FT (255.9FT AGL) U/S 2405280428-2406120328
5/26/241131Z !ANB 05/006 SCD OBST TOWER LGT (ASR 1280864) 330405.20N0863146.70W (13.0NM WSW SCD) 816.3FT (305.8FT AGL) U/S 2405261131-2406102300
5/25/242233Z !ANB 05/991 SCD OBST TOWER LGT (ASR 1316903) 330730.66N0860340.56W (12.6NM ESE SCD) 1273FT (265FT AGL) U/S 2405252233-2406252300
5/17/240658Z !ANB 05/714 SCD OBST TOWER LGT (ASR 1314163) 330722.00N0862610.70W (7.2NM WSW SCD) 1018FT (420FT AGL) U/S 2405170658-2406172300
5/8/240830Z !ANB 05/250 SCD OBST TOWER LGT (ASN 2018-ASO-21034-OE) 330015N0861207W (11.2NM SSE SCD) 1048FT (265FT AGL) U/S 2405080830-2406220829
5/3/241326Z !ANB 05/099 SCD RWY 27 RWY END ID LGT U/S 2405031326-2411052111EST
4/26/242226Z !ANB 04/807 SCD OBST TOWER LGT (ASR 1248579) 331719.00N0862711.40W (10.1NM NW SCD) 684.1FT (270.0FT AGL) U/S 2404262226-2406102225
4/12/241749Z !ANB 04/442 SCD RWY 09 PAPI UNUSABLE 2404121749-2410142111EST
FDC
4/12/242009Z !FDC 4/0458 SCD IAP MERKEL FLD SYLACAUGA MUNI, SYLACAUGA, AL.
RNAV (GPS) RWY 27, AMDT 2...
CIRCLING TO RWY 9 NA.
2404122009-2604122009EST
4/12/242009Z !FDC 4/0457 SCD IAP MERKEL FLD SYLACAUGA MUNI, SYLACAUGA, AL.
RNAV (GPS) RWY 9, AMDT 2...
PROCEDURE NA.
2404122009-2604122009EST
8/4/222101Z !FDC 2/4221 SCD IAP MERKEL FLD SYLACAUGA MUNI, SYLACAUGA, AL.
RNAV (GPS) RWY 27, AMDT 2...
CHART NOTE: RWY 27 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
34:1 SLOPE IS NOT CLEAR.
2208042101-2408042100EST
No
MON-FRI 0800-1600
CITY OF SYLACAUGA
PO BOX 390
SYLACAUGA, AL 35150
Phone: 256-401-2400
SYLACAUGA AIRPORT AUTHORITY
195 AIRPORT RD.
SYLACAUGA, AL 35151
Phone: 256-245-3246
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27: MIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
21
2
0
0
0
0
Major
Major
None
None
Air Ambulance
Glider Service
Pilot Instruction
Glider Towing

Runway 09/27

5390 ft. x 100 ft.
ASPH
Good
GRVD
MED
24 /F/C/Y/T
--
--
--
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 10' 19"N 33° 10' 18"N
Longitude 86° 18' 52"W 86° 17' 48"W
Elevation 569' 548'
Threshold Crossing Height 49 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER ON & INVOF ARPT.
A110-3GLDR TOWING OPS 3 NM RADIUS BLW 6000 FT 0900-2200 WKENDS.
A110-4FOR CD CTC BIRMINGHAM APCH AT 205-769-3890.
MERKEL FLD SYLACAUGA MUNI (ICAO: KSCD, IATA: SCD) is a public airport located in SYLACAUGA, AL.
