iFlightPlanner



...

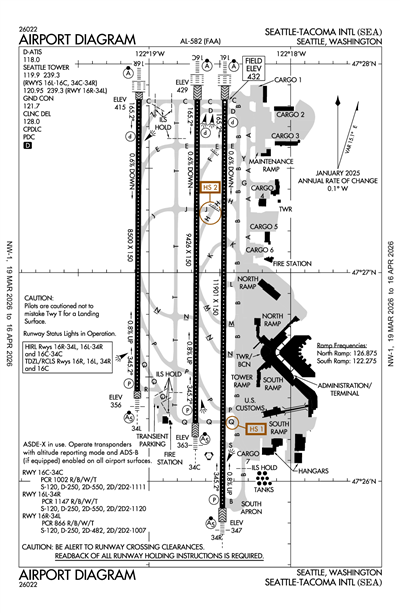

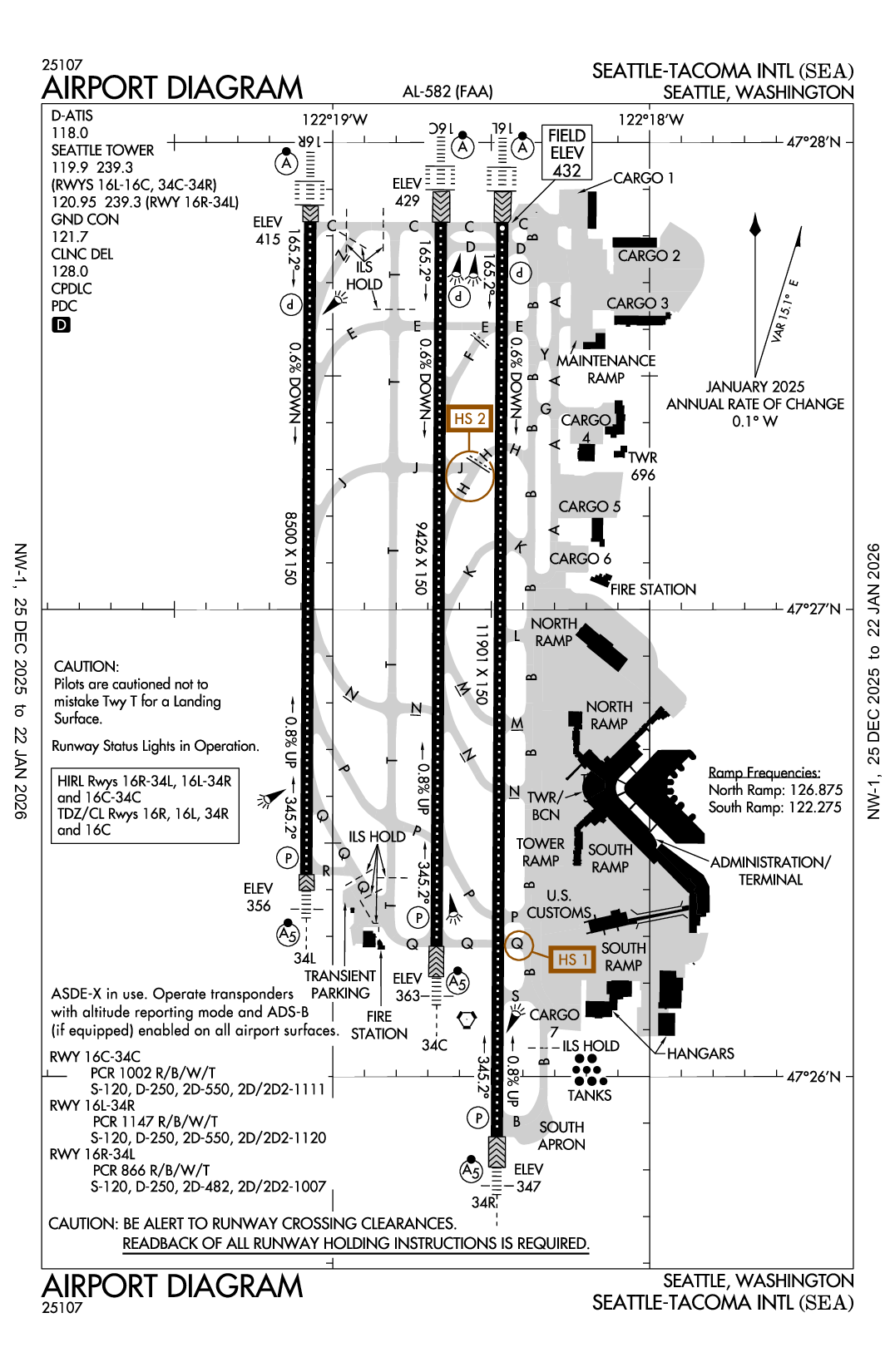

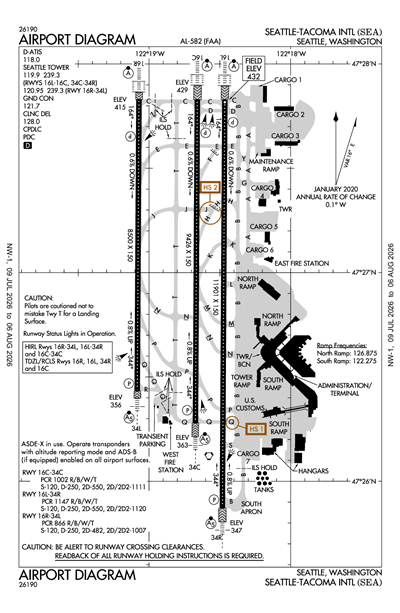

SEATTLE-TACOMA INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSEA
SEATTLE-TACOMA INTL
PublicPUB

10 miles S of SEATTLE, WA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 26' 60"N 122° 18' 42"W
432' MSL
1432' MSL
16E
JET A, JET A-1
SEATTLE (SEA)
SEATTLE
SEATTLE (ZSE)
7/11/24-8/8/24
KSEA VFR
7:53 PM PDT
Few 25,000'
10sm
85°F
53°F
29.91"Hg
360° 7kts
AO2 SLP131 T02940117 56010
KSEA 170253Z 36007KT 10SM FEW250 29/12 A2991 RMK AO2 SLP131 T02940117 56010
Add Your Business

KSEA FBOs

Promote Listing
Signature Aviation
UNICOM: 128.925
Phone: (206) 433-5481
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 7/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.70 8.27
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

KSEA
Tue, 7/16 7:53 PM PDT
Tue, 7/16 8:00 PM PDT - Wed, 7/17 11:00 PM PDT
VFR
8:00 PM PDT - 4:00 AM PDT
Sky Clear
6sm
020° 6kts
VFR
4:00 AM PDT - 11:00 AM PDT
Broken 15,000'
6sm
VRB° 5kts
VFR
11:00 AM PDT - 11:00 PM PDT
Scattered 15,000'
6sm
250° 6kts
KSEA 170253Z 1703/1806 02006KT P6SM SKC
   FM171100 VRB05KT P6SM BKN150
   FM171800 25006KT P6SM SCT150
KSEA
Domestic
7/20/240630Z !SEA 07/217 SEA APRON NORTH SATELLITE TXL BTN GATE N4 AND GATE
N3 CLSD 2407200630-2407201300
7/19/240630Z !SEA 07/216 SEA APRON NORTH SATELLITE TXL BTN GATE N4 AND GATE
N3 CLSD 2407190630-2407191300
7/19/240200Z !SEA 07/173 SEA AIRSPACE SEE RNT 07/005 UAS 2407190200-2407190800
7/18/240630Z !SEA 07/215 SEA APRON NORTH SATELLITE TXL BTN GATE N4 AND GATE
N3 CLSD 2407180630-2407181300
7/17/241900Z !SEA 07/234 SEA NAV ILS RWY 16R CAT II NA 2407171900-2407172200
7/17/241900Z !SEA 07/233 SEA RWY 16R ALS U/S 2407171900-2407172200
7/17/241900Z !SEA 07/188 SEA SVC MBST/WS DETECTION SYSTEM NOT AVBL 2407171900-2407172300
7/17/241900Z !SEA 07/187 SEA SVC TAR/SSR U/S 2407171900-2407172300
7/17/241300Z !SEA 07/246 SEA NAV ILS RWY 16L CAT II NA 2407171300-2407172200
7/17/241300Z !SEA 07/245 SEA RWY 16L ALS U/S 2407171300-2407172200
7/17/240630Z !SEA 07/214 SEA APRON NORTH SATELLITE TXL BTN GATE N4 AND GATE
N3 CLSD 2407170630-2407171300
7/14/241100Z !SEA 07/191 SEA APRON TXL W GEOGRAPHIC PSN MARKINGS NOT STD 2407141100-2408271600
7/10/241052Z !SEA 07/124 SEA AD AP WILDLIFE HAZARD FOX 2407101052-2407311200
6/30/240357Z !SEA 06/621 SEA TWY C EDGE MARKINGS BTN APCH END RWY 16C AND TWY T SOUTH SIDE FADED 2406300357-2408271600
6/30/240356Z !SEA 06/620 SEA TWY B EDGE MARKINGS BTN AIR CARGO 7 RAMP AND APCH END RWY 34R EAST SIDE FADED 2406300356-2408271600
6/30/240354Z !SEA 06/619 SEA RWY 16L LEAD ON CL MARKINGS AT TWY C FADED 2406300354-2408271600
6/30/240348Z !SEA 06/617 SEA TWY Z CL MARKINGS AT RWY16R/34L LEADOFF 300FT OBSC 2406300348-2408271600
6/30/240346Z !SEA 06/616 SEA TWY Q CL MARKINGS AT RWY16R/34L LEADOFF 300FT OBSC 2406300346-2408271600
6/30/240346Z !SEA 06/615 SEA RWY 16R/34L CL MARKINGS OBSC 2406300346-2408271600
6/1/241216Z !SEA 05/557 SEA AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 473227N1214820W (17NM E RNT) SFC-400FT AGL DLY SR-SS 2406011216-2410010149
3/29/241300Z !SEA 03/469 SEA OBST CRANE (ASN 2023-ANM-2030-NRA) 472642N1221811W (0.5NM SE SEA) 616FT (225FT AGL) FLAGGED AND LGTD 2403291300-2705020030
FDC
7/15/241500Z !FDC 4/1915 SEA IAP SEATTLE-TACOMA INTL, SEATTLE, WA.
ILS OR LOC RWY 34L, AMDT 1F...
ILS RWY 34L (SA CAT I), AMDT 1F...
ILS RWY 34L (CAT II), AMDT 1F...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PAE VOR/DME OUT OF SERVICE. 2407151500-2407221439EST
7/15/241500Z !FDC 4/1912 SEA SID SEATTLE-TACOMA INTL, SEATTLE, WA.
BANGR NINE DEPARTURE (RNAV)...
HAROB SIX DEPARTURE (RNAV)...
TAKEOFF RWY 34L, 34C, 34R: GPS REQUIRED,
PAE VOR/DME OUT OF SERVICE. 2407151500-2407221439EST
7/15/241500Z !FDC 4/1910 SEA IAP SEATTLE-TACOMA INTL, SEATTLE, WA.
ILS OR LOC RWY 16C, AMDT 17...
ILS OR LOC RWY 16L, AMDT 8A...
ILS OR LOC RWY 16R, AMDT 5...
ILS RWY 16C (SA CAT I), AMDT 17...
ILS RWY 16C (CAT II AND III), AMDT 17...
ILS RWY 16L (SA CAT I), AMDT 8A...
ILS RWY 16L (CAT II AND III), AMDT 8A...
ILS RWY 16R (SA CAT I), AMDT 5...
ILS RWY 16R (CAT II AND III), AMDT 5...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PAE VOR/DME OUT OF SERVICE. 2407151500-2407221439EST
4/19/242002Z !FDC 4/3198 SEA IAP SEATTLE-TACOMA INTL, SEATTLE, WA.
RNAV (GPS) Y RWY 34L, AMDT 1C...
LNAV/VNAV DA 827/HAT 448 ALL CATS. LNAV MDA 920/HAT 541 ALL CATS. VDP NA. TEMPORARY CRANE 616 MSL 5163FT NE OF RWY 34R (2023-ANM-2030-NRA).
2404192002-2604102002EST
4/19/242002Z !FDC 4/3197 SEA IAP SEATTLE-TACOMA INTL, SEATTLE, WA.
ILS OR LOC RWY 34C, AMDT 3E...
S-ILS 34C DA 660/HAT 273 ALL CATS. VDP NA. TEMPORARY CRANE 616 MSL 5163FT NE OF RWY 34R (2023-ANM-2030-NRA).
2404192002-2604102002EST
4/19/242002Z !FDC 4/3195 SEA IAP SEATTLE-TACOMA INTL, SEATTLE, WA.
ILS RWY 34C (SA CAT I AND II), AMDT 3E ...
PROCEDURE NA. TEMPORARY CRANE 616 MSL 5163FT NE OF RWY 34R (2023-ANM-2030-NRA). 2404192002-2604102002EST
4/19/242002Z !FDC 4/3194 SEA IAP SEATTLE-TACOMA INTL, SEATTLE, WA.
RNAV (GPS) Y RWY 34C, AMDT 2D...
LPV DA 660/HAT 273 ALL CATS. VDP NA. TEMPORARY CRANE 616 MSL 5163FT NE OF RWY 34R (2023-ANM-2030-NRA).
2404192002-2604102002EST
4/19/242002Z !FDC 4/3193 SEA IAP SEATTLE-TACOMA INTL, SEATTLE, WA.
ILS OR LOC RWY 34R, AMDT 3...
S-LOC 34R MDA 800/HAT 428 ALL CATS, VIS CAT C/D RVR 4000. SIDESTEP 34C MDA 800/HAT 413 ALL CATS. VDP NA. TEMPORARY CRANE 616 MSL 5163FT NE OF RWY 34R (2023-ANM-2030-NRA).
2404192002-2604102002EST
4/19/242002Z !FDC 4/3189 SEA IAP SEATTLE-TACOMA INTL, SEATTLE, WA.
ILS RWY 34R (SA CAT I AND II), AMDT 3 ...
S-ILS 34R SA CAT I VIS ALL CATS RVR 1800. S-ILS 34R SA CAT II VIS ALL CATS RVR 1800. TEMPORARY CRANE 616 MSL 5163FT NE OF RWY 34R (2023-ANM-2030-NRA). 2404192002-2604102002EST
4/12/242052Z !FDC 4/0462 SEA IAP SEATTLE-TACOMA INTL, SEATTLE, WA.
ILS RWY 16L (CAT II - III), AMDT 8A ...
S-ILS 16L CAT II VISIBILITY ALL CATS RVR 1600. S-ILS 16L CAT III MINIMUMS NA. TEMPORARY CRANE 616 MSL 1.2NM SE OF RWY 16L (2023-ANM-2030-NRA). 2404122052-2411222052EST
8/5/221359Z !FDC 2/4897 SEA IAP SEATTLE-TACOMA INTL, SEATTLE, WA.
ILS OR LOC RWY 34C, AMDT 3E...
CHANGE EQUIPMENT NOTE TO READ: DME REQUIRED. DISREGARD RADAR DESCRIPTION FOR RYBKA STEPDOWN AND UFMOP MISSED APPROACH FIX.
2208051359-2408051359EST
Yes
ALL
PORT OF SEATTLE
BOX 1209
SEATTLE, WA 98111
Phone: 206-787-3000
LANCE LYTTLE
BOX 68727
SEATTLE, WA 98168
Phone: (206) 787-5229
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
SEA
Sunset to Sunrise
--
N/A
Yes - Lighted
No
Yes
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
3
0
0
0
None
None
None
None
Air Freight
Cargo Handling
Charter Service

Runway 16C/34C

9426 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,111,000lbs
  Runway 16C Runway 34C
True Heading 180°0°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 27' 50"N 47° 26' 17"N
Longitude 122° 18' 40"W 122° 18' 40"W
Elevation 429' 363'
Threshold Crossing Height 71 ft. AGL 73 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 16L/34R

11901 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 16L Runway 34R
True Heading 180°0°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 27' 50"N 47° 25' 52"N
Longitude 122° 18' 28"W 122° 18' 29"W
Elevation 432' 347'
Threshold Crossing Height 76 ft. AGL 81 ft. AGL
Visual Glide Path Angle 3° 2.75°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 16R/34L

8500 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH

120,000lbs
250,000lbs
482,000lbs
1,007,000lbs
  Runway 16R Runway 34L
True Heading 180°0°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 27' 50"N 47° 26' 26"N
Longitude 122° 19' 04"W 122° 19' 05"W
Elevation 415' 356'
Threshold Crossing Height 69 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-1BIRD FLOCKS WITHIN ARPT VCNTY - CHECK LCL ADZYS.
A110-10(E94) WSO/WSFO.
A110-11TWY A SOUTH OF TWY G RSTD TO ACFT WITH WINGSPAN 225 FT OR LESS.
A110-14DO NOT MISTAKE TWY T FOR LNDG SFC.
A110-15ACES TO AIR CARGO 4 PRKG AND CARGO AREAS RSTD TO ACFT WITH WINGSPAN 170 FT OR LESS.
A110-16TWY FOR CORPORATE HNGR RAMP RSTD TO ACFT WITH WINGSPAN 62 FT OR LESS FOR TAXI OPS. GA CUST PKNG IS VERY LTD.
A110-18ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
A110-21PPR FOR ALL GA PRKG & SVCS, CTC 206-433-5481. OP HRS 0530L - 2100L, WITH A CALL OUT AVBL UPON REQ.
A110-22TAXILANE W RSTD TO ACFT WITH WINGSPAN 135 FT OR LESS N OF TWY N AND 167 FT OR LESS SOUTH OF TWY N. SEATTLE RAMP TWR PRVDS ADZY CTL ONLY.
A110-24GA LANDING FEES PAYABLE BY MAJOR CREDIT CARDS ONLY.
A110-25TAXILANE ON N SIDE OF N STLT RSTD TO ACFT WITH WINGSPAN 118 FT OR LESS. TRI-TAXILANES AT N STLT: CNTR (GREEN) TAXILANE RSTD TO ACFT WITH WINGSPAN 135 FT OR LESS. WHEN AN ACFT IS ON THE CNTR (GREEN) OR OTR (ORANGE/BLUE) TAXILANES, NO OTR ACFT CAN SIMUL USE THE ADJ TAXILANE(S). ORANGE & BLUE TAXILANES ARE RSTD TO ACFT WITH WINGSPAN 118 FT OR LESS. TWO ACFT CAN SIMUL USE THE OUTER TAXILANES.
A110-26RY STATUS LGTS ARE IN OPN.
A110-27ACFT WITH WINGSPANS OF 171 FT. OR MORE PARKED AT PAX GATES OR CARGO 7 MUST PROVIDE 30 MIN PPR PRIOR TO PUSHBACK TO SEATTLE RAMP TWR WHEN VSBY LESS THAN 2400 RVR
A110-28TWYS J & H E OF TWY T RSTD TO ACFT WITH WINGSPAN 167 FT OR LESS.
A110-29RWY 16L/34R RSTD TO ACFT WITH WINGSPAN 260 FT OR LESS.
A110-3FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.
A110-30TWY H E OF RWY 16L/34R RSTD TO ACFT WITH WINGSPAN 118 FT OR LESS WHEN EXITING RWY 16L/34R.
A110-31TWY B S OF TWY Q RSTD TO ACFT WITH WINGSPAN 260 FT OR LESS.
A110-32TWY B SOUTH OF AIR CARGO 7 RAMP RSTD TO ACFT WITH WINGSPAN 260 FT OR LESS.
A110-33AIR CARGO 5 RAMP DUAL ENG TAX ONLY
A110-34100LL FUEL NOT AVBL.
A110-35THE USE OF REVERSE THRUST BYD WHAT IS NEC FOR OPNL OR SAFETY RSNS IS DISCOURAGED AT ALL TIMES. NOISE ABATEMENT FLT PROCS IN EFCT BTN 2200-0600. FOR FURTHER INFO CTC SEA NOISE ABATEMENT OFC AT 206-787-5393.
A110-36CONS TAXI TO TKOFS AT SEA. WHEN PRACTICAL, SAFE AND AVBL, CONS TAXI TO TKOFS ARE ENCOURAGED. CONS TAXI TO TKOFS MAY RDC ACFT NOISE WI NEARBY COMMUNITIES.
A110-37RPRT BIRD STRIKES TO 206-787-7233
A110-8HELICOPTERS LANDING & DEPARTING AVOID OVERFLYING FUEL FARM LCTD AT THE SE CORNER OF THE ARPT.
A110-9(E110) CONTINUOUS POWER ARPT.
SEATTLE-TACOMA INTL (ICAO: KSEA, IATA: SEA) is a public airport located in SEATTLE, WA.
