iFlightPlanner



...

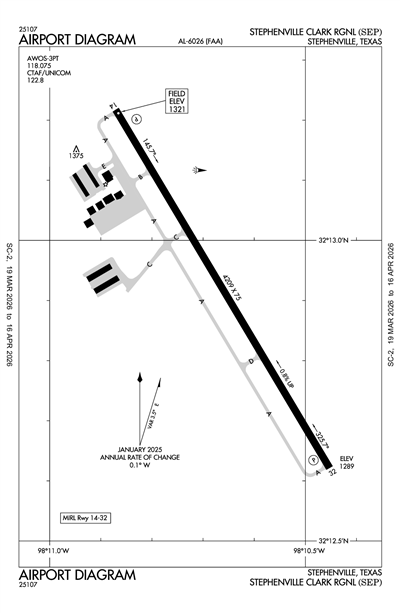

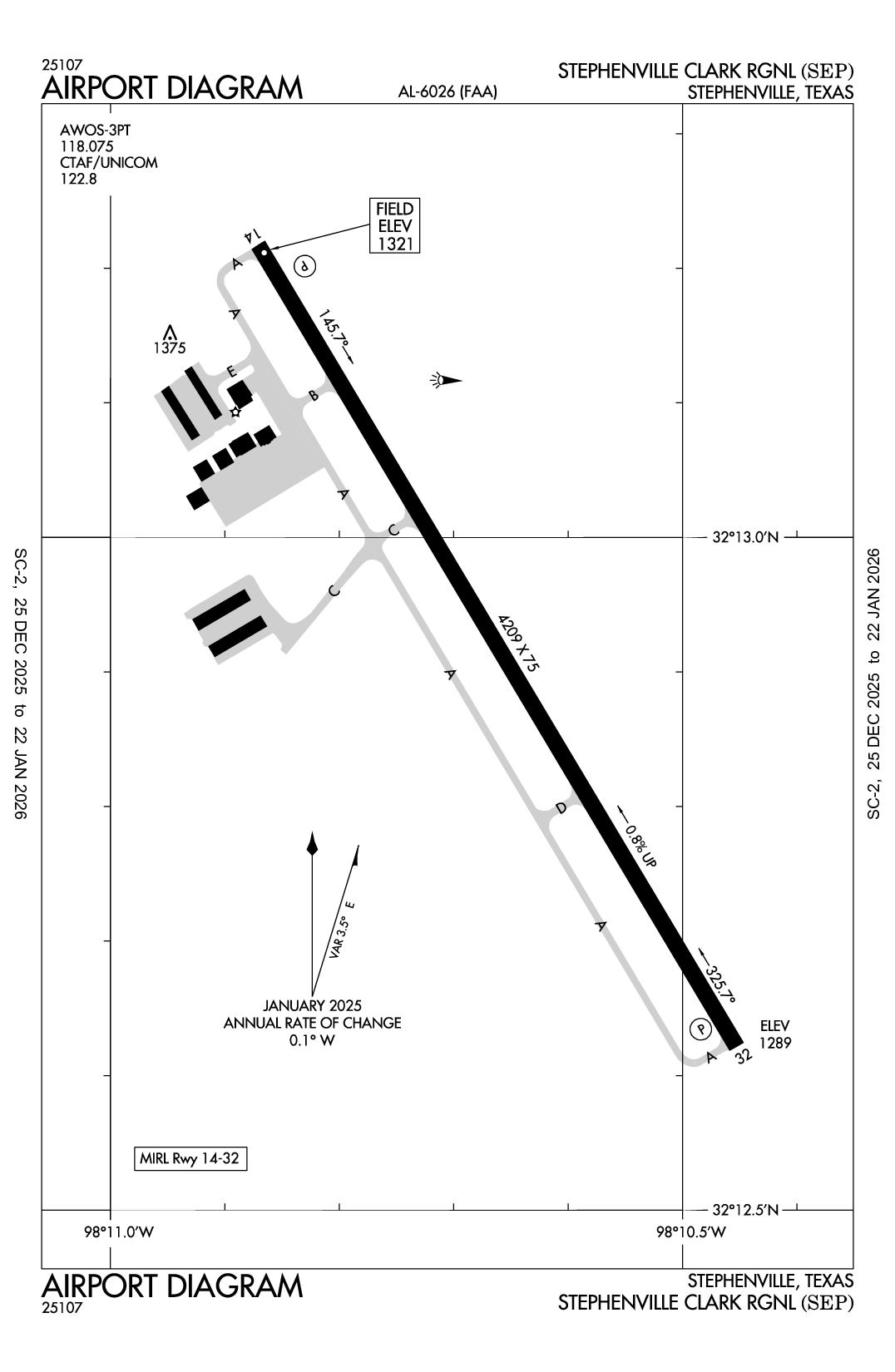

STEPHENVILLE CLARK RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSEP
STEPHENVILLE CLARK RGNL
PublicPUB

1 miles E of STEPHENVILLE, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 12' 55"N 98° 10' 40"W
1321' MSL
2321' MSL
07E
JET A (FSII), 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KSEP VFR
9:35 PM CDT
Clear
10sm
73°F
66°F
29.96"Hg
130° 4kts
AO2 T02300190
KSEP 010235Z AUTO 13004KT 10SM CLR 23/19 A2996 RMK AO2 T02300190
Add Your Business

KSEP FBOs

Promote Listing
Stephenville Aviation
UNICOM: 122.8
Phone: (254) 965-2795
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.40 5.00
Full Serve 5.50
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
254-965-8672
 118.075

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KNFW (51nm)
Fri, 5/31 5:54 PM CDT
Fri, 5/31 6:00 PM CDT - Sat, 6/1 6:00 PM CDT
VFR
6:00 PM CDT - 4:00 AM CDT
Few 25,000'
Few 4,000'
6sm
29.85"Hg
360° 6kts
MVFR
4:00 AM CDT - 10:00 AM CDT
Broken 2,000'
6sm
29.91"Hg
VRB° 4kts
VFR
10:00 AM CDT - 5:00 PM CDT
Few 4,000'
6sm
29.88"Hg
110° 6kts
VFR
5:00 PM CDT - 6:00 PM CDT
Thunderstorm in vicinity
Scattered 25,000'
Few 3,000'
6sm
29.85"Hg
120° 6kts
TAF KNFW 3123/0123 36006KT 9999 FEW040 FEW250 QNH2985INS
   FM010900 VRB04KT 9999 BKN020 QNH2992INS
   FM011500 11006KT 9999 FEW040 QNH2987INS
   FM012200 12006KT 9999 VCTS FEW030CB SCT250 QNH2986INS AUTOMATED SENSOR METWATCH 0104 TIL 0111 TX31/0122Z TN18/0111Z FN20048
KSEP
Domestic
5/26/242204Z !SEP 05/009 SEP OBST TOWER LGT (ASR 1046236) 320725.00N0975849.00W (11.5NM ESE SEP) 1871.1FT (496.1FT AGL) U/S 2405262204-2409232204
5/25/240622Z !SEP 05/008 SEP OBST TOWER LGT (ASN 2020-ASW-5822-OE) 321546N0980830W (3.4NM NNE SEP) 1625FT (289FT AGL) U/S 2405250622-2407090621
5/19/240225Z !SEP 05/003 SEP OBST TOWER LGT (ASR 1212965) 322046.40N0980213.10W (10.6NM NE SEP) 1205.4FT (255.9FT AGL) U/S 2405190225-2408160400
4/20/242000Z !SEP 04/008 SEP OBST TOWER LGT (ASN 2018-ASW-4084-OE) 320729N0975816W (11.8NM ESE SEP) 1719FT (499FT AGL) U/S 2404202000-2406041959
2/5/241200Z !SEP 02/001 SEP OBST CRANE (ASN 2023-ASW-16787-OE) 321247N0981320W (2.3NM W SEP) 1596FT (250FT AGL) FLAGGED AND LGTD 2402051200-2410010459
FDC
6/20/231316Z !FDC 3/2964 SEP IAP STEPHENVILLE CLARK RGNL, STEPHENVILLE, TX.
RNAV (GPS) RWY 32, ORIG-B...
DESCENT ANGLE/TCH NA . VISUAL SEGMENT - OBSTACLES.
2306201316-2506201316EST
No
MON-FRI 0800-1700
SAT 0900-1330
CITY OF STEPHENVILLE
298 W. WASHINGTON ST
STEPHENVILLE, TX 76401
Phone: 254-918-1294
SEAN CLEMMONS
1050 AIRPORT ROAD
STEPHENVILLE, TX 76401
Phone: 254-552-1224
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
SEP
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
35
3
3
0
0
0
Major
Major
None
None
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 14/32

4209 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 14 Runway 32
True Heading 149°329°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 13' 13"N 32° 12' 37"N
Longitude 98° 10' 52"W 98° 10' 27"W
Elevation 1,321' 1,289'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-2SKYDIVING AND PARACHUTE ACTVTY ON AND INVOF ARPT.
A110-3PRKG AT SELF-SVC FUEL PUMPS FOR RFLG ACFT ONLY. PRKG UNATNDD ACFT AT SELF-SVC FUEL PUMPS IS PROHIBITED.
STEPHENVILLE CLARK RGNL (ICAO: KSEP, IATA: SEP) is a public airport located in STEPHENVILLE, TX.
