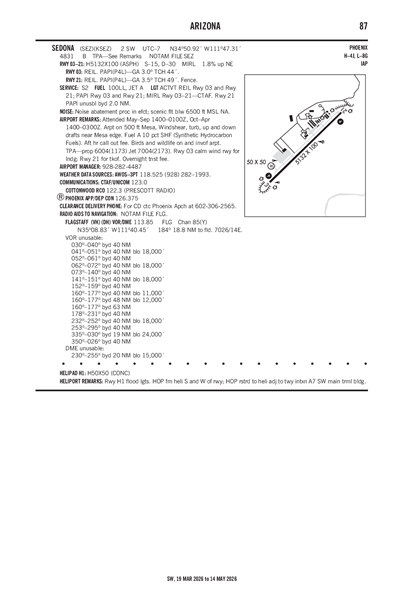

SEDONA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSEZ
SEDONA
PublicPUB

2 miles SW of SEDONA, AZ
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 50' 55"N 111° 47' 18"W
4830' MSL
5830' MSL
13E
JET A, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
11/28/24-12/26/24
KSEZ VFR
4:55 AM MST
Few 9,500'
10sm
50°F
25°F
30.16"Hg
050° 4kts
AO2
KSEZ 231155Z AUTO 05004KT 10SM FEW095 10/M04 A3016 RMK AO2

KSEZ FBOs

Red Rock Aviation
UNICOM: 123.0
Phone: (928) 282-1046
Other: (928) 282-4487
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/17
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.51 6.47 6.55
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
928-282-1993
118.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSEZ
Mon, 12/23 4:20 AM MST
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 8:00 AM MST
Broken 12,000'
6sm
040° 7kts
VFR
8:00 AM MST - 8:00 PM MST
Scattered 20,000'
Scattered 11,000'
6sm
VRB° 5kts
VFR
8:00 PM MST - 2:00 AM MST
Few 20,000'
6sm
040° 7kts
VFR
2:00 AM MST - 5:00 AM MST
Few 25,000'
6sm
050° 11kts
Gusts 18kts
KSEZ 231120Z 2312/2412 04007KT P6SM BKN120
   FM231500 VRB05KT P6SM SCT110 SCT200
   FM240300 04007KT P6SM FEW200
   FM240900 05011G18KT P6SM FEW250
KSEZ
No NOTAM Available
No
MAY-SEP 0700-1800
OCT-APR 0700-1700
YAVAPAI COUNTY
1015 FAIR ST.
PRESCOTT, AZ 86305
Phone: (928) 771-3200
EDWARD A. ROSE
235 AIR TERMINAL DRIVE
SEDONA, AZ 86336
Phone: 928-282-4487
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
SEZ
--
ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Charter Service

Runway 03/21

5132 ft. x 100 ft.
ASPH
Good
NONE
MED

15,000lbs
30,000lbs
--
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 34° 50' 37"N 34° 51' 13"N
Longitude 111° 47' 40"W 111° 46' 56"W
Elevation 4,736' 4,830'
Threshold Crossing Height 44 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway H1

50 ft. x 50 ft.
CONC
Good
NONE
FLD

--
--
--
--
  Runway H1 Runway
True Heading 77°257°
Traffic Pattern
Markings
Markings Condition
Latitude 34° 50' 49"N N/A
Longitude 111° 47' 33"W N/A
Elevation 4,757' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ARPT ON 500 FT MESA.
A110-11TURB & WILDLIFE ON & INVOF ARPT.
A110-12FOR CD CTC PHOENIX APCH AT 602-306-2565.
A110-4LNDG FEE FOR TURBINE ACFT WO FUEL PURCHASE. OVERNIGHT TSNT FEE.
A110-5HOP FM HELI S & W OF RWY; HOP RSTRD TO HELI ADJ TO TWY INTXN A7 SW MAIN TRML BLDG.
A110-6NOISE ABATEMENT PROC IN EFCT; SCENIC FLT BLW 6500 FT MSL NA.
SEDONA (ICAO: KSEZ, IATA: SEZ) is a public airport located in SEDONA, AZ.
